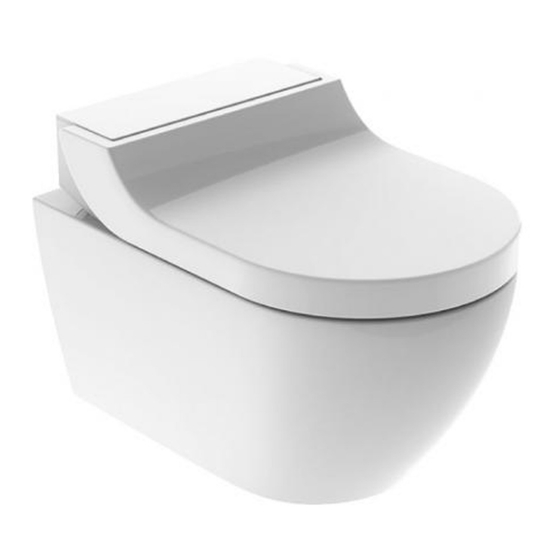

Geberit AQUACLEAN TUMA CLASSIC User Manual
  1. Manuals
  2. Brands
  3. Geberit Manuals
  4. Toilets
  5. AQUACLEAN TUMA CLASSIC
  6. User manual

Geberit AQUACLEAN TUMA CLASSIC User Manual

Hide thumbs Also See for AQUACLEAN TUMA CLASSIC:
Table of Contents

Advertisement

Quick Links

GEBERIT AQUACLEAN TUMA
CLASSIC
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUACLEAN TUMA CLASSIC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Geberit AQUACLEAN TUMA CLASSIC

Summary of Contents for Geberit AQUACLEAN TUMA CLASSIC

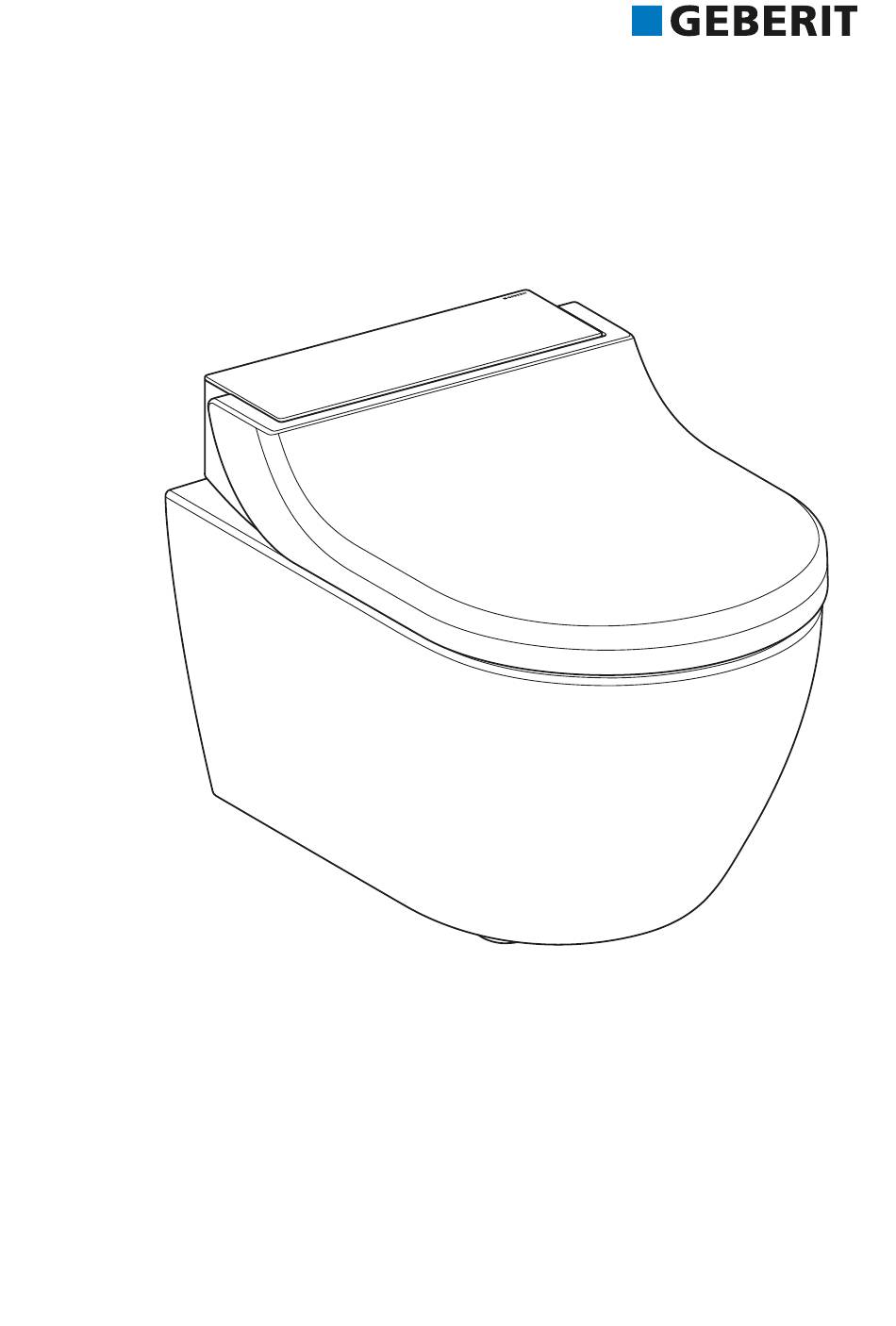

  • Page 1 GEBERIT AQUACLEAN TUMA CLASSIC USER MANUAL...

  • Page 3: Table Of Contents

    Using the anal shower....................Adjusting the shower procedure to your personal needs ........... Setting the spray intensity ....................Saving a personal user profile in the Geberit Home App ..........Cleaning and descaling the device ................Care instructions ......................General cleaning recommendations................
  • Page 4 Troubleshooting ....................... Troubleshooting......................The shower toilet is without function ................Other functional errors....................Sustainability ........................Geberit Group and sustainability ..................Ecodesign – ecobalance ....................Tips for reducing the ecological footprint................ Disposal ..........................Disposal of old electrical and electronic equipment ............

  • Page 5: For Your Safety

    For your safety Who is this product suitable for? As a functioning toilet, the Geberit AquaClean shower toilet is suitable for all age groups. However, children must not carry out cleaning or maintenance work without supervision. How is this product used?

  • Page 6: General Safety Notes

    Geberit AquaClean has been removed (e.g. if you move house). • The Geberit AquaClean must only be connected to a mains voltage conforming to the specification plate. • Observe the manufacturer information at all times regarding the use of cleaning and descaling agents.

  • Page 7: Explanation Of Warning Notes

    They provide warnings on specific hazards. These instructions correspond to the state of the device technology at the time of printing. Geberit reserves the right to make changes in terms of further development. A current version of this and other documents is available online: www.geberit.com.

  • Page 8: Overview Of Symbols On The Product

    The following signal words are used to indicate residual hazards in warning notes and important information. Symbol Signal word and meaning DANGER The signal word denotes a hazard with a high degree of risk which, if not avoided, will result in death or serious injury.

  • Page 9: Register Your Device

    90 working days from the installation date. In the third year of the warranty period, Geberit shall supply spare parts free of charge in the event of any material or manufacturing faults, provided the product has been installed and put into operation by an installation company.

  • Page 10: Getting To Know Your Device

    Getting to know your device About Geberit AquaClean devices The Geberit AquaClean device is a WC with integrated shower function. The device fulfils all the functions of a conventional toilet. Additional functions are subject to the design of your product.

  • Page 11: The Device At A Glance

    The device at a glance WC lid WC seat ring Lateral control panel with status LED Spray arm with spray nozzle Spray shield Geberit AquaClean descaling agent (art. no. 147.040.00.1) 63050396662377483 © 03-2021 967.212.00.0(03)

  • Page 12: Operating Concept

    Design cover Operating concept About the operating concept The shower toilet can be operated via the lateral control panel or the Geberit Home app. Lateral control panel The shower toilet functions of the device can be operated from the lateral control panel.

  • Page 13: Status Led On The Lateral Control Panel

    Status LED on the lateral control panel The status LED on the lateral control panel informs you of the current device status. Description The device initialises after switching on. A system flush is Flashes blue performed. Lights up blue The heating element is switched on. Does not light up The heating element is switched off.

  • Page 14: Switching The Device On And Off

    Switching the device Remove the design cover. on and off Wait at least 30 seconds between the switch-off and switch-on procedures. Lift the WC lid. Press the power switch. Remove the WC lid. ✓ The status LED on the lateral control panel flashes/goes out. 63050396662377483 ©...
  • Page 15 Mount the design cover. Close the WC lid. Mount the WC lid. Result ✓ The device initialises again after switching 63050396662377483 © 03-2021 967.212.00.0(03)

  • Page 16: Geberit App

    Geberit App Checking compatibility To ensure you can use the Geberit App to its full extent, you will require a smartphone with: • Android version 6.0 (or higher), or • iOS version 11.0 (or higher). If the Geberit App still does not work despite meeting the prerequisites specified above, please check the permissions (Bluetooth®, location) and confirm these again if...

  • Page 17: Using The Geberit Home App

    – playing function videos – playing maintenance and cleaning videos • troubleshooting – displaying error messages • user manual – displaying the user manual All settings can be saved in the Geberit Home App as presettings and transferred to other devices. 63050396662377483 © 03-2021 967.212.00.0(03)

  • Page 18: How To Use The Device

    Adjustment Factory setting of range basic profile Spray intensity of the anal shower level 1–5 level 3 Additional device settings in the Geberit App Setting Adjustment Factory setting of range basic profile Spray arm position of the anal shower level 1–5...

  • Page 19: Using The Anal Shower

    Using the anal shower Prerequisite – You are sitting down on the WC seat ring. ▶ Briefly press the <Shower> button on the lateral control panel. Result ✓ The shower procedure starts. ✓ The anal shower starts in oscillating function. A small amount of water drains into the WC ceramic appliance via the overflow.

  • Page 20: Adjusting The Shower Procedure To Your Personal Needs

    Adjusting the shower Saving a personal user profile in the Geberit Home App procedure to your Prerequisite personal needs – The current version of the Geberit Home App is installed on your Setting the spray intensity smartphone. – The Geberit Home App is running.

  • Page 21: Cleaning And Descaling The Device

    ▶ Remove water drops with a soft, lint-free cloth to avoid Daily limescale stains. ▶ Clean the WC ceramic appliance with Geberit AquaClean cleaning agent. → See "Care instructions for sanitary ceramic appliances", page 24. ▶ Clean all surfaces and corners thoroughly. → See "Cleaning Weekly the WC lid, WC seat ring and housing", page 26.

  • Page 22: Targeted Disinfection

    Suitable cleaning agents and cleaning equipment ATTENTION Aggressive descaling agents Unsuitable descaling agents may cause damage to the device. ▶ Only use Geberit AquaClean descaling agents to descale the device. ▶ Refer to the “Descaling the device” section. ATTENTION Aggressive and scouring cleaning agents Cleaning using aggressive and scouring cleaning agents can cause surface damage.
  • Page 23 Using the Geberit AquaClean cleaning set is recommended, as this set includes a ready-made cleaning agent that is ideal for cleaning all Geberit AquaClean surfaces. Recommended properties of suitable cleaning agents and cleaning equipment for best cleaning results: Symbol Properties of suitable cleaning agents Skin-friendly Cleaning agents are permitted to have a low acid content, e.g.

  • Page 24: Care Instructions For Smooth Surfaces

    Aggressive and scouring cleaning agents can damage the surface. Only use mild, liquid cleaning agents that are kind to the skin. The Geberit AquaClean cleaning set (art. no. 242.547.00.1) includes a ready-made cleaning agent that is optimal for cleaning all Geberit AquaClean surfaces.

  • Page 25: Cleaning Between The Device And The Wc Ceramic Appliance

    Cleaning between the device Lift the device as far as the removal and the limiter permits. Clean the gap between the shower toilet and WC ceramic appliance ceramic sanitary appliance. WARNING Mount the device on the base plate. Ensure that it is safely engaged. Danger of fatal electric shock Water can flow into the device when it is moved without a...

  • Page 26: Removing The Wc Lid

    Be careful not to scratch the surface of the WC seat. Always place the components on a soft, non- scratching underlay. Spray the surfaces with Geberit AquaClean cleaning agent. Wipe the surfaces with a soft, lint-free, damp cloth. Open the WC lid.

  • Page 27: Cleaning The Spray Nozzle

    Cleaning the spray nozzle Remove the design cover for complete cleaning. • For cleaning, use a soft, lint-free cloth. • Geberit AquaClean cleaning agent is particularly suitable for all surfaces of the device. Lift up the WC lid and the WC seat ring.
  • Page 28 Spray the spray arm with Geberit AquaClean cleaning agent. Then rinse it thoroughly with warm water. Dry the spray nozzle carefully. Mount the spray nozzle. Press the <Shower> button. ✓ The spray arm retracts fully. The cleaning procedure is now complete.

  • Page 29: Descaling The Device

    Remove the design cover. ATTENTION Aggressive descaling agents Unsuitable descaling agents may cause damage to the device. ▶ Only use Geberit AquaClean descaling agents to descale the device. ▶ Refer to the “Descaling the device” section. • You will need to descale the...
  • Page 30 After around 15 seconds, the status LED on the lateral control panel flashes orange and red at the same time. Pour the remainder of the Geberit AquaClean descaling agent into the device. Press the <Shower> button. Re-insert the plug.

  • Page 31: Device Descaling Message

    Device descaling message The device can be configured for the local water hardness in accordance with the following table via the Geberit Home App. This adaptation prevents unnecessary descaling procedures and helps protect the environment. Nevertheless, regular descaling of the device is required.

  • Page 32: Troubleshooting

    Troubleshooting Troubleshooting The table below explains what you need to do in the event of a fault: • Carry out the steps one after the other until the device is no longer demonstrating any faults or is working as normal again. •...

  • Page 33: The Shower Toilet Is Without Function

    The shower toilet is without function The following table will help you with troubleshooting if the shower toilet is without function. DANGER Electric shock Incorrect maintenance work or troubleshooting can lead to serious injury or death. ▶ In case of malfunctions, the device must immediately be switched off at the power switch and the customer service must be contacted.

  • Page 34: Other Functional Errors

    Description of problem Cause Fault clearance ▶ Trip the fuse or residual-current device in the electrical distributor. ▶ Disconnect the mains plug (if The product has an Malfunction has available). unknown technical defect. occurred ▶ contact customer service. ▶ Have the power supply tested by a skilled person.
  • Page 35 Description of problem Cause Fault clearance ▶ descale the device. → See "Descaling the device", page 29. ▶ Switch off the device. → See "Switching the device on and When using the shower off", page 14. function, the shower toilet ▶ Wait 30 seconds. Shower toilet dirty no longer reaches the ▶...

  • Page 36: Sustainability

    A company management geared to sustainability helps to save costs while minimizing risks at the same time. Geberit aims to act as a role model and set standards for its customers, suppliers and other partners. This means creating water-saving and sustainable products,...

  • Page 37: Disposal

    The symbol indicates that the product cannot be disposed of with non-recyclable waste. Old equipment should be returned directly to Geberit where it will be disposed of appropriately. Addresses to which equipment can be returned can be requested from the relevant Geberit sales company.

  • Page 38: End User Warranty

    Geberit and contracted by the end user to repair the product. 2. The end user shall not be entitled to assert more extensive claims against Geberit on the basis of this warranty.

  • Page 39: Technical Data And Conformity

    Geberit. Simplified EU Declaration of Conformity Hereby, Geberit International AG, declares that the radio equipment type Geberit AquaClean Tuma is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://doc.geberit.com/969453000.pdf.
  • Page 40 F +33(0)825 801 604 (RS) Geberit - Predstavništvo za www.geberit-aquaclean.fr Republiku Srbiju i Republiku Crnu Goru (AT) Geberit Vertriebs GmbH & Co. KG Vojvode Skopljanca 24 Gebertstrasse 1 (GB) Geberit Sales Ltd. SR-11000 Beograd A-3140 Pottenbrunn / St. Pölten...
