Wiring Diagram

TO R N A D O M I N I
I N S E R T

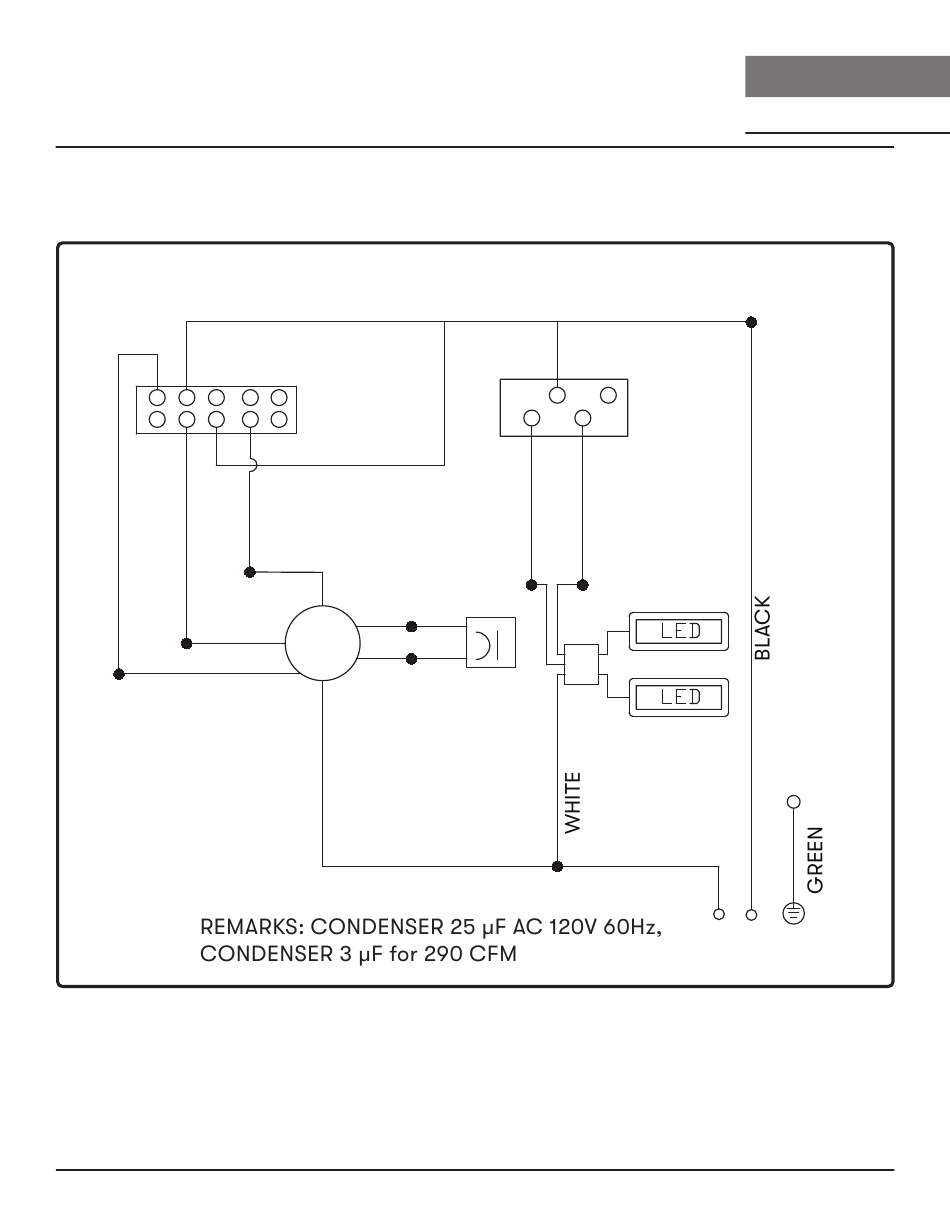

WIRING DIAGRAM
B/W
B/W
B/W
BLACK
RED
GREY
RED
BROWN
MOTOR
BLUE
YELLOW
BODY
WHITE
