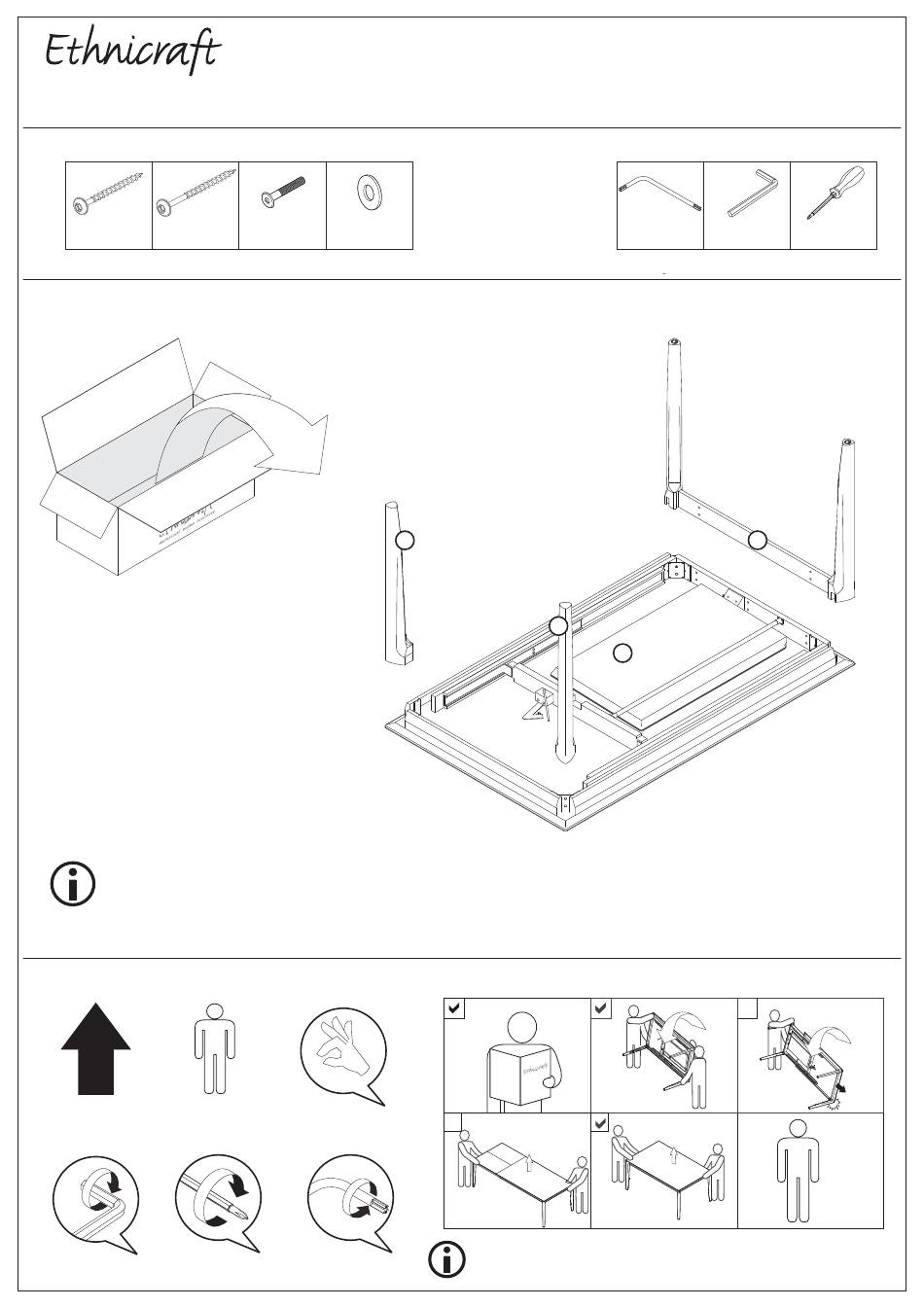

Ethnicraft OAK BOK Assembly Instructions

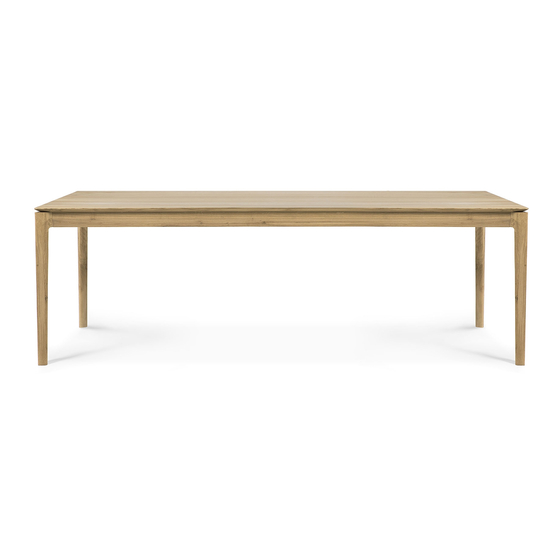

OAK BOK EXTENDABLE DINING TABLE
ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION
HARDWARE ENCLOSED
SPAX SCREW SPAX SCREW
(4 pcs) (4 pcs)
M6x80 M6x120
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTIONS
HARDWARE ( AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. TOP PANEL 1pc
2. LEGS 2pcs
3. LEG 1set
RECOMMENDATION :
In order to avoid colour differences between
the fixed table top and the extensions due to
UV light, we suggest to put your dining table in
extended version during the first month.
SYMBOLS
DIRECTION NUMBER OF
PERSON NEEDED
USE WRENCH USE
TO TIGHTEN SCREWDRIVER
SCREW WASHER
(6 pcs) (8 pcs)
M6x40 M8
2
USE HAND
USE TORX ALLEN
SCREW
2
NOTICE
N
C TIO
ST RU
LY IN
MB
A SE S
X
WHEN LIFTING THE TABLE : WHEN LIFTING THE TABLE :
- LIFT ONLY ON THE APRON - LIFT ONLY ON THE APRON
- MAKE SURE TABLE IS IN UNEXTENDED POSITION - MAKE SURE TABLE IS IN UNEXTENDED POSITION
TOOLS
TORX ALLEN SCREW L KEY
(included in package) (included in package)
3
1
X
1/4
SCREWDRIVER
(not included in package)
X2
