Ethnicraft OAK DOUBLE EXTENDABLE DINING TABLE Assembly Instruction

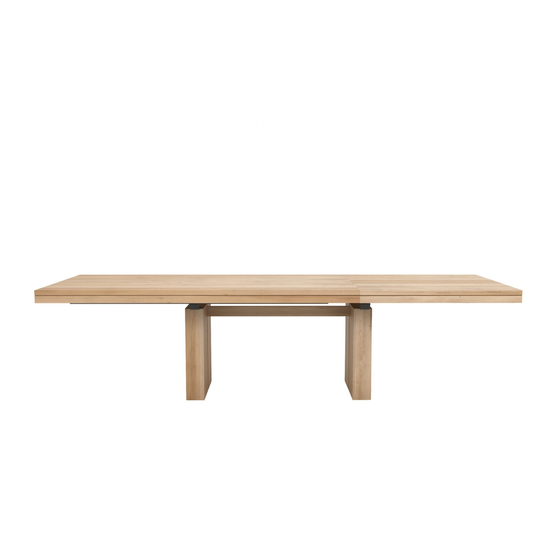

OAK DOUBLE EXTENDABLE DINING TABLE
ASSEMBLY INSTRUCTION FOR DINING TABLE INSTALLATION
HARDWARE
(4X) (4X)
JCBC SCREW JCBC SCREW
Ø 6 x 6cm Ø 6 x 3cm
TOOLS
L KEY SCREWDRIVER
(Included in package) (Not Included in package)
RECOMMENDATION :
In order to avoid colour differences between
the fixed table top and the extensions due to
UV light, we suggest to put your dining table in
extended version during the first month.
SYMBOLS
DIRECTION NUMBER OF
PERSONS NEEDED
USE L KEY USE SCREWDRIVER
LOCK THE TABLE TOP
1
UNLOCK THE TABLE TOP
1
(4X)
WASHER
Ø 6
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTION
HARDWARE ( AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. TOP PANEL 1pc
2. CONNECTING BAR 1pc
3. LEGS 2pcs
USE HAND
2 3
2 3
1
3
NOTICE
X
N
C TIO
ST RU
LY IN
A SE MB
S
X3
WHEN LIFTING THE TABLE : WHEN LIFTING THE TABLE :
- LIFT ONLY ON THE APRON - LIFT ONLY ON THE APRON
- MAKE SURE TABLE IS IN UNEXTENDED POSITION - MAKE SURE TABLE IS IN UNEXTENDED POSITION
2
3
1/5
