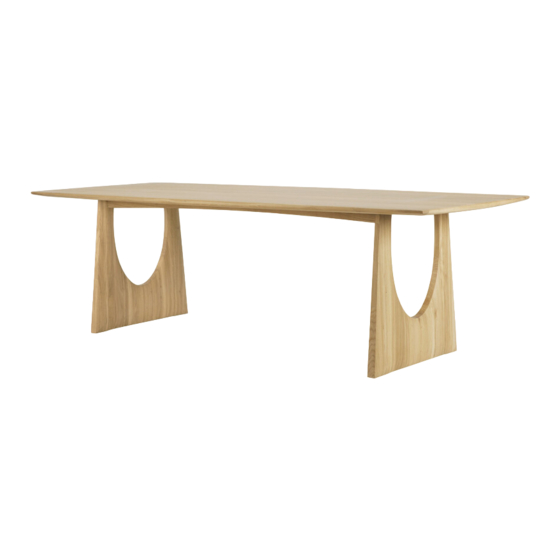

OAK GEOMETRIC DINING TABLE
ASSEMBLY INSTRUCTION FOR
HARDWARE ENCLOSED
SCREW
METAL PLATE
M8x50mm
4pcs
8pcs
SCREW
SCREW
M6x50mm
M6x60mm
10pcs
4pcs
IN YOU PACKAGE :
R
ASSEMBLY INSTRUCTIONS
HARDWARE (AS LISTED ABOVE)
PARTS TO BE INSTALLED
1.
TABLE TOP 1
pc
2.
LEGS 2 s
pc
3. APRONS 2pcs
SYMBOLS
DIRECTION
PERSONS NEEDED
S
DINING TABLE
SCREW
M8x16mm
16pcs
NUMBER OF
INSTALLATION
2
3
USE HAND
TOOLS
L KEY 4
(Included in package)
2
3
1
NOTICE
USE L KEY
TO TIGHTEN
1/4
L KEY 5
(Included in package)
SCREWDRIVER
(Not included in package)
X2
USE SCREWDRIVER
TO TIGHTEN
Advertisement
Table of Contents
Related Manuals for Ethnicraft OAK GEOMETRIC DINING TABLE
Summary of Contents for Ethnicraft OAK GEOMETRIC DINING TABLE
- Page 1 OAK GEOMETRIC DINING TABLE ASSEMBLY INSTRUCTION FOR DINING TABLE INSTALLATION TOOLS HARDWARE ENCLOSED SCREW SCREW METAL PLATE M8x50mm M8x16mm L KEY 4 L KEY 5 4pcs 8pcs 16pcs (Included in package) (Included in package) SCREW SCREW M6x50mm M6x60mm SCREWDRIVER 10pcs...
- Page 2 OAK GEOMETRIC DINING TABLE ASSEMBLY INSTRUCTION FOR DINING TABLE INSTALLATION . INSTALLING METAL PLATE TO THE LEGS WITH SCREWDRIVER TO FIT SCREW INTO THE BARREL NUT - USE METAL PLATE (4X) - USE SCREW M8x50mm (8X) - USE L KEY 5 TO TIGHTEN - TIGHTEN FULLY ALL SCREWS .
- Page 3 OAK GEOMETRIC DINING TABLE ASSEMBLY INSTRUCTION FOR DINING TABLE INSTALLATION . INSTALLING APRON TO THE LEG STEP 1 - APRON HOLES FACING INWARD STEP 2 - USE SCREW M6x60mm (2X) - WITH SCREWDRIVER TO FIT SCREW INTO THE BARREL NUT...
- Page 4 OAK GEOMETRIC DINING TABLE ASSEMBLY INSTRUCTION FOR DINING TABLE INSTALLATION C FIX THE APRON TO THE TABLE TOP - USE SCREW M6x50mm (10X) - USE L KEY 4 TO TIGHTEN - TIGHTEN FULLY D RE-TIGHTEN ALL SCREWS USE L KEY 5 TO TIGHTEN FULLY...
