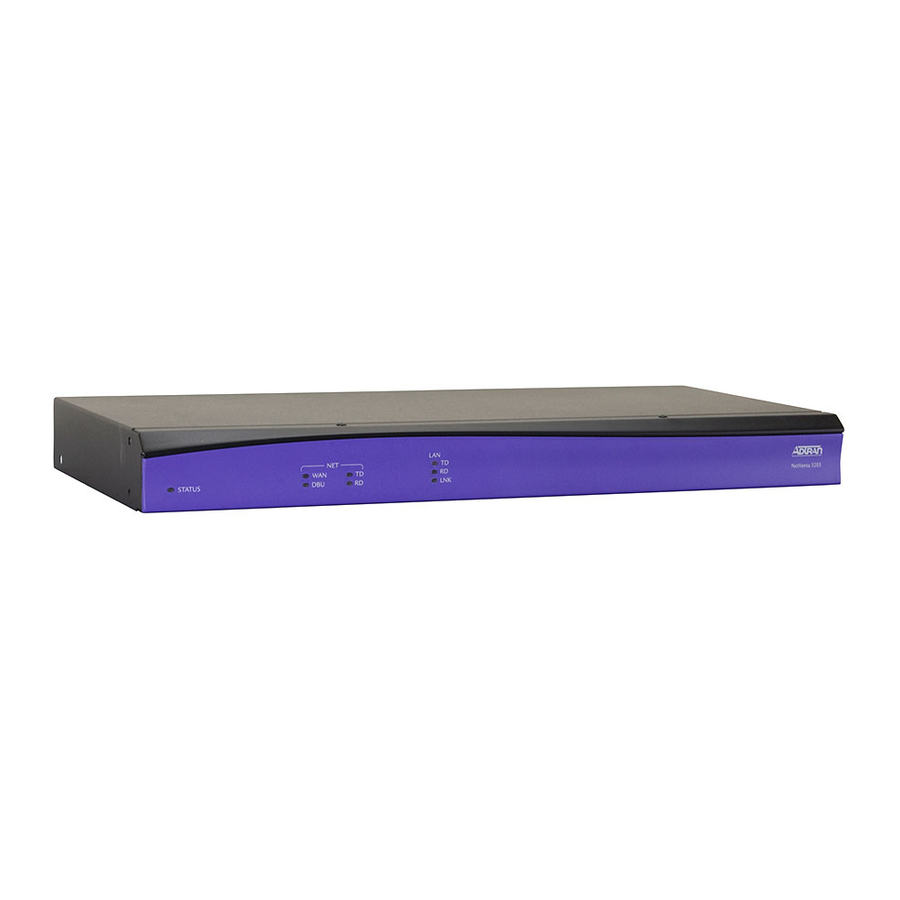

NetVanta
Series
(with E1/FE1 or E1/FE1 + G.703 Drop Network Interface Module)
Quick Configuration Guide
Equipment Required
•
Category 5 - UTP cable for connecting the system to the existing network.
•
VT100 terminal or PC with VT100 emulation software.
•
DB-9 (male) to DB-9 (female) straight-through cable for configuring the unit.
This quick configuration guide provides step-by-step instructions for configuring
your application. The configuration scripts are available on the ADTRAN OS
Documentation CD.
The configuration parameters used in the example outlined in this document are for
instructional purposes only. Please replace all underlined entries (example) with your
specific parameters to configure your application.

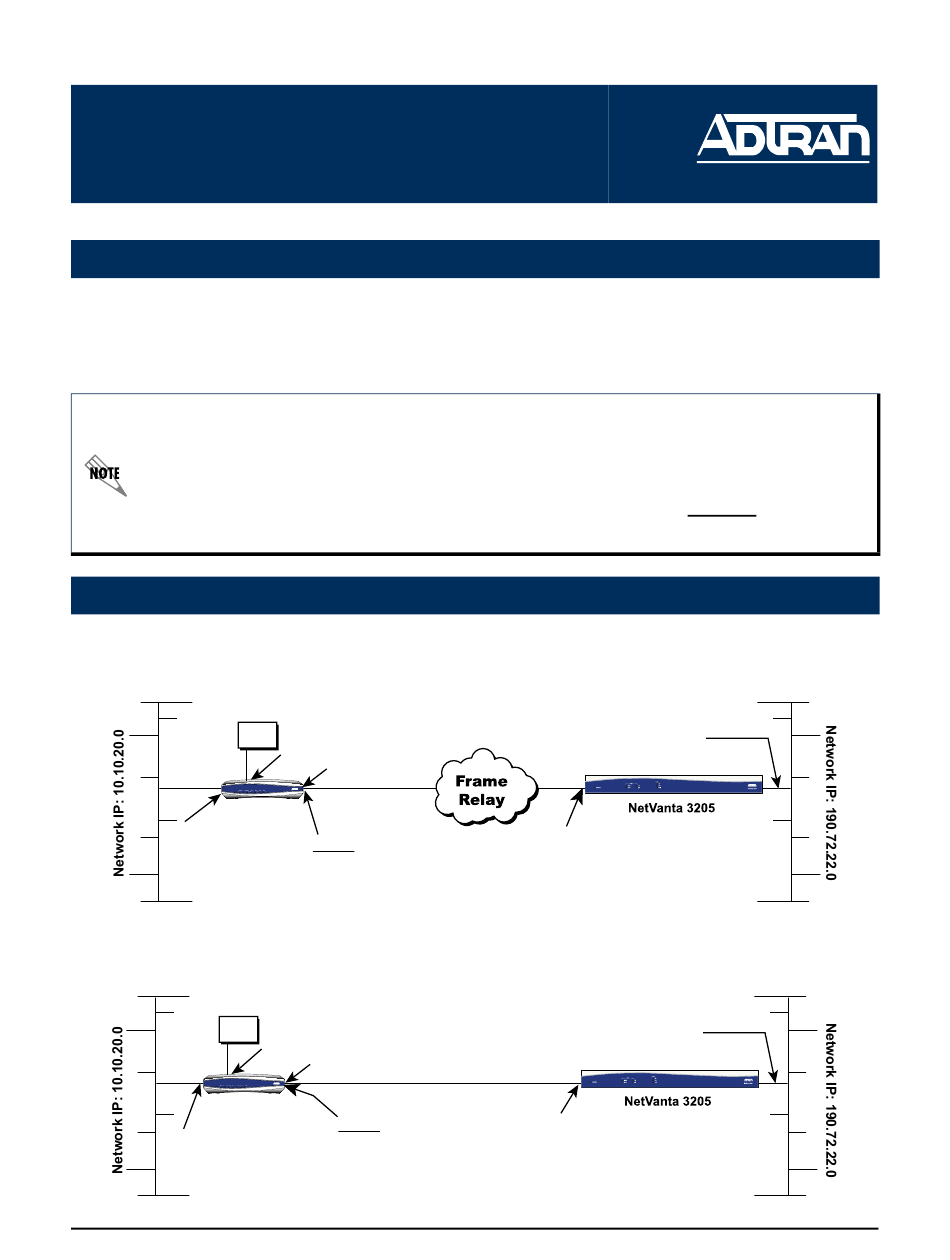

Network Diagrams
Frame Relay Diagram
Branch Office
PBX
VPN
VPN
PWR
PWR
STAT
STAT
TD
TD
RD
RD
NetVanta
eth 0/1
LAN IP: 10.10.20.7 /24
PPP over Fractional E1 Connection Diagram
Branch Office
PBX
VPN
VPN
WAN
WAN
LAN
LAN
PWR
PWR
STAT
STAT
TD
TD
RD
RD
TD
TD
RD
TD
RD
RD
NetVanta
eth 0/1
LAN IP: 10.10.20.7 /24
64200868L1-42C
e1 1/2
e1 1/1
NetVanta 3200
WAN
WAN
LAN
LAN
TD
TD
RD
TD
RD
RD
Timeslots 1-15 Data,
Timeslots 17-31 Voice*
FR 1.x
DLCI 16
Annex D Signaling
192.168.72.1 /30
e1 1/2
e1 1/1
Point-to-Point E1
NetVanta 3200
Timeslots 1-15 Data,
Timeslots 17-31 Voice*
PPP 1
PPP Signaling
192.168.72.1 /30
Technical Support +1-256-963-8716
Corporate HQ
LAN IP: 10.10.10.1 /24
WAN IP: 192.168.72.2 /30
* Voice circuits require timeslot 16 for signaling. If voice is
required on the e1 1/2 G.703 port, the largest data map
which can be configured is timeslots 1 - 15 (leaving 17 - 31
for voice) or 17 - 31 (leaving 1 - 15 for voice).
LAN IP: 10.10.10.1 /24
WAN IP: 192.168.72.2 /30
* Voice circuits require timeslot 16 for signaling. If voice is
required on the e1 1/2 G.703 port, the largest data map which
can be configured is timeslots 1-15 (leaving 17-31 for voice) or
17-31 (leaving 1-15 for voice).
March 2005
Corporate HQ
Advertisement
Table of Contents
Related Manuals for ADTRAN NetVanta Series
Summary of Contents for ADTRAN NetVanta Series
- Page 1 DB-9 (male) to DB-9 (female) straight-through cable for configuring the unit. This quick configuration guide provides step-by-step instructions for configuring your application. The configuration scripts are available on the ADTRAN OS Documentation CD. The configuration parameters used in the example outlined in this document are for instructional purposes only.
- Page 2 NetVanta. You must change the IP address of your PC before you can proceed. ADTRAN recommends that you set the Ethernet speed and duplex to match the switch or hub it is plugged in to. For example:...
- Page 3 The NetVanta Network Interface Modules (NIMs) use a slot/port notation for interface identification. All non-modular interfaces built into the base unit (e.g., the Ethernet port) are identified using 0 as the slot number. Begin the E1 Network Interface Configuration 1. At the (config)# prompt, enter interface e1 1/1 to activate the interface configuration mode for the E1 network interface.
- Page 4 Configure the Virtual PPP Interface Skip to on page 5 for PPP configuration. Configure the G.703 Interface (Optional) 1. Enter interface e1 1/2 to activate the interface configuration mode for the DSX-1 interface. 2. Enter multiframe ts16 to verify the G.703 interface is configured for voice signaling (timeslot 16 used for signaling).
- Page 5 Configure the Virtual PPP Interface The following steps show how to configure a PPP virtual interface (labeled 1) to the corporate router. Skip to Create the Cross-Connect below if you are using Frame Relay. 1. At the (config)# prompt, enter interface ppp 1 to create a PPP virtual interface labeled 1. 2.
- Page 6 2. The internet router at the far side will need a route statement to send traffic back to this network through the NetVanta router. The information (based on the diagram shown at the beginning of this document) is as follows: •...
- Page 7 Configure Telnet Access The following steps show how to access the Telnet configuration parameters and change the password. The default password for initializing a Telnet session is password (all lowercase). For security purposes, change the password to something unique. For this example, replace the underlined word with a password of your choosing.
