NetVanta 2000
Quick Start Guide
About this guide...
Before you begin...
Tools Required
•
Category 5 - UTP cable for connecting the system to the existing network
•
A PC with an internet browser (IE 5.0 or greater) for configuring the unit

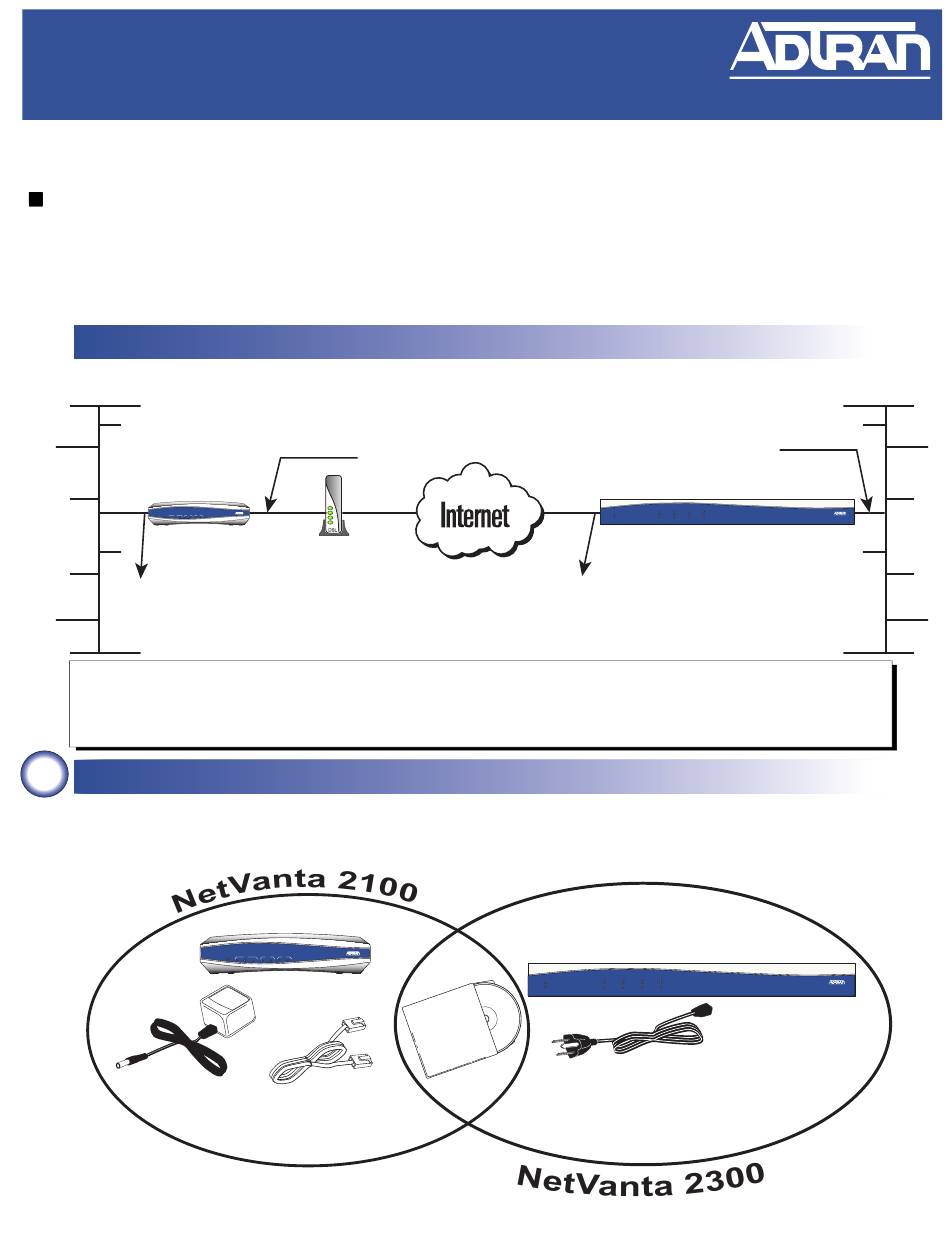

Network Diagram
SoHo
NetVanta 2100
VPN
VPN
WAN
WAN
LAN
LAN
PWR
PWR
STAT
STAT
TD
TD
RD
RD
TD
TD
RD
TD
RD
RD
LAN IP: 10.10.20.7/24
STEPS 2-2f — Provide the stateful inspection firewall configuration.
STEPS 2g-3 — Configures a VPN connection between the NetVanta 2100 at the Corporate office
(for the the above network diagram).
1
Unpacking and Inspecting the System
Each NetVanta 2000 series unit is shipped in its own cardboard shipping carton. Open each carton carefully and
avoid deep penetration into the carton with sharp objects.
Power
Supply
Series
61200361L2-13B
WAN:
Static Addressing
10.200.1.140/16
NetVanta 2100
NetVanta 2100
DSL/
Cable Modem
Unit
NetVanta 2100
NetVanta 2100
VPN
VPN
WAN
WAN
LAN
LAN
PWR
PWR
STAT
STAT
TD
TD
RD
RD
TD
TD
RD
TD
RD
RD
Crossover
Ethernet
Cable
LAN IP: 190.72.22.40/24
WAN: Static Addressing
172.29.50.61/16
VPN
STATUS
POWER
User
Manual
CD
1
CORP HQ
VPN
WAN
LAN
DMZ
TD
TD
TD
TD
STATUS
RD
RD
RD
RD
POWER
ACT
LNK
LNK
LNK
NetVanta 2300
Unit
WAN
LAN
DMZ
TD
TD
TD
TD
RD
RD
RD
RD
ACT
LNK
LNK
LNK
Power
Cable
May 2002
NetVanta 2300
NetVanta 2300

Advertisement

loading
Need help?

Need help?

Do you have a question about the NetVanta 2000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADTRAN NetVanta 2000 Series

Summary of Contents for ADTRAN NetVanta 2000 Series

  • Page 1 STEPS 2g-3 — Configures a VPN connection between the NetVanta 2100 at the Corporate office (for the the above network diagram). Unpacking and Inspecting the System Each NetVanta 2000 series unit is shipped in its own cardboard shipping carton. Open each carton carefully and avoid deep penetration into the carton with sharp objects. Unit...

  • Page 2: Configuring The System

    2. Supply power to the PC and the NetVanta unit and begin the operating system boot up process. During the boot up process, the PC will obtain an IP address from the NetVanta 2000 series DHCP server. Alternately, complete the process for releasing and renewing captured IP addresses to obtain a new IP address from the NetVanta 2000 series DHCP server.
  • Page 3 Configuring the LAN and WAN IP Parameters The NetVanta 2000 series units come factory programmed with a LAN IP address ot 10.10.10.1 (24-bit subnet mask) and no pre-programmed WAN IP address. The procedures outlined in this step include changing both the LAN and WAN IP parameters.
  • Page 4 Click Renew to obtain new IP parameters Configuring the DHCP Server IP Parameters - Optional The NetVanta 2000 series will automatically populate the DHCP IP address range 1 with ten addresses based on your assigned LAN network address. Select CONFIG...

  • Page 5: Adding A Default Route

    Adding a Default Route Skip this step when configuring the NetVanta for dynamic addressing on the WAN interface. Select CONFIG Select Routes Select AddRoute Select WAN to associate this default route with the WAN interface Select Yes to configure this as the default Enter all zeros Enter the next hop IP address This is supplied by your provider...

  • Page 6: Saving The Settings

    Saving the Settings Select ADMIN Select Save Settings Select Yes to Confirm Defining a VPN Policy IKE Policy Configuration Select POLICIES Select VPN Select IKE Click the Add button...
  • Page 7 Select Pre-SharedKey and enter a 12 character alphanumeric string (spaces are not a valid character) This key MUST be the same for both the local and remote units. 1800 is the ADTRAN suggested value When determining the appropriate value for your application, typical usage contains a 3:1 ratio between the IKE and IPSec key lifetime values.
  • Page 8 IPSec Policy Configuration Select POLICIES Select VPN Click the Auto button...
  • Page 9 Select SHA1 to invoke Secure Hash Algorithm No. 1 Select 3DES to use Triple-DES encryption algorithm 600 is the ADTRAN suggested value When determining the appropriate value for your application, typical usage contains a 3:1 ratio between the IKE and IPSec key lifetime values. This ratio provides minimal key negotiation overhead.
  • Page 10 Defining LAN Access Policies To LAN Access Policy Configuration (Inbound Traffic) Select POLICIES Select Access Policies: To LAN (Incoming traffic) Select Beginning to place the new access policy at the beginning of the table Click Submit to begin the policy configuration...
  • Page 11 To LAN Access Policy Configuration (continued) Select OTHER and enter the remote unit's assigned LAN IP address and associated mask bits here Select OTHER and enter the local NetVanta unit's assigned LAN IP address and associated Select ANY to forward all TCP/UDP ports or select OTHER and enter the port (or port range) below Select ALL to forward all data protocols or select OTHER and enter the protocol value (using decimal notation) in the field below Select PERMIT to configure this policy to permit only the specified data...
  • Page 12 From LAN Access Policy Configuration (Outbound Traffic) Select POLICIES Select Access Policies: From LAN Select Beginning to place the new access policy at the beginning of the table Click Submit to begin the policy configuration...
  • Page 13 From LAN Access Policy Configuration (continued) Select OTHER and enter the local NetVanta unit's assigned LAN IP address and associated mask bits here Select OTHER and enter the remote NetVanta unit's assigned LAN IP address and associated mask bits here Select ANY to forward all TCP/UDP ports or select OTHER and enter the port (or port range) below Select ALL to forward all data protocols or select OTHER and enter the protocol value (using decimal nota- tion) in the field below...
  • Page 14 Saving the Settings Select ADMIN Select Save Settings Select Yes to Confirm...
