GatewayNode 2

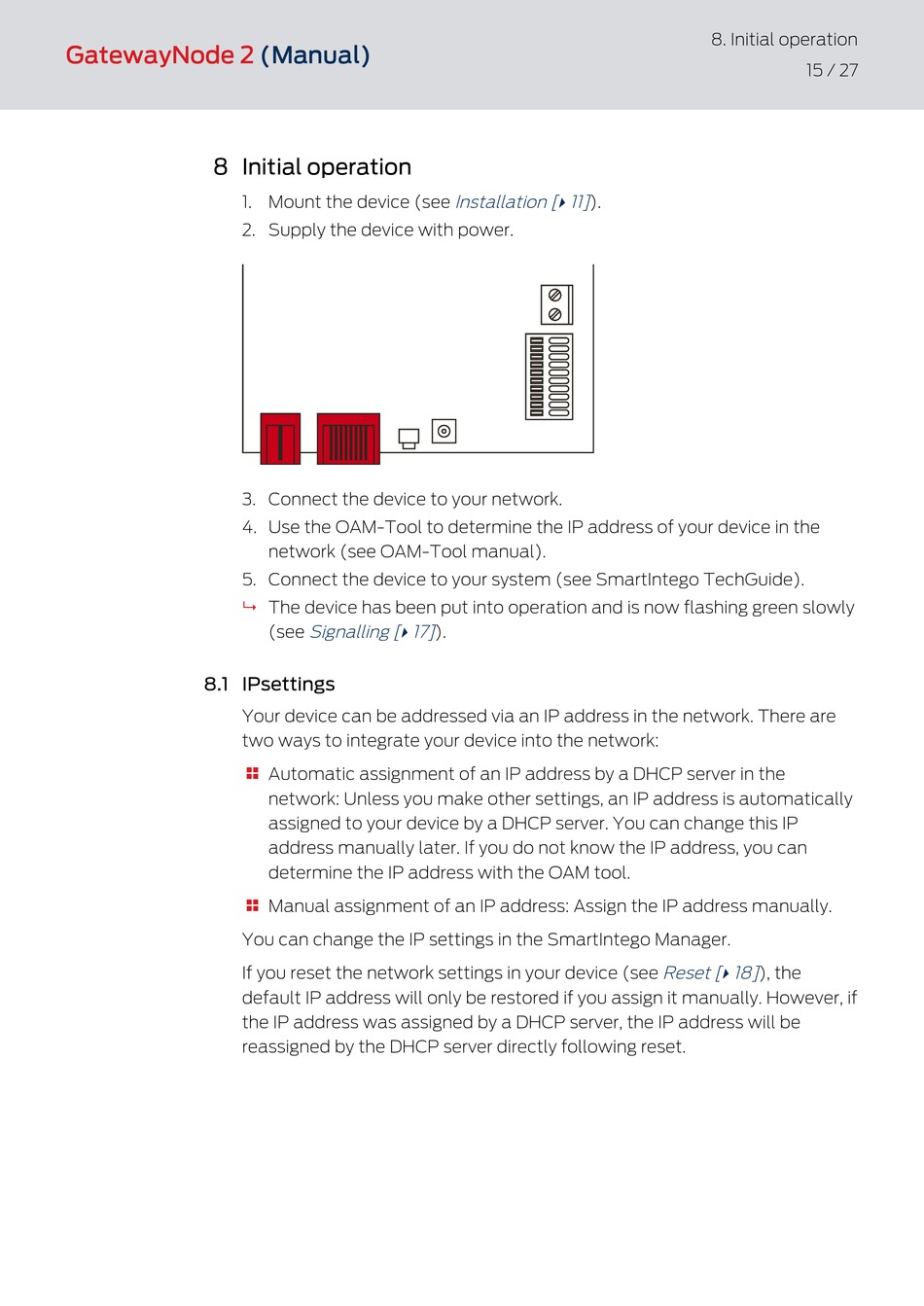

8 Initial operation

8.1 IPsettings

(Manual)
1. Mount the device (see
2. Supply the device with power.
3. Connect the device to your network.
4. Use the OAM-Tool to determine the IP address of your device in the
network (see OAM-Tool manual).
5. Connect the device to your system (see SmartIntego TechGuide).
9 The device has been put into operation and is now flashing green slowly
Signalling [ 17]
(see
}
Your device can be addressed via an IP address in the network. There are
two ways to integrate your device into the network:
Automatic assignment of an IP address by a DHCP server in the

network: Unless you make other settings, an IP address is automatically
assigned to your device by a DHCP server. You can change this IP
address manually later. If you do not know the IP address, you can
determine the IP address with the OAM tool.
Manual assignment of an IP address: Assign the IP address manually.

You can change the IP settings in the SmartIntego Manager.
If you reset the network settings in your device (see
default IP address will only be restored if you assign it manually. However, if
the IP address was assigned by a DHCP server, the IP address will be
reassigned by the DHCP server directly following reset.
Installation [ 11]
).
}
).
8. Initial operation
15 / 27
Reset [ 18]
), the
}
