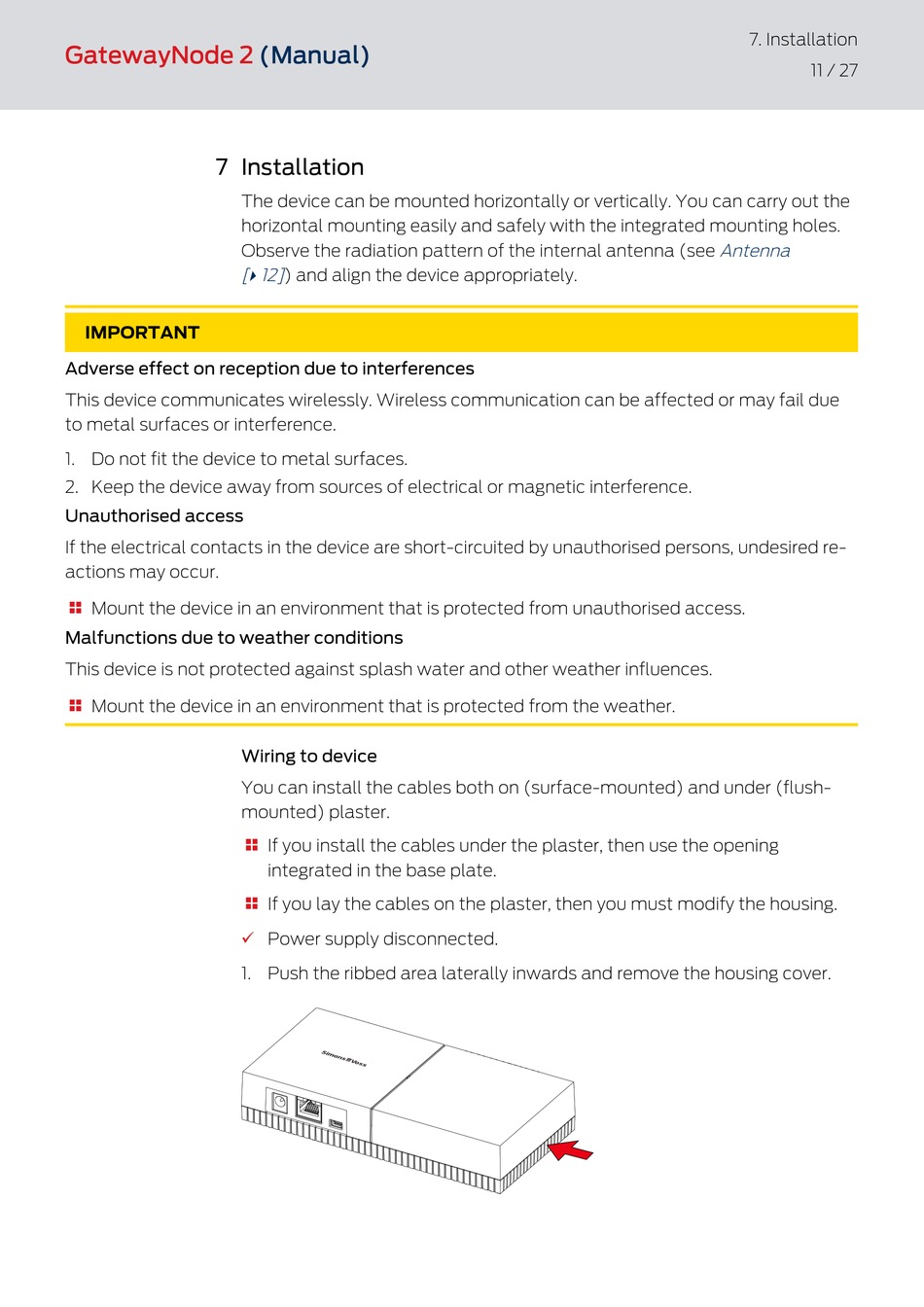

7 Installation

IMPORTANT
Adverse effect on reception due to interferences
This device communicates wirelessly. Wireless communication can be affected or may fail due
to metal surfaces or interference.
1. Do not fit the device to metal surfaces.
2. Keep the device away from sources of electrical or magnetic interference.
Unauthorised access
If the electrical contacts in the device are short-circuited by unauthorised persons, undesired re-
actions may occur.
Mount the device in an environment that is protected from unauthorised access.

Malfunctions due to weather conditions
This device is not protected against splash water and other weather influences.
Mount the device in an environment that is protected from the weather.

(Manual)
The device can be mounted horizontally or vertically. You can carry out the
horizontal mounting easily and safely with the integrated mounting holes.
Observe the radiation pattern of the internal antenna (see
[ 12] ) and align the device appropriately.
}
Wiring to device
You can install the cables both on (surface-mounted) and under (flush-
mounted) plaster.
If you install the cables under the plaster, then use the opening

integrated in the base plate.
If you lay the cables on the plaster, then you must modify the housing.

Power supply disconnected.
ü
1. Push the ribbed area laterally inwards and remove the housing cover.
7. Installation
11 / 27

Antenna
