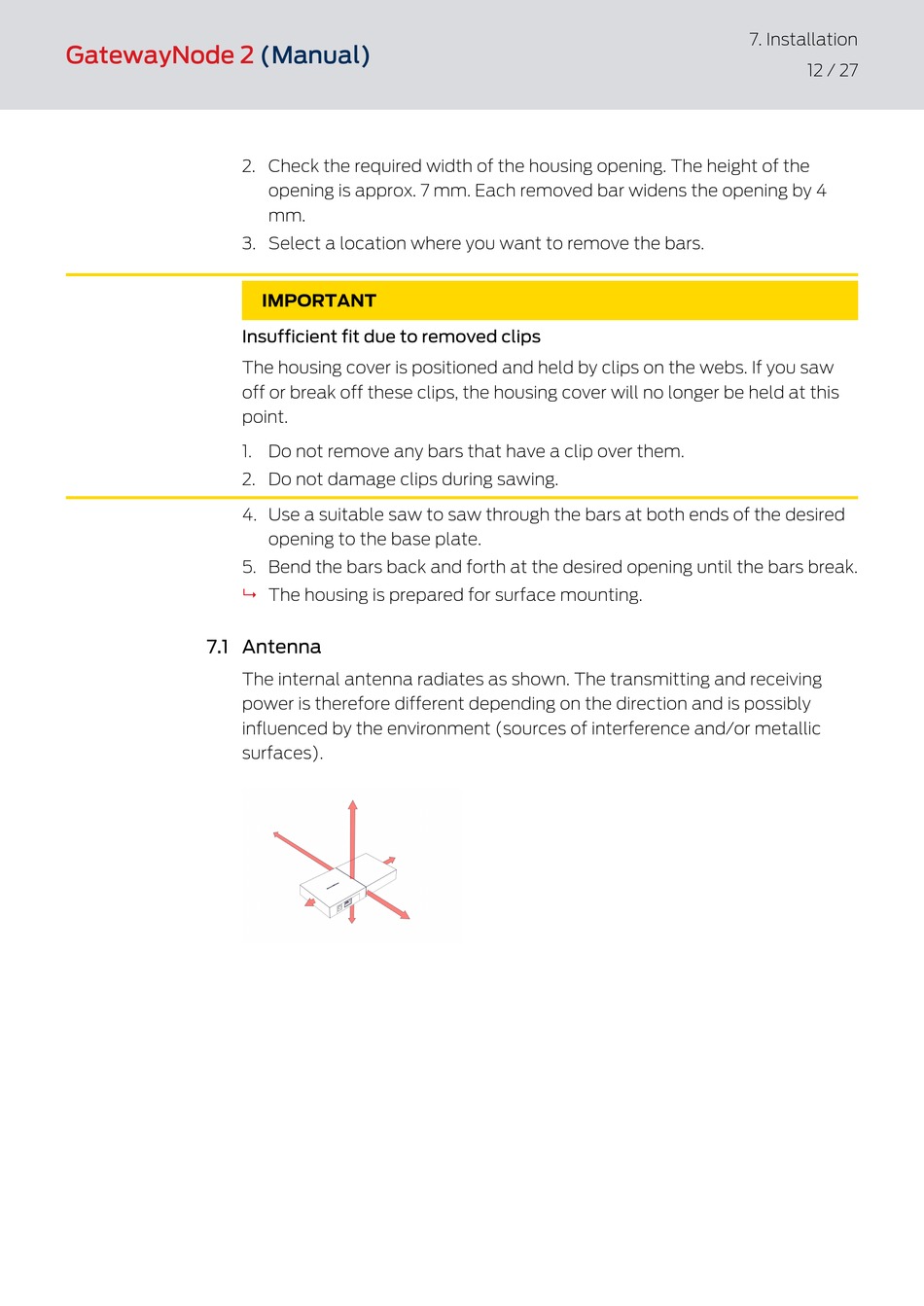

Simons Voss Technologies GatewayNode 2 Manual page 12

GatewayNode 2
7.1 Antenna
(Manual)
2. Check the required width of the housing opening. The height of the
opening is approx. 7 mm. Each removed bar widens the opening by 4
mm.
3. Select a location where you want to remove the bars.
IMPORTANT
Insufficient fit due to removed clips
The housing cover is positioned and held by clips on the webs. If you saw
off or break off these clips, the housing cover will no longer be held at this
point.
1. Do not remove any bars that have a clip over them.
2. Do not damage clips during sawing.
4. Use a suitable saw to saw through the bars at both ends of the desired
opening to the base plate.
5. Bend the bars back and forth at the desired opening until the bars break.
9 The housing is prepared for surface mounting.
The internal antenna radiates as shown. The transmitting and receiving
power is therefore different depending on the direction and is possibly
influenced by the environment (sources of interference and/or metallic
surfaces).
7. Installation
12 / 27
