GatewayNode 2 (Manual)

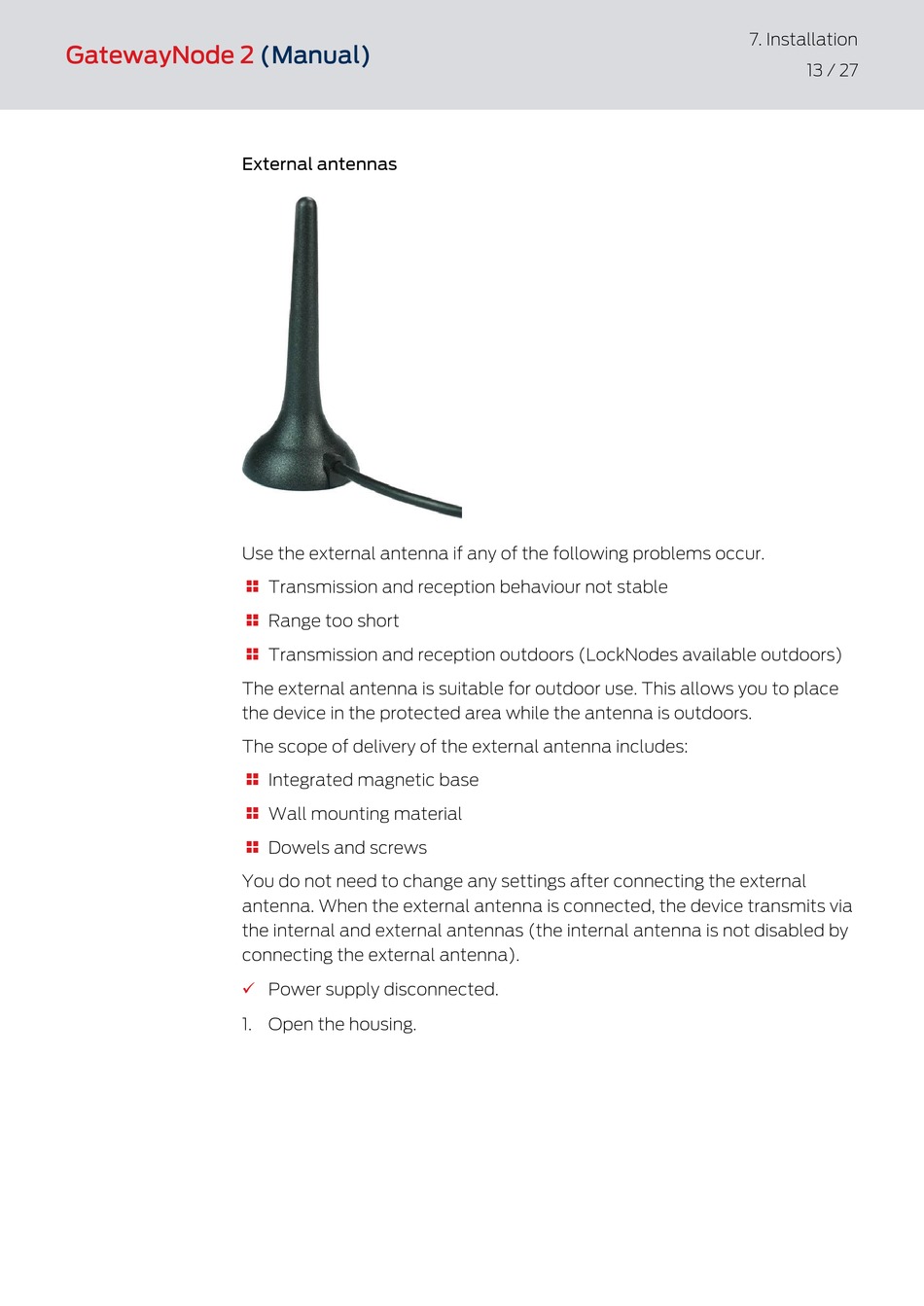

External antennas
Use the external antenna if any of the following problems occur.
Transmission and reception behaviour not stable

Range too short

Transmission and reception outdoors (LockNodes available outdoors)

The external antenna is suitable for outdoor use. This allows you to place
the device in the protected area while the antenna is outdoors.
The scope of delivery of the external antenna includes:
Integrated magnetic base

Wall mounting material

Dowels and screws

You do not need to change any settings after connecting the external
antenna. When the external antenna is connected, the device transmits via
the internal and external antennas (the internal antenna is not disabled by
connecting the external antenna).
ü Power supply disconnected.
1. Open the housing.
7. Installation
13 / 27
