GatewayNode 2

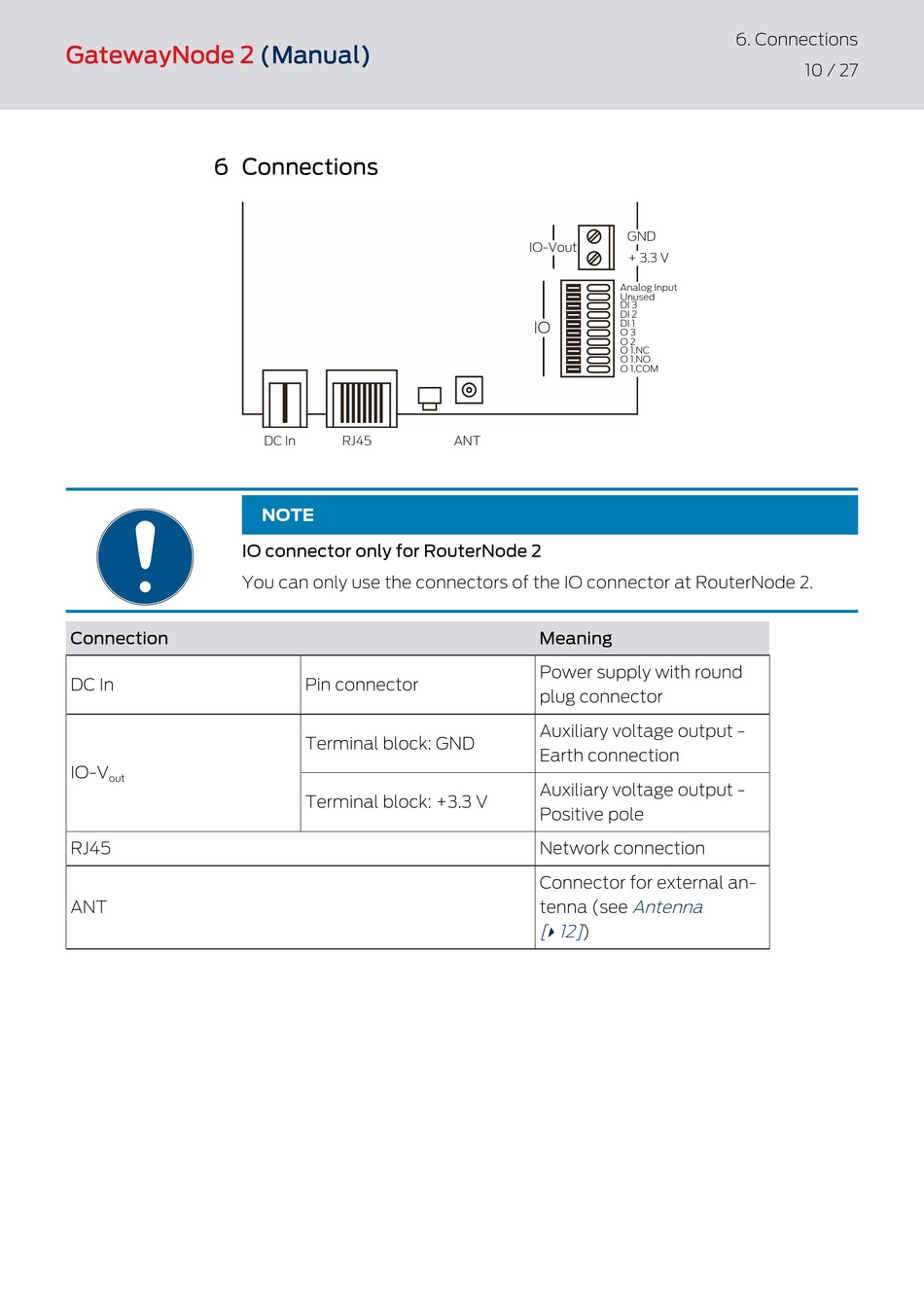

6 Connections

Connection
DC In
IO-V
out
RJ45
ANT
(Manual)
DC In RJ45
NOTE
IO connector only for RouterNode 2
You can only use the connectors of the IO connector at RouterNode 2.
Pin connector
Terminal block: GND
Terminal block: +3.3 V
GND
IO-Vout
+ 3.3 V
Analog Input
Unused
DI 3
DI 2
DI 1
IO
O 3
O 2
O 1.NC
O 1.NO
O 1.COM
ANT
Meaning
Power supply with round
plug connector
Auxiliary voltage output -
Earth connection
Auxiliary voltage output -
Positive pole
Network connection
Connector for external an-
tenna (see
[ 12] )
}
6. Connections
10 / 27
Antenna
