SOUTHERN ENTERPRISES INC.
RELAX...If you can follow a few easy, step-by-step directions
in order .YOU CAN ASSEMBLE THIS ITEM.
PLEASE FIND HARDWARE IN RED POLYBAG BEFORE DISCARDING PACKING MATERIAL.
(1) WOOD DOWEL
(2) CAM-BOLT
(3) CAM-LOCK
(4) COVER
(5) WOOD KNOB
(6) LONG MACHINE SCREW
(7) SHELF SUPPORT
(A) RIGHT SIDE PANEL
(B) DIVIDER
HARDWARE LIST
20PCS
14PCS
14PCS
14PCS
2PCS
2PCS
Ø5/32"X19mm
4PCS
PARTS LIST
1PC
1PC
KA9463 – DISTRESSED BLACK
STYLE NO.
KA9464 – WHITE
KA9465 – DISTRESSED RED

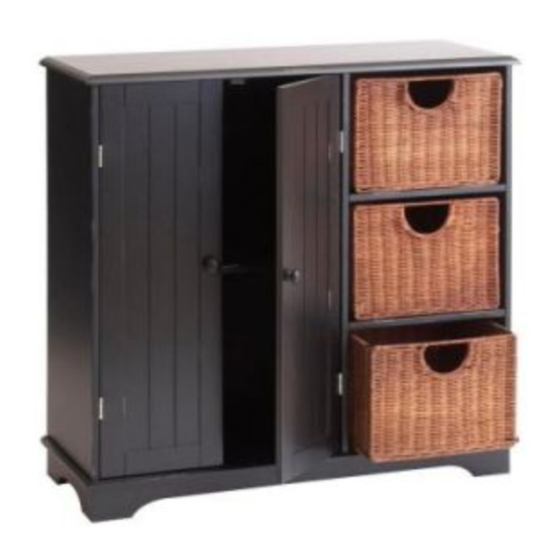

WICKER DRAWERS SIDEBOARD
(8) FLAT HEAD WOOD SCREW
(9) SHORT PAN HEAD WOOD SCREW
(10) HINGE
(11) SHORT MACHINE SCREW
(12) LONG PAN HEAD WOOD SCREW
(13) MAGNET
(14) WRENCH
(H) RIGHT DOOR
(I) LEFT DOOR
16PCS
Ø3X12mm
24PCS
Ø3X10mm
4PCS
12PCS
Ø1/4"X16mm
4PCS
Ø3X12mm
2PCS
1PC
1PC
1PC
Advertisement
Related Manuals for SEI KA9463
Summary of Contents for SEI KA9463
- Page 1 KA9463 – DISTRESSED BLACK STYLE NO. KA9464 – WHITE KA9465 – DISTRESSED RED SOUTHERN ENTERPRISES INC. WICKER DRAWERS SIDEBOARD RELAX...If you can follow a few easy, step-by-step directions in order .YOU CAN ASSEMBLE THIS ITEM. PLEASE FIND HARDWARE IN RED POLYBAG BEFORE DISCARDING PACKING MATERIAL.
-
Page 2: Assembly Instruction
2PCS (J) WICKER DRAWER BOTTOM 3PCS (C) FIXED SHELF (D) LEFT SIDE PANEL (K) WICKER DRAWER FRAME 3PCS (E) TOP PANEL (L) RIGHT BACK PANEL (F) BASE (M) MIDDLE BACK PANEL (G) ADJUSTABLE SHELF (N) LEFT BACK PANEL ASSEMBLY INSTRUCTION SELECT A SMOOTH, SOFT SURFACE TO PREVENT SCRATCHING FINISH. - Page 3 INSERT WOOD DOWELS (1) AND CAM-BOLTS (2) INTO PREDRILLED HOLES ON INSIDE OF DIVIDER AND RIGHT SIDE PANEL (B, A) AND FIT INTO CORRESPONDING HOLES ON ENDS OF FIXED SHELVES (C). INSERT CAM-LOCKS (3) INTO BIG HOLES ON UNDERSIDE OF FIXED SHELVES (C) WITH SLOT FOR SCREWDRIVER FACING OUTWARD.
- Page 4 FIGURE 5 FIGURE 6 READY YOUR NEW WICKER DRAWERS SIDEBOARD IS FINISHED AND READY TO USE. Please count, identify and compare parts and hardware list to be sure all parts are present. It may help to divide parts and label them to correspond with part list. Extra hardware may be included. If any items are missing, please contact our parts/service department at (800) 633-5096 or in Dallas (972) 869-0111/ 9am –...
-
Page 5: Parts Replacement Form
"We will ship parts if available" "This is not a warranty" PARTS REPLACEMENT FORM STYLE NO KA9463/KA9464/KA9465 Customer Name PARTS PART QUANTITY LETTER DESCRIPTION NEEDED Street, City, State, Zip Phone# Please indicate where you purchased this item. Store/website/catalog Please indicate color/size/style number SOUTHERN ENTERPRISES INC.
