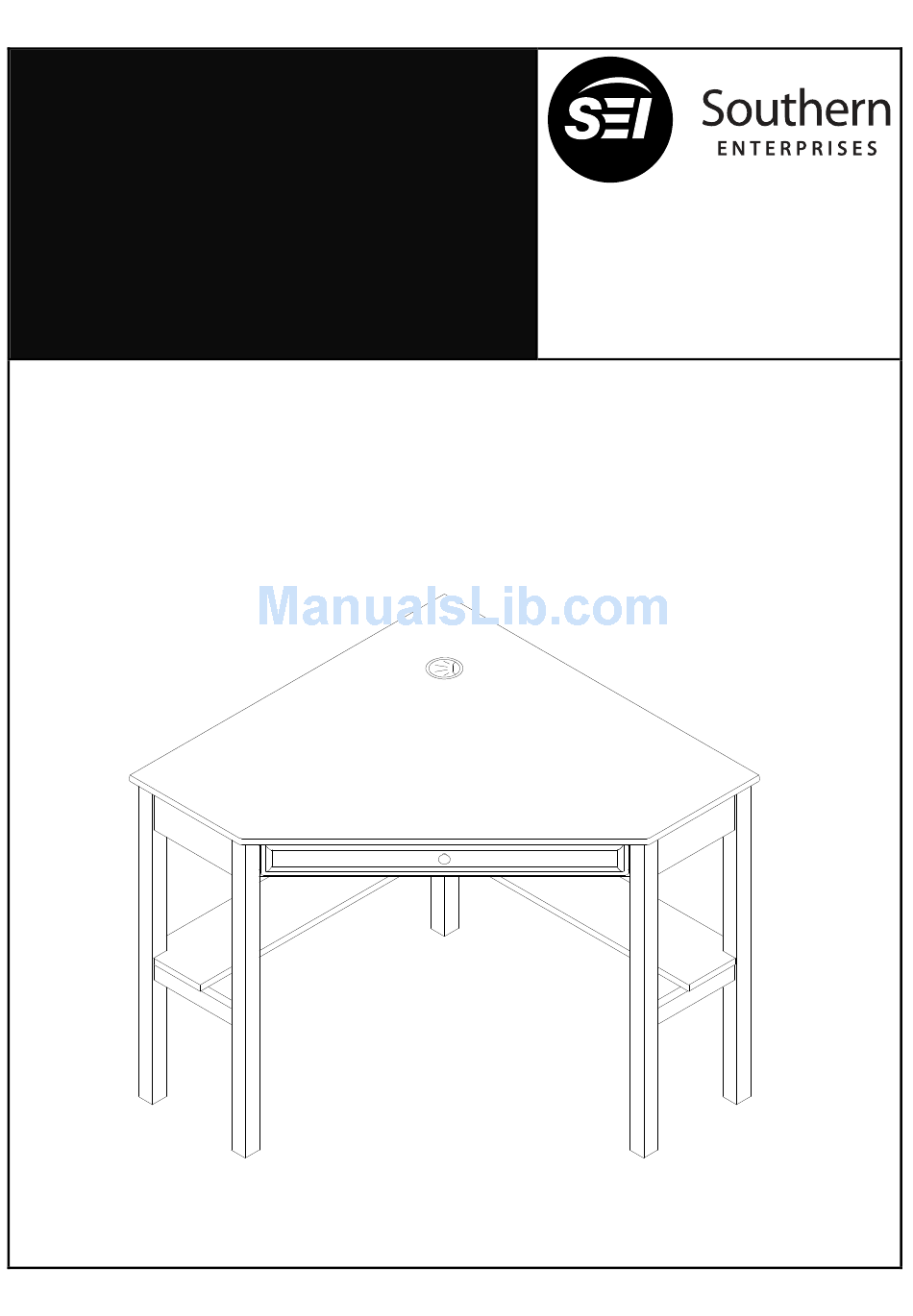

- Page 1 HO664200TX – White HO664300TX– Black HO664400TX- Espresso For assistance with assembly contact: Southern Enterprises Inc. Corner Desk Customer Service 1-800-633-5096 service@seidal.com Assembly Instructions www.seidal.com PO#11279 Page 1...
- Page 2 HO664200TX–White / HO664300TX-Black / HO664400TX-Espresso Corner Desk Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing.
- Page 3 4pcs 32pcs 10pcs Bolt Ø1/4”x 1-1/4”L Wood Dowel Screw Ø5/32”x1”L 23pcs 23pcs 23pcs Cam Lock Cam Bolt Cover 2pcs 12pcs Hinge Screw Ø1/8”x1/2”L Wood Knob 4pcs Bolt Ø5/32” x1”L Plastic Cap Flat Washer 4pcs Lock Washer For replacement parts or questions, please Care and Cleaning Instructions: Before using, wipe with a clean, dry cloth.
- Page 4 HO664200TX–White / HO664300TX-Black / HO664400TX-Espresso Corner Desk Assembly Instructions Please do not over-tighten cam locks. Please stop when you feel them tighten. Attach hinges (7) to drawer front panel (K) and drawer front stretcher (L) by using screws (8) as shown.
- Page 5 Repeat the same procedure as above to attach drawer right side panel (G) drawer back panel (N) and drawer front stretcher (L). Make sure the cam lock holes are facing upwards. Cover cam lock holes with covers (6). Then attach wood knob (9) to drawer front panel (K) by using screw (10).
- Page 6 Insert cam locks (4) and wood dowels (2) into corresponding holes on assembled unit from figure 3. Figure 5 Attach assembled unit from figure 5 to wood top (A) by inserting wood dowels (2) and cam bolts (5) into corresponding holes until assembled unit from figure 5 and wood top (A) meet.
- Page 7 Insert screws (3) into bottom stretcher (D). Attach bottom stretcher (D) to left long shelf (E) by inserting screws (3) into predrilled holes on left long shelf (E). Tighten screws (3) with Phillips screwdriver. Make sure to insert the screws through the big hole on bottom stretcher (D) rather than the small hole.
- Page 8 Insert cam locks (4) into holes on Holes facing out assembled unit from figure 8. Screw cam bolts (5) into holes on back leg (J). Attach back leg (J) to assembled unit from figure 8 by inserting wood dowels (2) and cam bolts (5) into corresponding holes until assembled unit from figure 8 and back leg (J) meet.
- Page 9 Cam lock holes Insert cam locks (4) into holes on back facing up panel (I) and assembled unit from figure 10. Screw cam bolts (5) into holes on right side leg (C). Attach back panel (I) and assembled unit from figure 10 to right side leg (C) by inserting wood dowels (2) and cam bolts (5) into corresponding holes until assembled unit from figure 7 and back...
- Page 10 Insert cam locks (4) into holes on assembled unit from figure 12. Screw cam bolts (5) into holes on the bottom of wood top (A). Attach wood top (A) to assembled unit from figure 12 by inserting wood dowels (2) and cam bolts (5) into corresponding holes until assembled unit from figure 12 and wood top (A) meet.
- Page 11 Turn the table over and slide drawer shelf (M) into the slides of unit as shown. Figure 15 Insert plastic cap (11) into the hole on the wood top (A) as shown. Now your new corner desk is ready to use! Figure 16 Page 11...
-
Page 12: Parts Replacement Form
Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
