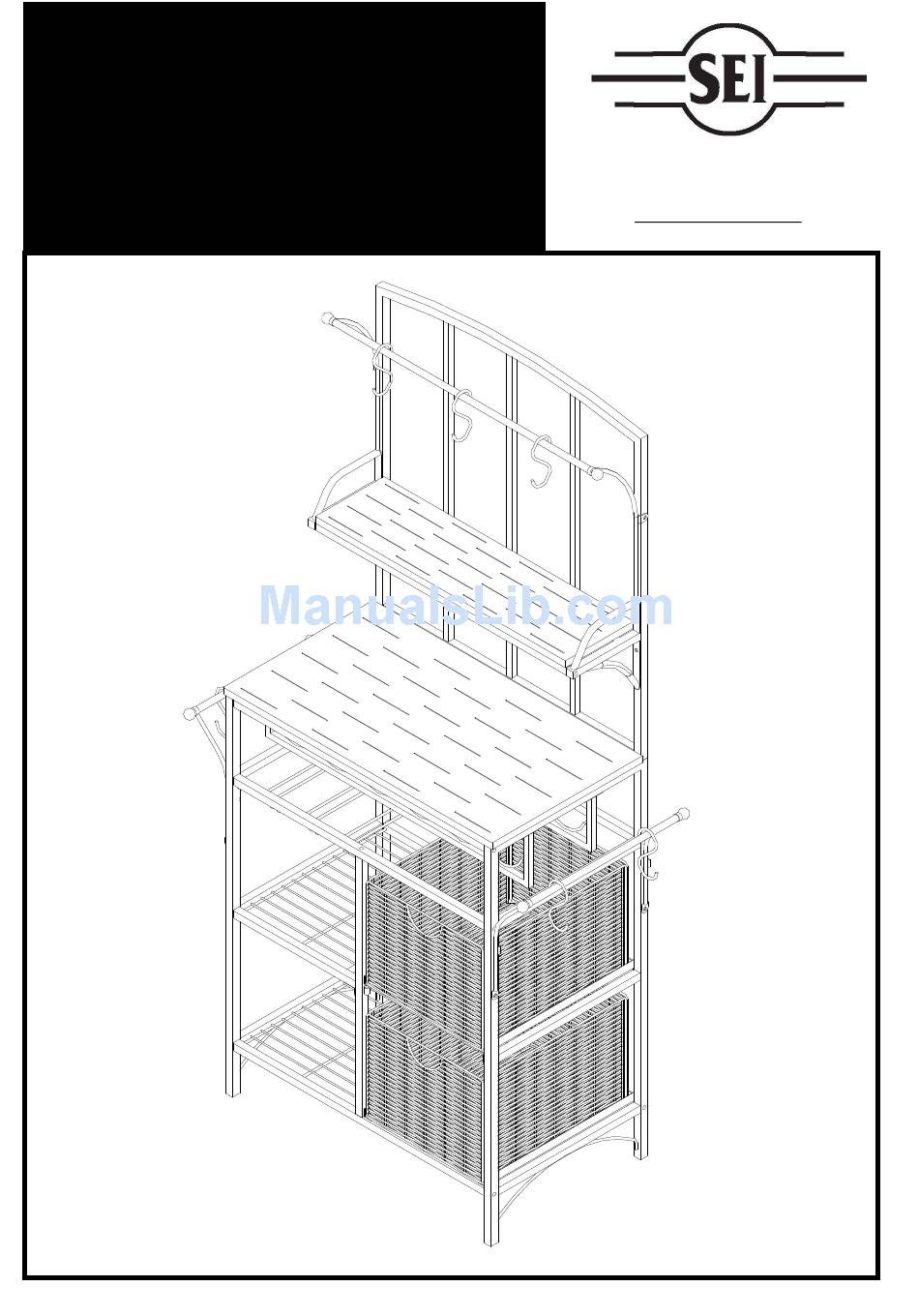

- Page 1 KA981700TX METAL & RATTAN STORAGE For assistance with assembly contact: RACK Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com Assembly Instructions www.seidal.com Page 1...
- Page 2 KA981700TX---METAL & RATTAN STORAGE RACK Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below .
- Page 3 KA981700TX---METAL & RATTAN STORAGE RACK Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below .
- Page 4 KA981700TX---METAL & RATTAN STORAGE RACK Assembly Instructions Assembly Instructions: Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated on the front page. Turn over the front Metal Cross Bar (H), then Insert 6pcs short bolt...
- Page 5 Same as “Figure 2” attach the parts(C). Insert 4pcs Bolts (1) through holes on both Metal Cross Bars(H,J) & Wire Shelf (D) to connect Divider Tube (K) with the arrow pointing down in between, and then tighten bolt(1) by Wrench (5). Insert 2pcs short Bolts(2) through holes on small wire shelf(E) attach small wire shelf(E) to Divider Tube (K),...
- Page 6 Please attach Back Panel (A) onto both Bottom side panel (B,C) and then please tighten both parts using Short Bolts (2) by Wrench (5). Please insert Short Bolts(2) through holes on Side Irons bar (N,O) to attach to both Bottom Side Panels(B,C), Tighten bolt using by Wrench(5).
- Page 7 Please insert 2pcs Spherical Regulator (4) through holes on side of both Upper Side Panels (L,M) to tighten 1pc Long tube (S) by hands Please insert 4pcs Spherical Regulator (4) through holes on side of both Side Iron (N,O) to tighten 2pcs short tubes (R) by hands Put 1pc Small wood panel(V) onto...
- Page 8 Place completed baskets onto Shelf-Frames (F) and Wire Shelf(D). Hang 3pcs Hooks(T) onto Tube(S). Hang 4pcs Hooks(T) onto both Tubes(R). Figure 8 Now your METAL & RATTAN STORAGE RACK is ready to use. 20 lb. max loading weight on small shelf 40 lb.
- Page 9 Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
