Owners &
Installation

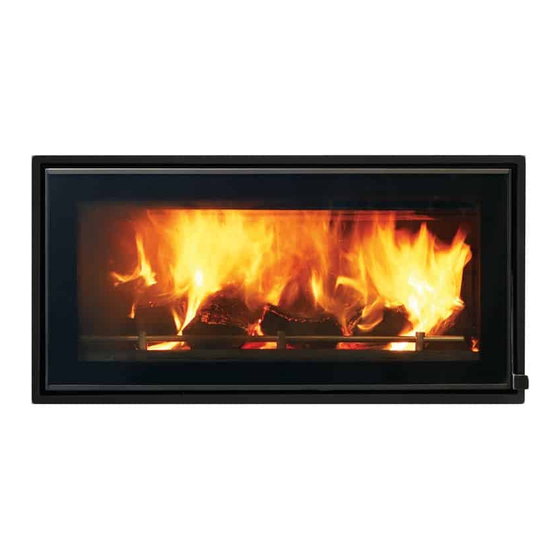

MONTROSE WOOD FIREPLACE
Model: L850B-1
PLEASE KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE
WARNING:
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Refer to this manual. For assistance or
additional information consult an authorised installer, service agency or
the distributor.
It is highly recommended for protection of infants and infirm to place a
secure safety guard in front of this appliance when in operation.
FPI - FIREPLACE PRODUCTS AUSTRALIA PTY LTD.
920-372
March-01-2021
1-3 CONQUEST WAY HALLAM VICTORIA 3803
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products MONTROSE
Summary of Contents for Regency Fireplace Products MONTROSE
- Page 1 Owners & Installation MONTROSE WOOD FIREPLACE Model: L850B-1 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult an authorised installer, service agency or the distributor.
- Page 2 • Tea Tree • Oil Based woods • Coal • Garbage • Cardboard • Solvents • Colored Paper • Trash ONLY CLEAN APPLIANCE WITH A DAMP CLOTH (NEVER WHEN UNIT IS HOT) DO NOT USE ANY ABRASIVE CLEANERS Montrose Woodfire...
-
Page 3: Table Of Contents
General Information ............18 Minimum Framing Clearances ........18 PARTS LIST Fan Kit Installation ............19 Main Assembly ..............27 Fan Duct Extension Kit ..........20 Wiring Diagram .............20 WARRANTY Optional Outside Air Kit Installation ........21 Installation of Appliance Checklist........29 Brick Installation ..............22 Warranty ................30 Montrose Woodfire... -
Page 4: Compliance Plate
COPY OF DATA BADGE MAKE: REGENCY TYPE: FIREPLACE INSERT Model: MONTROSE L850B-1 Serial Number TESTED BY: TEST REPORT NUMBER: HCMG/14/023A HRL TECHNOLOGY PTY LTD. -
Page 5: Unit Dimensions
图框:A4 未注光洁度Rz63 Canature FPI(China) LTD. 锐角倒钝，去除毛刺， 未注尺寸参考3D造型 材料: 投影标记: ZC外壳装配组件-加高型 规格: 1011 必检尺寸: 标记 更改描述 签名 日期 表面处理: 仅用于实验室图纸 P10 L850B Montrose 2021/2/1 设计 王 从 坦 日期 0～30mm ±0.2mm； ＞30～100mm ±0.5mm； ＞100～500mm ±1.0mm； 审核 日期 ＞500～1000mm±2.0mm； F1560200A ＞1000mm ±5.0mm； 比例:1:10 第1页/共1页... -
Page 6: Installation
10) Do not connect the fireplace to a flue system servicing another appliance or an air distribution duct. WARNING: CARELESS INSTALLATION IS THE MAJOR CAUSE OF SAFETY HAZARD. CHECK ALL LOCAL BUILDING AND SAFETY CODES BEFORE INSTALLATION OF UNIT. THE APPLIANCE, WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH LOCAL CODES. Montrose Woodfire... -
Page 7: Safety Guidelines And Warnings
13) DO NOT OPERATE WITH BROKEN GLASS. CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE IN- STRUCTIONS CAUTION: THE USE OF SOME TYPES PRESERVATIVE-TREATED WOOD AS A FUEL CAN BE HAZARDOUS Montrose Woodfire... -
Page 8: Wood Fireplace Specifications
Minimum 4.5 Meters of triple ducting kits are available, using skin flue required with approved The outside dimensions of the Montrose L850 including the Reduced 150mm ducting to a max run of cowling. Regency approved flue Clearance Box is as follows: 9 meters kit to be used. -
Page 9: Wood Fireplace Specifics-Minimum Clearances
Timber Stud Min. 300mm to Timber Stud Vent Min. 200mm Min. 200mm to Timber to Timber Stud Stud 50mm (height of vent) Vent 6mm THICK CEMENT FIBRE FREE SHEET AS HEARTH (1475mm x 1100mm) Hearth extends under unit base Montrose Woodfire... -
Page 10: Optional Base Frame
2. ENSURE THE BASE IS HOLLOW REGARDLESS OF USING OPTIONAL OUTSIDE AIR KIT OR NOT. 3. ENSURE THE BASE IS CONSTRUCTED OF NON-COMBUSTIBLE MATERIALS 4. ENSURE THE BASE CAN WITHSTAND THE WEIGHT OF AT LEAST 265KG PLUS. 5. ENSURE THE FLOOR BENEATH THE BASE CAN WITHSTAND AT LEAST 265KG PLUS. Montrose Woodfire... -
Page 11: Flue And Flue Requirements
5. Air cooled bracket and pipe fitted to unit. The outer casing of the flue (10”) must be raised 75mm above the zero clearance box. 2. 6" Flue fitted. Note: crimped end is down. Must connect active pipe using stainless steel rivets or self drilling screws. 2 for each join. Montrose Woodfire... - Page 12 At this stage of the installation the unit is installed with the flue system and any optional kits. The next step is to install and set the support flanges in the correct position to accommodate the front wall framing and finishing. Montrose Woodfire...
- Page 13 3000 Min 3000 Min. THE FLUE PIPE SHALL EXTEND NOT LESS THAN 4.6 M ABOVE THE TOP OF THE FLOOR PROTECTOR / HEARTH. NOTE: INSTALLATION MUST BE CARRIED OUT BY A LICENSED INSTALLER IN ACCORDANCE WITH AS/NZS 2918:2018 Montrose Woodfire...
- Page 14 FLUE REQUIREMENTS Typical Example of a Sloped Ceiling Penetration See clause 4.8 - AS/NZ 2918:2018 Example of Roof Penetration Montrose Woodfire...
-
Page 15: Installation Instructions
5. If using optional outside air kit please refer to page 21. The optional air kit adapter must be installed prior to the unit being positioned on to the base frame. 6. Install the fireplace on the base frame. Secure unit to the base frame. Montrose Woodfire... - Page 16 - secure to left and right vertical support flanges Support strip installed with slotted side on unit. The slot allows the move- ment of the support strip to be adjusted depending upon thickness of finish material. Smaller Bottom Support Flange Montrose Woodfire...
- Page 17 Finish Material Support flanges pulled forward to Non combustible butt up against b o a r d a n d n o n backside of finish combustible finish material material to 20mm standoff brackets. Montrose Woodfire...
-
Page 18: Optional Fan Kit Installation
The Fan Kit increases the effectiveness of This Fan Kit has been approved for use with your fireplace by dispersing warm air from the Montrose L850B and Montrose -NZ L850B-1. MINIMUM FRAMING fireplace to remote locations in the same room Check with your local building code agency or other rooms in your home. -
Page 19: Fan Kit Installation
8. Remove the knockout on the top of the unit. Diagram 2: Side View - Secure fan housing to minimum 45mm framing. Remove the knock out Round Air Duct: Attach the 152.4mm round air duct (supplied) to the fireplace collar and run the duct to the fan housing. Attach the round-to-oval adapter to the fan housing and the air duct to the adapter Montrose Woodfire 919-751b 02.27.20... -
Page 20: Fan Duct Extension Kit
Alternate Switches: May use the following. Check with local authorities and electrician. Heat Wave White = Neutral CLIPSAL 203 2E45 OUD - Dimmer Fan Assembly CLIPSAL 2031 VF3CSF - 3 Speed Green = Earth 919-478 03.14.17 Installation of wiring and switching must be carried out by a qualified electrician Montrose Woodfire... -
Page 21: Optional Outside Air Kit Installation
View with Cover Plate removed and unit adapter installed. to ensure tight seal against exterior of home. Join the 150 mm diameter flex from the unit adapter to the fresh air hood on the inside of the wall. 919-479 12.12.16 Montrose Woodfire... -
Page 22: Brick Installation
Firebricks are included as an integral part of the unit and not only enhance operating performance hence compli- ance of the unit but also to extend the life of your firebox. These must be replaced if damaged in any way in order not to Void the Warranty Montrose Woodfire... -
Page 23: Appliance Maintenance Creosote
3) Retighten latch bolts. flue fire. 7. Install the new glass. 8. Reverse steps 1-4 to reassemble the unit. Replacement Glass Part Number: 2510221 Top Retainer Side Retainer Side Retainer Bottom Retainer Montrose Woodfire... -
Page 24: Troubleshooting
Worn gaskets will change Inspect and replace any worn gaskets the airflow of the fireplace to ensure proper airflow patterns and can allow deposits to within the unit. stick to the glass. Montrose Woodfire... -
Page 25: Operating Instructions
WARNING: Do not over-fire this unit and always open the door slowly when reloading Montrose Woodfire... -
Page 26: Lighting The Appliance
WHEN REFUELING ALWAYS ENSURE AIR CONTROL IS IN HIGH 10) During the first few days it may be more difficult to start the fire. As you POSITION. dry out the firebrick and your masonry flue, the draft will increase. Montrose Woodfire... -
Page 27: Parts List
1567003 Air Slide 1562100 Door Frame Assembly 1569000 Adjustable Door Latch 3720301 ETC3010 Glass Gasket 1564007 Top Deflector 2510221 Black Trimmed Ceramic Glass Only 1634200 30mm Front Trim 1562400 Glass Retainer Bracket 1560110 50mm Front Trim 20 21 Montrose Woodfire... - Page 28 Replacement Fan Motor 946-001 Duct Flange 946-002 Round to Oval Adapter 946-007 Angle Bracket 946-004 Junction Box 946-005-AWT Wall Adapter Plate White 948-357 Adapter Round 946-093F Duct Mounting Plate 946-000 Duct Flange Collar 946-006 Side Grill White 904-687 Connector Clamp Montrose Woodfire...
-
Page 29: Warranty
COMMISSIONING CHECKS (TO BE COMPLETED AND SIGNED) Is flue system set up in accordance with AS2918 Smoke and Spillage test completed Use of appliance and operation of controls explained Clearance to combustible materials checked Installers Signature: Print Name: Date: Montrose Woodfire... -
Page 30: Warranty
The purchase price must be confirmed by an original copy of the tax invoice. Revision Date: November 2020 Regency Wood Products Warranty – Montrose L850B Montrose Woodfire... - Page 31 Limited Warranty. Revision Date: November 2020 Regency Wood Products Warranty – Montrose L850B Montrose Woodfire...
- Page 32 (a) To the extent that goods supplied by the supplier are not goods of a kind ordinarily acquired for personal, domestic or household use and the customer is deemed to be a consumer for the purposes of section 64A of the Revision Date: November 2020 Regency Wood Products Warranty – Montrose L850B Montrose Woodfire...
- Page 33 Please note Fireplace Products Australia Pty Ltd does not provide installation services. Fireplace Products Australia Pty Ltd 1 Conquest Way Hallam, VIC Australia, 3803 Phone: +61 3 9799 7277 Fax: +61 3 9799 7822 Revision Date: November 2020 Regency Wood Products Warranty – Montrose L850B Montrose Woodfire...
- Page 34 To provide the best support for your product, we request that you complete a product registration form at http://www.regency-fire.com.au/Customer-Care/Warranty-Registration.aspx within ninety (90) days of purchase. Revision Date: November 2020 Regency Wood Products Warranty – Montrose L850B Montrose Woodfire...
- Page 35 For fireplace care and tips and answers to most common questions please visit our Customer Care section on our Web Site. Please feel free to contact your selling dealer if you have any questions about your Regency product. Montrose Woodfire...
- Page 37 Montrose Woodfire...
- Page 38 Montrose Woodfire...
- Page 39 Montrose Woodfire...
- Page 40 Register your Regency warranty online ® www.regency-fire.com.au Reasons to register your product online today! • View and modify a list of all your registered products. • Request automatic email notification of new product updates. • Stay informed about the current promotions, events, and special offers on related products.
