Falcon RW Series Installation Instructions

*030388-000-70*
030388-000-70
Mounting and Rehanding
SCREW
6-32x1¹⁄₄"
INSIDE
SPRING
SPINDLE
5/16"
9/32"
3/8"
RW Series
Retrofit Lever Trim
SPINDLE
TEMPLATE
TRIM HOLE
SPRING
OUTSIDE

REPLACEMENT PARTS

5/16" Spindle
P/N 021242–001–30
5/16" Spindle P/N 030329–000–30
Adapter P/N 030319–000–30
P/N 021244–001–60
Spring
1-877-671-7011

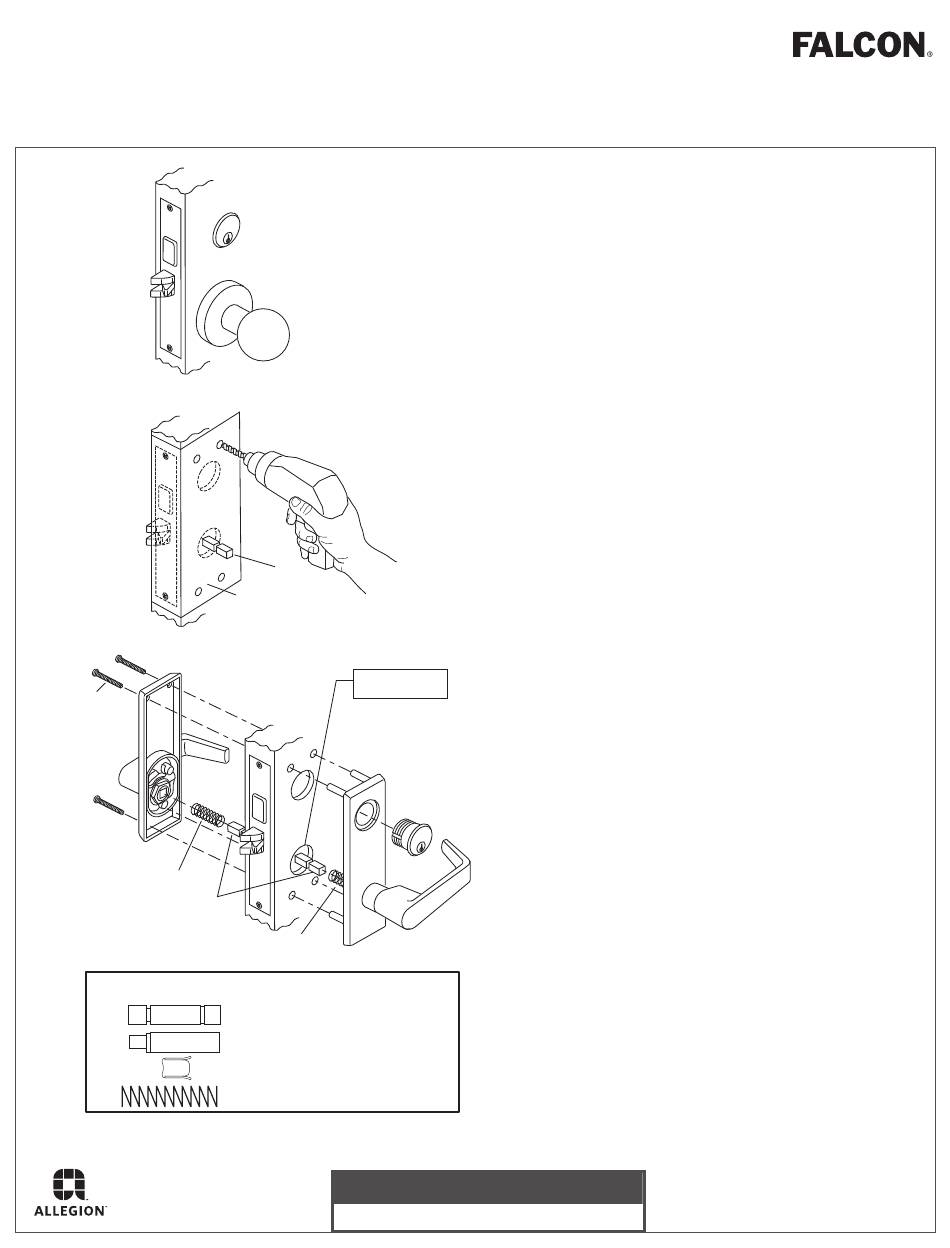

STEP ONE:
Remove all existing trim from door,
including cylinder if one is installed.
STEP TWO:
Insert inner and outer spindles into lock hubs.
NOTE: Because of various hub sizes, be sure
spindles fit properly. Place the enclosed template
over the spindle. Align with door edge and mark the
four (4) thru-bolt hole locations. This should be done
to both sides of the door. Drill the four (4) holes
halfway through from each side of door.
IMPORTANT: It may be necessary to enlarge the
trim hole due to varying door preps. Falcon retrofit
trim requires both sides to be 1¹⁄₈" diameter
minimum to clear trim mechanism.
STEP THREE: Before mounting the trim, be
sure to insert spindle springs into each
lever. With spindle in outer hub, place outer
trim over spindle with posts going into thru-
holes. Place inside trim over spindle and
install the four (4) mounting screws. Before
screws are tightened, check to see that
both levers are operating properly. If
reinstalling the cylinder, determine if a
blocking ring is required. Tighten set screw
then check cylinder for proper function.
Tighten the four (4) trim mounting screws.
Customer Service
www.allegion.com/us
Installation Instructions
© Allegion 2014
Printed in U.S.A.
030388-000-70 Rev. 10/14-d
