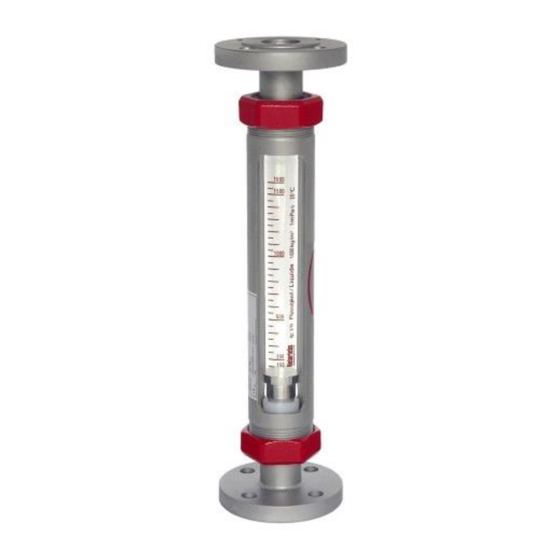

V31
Variable Area Flow Meter
Supplementary Operating Instructions
for Hazardous Locations
This operating manual contains important information for the operation in potentially explosive atmospheres
Please read the instructions carefully and store them in a safe place for future reference
Heinrichs Messtechnik GmbH
EX-Supplementary Operating Manual V31
January 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heinrichs V31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold Heinrichs V31

Summary of Contents for Kobold Heinrichs V31

  • Page 1 Variable Area Flow Meter Supplementary Operating Instructions for Hazardous Locations This operating manual contains important information for the operation in potentially explosive atmospheres Please read the instructions carefully and store them in a safe place for future reference Heinrichs Messtechnik GmbH EX-Supplementary Operating Manual V31 January 2021...
