Desert Aire CM3510 Series Installation And Operation Manual

Hide thumbs Also See for CM3510 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
•
Backlit LCD User
• Backlit LCD User
Interface
Interface
•
Programmed by
• Programmed by
Desert Aire for
Desert Aire for
dehumidification and
dehumidification and
temperature control
temperature control
•
Multiple
• Multiple communication
communication
interface options:
interface options:
- LonWorks
®
- LonWorks
®
- BACnet™ Ethernet
- BACNet
Ethernet
TM
- BACnet™ MS/TP
- BACNet
MS/TP
TM
- Modbus
®
- Modbus
®
• Alarm history retention
•
Alarm history
retention
• Internal time clock for
stand alone operation
•
Internal time clock
for stand alone
operation

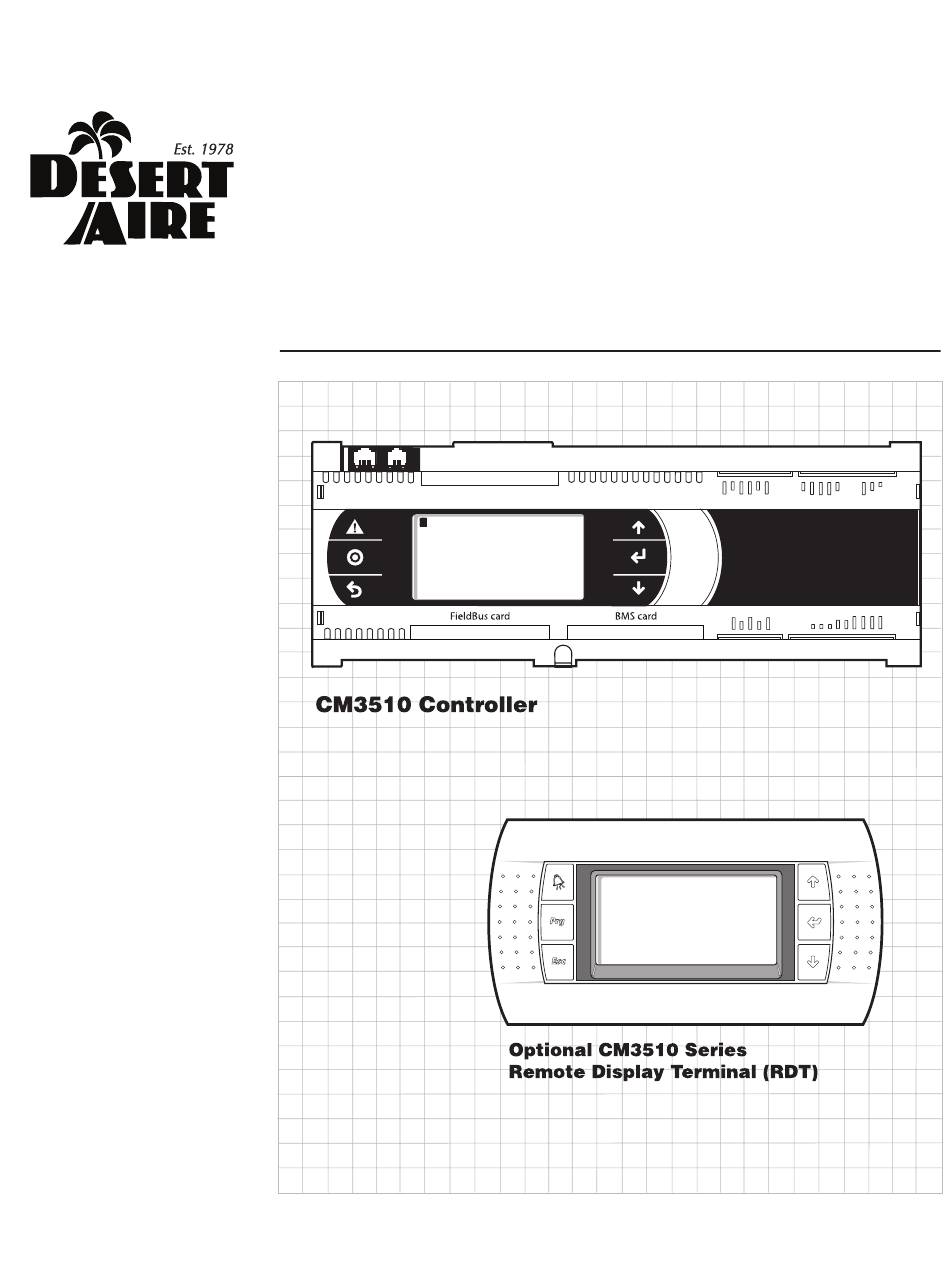

CM3510 Series
Controller
Installation and Operation Manual for SA Units
Installation and Operation Manual for SA Units

Advertisement

Table of Contents
loading

Related Manuals for Desert Aire CM3510 Series

Summary of Contents for Desert Aire CM3510 Series

  • Page 1 CM3510 Series Controller Installation and Operation Manual for SA Units Installation and Operation Manual for SA Units • Backlit LCD User • Backlit LCD User Interface Interface • Programmed by • Programmed by Desert Aire for Desert Aire for dehumidification and dehumidification and...
  • Page 3 TERMS Desert Aire warrants all components (except as noted) for a period of two (2) years from the date of shipment. This warranty shall be limited to the supply of new or rebuilt parts for the part which has failed because of defects in workmanship or material, and does not include the cost for labor, transportation or other costs not herein provided for.
  • Page 4 E-MAIL: service@desert-aire.com Additional copies of this manual can be purchased for a nominal fee from Desert Aire. Desert Aire also posts the most current revision of our I/O Manuals on our website. For a digital copy of the I/O Manual for your unit revision, please submit request to the contact information listed above.
  • Page 5 Product Warning for the State of California: Desert Aire - CM3510 Manual...
  • Page 6 Desert Aire - CM3510 Manual...

  • Page 7: Table Of Contents

    2.3.3.2.6. Tuning – Maximum Outdoor Air (Figure 64) ..........2.3.3.3 I/O Status (Figure 65) ................. 2.3.3.3.1 Digital Inputs (Binary) (Figures 66 - 80) ............ 2.3.3.3.2 Analog Inputs (Figures 69 thru 77) ............2.3.3.3.3 Digital Outputs (Binary) (Figures 78 - 81) ..........Desert Aire - CM3510 Manual...
  • Page 8 Discharge & Liquid Pressure Transducers ............... Suction, Liquid, Pool & Supply Air Temperature Sensors......... Zone and Outdoor Air Temperature and Relative Humidity Sensors ....... Differential Air Pressure Sensors ................Appendix ........................Internal web page ....................Desert Aire - CM3510 Manual...

  • Page 9: Installation

    Installation 1.1 Introduction Your Desert Aire controller is designed for precise monitoring and control of air temperature and relative humidity (RH) within a conditioned environment. This CM3510 control system is easy to install and operate. The controller features an internal display terminal (IDT).

  • Page 10: Wall Mount Humidity And Temperature Sensor

    1.3. Auxiliary Air Heating Control Wiring Note: You must use the Desert Aire CM3510 control system to control or interlock with the room heating system. This prevents wide fluctuations in room air temperature. It also prevents the heater from trying to heat the room while the dehumidifier is running in the cooling mode.

  • Page 11: Auxiliary Heating - Proportional Signal

    1.3.2. Auxiliary Heating - Proportional Signal Desert Aire will provide a proportional 0-10 VDC direct-acting signal to modulate a heating coil control valve or other auxiliary modulating heater. Most proportional valves have either three (3) or four (4) terminals for field-installed wiring.

  • Page 12: Controller Details

    The internal display terminal (IDT, see Figure 1) allows the operator to monitor and adjust the setpoints of your Desert Aire system. The IDT has an LCD screen and six keys. These keys are labeled as below: The remote display terminal (RDT) has an LCD screen and six keys.

  • Page 13: Zone Setpoints (Figure 2)

    ENTER key and use the arrow keys until the desired setting is shown. Press the ENTER key to accept the setpoint value. To return to the Home Screen, press the Esc key. Desert Aire - CM3510 Manual...

  • Page 14: Main Menu (Figure 4)

    Pressing the Esc key from the Home Screen displays the MAIN MENU (Figure 4). This menu allows the operator to select the STATUS MENU, set an Occupancy Schedule, enter the Service Menu and view the Unit Revision. To return to the Home Screen, press the Esc key. Desert Aire - CM3510 Manual...

  • Page 15: Unit Status (Figure 5)

    “BMS has Disabled Unit” if the BMS has turned the unit off. The date and time will be shown on the bottom line. To return to the STATUS MENU, press the Esc key. Figure 5 Desert Aire - CM3510 Manual...
  • Page 16 EXV of Circuit A along with the superheat, suction temperature, suction pressure suction P2T, steps and percent open of the EXV. This screen is for troubleshooting only. To return to the STATUS MENU, press the Esc key. Desert Aire - CM3510 Manual...

  • Page 17: Occupancy Schedule (Figure 10)

    ENTER. The schedule will need to be setup before this will be enabled. Pressing the Prg key from this menu allows the date and time to be modified. To return to the MAIN MENU, press the Esc key. Figure 10 Desert Aire - CM3510 Manual...

  • Page 18: Time/Date (Figure 11)

    Copy To: the appropriate day, and then selecting Ok? to ‘Yes’. Modify these days as appropriate. To return to the OCCUPANCY SCHEDULE MENU, press the Esc key. Figure 12 Desert Aire - CM3510 Manual...

  • Page 19: Vacation Periods (Figure 13)

    UP and ENTER keys to set this override to ‘On’. The dehumidifier will now be ‘Occupied’ for this period of time. When the override expires, the screen will again display Set Override, and the dehumidifier will return to its normal state. Desert Aire - CM3510 Manual...

  • Page 20: Service Menu (Figures 16 And 17)

    Selecting the SERVICE MENU will display the Login Screen (Figure 16). Enter the service password, 1234, and press ENTER. Figure 16 The SERVICE MENU gives access to Commissioning, Tuning, I/O Status, Sensor Offsets and Memory Options. (Figure 17). Figure 17 Desert Aire - CM3510 Manual...

  • Page 21: Commissioning (Figure 18)

    A and B. This screen also allows the settings for the tower and pool flow switches to be modified. Press the DOWN key for the next Configuration screen. To return to the Service Menu, press the Esc key. Figure 19 Desert Aire - CM3510 Manual...
  • Page 22 ROOF/WALL screen shown in Figure 22 allow the state of the Roof Switch and BMS point for indication that the Roof or Wall is open. The Force Open State will manually set the Roof Open state from the controller. To determine what the Desert Aire - CM3510 Manual...
  • Page 23 If the Low Exhaust option has been provided, the screen in Figure 24 will be shown. This screen allows the settings for the Low Exhaust VFD speeds in the selected air modes. To return to the Service Menu, press the Esc key. Figure 24 Desert Aire - CM3510 Manual...
  • Page 24 PID loop that is in control. Press the Esc key to return to Figure 25. Pressing the DOWN key will display the screen shown in Figure 28. Figure 25 Figure 26 Figure 27 Desert Aire - CM3510 Manual...
  • Page 25 The current outdoor air relative humidity and damper position are shown as well. Figure 29 The Press the DOWN key for the next Configuration screen. To return to the Service Menu, press the Esc key. Desert Aire - CM3510 Manual...

  • Page 26: Exhaust Blower Setup (Figure 31)

    The speed of the blower can be placed in manual control from this screen and a manual speed set for troubleshooting. Press the DOWN key for the next Exhaust Blower screen. To return to the Commissioning Menu, press the Esc key. Figure 31 Desert Aire - CM3510 Manual...
  • Page 27 The Setpoint, current CFM and the speed output are also shown. Press the DOWN key for the next Exhaust Blower screen. To return to the Commissioning Menu, press the Esc key. Figure 33 Desert Aire - CM3510 Manual...
  • Page 28 Set this value in the un-occupied mode to insure no air is leaving the unit. To return to the Commissioning Menu, press the Esc key. Figure 35 Desert Aire - CM3510 Manual...

  • Page 29: Airflow Setup (Figure 36)

    To modify these terms, press the ENTER key and use the arrow keys until the desired setting is shown. Pressing the ENTER key will now change the term. The Setpoint, current O/A CFM and the loop output are also shown. Desert Aire - CM3510 Manual...
  • Page 30 ENTER key and use the arrow keys until the desired setting is shown. Pressing the ENTER key will now change the term. The Setpoint, current pressure drop and the loop output are also shown. Desert Aire - CM3510 Manual...
  • Page 31 This would typically be used during service on the unit or testing of the air modes. Note that these settings are lost on a power cycle, so the unit will return to normal control mode. Desert Aire - CM3510 Manual...
  • Page 32 ‘A’ to ‘M’. Modify the percentage to set the amount of heat. Note that these settings are lost on a power cycle, so the unit will return to normal control mode Figure 44 Desert Aire - CM3510 Manual...

  • Page 33: Bms Setup (Figures 45 Through 52)

    Figure 47. This screen allows the address, baud rate and data parameters for Modbus RTU communica- tion to be set. Making any changes will require a power cycle to have those changes take effect. Desert Aire - CM3510 Manual...
  • Page 34 Once set, pressing the DOWN key will display Figure 49. Figure 48 Pressing the DOWN key again will display the port setup for BACnet IP. This allows the Device ID and Port to be set. Figure 49 Desert Aire - CM3510 Manual...
  • Page 35 The octets in the address are all settable from 000 to 255. Set the octet to the assigned address of the unit with the zone sensor that is to be used. If data is being sent from that unit, Desert Aire - CM3510 Manual...

  • Page 36: Tuning - Dead Bands (Figure 53)

    It is also the heating setpoint for the Air Heating PID loop. The Cooling Deadband value is added to the Zone Temperature Setpoint. This value enables the first cooling stage. The Cooling Stage is then added to the first cooling stage value to enable the second Desert Aire - CM3510 Manual...
  • Page 37 Differential is 0.0° F to 9.9° F. The range of the Humidity Differential is 0.0% to 9.9%. Press the DOWN key for the next Tuning screen. To return to the Service Menu, press theEsckey. Figure 54 Desert Aire - CM3510 Manual...

  • Page 38: Tuning - Energy Recovery (Figure 55)

    Stage Deadband for enabling external auxiliary pool heat. The inlet and outlet temperatures are shown here as well. To return to the Service Menu, press the Esc key. Figure 56 Desert Aire - CM3510 Manual...

  • Page 39: Tuning - Air Heating (Figures 58 - 61)

    Pressing the DOWN key will now display the screen shown in Figure 60. This shows the zone reset PID and limits settings and the calculated heating setpoint. To return to the Service Menu, press the Esc key. Desert Aire - CM3510 Manual...

  • Page 40: Tuning - Outdoor Air Pre-Heating (Figures 62 & 63)

    Air Pre- Heating settings. Figure 61 allows inverting the heat signal for water valve operation and varying the heat output from 0-10VDC to 2-10VDC, if desired. The setpoint and Off Differential are set here as well. To return to the Service Menu, press the Esc key. Desert Aire - CM3510 Manual...

  • Page 41: Tuning - Maximum Outdoor Air (Figure 64)

    Setpoint will enable the Max OA Mode and readings below the setpoint minus the Differential will disable this mode. The current reading of the VOC sensor is shown also. To return to the Service Menu, press the Esc key. Desert Aire - CM3510 Manual...

  • Page 42: I/O Status (Figure 65)

    - “On” if circuit A is on, and “Off” if circuit A is off. • The third line will show the status of ID4, Circuit B starter auxiliary contact - “On” if Circuit B is on, and “Off” if Circuit B is off. Desert Aire - CM3510 Manual...
  • Page 43 “Ok” if this contact is made, and “Flt” if this contact is open. • The sixth line will show the status of ID14 the voltage monitor alarm contact - “Ok” if this contact is made, and “Flt” if this contact is open. Desert Aire - CM3510 Manual...
  • Page 44 • The sixth line will show the status of DI2 on J29, the optional condensate level switch or switches, - “OK” if the level is low, and “Flt” if the level is high. Figure 68 Desert Aire - CM3510 Manual...

  • Page 45: Analog Inputs (Figures 69 Thru 77)

    A. Figure 70 The third page shows the readings of the liquid pressure and temperature sensors, the calculated P2T value of the liquid pressure sensor and the Subcooling values of circuit A. Desert Aire - CM3510 Manual...
  • Page 46 Circuit B. Figure 72 The fifth page shows the readings of the liquid pressure and temperature sensors, the calculated P2T value of the liquid pressure sensor and the Subcooling values of Circuit B. Figure 73 Desert Aire - CM3510 Manual...
  • Page 47 The seventh page shows the readings of the optional sensors, including the pool temperature sensors, VOC sensor and the Outdoor Air Pre-Heat temperature sensor. Figure 75 The eighth page shows the readings of the optional freeze protection sensor. Figure 76 Desert Aire - CM3510 Manual...

  • Page 48: Digital Outputs (Binary) (Figures 78 - 81)

    • The fifth line will show the status of NO5, Circuit B Lag Compressor contact, “On” and “Off”. • The sixth line will show the status of NO6, Circuit B 1Sol contact, “On” and “Off”. Figure 78 Desert Aire - CM3510 Manual...
  • Page 49 • The fourth line will show the status of NO4, the Tower B Pump contact, “On” and “Off”. • The fifth line will show the status of NO6, the air heater contact, “On” and “Off”. Desert Aire - CM3510 Manual...

  • Page 50: Analog Outputs (Figures 82 - 83)

    0-10VDC Outputs of the control system. The first page shows the state of the first four outputs. • Evap Bypass Damper Command • Cool Exhaust Damper Command • Warm Exhaust Damper Command • Outdoor Air Damper Command Desert Aire - CM3510 Manual...

  • Page 51: Sensor Offsets (Figures 84 - 91)

    To modify the offsets, press the ENTER key until the desired offset is selected and use the arrow keys until the desired setting is shown. Press the ENTER key to accept the offset value. Desert Aire - CM3510 Manual...
  • Page 52 Figure 84 Figure 85 Figure 86 Desert Aire - CM3510 Manual...
  • Page 53 Figure 87 Figure 88 Figure 89 Figure 90 Desert Aire - CM3510 Manual...

  • Page 54: Memory Options (Figures 92 - 94)

    Pen Drive, insert a USB Pen Drive and, with the cursor over the ‘Press UP to Import’ or ‘Press UP to Export’ field, press the UP key. Wait for the screen to say “Completed” before removing the drive. Figure 92 Desert Aire - CM3510 Manual...

  • Page 55: Unit Revision (Figures 95)

    The Unit Revision Screen shows the version of the application program that is running along with the release date of the software. This information should be passed to Desert Aire in the event a service call is necessary. Figure 95...

  • Page 56: Alarm Menu

    Figure 97 To reset the alarm, use the DOWN key until the reset instructions are shown. See Figure 98. Pressing the ALARM key for three seconds will reset all active alarms. Figure 98 Desert Aire - CM3510 Manual...

  • Page 57: System Alarms

    ENTER key. This screen shows records of the alarm log. The bottom two lines will show the pertinent data that was recorded when the alarm occurred. Use the UP and DOWN keys to view other records. To return to the home screen, press the Esc button. Figure 99 Desert Aire - CM3510 Manual...

  • Page 58: Hardware Details

    Hardware Details Programmable Controller The programmable controller is preprogrammed by Desert Aire for the control of your unit. The Desert Aire replacement part number for this controller is available by calling our service department. Suction Pressure Transducers The Suction Pressure Transducer is a 0.5 - 4.5 VDC to 0 - 250 psig ratio metric device. The body is brass with a ¼...

  • Page 59: Suction, Liquid, Pool & Supply Air Temperature Sensors

    0.0”wc to 10.0”wc and 0.0”wc to 25.0”wc, depending on the application. The output of this device is a 0.25 VDC at the low end and 4 VDC at the high end. The Desert Aire replacement part number is available by calling our service department and noting the range of the device.
  • Page 60 PTIMIZING OLUTIONS HROUGH UPERIOR EHUMIDIFICATION ECHNOLOGY N120 W18485 Freistadt Road • Germantown, WI 53022 • E-mail: info@desert-aire.com Ph: (262) 946-7400 • Fax: (262) 946-7401 • Website: www.desert-aire.com 321 2021/01...

Table of Contents
