Summary of Contents for Desert Aire CM3570 Series

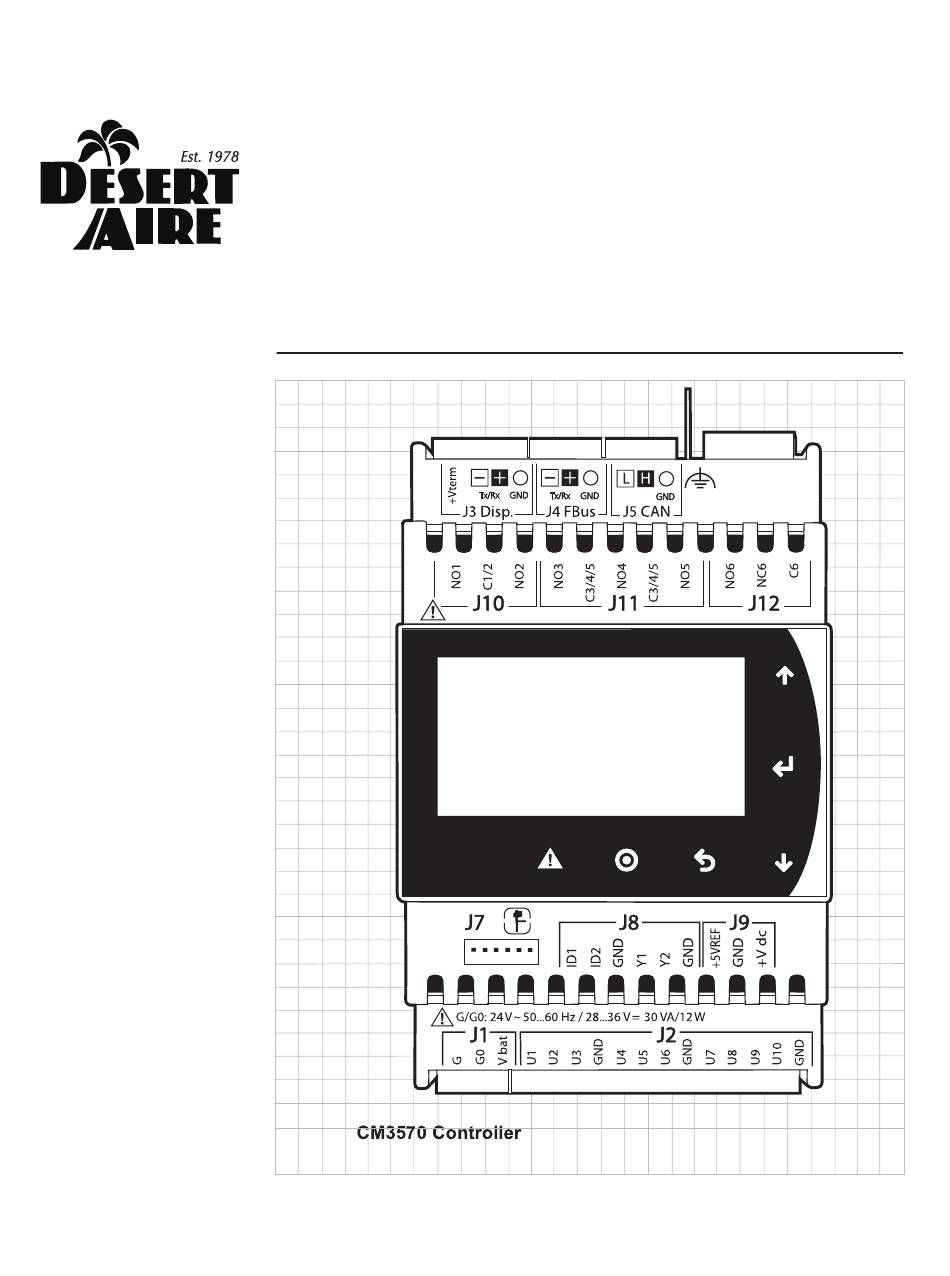

Page 1 CM3570 Series CM3570 Series Controller Controller Installation and Operation Manual for GR Units Installation and Operation Manual for GR Units • Advanced program capabilities • Controls specific to Controlled Environment • Internal Display Agriculture Terminal (IDT) • Monitoring of • Multiple...
Page 3 TERMS Desert Aire warrants all components (except as noted) for a period of two (2) years from the date of shipment. This warranty shall be limited to the supply of new or rebuilt parts for the part which has failed because of defects in workmanship or material, and does not include the cost for labor, transportation or other costs not herein provided for.
Page 4 EMAIL: service@desert-aire.com Additional copies of this manual can be purchased for a nominal fee from Desert Aire. Desert Aire also posts the most current revision of our I/O Manuals on our website. For a digital copy of the I/O Manual for your unit revision, please submit request to the contact information listed above.
Page 5 Product Warning for the State of California: Desert Aire - CM3570 Manual...
Page 6 Desert Aire - CM3570 Manual...
Page 7: Table Of Contents
2.3.3.3.1 Digital Inputs (Binary) ............2.3.3.3.2 Analog Inputs ..............2.3.3.3.3 Digital Inputs ..............2.3.3.3.4 Analog Inputs ..............2.3.3.4 Sensor Offsets ................2.3.3.5 Diagnostics ..................2.3.3.6 Memory Options ................2.3.3.7 Clear Overrides ................2.3.4 Unit Revision ....................Desert Aire - CM3570 Manual...
Page 8 Alarm Menu ......................Retain Memory Writings or Retain Memory Write Error ........... c.pCOe Comm Fault ....................c.pCOe Cnfg Fault ....................Zone Sensor Fault or Intake Sensor Fault ............... Pump Overload ......................Supply Fan(s) Overload ................... Low Voltage Monitor Tripped ................... Smoke Alarm ......................
Page 9: Installation
Installation 1.1 Introduction Your Desert Aire controller is designed for precise monitoring and control of air temperature, relative humidity (RH) and Dew Point (DP) within a conditioned environment. This CM3570 control system is easy to install and operate. The controller itself is installed in the electrical cabinet of the dehumidifier and features an internal display terminal (IDT) and an optional remote display terminal (RDT).
Page 10: Cm3570 Controller Details
The internal display terminal (IDT, see Figure 1) allows the operator to monitor and adjust the setpoints of your Desert Aire system. The IDT has an LCD screen and six keys. These keys are labeled as below: The remote display terminal (RDT) has an LCD screen and six keys.
Page 11: Zone Setpoints
GrowCycle Scheduler. With standard setpoints active, pressing the Prg key will display the screens of Figures 2 and 3 for Lights On and Lights Off setpoints respectively. Desert Aire - CM3570 Manual...
Page 12 Figure 5 and 6. Here the network zone temperature and humidity setpoints are adjustable for both the lights on and lights off mode of operation. These setpoints will also be adjustable through Modbus or BACnet protocol depending on the BMS option selected. Desert Aire - CM3570 Manual...
Page 13 Setpoints menus, and displayed on this screen. The screen will either say “Schedule Active”, “Schedule Ended”, or display which period the schedule is on. Press the Esc key to return to the Home Screen. Figure 7 Desert Aire - CM3570 Manual...
Page 14: Main Menu
Unit Status displays the lights on/off status, the zone Vapor Pressure Deficit VPD), the zone CO level, and CO valve status if enabled, and finally the zone temperature and humidity. At the very bottom the time and date are displayed. Desert Aire - CM3570 Manual...
Page 15 At the bottom of the screen the time and date are displayed. Figure 12 Desert Aire - CM3570 Manual...
Page 16 Figure 15. The chilled water coil flow valve is driven by either the stage 1 cooling command, or the stage 2 dehumidification command. These commands will be expressed as a position (%), and the valve will use the maximum value of either of these two commands displayed at the bottom. Desert Aire - CM3570 Manual...
Page 17 The unit CFM setpoint will select the maximum of these values, which is displayed towards the bottom of the screen. At the very bottom of the screen the calculated unit CFM is displayed. Desert Aire - CM3570 Manual...
Page 18: Set Time & Date
Figure 18 Press the ESC key to return to the MAIN MENU. 2.3.3 Service Menu Selecting the SERVICE MENU will display the Login Screen shown in Figure 19. Enter the service password, 1234, and press Ent. Desert Aire - CM3570 Manual...
Page 19: Commissioning
COMMISSIONING MENU. From the Commissioning Menu the user can access the CONFIGURATION, NETWORK CONFIG, SYSTEM SETUP, COMMISSIONING TESTS, and BMS SETUP SCREENS. If the CO or dirty filter option has been enabled, the CO2 SETUP and FILTER SETUP means will also be selectable. Desert Aire - CM3570 Manual...
Page 20: Configuration
“Net Heartbeat Enable” will appear. If enabled, the heartbeat delay can be set (in seconds). The heartbeat and heartbeat delay needs to be coordinated with BMS administrator. The next option is “Network Setpoints”. If this is selected the unit will Desert Aire - CM3570 Manual...
Page 21 Lead Unit. If the unit has a CO sensor connected, this checkbox should be left unchecked Figure 24 Press the Esc key to return to the Commissioning Menu. Desert Aire - CM3570 Manual...
Page 22: Network Config
After changing the unit tag the unit should be power cycled. Pressing the Dwn key will display the screen of Figure 27. Figure 26 Desert Aire - CM3570 Manual...
Page 23: System Setup
If the equipment is a lag unit, then the unit sizes and unit tags will be displayed on these screens but not editable. Figure 28 Desert Aire - CM3570 Manual...
Page 24: Commissioning Tests
Record” can be edited to clear the recorded data. This will also reset the reference timer on the test. Pressing the Esc key from either of these screens will return to the screen of Figure 30. Desert Aire - CM3570 Manual...
Page 25 A test timer at the bottom of the screen will start as a reference for the duration of the test. Pressing the Prg key will display the screens of Figures 31 and 32. Pressing the Dwn key will display the screen of Figure 34. Figure 33 Desert Aire - CM3570 Manual...
Page 26: Bms Setup
J3 port can be set to either PGD Display, BACnet MS/TP, or Modbus RTU. After a change is made the controller should be power cycled. Pressing the Dwn key will display the screen of Figure 36. Figure 35 Desert Aire - CM3570 Manual...
Page 27 From the ETHERNET SETUP screen the controllers Ethernet Port can be configured for Modbus TCP/IP, or BACnet communications protocols. After a change is made the controller should be power cycled. Pressing the Dwn key displays the screen of Figure 39. Desert Aire - CM3570 Manual...
Page 28: Co Setup
Towards the bottom of the screen the zone CO is displayed as well as the CO Valve On/Off status. Pressing the Dwn key will display the screen of Figure 41. Desert Aire - CM3570 Manual...
Page 29 Towards the bottom of the screen the zone CO is displayed as well as the low alarm “OK/FLT” status. Press the Esc key to return to the COMMISSIONING MENU. Figure 42 Desert Aire - CM3570 Manual...
Page 30: Filter Setup
MENU screen shown in Figure 44. From the Tuning Menu the user can access the ZONE CONTROL PID, COIL DEMANDS PID, TEMP-BAND SETUP, STAGES SETUP, VALVES PID, SUPPLY FANS, and VPD SETUP menus . Figure 44 Press the Esc key to return to the Service Menu. Desert Aire - CM3570 Manual...
Page 31: Zone Control Pid
PID terms on the top half of the screen. Towards the bottom half of the screen the zone dewpoint, zone dewpoint setpoint, and calculated dewpoint demand are all displayed. Pressing the Dwn key will display the screen of Figure 48. Desert Aire - CM3570 Manual...
Page 32 PID terms on the top half of the screen. Towards the bottom half of the screen the zone RH, zone RH setpoint, and RH limit demand are all displayed. Pressing the Dwn key will display the screen of Figure 50. Desert Aire - CM3570 Manual...
Page 33 LEAD-UNIT ZONE DEMANDS screen shown in Figure 51. At the top the cooling demand is displayed followed by the RH limit demand, dewpoint demand, and dehum demand. Pressing the Dwn key will display the screen of Figure 52. Desert Aire - CM3570 Manual...
Page 34: Coil Demands Pid
On the bottom half of the screen the chilled water coil leaving air temperature, cooling chilled water coil leaving air temperature setpoint, and calculated cooling chilled water coil demand are all displayed. Pressing the Dwn key will display the screen of Figure 54. Desert Aire - CM3570 Manual...
Page 35 Pressing the Dwn key will display the screen of Figure 56. Desert Aire - CM3570 Manual...
Page 36: Temp-Band Setup
Figure 57 lor lag units. The LIGHTS OFF SAT BAND screen allows the user to adjust the lights off calculated supply air temperature setpoint band. The lowband and highband are calculated by adding the low offset and high offset to the zone temperature setpoint Desert Aire - CM3570 Manual...
Page 37 LEAD-UNIT SAT BAND screen the lowBand and highband are displayed on the screen. These values are sent by the lead unit and are display only on the lag unit. Pressing the Dwn key will display the screen of Figure 60. Desert Aire - CM3570 Manual...
Page 38 Figure 59 From the COOLING CWC LAT RESET SETPOINT screen the start cooling demand and setpoint are viewable towards the top of the screen. Directly below the max cooling demand and setpoint are displayed. At the bottom the current calculated cooling demand and corresponding cooling chilled water coil leaving air temperature setpoint are displayed.
Page 39: Stages Setup
Figure 61 Press the Esc key to return to the Tuning Menu. 2.3.3.2.4 Stages Setup Selecting STAGES SETUP from the Tuning Menu will display the screen of Figure 62. The stages setup starts with cooling stage 1 which has direct control over the chilled water coil flow valve. The cooling stage 1 start demand and start position are adjustable towards the top of the screen.
Page 40 Towards the bottom of the screen the current dehum coil demand, and dehum stage 1 cold water inlet temperature setpoint are displayed. Pressing the Dwn key will display the screen of Figure 66. Desert Aire - CM3570 Manual...
Page 41 Directly below, the dehum stage 3 maximum demand (adjustable) and CFM setpoint are shown. Towards the bottom of the screen the current dehum demand and dehum stage 3 airflow setpoint are displayed. Desert Aire - CM3570 Manual...
Page 42: Valves Pid
On the bottom half of the screen the chilled water coil temperature valve position can be switched from “Auto” to “Manual”. Directly below the manual valve position can be adjusted. Pressing the Dwn key will display the screen of Figure 70. Desert Aire - CM3570 Manual...
Page 43 On the bottom half of the screen the hot water coil valve position can be switched from “Auto” to “Manual”. Directly below the manual hot water coil valve position can be adjusted. Desert Aire - CM3570 Manual...
Page 44: Supply Fans Setup
The supply fan PID loop will use either the maximum or minimum setpoint based on what stage the unit is in, and what demands are required. Pressing the Dwn key will display the screen of Figure 74. Desert Aire - CM3570 Manual...
Page 45: Vpd Setup
BMS sensor. At the bottom of the screen the leaf temperature is displayed. Pressing the Dwn key will display the screen of Figure 76. Desert Aire - CM3570 Manual...
Page 46: I/O Status
Tuning Menu to return to the Service Menu. 2.3.3.3 I/O Status Selecting I/O STATUS from the Service Menu will display the screen of Figure 77. From this menu the DIGITAL INPUTS, ANALOG INPUTS, DIGITAL OUTPUTS, and ANALOG OUTPUTS screens are all available. Desert Aire - CM3570 Manual...
Page 47: Digital Inputs (Binary)
This is an optional input, and will not be shown if the condensate float switch option has not been selected. The input will read “OK” when the contact is open, and “FLT” when the contact is closed. Desert Aire - CM3570 Manual...
Page 48: Analog Inputs
Pressing the Dwn key will display the screen of Figure 80. This screen shows the status of the intake temperature and humidity Modbus sensor (address 191). It will display the intake temperature, relative humidity, and dewpoint read by the intake sensor. Desert Aire - CM3570 Manual...
Page 49 Pressing the Dwn key will display the screen of Figure 82. This screen displays the inputs associated with the hot water coil. In the center of the screen the status of U2 the hot water coil water inlet temperature is displayed. Figure 82 Desert Aire - CM3570 Manual...
Page 50: Digital Inputs
The output will read “On” if there is an active alarm, and “Off” if no alarm present. • The second line shows the status of NO3, the digital pump output. The output will read “On” when the pump is running, and “Off” when Desert Aire - CM3570 Manual...
Page 51: Analog Inputs
Directly below that the chilled water coil flow valve position is displayed. At the bottom of the screen the hot water coil flow valve position is displayed. Figure 86 Desert Aire - CM3570 Manual...
Page 52: Sensor Offsets
Figure 88 Pressing the Dwn key will display the screen of Figure 89. From this screen the offsets for the intake temperature, relative humidity, and dewpoint are all adjustable. Desert Aire - CM3570 Manual...
Page 53: Diagnostics
To the Right on the top, the status of the pump is displayed. In the middle of the screen on the right, the intake air temperature is displayed and directly below the chilled Desert Aire - CM3570 Manual...
Page 54 water coil Inlet temperature is displayed. On the bottom left of the screen the chilled water coil leaving air temperature is displayed. On the bottom of the screen the chilled water coil temperature valve status is displayed. In the center of the screen and a little towards the left, a rough schematic of the chilled water coil, and piping is shown.
Page 55 manual enable can be turned “On” or “Off”, and directly below a manual position can be set. Towards the bottom the valve can be reset. Resetting the valve will essentially clear any alarms stored in the valve. At the very bottom of the screen a valve status is displayed.
Page 56 valve is displayed. Directly below that the absolute position of the valve is displayed. In the center of the screen a manual enable can be turned “On” or “Off”, and directly below a manual position can be set. Towards the bottom the valve can be reset.
Page 57 If the unit has more than one fan, then pressing the Dwn key will display the screen of Figure 97. This screen gives an overview of EC Fan 2. At the top of the screen the fan speed is displayed. Directly below that the fan power is displayed.
Page 58: Memory Options
Figure 98 Press the Esc key to return to the Service Menu. 2.3.3.6 Memory Options Selecting MEMORY OPTIONS from the Service Menu will display the screen of Figure 99. This screen allows for the writing of log files to a specific storage location.
Page 59 Drive”. Once the correct selection is made select the “Press UP to write” text and select the Up key. This will write the setpoint.txt file to the selected location. If the file is written correctly a message will appear at the bottom of the screen stating “Completed”.
Page 60: Clear Overrides
The Unit Revision screen shows the version of the application program that is running along with the release date of the software. This information should be passed to Desert Aire in the event a service call is necessary. Figure 103...
Page 61 Alarm Menu Alarms are either automatic reset or manual reset. Automatic reset alarms are alarms that allow the unit to return to operation once the operating parameter has been returned to acceptable operating conditions. The unit will restart automatically; however, the red alarm LED will remain illuminated until acknowledged, to alert the operator the alarm occurred.
Page 62 Zone Sensor Fault or Intake Sensor Fault This is an automatic reset alarm. Check the communication wiring to the sensor when this fault occurs. The red alarm LED on the display will stay lit until the alarm is reset. Pump Overload This is a manual reset alarm.
Page 63 3.11 CWC Temp, CWC Flow, or HWC Flow Valve Alarms These are manual reset alarms. The valve alarm is activated when the valve sees a fault condition. This can be a variety of different faults, and the valve diagnostics should be viewed to determine the exact fault.
Page 65 Zone, Intake Temperature, Relative Humidity and Dewpoint Sensor These sensors are communication devices which send Modbus data out from addresses 190, and 191. If communication is lost from this device, an alarm is activated. The Desert Aire replacement part numbers are available by calling our Service Department.
