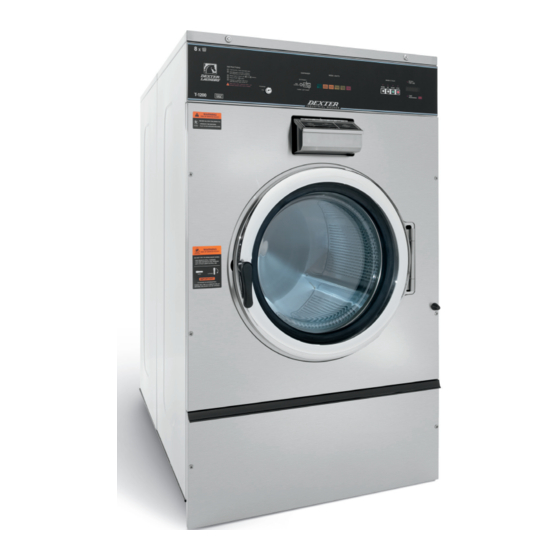

C-Series OPL Express Washers
WN0650, WN0750, WN0950,WN1450
(Express Washers 200G)
Parts & Service Manual
Sta
Starting Serial # W1.15244.001
8533-094-001 11/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dexter Laundry OPL Series

  • Page 1 C-Series OPL Express Washers WN0650, WN0750, WN0950,WN1450 (Express Washers 200G) Parts & Service Manual Starting Serial # W1.15244.001 8533-094-001 11/20...
  • Page 2 Equipment Safety Warnings Symbols and Terminology Used in this Equipment Indicates an imminently hazardous situation, which if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which if not avoided could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
  • Page 3 Equipment Safety Warnings Symbols and Terminology Used in this Equipment Warning! Do not operate equipment if door glass is damaged in any way. Warning! Keep clear of rotating parts. Prohibited! Do not enter this equipment or space. Prohibited! Do not step or stand on this equipment. Prohibited! Do not operate without all guards and covers in place.
  • Page 4 Indicates an imminently hazardous situation, which if not avoided, will result in death or seri- ous injury. Indicates a potentially hazardous situation, which if not avoided could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
  • Page 5 WARNING • All washers must be installed in accordance to all applicable electrical, plumbing and all other local codes. • These installation and operation instructions are for use by qualified personnel only. To avoid injury and electrical shock, do not perform any servicing other than that contained in the installation and op- eration instructions, unless qualified.
  • Page 6 WARNING Children should be supervised to ensure they do not operate or play in or around equipment. Keep all panels in place to protect against electrical shock and injury and add rigidity to washer. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a...
  • Page 7 Warning! Do not operate equipment if door glass is damaged in any way. Warning! Keep clear of rotating parts. Prohibited! Do not enter this equipment or space. Prohibited! Do not step or stand on this equip- ment. Prohibited! Do not operate without all guards and covers in place.
  • Page 8 Prohibited! Do not attempt to open, touch, or pro- ceed before referring to the manual or unless quali- fied. Mandatory! Read all supporting documentation be- fore operating or maintaining equipment. Mandatory! Disconnect power before servicing equipment. Mandatory! Lock out and tag out before servicing this equipment.
  • Page 9 Notes Part # 8533-094-001 11/20...
  • Page 10: Table Of Contents

    Dexter Safety Table of Contents Guidelines Section 1: Machine Mounting & Installation WARNING T-750 .............14 T-950 ............15 T-1450 ............16 These washers are equipped with devices and T-750 Installation ...........17 features relating to their safe operation. To avoid injury or electrical shock, do not perform T-900 Installation ...........18 and service, unless qualified to do so.
  • Page 11 Front Panel Removal ........48 LED Printed Circuit Board Temperature & Start/ Back Panel Removal ........48 Display Push Button .........61 Drain Valve Access .........48 Drain Valve Cleaning ........48 Delta Variable Frequency Drive .......62 Detergent Dispenser ........48 Delta VFD Motor Leads........62 Vaccuum Breaker/ Delta VFD Dynamic Braking Air Gap ............49 Resistors ............62...
  • Page 12 Section 9: 50 Hz Models -39 Parts..........112-114 50HZ Diagrams & Schematics.....116-125 Section 10: Maintenance Preventative Maintenance ......128 Part # 8533-094-001 11/20...
  • Page 13 Section 1: Machine Mounting Part # 8533-094-001 11/20...
  • Page 14 Specifications for below models are outlined in this book: T-650 WN0650XA-12EV 208-240 volts 60hz Single Phase or Three Phase T-750 WN0750XA-12EV 208-240 volts 60hz. Single Phase or Three Phase T-950 WN0950XA-12EV 208-240 volts 60hz Single Phase or Three Phase T-1450 WN1450XA-12EV 208-240 volts 60 hz Single Phase or Three Phase...
  • Page 15 2211 W. Grimes, Fairfield, Iowa 52556 www.dexterlaundry.com 1-800-524-2954 T950 Machine Dimensions Dexter Commercial T-950 Express Washer © Rev. 9. 3/2011, Dexter Laundry, Inc. Dexter reserves the right to change specifications without notice. Mounting Dimensions 12 13/16” 27 1/8” 2 3/4”...
  • Page 16 T-1450 Machine Dimensions 7 &200(5&,$/ :$6+(5 02817,1* ',0(16,216                /RDG ODXQGU\ FORVH DQG ODWFK GRRU  $GG GHWHUJHQW DQG IDEULF 4XDUWHUV 2QO\ 32:(5 LQWR GLVSHQVHU RQ IURQW RI PDFKLQH 'HWHUJHQW  6HOHFW ZDVK WHPSHUDWXUH...
  • Page 17 T650 Mounting Dimensions        Part # 8533-094-001 11/20 ...
  • Page 18 T750 Mounting Dimensions CONCRETE PEDESTAL MOUNTING FLOOR OUTLINE Figure 1-1 Figure 1-2 Part # 8533-094-001 11/20...
  • Page 19 T950 Mounting Dimensions CONCRETE PEDESTAL MOUNTING FLOOR OUTLINE Figure 1-1 Figure 1-2 Part # 8533-094-001 11/20...
  • Page 20 T1450 Mounting Pad Dimensions Part # 8533-094-001 11/20...
  • Page 21 Notes Part # 8533-094-001 11/20...
  • Page 22 Notes Part # 8533-094-001 11/20...
  • Page 23: Installation

    Section 2: Machine Installation & Operating Instructions Part # 8533-094-001 11/20...
  • Page 24 Washer Installation All washers must be installed in accordance with all local, state and national building, electrical, and plumbing codes in effect in the area. Foundation Requirements The washer must be securely bolted to a substantial concrete floor, or mounted upon a suitable base which is securely bolted and machine grouted to a substantial concrete floor.
  • Page 25 To Make Electrical Connections Disconnect all power to the washer. Remove screw and lift out the cover located in the upper left corner of the machine (as viewed from the back). • If power is 208-240-3PH-60Hz, connect L1, L2, L3 and ground. If there is a high leg it must be connected to L3.
  • Page 26 Liquid Chemical Connection In the left rear corner of the washer is the chemical injection as- sembly. This is where all chemical hose connections are made. The chemical hoses should be inserted into the round pvc pipe a minimum of 14” and a maximum of 18” to eliminate chemical buildup in the pipe and/or restrict water flow to the tub.
  • Page 27 Washer Operating Instructions Safety Door Lock This machine is equipped with a Safety Door Lock that locks the door closed from when the cycle is started until the cycle is complete. The door lock prevents opening the door for up to 3 minutes if the power is interrupted during the cycle.
  • Page 28: Detergent Measurements By Model

    Detergent Measurements By Washer Model 1/3 Cup Maxi Load T-650 Washer 1/3 Cup Maxi Load T-750 Washer 1/2 Cup Mega Load T-950 Washer 2/3 Cup Magnum Load T-1450 Washer Part # 8533-094-001 11/20...
  • Page 29: Machine Programming Instructions

    Section 3: Machine Programming Instructions Part # 8533-094-001 11/20...
  • Page 30 Bath Cycle Time “ct” 0 to 15 minutes for Prewash, Rinse1 and Rinse 3 to 15 minutes for Wash and Final Rinse. For the baths that can, if the time is set to zero, then that bath will be eliminated from the cycle. Bath Water Temperature “t”...
  • Page 31 Cycle 1: Sheets and Pillowcases (Health Care) Bath Bath Cycle Water Water Delay Spin Injection Time (min.) Temp. Level Fill Time (min.) Source Flush Prewash Wash #1(Detergent) Rinse 1 #2 (Bleach) Rinse 2 Rinse 3 Rinse 4 Final Rinse #4 (Sour/Soft) Cycle 2: Towels / Pads / Diapers (Health Care) Bath Bath Cycle...
  • Page 32 Cycle 4: Guest Laundry (Hotel / Motel / Healthcare) Bath Bath Cycle Water Water Delay Spin Injection Time (min) Temp. Level Fill Time (min) Source Flush Prewash Wash (#6(Detergent/Bleach) Rinse 1 Rinse 2 Rinse 3 Rinse 4 Final Rinse #4 (Sour/Soft) Cycle 5: Rags and Mops (Hotel / Motel) Bath Bath Cycle...
  • Page 33 Washer Programming Instructions THERE ARE TWO WAYS TO MODIFY PROGRAMMING OF THE V-SERIES OPL SIX (6) PREPROGRAMMED FORMULAS Option 1: Programming can be accomplished manually using the machine controls or by connecting to the machine control using a PDA (personal digital assistant). For instructions on using a PDA with this washer control and software, please contact your local Dexter distributor.
  • Page 34: Rapid Advance Mode

    Rapid Advance Mode To enter the Rapid Advance mode, turn the key CCW. The Rapid Advance setting is not marked next to the key, but turning the CCW until it stops selects this mode. The Rapid Advance mode can be entered from either the Idle mode or during the cycle.
  • Page 35: Trouble Shooting

    Section 4: Trouble Shooting Part # 8533-094-001 11/20...
  • Page 36: Common Troubleshooting Solutions

    Common Troubleshooting Solutions Symptom Probable Cause Suggested Remedy Machine Power Supply Check these areas: Circuit breakers, Voltage, Power leads, does not Power connections. Is front display LED showing a dollar start amount. Door Switch Check for continuity through door switch when door is closed.
  • Page 37 Common Troubleshooting Solutions Symptom Probable Cause Suggested Remedy Hot water Water Valve Coil Check coil continuity at terminals and replace if no continuity. does not Check for 120 V power from main relay PCB enter tub in Water Inlet Check water inlet screens for blockage and clean if necessary wash screens Water...
  • Page 38 Common Troubleshooting Solutions Symptom Probable Cause Suggested Remedy Machine Check VFD by removing inspection panel and record any does not numbers or letters displayed. If no display turn power off to turn machine at breaker for 2 minutes and turn poiwer back on to reset.
  • Page 39: Troubleshooting Machine Fault Errors

    Troubleshooting Machine Fault Errors The following are descriptions of fault codes that will appear on the front of the washer. There is a chart format that shows what fault code that will be displayed at washer front. The codes displayed may or may not stop machine operation. PLEASE NOTE: CHECK DRIVE FAULT CODE BEFORE POWERING MACHINE DOWN! Fault# Description Customer Action...
  • Page 40 Fault# Description Customer Action Wrong size drive installed Check VFD fault code before turning off power.Check to ensure all the harnesses are properly connected to the controller. Check to ensure the VFD drive horsepower is proper for this size of washer. The control can be reset by holding program button on controller during startup (soft reset) Check orange wires at molex connector on controller coming from pressure switch.
  • Page 41 Fault# Description Customer Action The variable frequency Check the data communication cable between the drive (VFD) and the washer computer and the variable frequency drive washer computer are not (VFD). communicating. Step 1: Make sure the cable did not become unplugged during operation.
  • Page 42 Fault# Description Customer Action The temperature sensor Step 1: Make sure the cooling fins on the VFD heatsink inside of the variable and the ventilation louvers on the VFD cooling fan cover are clean. Step 2: Start a washer cycle and make sure frequency drive detects that the internal temperature is the VFD cooling fan operates after the cylinder starts...
  • Page 43 VFD unit has been added or Soft reset control. loose connection. Injection relay PCB has been Soft reset control. added to machine or loose connection. Optional water valve PCB Soft reset control. has been added or loose connection Note: Whenever power is turned off to the washer, it must remain off for three minutes for drive to reset.
  • Page 44: Variable Frequency Drive Control Digital Readout Faults

    Variable Frequency Drive Control Digital Readout Faults Fault# Description Customer Action VFD received an illegal Reset drive. command. Possible controller problem Illegal data address, VFD Reset drive. received an address not available to the controller. Illegal data value received Reset drive. at VFD.
  • Page 45 Variable Frequency Drive Control Digital Readout Faults Fault# Description Customer Action OL or Overload of the drive or (Check drive fault code before powering down). Check motor the washer motor to ensure it turns freely. Check the wiring for loose connections to the drive and motor.
  • Page 46 Notes Part # 8533-094-001 11/20...
  • Page 47: Machine Service Procedures

    Section 5: Machine Service Procedures Part # 8533-094-001 11/20...
  • Page 48: Top Panel Removal

    Top Panel Removal Top Soap Dish Step 1: Remove 4 screws that hold detergent dispenser to top panel. (for T750, T900, T950) Step 2: Unlock top panel lock. Step 3: Raise top panel, slide to the rear to release from back clips and lift off. Top Panels Removal Front Soap Dish Step 1: Unlock top panel locks.
  • Page 49: Air Gap

    Vacuum Breaker (also called an air gap) In the left rear of the cabinet is the vacuum breaker. It guides the water to the tub and dispenser and prevents a back flow of water. Water Valves Remove top panel to access water valves. (see Removing Top Panel) The two dual outlet water and/or single coil valves are mounted to the rear channel with two screws each.
  • Page 50 Door cam Flat blade screw on check position door switch latching Step 3: With switch actuator bracket adjusted you Step 4: Check for switch actuation at partial will now need to adjust single switch by turn of cam as in operation above. Door loosening 2 flat brade screws and allowing handle goes from horizontal to six o’clock swivel of switch.
  • Page 51: Adjusting The Loading Door

    Adjusting the Loading Door The door can be adjusted by changing the number of shims behind the door hinge and the door lock assembly. The vertical fit of the door to the tub can be altered by loosening the door hinge bolts and raising or lowering the door before retightening.
  • Page 52: Loading Door Disassembly

    Loading Door Disassembly Step 1: Remove the loading Step 2: While holding down on Step 3: Work all the way around door as outlined above. the door glass, lift up the gasket and the glass Lay the door on a flat on the door ring and roll is out.
  • Page 53: Thermoactuators

    Door Locking Gear Motor Assembly The door locking gear motor is rotated shut with control voltage to lock the door and releases when voltage is removed. It is located in the left front corner of the washer. (Original l ocking solenoid models can be converted to the new assembly) Thermoactuators Door Lock Gear Motor...
  • Page 54 Cylinder Assembly Step 1: Remove the top panel as described previously. Step 2: Remove lower service panel as described previously. Step 3: Remove front panel as described previously. Step 4: Remove masking ring as described previously. Step 5: Remove door lock assembly. (Leave wires & pull rod in place) Step 6: Remove clothes door.
  • Page 55 Water Seals Replacement Step 1: Remove cylinder from washer (see Cylinder (basket) removal). Step 2: Remove water seals from the seal mounting plate on Guard Ring & Mating Ring the cylinder shaft. These are removed with your fingers. Step 3: The primary and secondary seals that mount on the sealing ring may be slid over the shaft and seated on the metal sealing ring with your fingers.
  • Page 56 Reassembly of the Cylinder Step 1: Use the hub of the drive pulley, a stack of 5/8” flat washers and a 3” long 5/8” bolt to pull the cylinder shaft through the bearings. After the 3” bolt a 2” long bolt will be required to finish pulling the cylinder shaft through.
  • Page 57: T-650 Bolt Torque Chart

    T-650 Bolt Torque Chart Bolt Size Where Used Torque 1/2”x 1 1/4” bolt Tub End of Bearing Hsing. 9545-017-009 70-110 ft/lbs 5/8”x 1 1/2” bolt Tub End of Bearing Hsing. 9545-060-001 120-150 ft/lbs 1/2”x 1 1/4” bolt Mtg. of Tub to Cradle Asy. 9545-017-009 70-110 ft/lbs 5/8”x 2 1/2”bolt Mtg.
  • Page 58 Notes Part # 8533-094-001 11/20...
  • Page 59 Section 6: Service Electrical Components Part # 8533-094-001 11/20...
  • Page 60: Control Mounting Trough

    Control Mounting Trough Remove top panel to access control trough. (see Removing Top Panel) It sets on the right side of the machine and holds the control PCB’s, transformers,and pressure switch. Main Data Communication Cable Goes between front PCB board and Variable Frequency Drive unit mounted center rear of machine. It has telephone type connectors at each end and is inserted at Controller PCB and the Variable Frequency Drive.
  • Page 61: Pressure Switch

    Pressure Switch Caution (Not recommended by Factory!) Changing Factory preset adjustment voids all factory water usage specifications. The pressure switch sets the water level in the washer. As the water level rises, it compresses the air in the pressure switch hose. When the washer reaches the desired water level, the compressed air in the pressure switch hose opens the contacts in the switch, shutting off the water.
  • Page 62 Pressure Sensor Electronic The Electronic Pressure Sensor comes standard on all models Starting Septembet, 1st 2015. Machines Level Chart manufactured before this date can be upgraded with Kit 9732-213-001. The Pressure sensor is adjustable. The Factory settings chart will let you know the starting values for each machine and by following the Switch position chart you can adjust the water levels in 1/4 inch increments from that starting value.
  • Page 63 Water Level Ch                                      ...
  • Page 64: Power Connection Terminal Block

    Power Connection Terminal Block This terminal block sets at the very back of the control trough. Incoming power to the washer should connect here. (see Electrical under Installation and Operation Section for exact connections) Rear Delta Variable Frequency Drive: Main power is connected to terminals L1, L2, and L3 on the Delta drive. If the washer is connected to a three phase source, there should be voltage present on all three terminals.
  • Page 65 MAXIMUM SPIN SPEED ADJUSTMENT: If desired, the washer can be adjusted to limit the maximum extract spin speed for all wash cycles. To make this adjustment, a jumper wire must either be installed or removed on the Variable Frequency  Drive (VFD), depending on the washer model and desired speed.
  • Page 66 Notes Part # 8533-094-001 11/20...
  • Page 67 Section 7: Electrical Wiring Diagrams & Schematics Part # 8533-094-001 11/20...
  • Page 68: Start Circuit

    Electrical Path Circuit Schematics Start Circuit Power travels into the machine on L1 & L2 & (L3) ( if 3 phase used). 208- 240VAC goes to a Control Transformer ( must be checked at start -up to coincide with machine operating voltage) that steps the voltage down to 115VAC for the controls.
  • Page 69: Wash Circuit

    Wash Circuit As the washer fills the tub through the back of the machine with either one or both the C1 Cold and H1 Hot Water Valves, the Wash Basket will tumble one direction for 12 seconds, pause, and then reverse di- rection for 12 seconds.
  • Page 70 Notes Part # 8533-094-001 11/20...
  • Page 71 Notes Part # 8533-094-001 11/20...
  • Page 72 WN0650XA-12 Schematic Part # 8533-094-001 11/20...
  • Page 73 WN0650XA-12 Diagram Part # 8533-094-001 11/20...
  • Page 74 WN0650XA-12 Schematic V4 Part # 8533-094-001 11/20...
  • Page 75 WN0650XA-12 Diagram V4 Part # 8533-094-001 11/20...
  • Page 76 WN0750XA-12 Schematic Part # 8533-094-001 11/20...
  • Page 77 WN0750XA-12 Diagram Part # 8533-094-001 11/20...
  • Page 78 WN0750XA-12 Schematic V4 Part # 8533-094-001 11/20...
  • Page 79 WN0750XA-12 Diagram V4 Part # 8533-094-001 11/20...
  • Page 80 WN0950XA-12 Schematic Part # 8533-094-001 11/20...
  • Page 81 WN0950XA-12 Diagram Part # 8533-094-001 11/20...
  • Page 82 WN0950XA-12 Schematic V4 Part # 8533-094-001 11/20...
  • Page 83 WN0950XA-12 Diagram V4 Part # 8533-094-001 11/20...
  • Page 84 WN1450XA-12 Schematic Part # 8533-094-001 11/20...
  • Page 85 WN1450XA-12 Diagram Part # 8533-094-001 11/20...
  • Page 86 WN1450XA-12 Schematic V4 Part # 8533-094-001 11/20...
  • Page 87 WN1450XA-12 Diagram V4 Part # 8533-094-001 11/20...
  • Page 88 Notes Part # 8533-094-001 11/20...
  • Page 89: Parts Data

    Section 8: Parts Data WN0650XA-12EV 208-240 volts 60hz Single Phase or Three Phase WN0750XA-12EV 208-240 volts 60hz. Single Phase or Three Phase WN0950XA-12EV 208-240 volts 60hz Single Phase or Three Phase WN1450XA-12EV 208-240 volts 60 hz Single Phase or Three Phase Part # 8533-094-001 11/20...
  • Page 90 C-Series OPL Accessories WN0650XA-12EV 208-240 volts 60hz Single Phase or Three Phase WN0750XA-12EV 208-240 volts 60hz. Single Phase or Three Phase WN0950XA-12EV 208-240 volts 60hz Single Phase or Three Phase WN1450XA-12EV 208-240 volts 60 hz Single Phase or Three Phase Description T650 T750...
  • Page 91: Wiring Harness Part # By Model

    Wiring Harness Part # by Model Description T650 T750 T950 T1450 Wiring Harness (Add Bleach Lite assy included) 9794-001-001 9794-001-001 9794-001-001 9794-001-001 Wiring Harness, Door Lock 9627-791-005 9627-791-005 9627-791-005 9627-791-005 Wiring Harness, Drain,Thermo,DoorSol 9627-796-002 9627-796-002 9627-796-002 9627-796-002 Data Cable 9806-015-001 9806-015-001 9806-015-001 9806-015-003...
  • Page 92: Cabinet And Front Panel Group Part # By Model

    Cabinet and Front Panel Group Part # by Model Large Door Description T650 T750 T950 T1450 Panel, Side (Left or Right) - stainless 9454-812-001 Panel, Side (Left or Right) - stainless 9454-914-001 9454-839-001 9454-836-001 Bolt-1/4-20x1/2 (side panel Front to Rear) 9545-018-013 9545-018-013 Nut 1/4-20UNC (side panel)
  • Page 93 15,16 15,16 Description T650 T750 T950 T1450 Screw Mtg., Flat Head 10Bx1 3/4 9545-008-014 9545-008-014 9545-008-014 9545-008-014 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 8641-585-001 Nut, Spring 8640-399-008 8640-399-008 8640-399-008 8640-399-008 Label-Risk of injury (Black) 8507-759-001 8507-759-001 8507-759-001 8507-759-001 Key, Top- # 6324 6292-006-007 6292-006-007 6292-006-007...
  • Page 94: Soap Dish

    Cabinet and Front Panel Group Part # by Model Front Soap Dish 4, 5 12 11 Gasket and Soap Tub Front Here Dish Here Part # 8533-094-001 11/20...
  • Page 95 Top Mount Detergent Dispenser Description T650 T750 T950 T1450 Dispenser Soap 9122-005-004 9122-005-004 9122-005-004 Gasket Despinsor 9206-416-001 9206-416-001 9206-416-001 Hose, Despinsor to tub 9242-450-003 9242-450-001 9242-450-001 Clamp 8654-117-008 8654-117-008 8654-117-008 Nut, Spring ss 8640-399-007 8640-399-007 8640-399-007 Flow restictors 9475-002-002 9475-002-002 9475-002-002 Flow restictors Optional (Smaller) 9475-002-003...
  • Page 96: Rear View Access Part # By Model

    Rear View Access Part # by Model Description T650 T750 T950 T1450 Drive Motor, 3 Phase (Inverter duty) 9376-319-001 9376-329-001 9376-329-001 9376-328-001 Rod, Motor Mtg 9497-222-004 9497-222-004 9497-222-004 9497-222-004 Collar, Shaft (w/set screws) (old) 9076-052-002 9076-052-002 9076-052-002 Motor Bushing (plastic) 9053-074-002 9053-074-002 9053-074-002...
  • Page 97 10,11 12,13,14 10,11 12,13,14 Description T650 T750 T950 T1450 Injection- tube assy 9883-005-001 9883-005-001 9883-012-001 9883-011-001 Hose, Injection Tube to Tub 9242-461-001 9242-461-001 9242-461-001 9242-461-001 Clamp, Injection Hose 8654-117-014 8654-117-014 8654-117-014 8654-117-014 Hose-Overflow 9242-449-002 9242-449-003 9242-449-003 9242-449-005 Clamp Hose Over Flow 8654-117-008 8654-117-008 8654-117-008...
  • Page 98 Description T650 T750 T950 T1450 Channel Assembly Rear 9947-032-001 9947-027-001 Channel, Rear 9081-176-001 9081-168-001 9081-169-002 9081-170-001 Screw #10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 Nut, Spring 8640-399-008 8640-399-008 8640-399-008 8640-399-008 Plug, 7/8” 9456-041-006 9456-041-006 9456-041-006 9456-041-006 Bushing, 7/8” 9053-067-002 9053-067-002 9053-067-002 9053-067-002 Braacket-Terminal Block Assy 9029-265-001 9029-265-001...
  • Page 99 26 25 36 35 Description T650 T750 T950 T1450 Vacuum Breaker 9610-001-001 9610-001-001 9610-001-001 9610-001-001 Bracket-Vacuum Breaker 9029-077-001 9029-077-001 9029-077-001 9029-266-001 Vacuum Breaker Cap 0935-135-002 0935-135-002 0935-135-002 0935-135-002 Screw, 10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 Clamp, Vacuum Breaker End 8654-117-014 8654-117-014 8654-117-014 8654-117-014 Hose, Vacuum Breaker to Tub Injection Tube...
  • Page 100: Cylinder, Seals & Bearings Part # By Model

    Cylinder, Seals & Bearings Part # by Model Description T650 T750 T950 T1450 Housing, Bearing- Assembly (items #2-#6) 9803-187-001 9803-187-001 9803-187-001 9803-209-001 Housing, Bearing 9241-181-004 9241-181-004 9241-181-004 9241-195-003 Bearing, Front (LARGE) 9036-159-006 9036-159-006 9036-159-006 9036-162-002 Bearing, Rear (SMALL) 9036-159-005 9036-159-005 9036-159-005 9036-162-001 Spacer, Bearing...
  • Page 101 19,20 21,22,23,24 11 G 12,13 14,15,16,17 Description T-650 T750 T950 T1450 Cylinder Assy 9848-145-001 9848-136-002 9848-136-001 9848-141-001 Tub Front 9974-014-002 9974-011-001 9974-011-001 9974-012-001 Gasket, Tub Front 9206-421-002 9206-421-002 9206-421-002 9206-421-002 Ring Assy, Tub Mtg-Front Clamp 9950-063-001 9950-055-001 9950-055-001 9950-061-001 Bolt, Top Front Ring 3/8”-16 x 3” 9545-029-009 9545-029-009 9545-029-009...
  • Page 102 Door Lock Assembly (All Models) Key Description All Models Key Description All Models Lock Assy, Complete (#1-22) 9885-031-001 Ring, Retaining 9487-200-005 (includes #1 thru #22) Washer 8641-581-031 Plate Assy, Door Lock 9982-346-001 Switch, Latching Sensing 9539-461-008 Washer, Flat (SS or Brass) 8641-581-030 Shield, Switch 9550-169-003...
  • Page 103 Gear Motor Door Lock Assembly Description T650 T750 T950 T1450 Actuator Assembly (Includes 1-10, Rod NOT 9892-014-001 9892-014-001 9892-014-001 9892-014-001 included) Screw Pnhdcr, 10-32 UNFx0 .75 9545-012-027 9545-012-027 9545-012-027 9545-012-027 Cross Recessed PAn Hd Tapping screw 9545-031-011 9545-031-011 9545-031-011 9545-031-011 Screw -Hxwshrhdslsems, 6-32 x 3/16 9545-044-003 9545-044-003...
  • Page 104 Large Door & Hinge Group (After #514975) Description T650 T750 T950 T1450 Door Hinge Assembly (mounts to tub front) 9955-030-001 9955-031-001 9955-031-001 9955-031-001 Door Assembly Complete 9960-309-001 9960-310-001 9960-310-001 9960-310-001 Door Ring 180 degree large hnge 9487-265-002 9487-275-001 9487-275-001 9487-275-001 Door Gasket 9206-419-001 9206-431-001...
  • Page 105 Description T650 T750 T950 T1450 Shaft Assembly (includes 11-13) 9913-134-003 9913-134-003 9913-134-003 9913-134-003 Shaft, Door Locking 9537-195-002 9537-195-002 9537-195-002 9537-195-002 Cam, Locking 9095-051-001 9095-051-001 9095-051-001 9095-051-001 Pin, Groove (1 1/4) 9451-181-005 9451-181-005 9451-181-005 9451-181-005 Pin, Groove (3/4) 9451-181-004 9451-181-004 9451-181-004 9451-181-004 Spring, Lock Cam 9534-360-002...
  • Page 106                    Top Soap Box 4 Valve Design Top Soap Box Design  Part # 8533-094-001 11/20...
  • Page 107: Water Inlet Part # By Model

    Water Inlet Part # by Model Description T650 T 750 T950 T1450 Injector Assembly 9883-005-001 9883-005-001 9883-012-001 9885-011-001 Valve, Water Inlet (dual outlet) (see Water Inlet 9379-183-012 9379-183-012 9379-183-012 9379-183-012 Valve Breakdown for individual parts) Screw, Valve Mtg 9545-008-026 9545-008-026 9545-008-026 9545-008-026 Valve Water Inlet (single outlet)
  • Page 108 Water Inlet Valve Breakdown Part # by Model Description T650 T750 T950 T1450 Valve, Water Inlet (includes 1 thru 6) 9379-183-012 9379-183-012 9379-183-012 9379-183-012 Screen, Inlet end of valve 9555-056-001 9555-056-001 9555-056-001 9555-056-001 Coil Assy., 120 V Invensys 9089-017-001 9089-017-001 9089-017-001 9089-017-001 Diaphragm Invensys (EPDM)
  • Page 109 Key Description T650 T750 T950 T1450 Single Coil Water Valve Mueller 9379-194-001 9379-194-001 Valve Water Body Complete 9379-194-002 9379-194-002 (no coil) Diaphragm Mueller 9118-055-001 9118-055-001 Filter Mueller 9183-046-001 9183-046-001 Coil Mueller 9089-051-001 9089-051-001 Part # 8533-094-001 11/20...
  • Page 110: Drain Valve Group Part # By Model

    Drain Valve Group Part # by Model Key Description Part Number Valve, Drain (includes #2 thru #11 9379-202-001 Body, Valve (w/ball) 9064-072-001 Motor & Gear Train (complete) 9914-137-023 Plate, Motor Mtg 9452-538-001 Screw 8639-994-001 Spring, Drive 9534-339-001 Screw 9545-054-001 Screw 9545-054-002 Seal, V Packer 9532-134-001...
  • Page 111 Notes Part # 8533-094-001 11/20...
  • Page 112: Chassis And Drain Part # By Model

    Chassis and Drain Part # by Model Description T-650 T750 T950 T1450 Base Assy,Frame 9945-143-002 9945-112-002 9945-155-002 9945-133-002 Outer Tub Assy. 9930-168-001 9930-148-001 9930-157-001 9930-155-001 Tub & Cylinder Assy. 9869-035-002 9869-025-001 9869-027-003 9869-026-002 Tub Front 9974-014-002 9974-011-001 9974-011-001 9974-012-001 Gasket, Tub Front 9206-421-004 9206-421-002 9206-421-002...
  • Page 113 7, 8, 9 Part # 8533-094-001 11/20...
  • Page 114 Description T650 T750 T950 T1450 Trough Assy,Controls 208-240 volt (all parts below 9857-221-001 9857-215-001 9857-216-002 9857-218-001 #2-#43) Trough only 9839-018-001 9839-018-001 9839-018-001 9839-017-001 Screw, Trough Sides 9545-008-026 9545-008-026 9545-008-026 9545-008-026 Lockwasher Exttooth #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 Angle Support Trough 9003-278-001 9003-278-001 9003-271-001...
  • Page 115: Electrical Components - Top Compartment

    Electrical Components - Top Compartment Mechinical Pressure Switch Electronic Pressure Sensor Part # 8533-094-001 11/20...
  • Page 116: Control Panel Part # By Model

    Control Panel Part # by Model Description T650 T750 T950 T1450 Panel Control Assembly(panel only) 9989-479-001 9989-480-001 9989-480-001 9989-530-001 Nameplate,Control Panel (one piece) Black 9412-236-001 9412-223-001 9412-225-001 9412-230-001 Screw-Hxwshrhdundct #10Bx 1/2”(Control Panel To 9545-008-026 9545-008-026 9545-008-026 9545-008-026 side Panel) Plastic Shield over main PCB 9550-184-001 9550-184-001 9550-184-001...
  • Page 117 5, 6 Part # 8533-094-001 11/20...
  • Page 118 Labels and Diagrams All C-Series Models Description T650 T750 T950 T1450 Operators Manual 8514-257-001 8514-242-001 8514-243-001 8514-247-001 Wiring Schematic & Diagram 9506-708-001 9506-556-001 9506-560 9506-564-001 Transient Voltage Surge Sup- 8507-330-001 8507-330-001 8507-330-001 8507-330-001 pressor Infomational Instructions Spin Direction 8507-275-001 8507-275-001 8507-275-001 8507-275-001 Label High Voltage Warning...
  • Page 119 Notes Part # 8533-094-001 11/20...
  • Page 120 Notes Part # 8533-094-001 11/20...
  • Page 121 Section :9 Parts 50Hz Models: Parts in this section used only in these models. All other parts are same as standard 60 Hz pages. Wiring Diagrams & Schematics WN0750XA-39XV 208-240 volts 60hz. Single Phase or Three Phase WN0950XA-39XV 208-240 volts 60hz Single Phase or Three Phase WN1450XA-39XV...
  • Page 122 Transformer, Electrical Filter -39 models Wn0750-XA39 230 volts 50hz Single Phase Wn0900-XA39 230 volts 50hz. Single Phase WN0950-XA39 230 volts 50hz. Single Phase WN01200-XA39 230 volts 50hz Single Phase WN01450-XA39 230 volts 50hz Single Phase Key Component T650 T750 T950 T1450 Circuit Breaker 5198-211-002...
  • Page 123 Drain Valve Group Part 50 HZ Key Description Part Number Valve, Drain (includes #2 thru #11 9379-202-002 Body, Valve (w/ball) 9064-072-001 Motor & Gear Train (complete) 9914-137-022 Plate, Motor Mtg 9452-538-001 Screw 8639-994-001 Spring, Drive 9534-339-001 Screw 9545-054-001 Screw 9545-054-002 Seal, V Packer 9532-134-001 Washer...
  • Page 124 Gear Motor Door Lock Assembly 24V AC Description T650 T750 T950 T1450 Actuator Assembly (Includes 1-10, Rod NOT 9892-015-002 9892-015-002 9892-015-002 9892-015-002 included) Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 9985-190-001 9985-190-001 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 9985-189-001 9985-189-001 Bracket Slide Lock 9029-204-001...
  • Page 125 Notes Part # 8533-094-001 11/20...
  • Page 126 T-650-39 Schematic Part # 8533-094-001 11/20...
  • Page 127 T-650-39 Diagram Part # 8533-094-001 11/20...
  • Page 128 T-650-39 Schematic V4 Part # 8533-094-001 11/20...
  • Page 129 T-650-39 Diagram V4 Part # 8533-094-001 11/20...
  • Page 130 T-750-39 Schematic Part # 8533-094-001 11/20...
  • Page 131 T-750-39 Diagram Part # 8533-094-001 11/20...
  • Page 132 T-750-39 Schematic V4 Part # 8533-094-001 11/20...
  • Page 133 T-750-39 Diagram V4 Part # 8533-094-001 11/20...
  • Page 134 T-950-39 Schematic Part # 8533-094-001 11/20...
  • Page 135 T-950-39 Diagram Part # 8533-094-001 11/20...
  • Page 136 T-950-39 Schematic V4 Part # 8533-094-001 11/20...
  • Page 137 T-950-39 Diagram V4 Part # 8533-094-001 11/20...
  • Page 138 T-1450-39 Schematic Part # 8533-094-001 11/20...
  • Page 139 T-1450-39 Diagram Part # 8533-094-001 11/20...
  • Page 140 T-1450-39 Schematic V4 Part # 8533-094-001 11/20...
  • Page 141 T-1450-39 Diagram V4 Part # 8533-094-001 11/20...
  • Page 142 Notes Part # 8533-094-001 11/20...
  • Page 143 Section :10 Maintenance Part # 8533-094-001 11/20...
  • Page 144 Preventative Maintenance Daily Step 1: Check that the loading door remains securely locked and cannot be opened during an entire cycle. Step 2: Clean the top, front, and sides of the cabinet to remove residue. Step 3: Clean the soap dispenser and lid and check that all dispenser mounting screws are in-place and tight.
  • Page 145 Notes Part # 8533-094-001 11/20...
  • Page 146 Notes Part # 8533-094-001 11/20...

This manual is also suitable for:

Wn0650Wn0750Wn0950Wn1450

Table of Contents
