R
C
US
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE
Cross Ridge Gas Fire Pit Table
・
・
・
・
・
・
・
・
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
improvement needs. Thank you for choosing Hampton Bay!
DANGER
LEAKING LP-GAS MAY CAUSE A FIRE OR EXPLOSION IF IGNITED
CAUSING SERIOUS BODILY INJURY OR DEATH.
CONTACT LP GAS SUPPLIER FOR REPAIRS, OR DISPOSAL OF THIS
WARNING
DO NOT USE OR STORE CYLINDER IN A BUILDING,
WARNING:
Know the odor of LP-gas. If you hear, see or smell
leaking LP-gas, immediately get everyone away
,
from the cylinder and call the Fire Department.
Do not attempt repairs.
Caution your LP-gas supplier to:
Be certain cylinder is purged of trapped air prior
LP-gas is heavier than air and may settle in low places
when dissipating.
Contact with the liquid contents of cylinder will cause
freeze burns to the skin.
Do not allow children to tamper or play with cylinder.
When not connected for use, keep cylinder valve turned
off. Self contained appliances shall be limited to a
cylinder of 30 lb capacity or less.
Do not use, store or transport cylinder where it would
be exposed to high temperatures. Relief valve may open
When transporting, keep cylinder secured in an upright
position which cylinder valve turned off.
DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL
*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.
DANGER. Do not store a spare LP cylinder under or near a barbecue grill, or other
serious injury may occour.
THANK YOU
Item #1002 938 103
Model #G-FTB-51057B
·
FLAMMABLE GAS UNDER PRESSURE.
CYLINDER OR UNUSED LP-GAS.
·
FOR OUTDOOR USE ONlY.*
GARGE OR ENCLOSED AREA.
WHEN CONNECTING FOR USE:
・
Use only in compliance with applicable codes.
・
Read and follow manufacturer's instructions.
・
Consult manufacturer's instructions
concerning the cylinder connection provided
with your appliance.
・
Be sure regulator vent is not pointing up.
・
Turn off all valves on the appliance.
・
Do not check for gas leaks with a match or
r.
Apply soapy water at areas marked
"X". Open cylinder valve. If bubble appears,
close valve and have LP-gas service person
make needed repairs. Also, check appliance
valves and connections to make sure they
do not leak before lighting appliance.
・
Light appliance(s) following manufacturer's
instructions.
・
When appliance is not in use, keep the
cylinder valve closed.
X
Pressure relief valve
Cylinder
X
X
Cylinder valve hand wheel
Point of connection
X
X
Liquid level indicator
(optional)
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY G-FTB-51057B
Summary of Contents for HAMPTON BAY G-FTB-51057B
- Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Hardware Included............5 Safety Information...............2 Package Contents............6 Warranty................5 Assembly..………………………………………………….7 What is Covered..............5 Operating Instructions ............11 What is Not Covered............5 Maintenance...............14 Pre-Assembly..……………………...……………………. 5 Care and Cleaning...............14 Planning Assembly.. - Page 3 Safety Information (continued) You must provide propane gas and propane cylinder. Use a standard 20 lb. propane cylinder only. Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and Handling of L The pressure regulator and hose assembly supplied with the appliance must be used.
- Page 4 Safety Information (continued) Solid fuels shall not be burned in this appliance. The installation must conform with local codes or, in the absence of local codes, ANSIZ223. 1/NFPA54, NFPA58 Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2. The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
-
Page 5: Warranty
Warranty 1 YEAR LIMITED WARRANTY WHAT IS COVERED We warrant the metal frame to be free of manufacturing defects to the original purchaser for one year. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charge to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, re, freezing and abusive use. -
Page 6: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Description Part Quantity leg G lava rock (11 lbs) door leg I table top with burner side panel gas tank support leg E AAA battery side panel with window... -
Page 7: Assembly
Assembly Assembling the legs □ Attach the leg (G), the leg (I) and the leg (E) to the table top with burner (C) using four (4) M6 x10 mm bolts (AA). □ Do not tighten the bolts at this step. Assembling the side panels □... - Page 8 Assembly (continued) Assembling the side panel with window □ Attach the side panel with window (F) to the legs using four (4) M6 x10 mm bolts (AA). □ Do not tighten the bolts at this step. Assembling the gas tank support □...
- Page 9 Assembly (continued) Assembling the door □ Orient the unit so that table top with burner is facing up. □ Slide the hinge of door (H) on to the leg (G). Place the lava rock □ not placed on the ignition portion of the burner. Place the lid (A) over the top.
- Page 10 Assembly (continued) Assembling the cylinder □ Put the cylinder into the gas tank support (J), and secure the cyliner by tightening the screw in the gas tank support. Connect the hose and regulator to the cylinder. NOTE: The propane cylinder is sold separately. Use a standard 20 lb.
-
Page 11: Operating Instructions
Operation WARNING: Never use this appliance for other than the intended use. DO NOT use this appliance to prepare food. Initial Lighting: of internal paints and lubricants used in the manufacturing process and does not occur again. Simply run the main burner on high for approximately one-half hour. - Page 12 Operation (continued) LEAK TESTING OPERATION WARNING: A leak test must be performed annually or if a part of the gas system is replaced. WARNING: Never use an open ame to check for gas leaks. Be certain no sparks or open ames are in the area while you check for leaks.
- Page 13 Operation (continued) LIGHTING INSTRUCTIONS 1. Press and hold electronic igniter button. WARNING 2. Turn the burner control to the high position, press and hold. When the burner FOR YOUR SAFETY: lights, release the electronic igniter button. Keep face and body away from burner area when lighting.
-
Page 14: Maintenance
Maintenance Storage between uses: □ Turn the control knob to “OFF” position. □ Disconnect LP source. □ Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris). □ If desired, cover heater to protect exterior surfaces and to help prevent build up in air passages. NOTE: Wait until heater is cool before covering. -
Page 15: Troubleshooting
Troubleshooting PROBLEM PROBLEM CAUSE SOLUTION The ame and heat are low The propane lighting procedure Ensure lighting procedure is followed carefully. The valve must be in when the valve is turned to was not followed correctly. the off position when the tank valve is turned on. Turn the tank on high. -

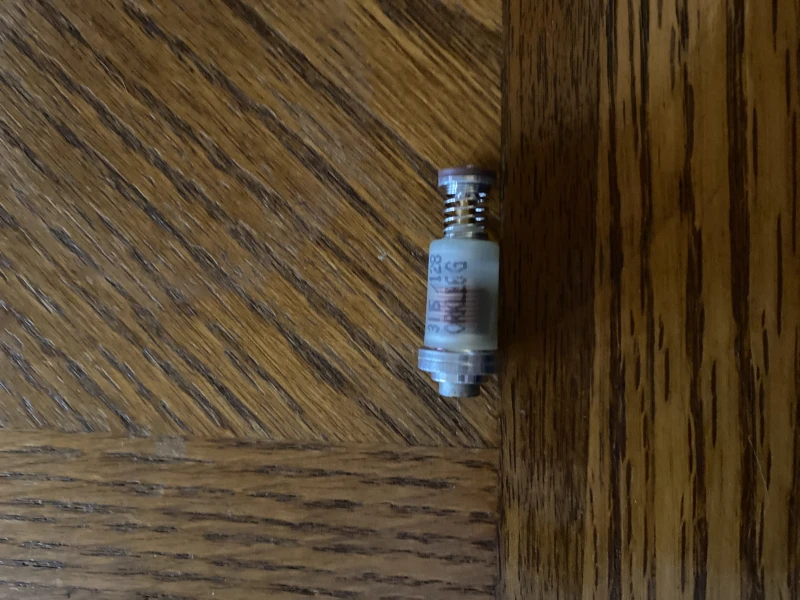

Page 16: Service Parts
Service Parts Part Description Quantity Description Part Quantity leg G lava rock (11 lbs) door leg I table top with burner side panel gas tank support leg E AAA battery side panel with window M6 x 10 mm Bolt... - Page 17 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
