Item # 1001886652
Model # A302023700
USE AND CARE GUIDE

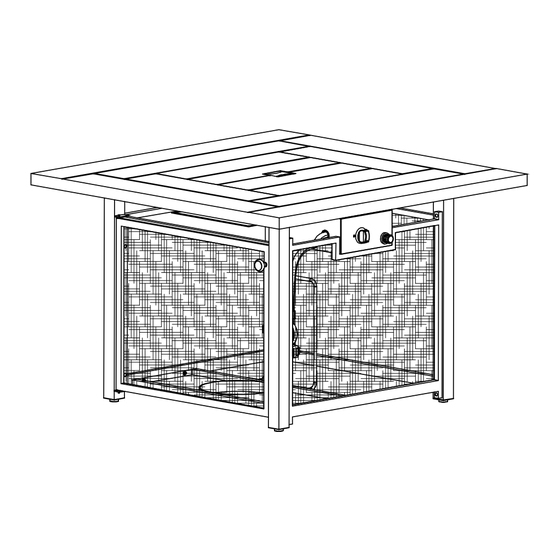

ARCADIAN FIRE TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-841-1350
WWW.HOMDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this fire pit. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCADIAN A302023700 and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY ARCADIAN A302023700

Summary of Contents for HAMPTON BAY ARCADIAN A302023700

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this fire pit. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Package Contents ............9 Safety Information ............2 Assembly ..............10 Warranty ................. 7 Operating ..............18 1 Year Warranty ............. 7 Location ............... 18 What is Covered ............7 Leak Test ..............19 What is Not Covered .............
  • Page 3 DANGER： CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. This appliance complies with “ANSI Z21.97-2017/CSA 2.41-2017, Outdoor Decorative Gas WWW.

  • Page 4: Specifications

    Safety Information (Continued) IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY For Outdoor Use only. Not for Commercial Use. WARNING : Failure to position the parts in accordance with these diagrams or use only parts specifically approved with this appliance may result in property damage or personal injury. WARNING: WARNING: Hot glass will cause burns.

  • Page 5: Important Safety Information And Precautions

    Safety Information (Continued) IMPORTANT SAFETY INFORMATION AND PRECAUTIONS  The installation must conform with local codes, or in the absences of local codes with the National Fuel Gas Code, ANSI Z223.1/NFPA54; International Fuel Gas Code, Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable.
  • Page 6 Safety Information (Continued)  For instructions on how to connect the LP-Gas tank and check for leaks, please refer to the “Gas Connection” on page 11 and “Leak Test” on page 12.  Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns and prevent clothing ignition.

  • Page 7: Warranty

    Warranty 1 YEAR WARRANTY WHAT IS COVERED This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The item is warranted to be free from defects in material or workmanship for a period of 1 year.

  • Page 8: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Before beginning assembly of this product, make sure all parts are present. Compare parts with the Hardware Included and Package Contents lists. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.

  • Page 9: Package Contents

    Pre- Assembly (continued) PACKAGE CONTENTS Part Part Number Description Quantity P00310014601 P00210059801 Table top Burner P00250016201 P00540081801 Left front leg P00540081901 Left back leg P00540082001 Right front leg P00540082101 Right back leg P00670007801 Gas bottle holder P00380078101 Left side panel P00380078201 Right side panel P00400045101...

  • Page 10: Assembly

    Assembly Attaching Door (N) and Door handle (Q) □ Using H4 to attach the door (N) and door handle (Q). WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 11 Assembly (continued) Attaching Legs (D, E, F, G) to back panel (M), and door (N) □ Using H1 and H2 attaching D, N, G □ Using H1 and H2 attaching E, M, F H1 H2 WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 12 Assembly (continued) Attaching Gas Bottle Holder (J) and Back Panel (M) □ Using H1and H2 to attach back panel (M) and the part assembled in last step. □ Using H3 and H2 to attach bottle holder (J). WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 13 Assembly (continued) Attaching Gas Bottle Limiter (P) □ Using H3 and H2 attach the gas bottle limiter (P). WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 14 Assembly (continued) Attaching Door (N) □ Using H2 and H1 to attach the door (N). WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 15 Assembly (continued) Attaching Table Top (B) and Burner (C) □ Using H3 and H2 to connect table top (B) and burner (C). WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 16 Assembly (continued) Attaching table top and assembled frame □ Use H3 and H2 to attach the part from steps 5 and 6. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 17 Assembly (continued) Put lava rock (R) on burner and add Lid (A) □ Pour lava rock ® in the middle of the fire bowl, the put the lid (A) on. NOTE: It is strongly recommended that you cover the fire pit table when not in use with the metal cover plate.

  • Page 18: Operating

    Operating LOCATION Your gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. NOTE: Do not place this appliance on grass or dirt area. This may prevent proper safety venting 1.

  • Page 19: Leak Test

    Operating (Continued) LEAK TEST WARNING: Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak check must be performed whenever the gas cylinder is replaced. 1. Make sure the control knob is in the “OFF” position. 2.

  • Page 20: Storage And Maintenance

    Operating (Continued) NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. The flame can be identified by the following figure. Y E LLO W T IP H IG H Correct Flame LO W B LU E Incorrect Flame...
  • Page 21  Keep the firepit area clear and free from combustible materials, gasoline and other flammable vapors and liquids.  Installation and repair should be done by a qualified service person. The firepit should be inspected before use and at least annually by a qualified service person.
  • Page 22 Operating (Continued)  If you disassemble the burner when cleaning the firepit, please reassemble it according to the picture on the right to make sure the burner induction tunnel is on and exactly cover the orifice base. It is imperative that the control compartment, burner, and circulating air passageways of the firepit be kept clean.

  • Page 23: Care And Cleaning

    Care and Cleaning  Keep the exterior surface clean.  Use warm soap water for cleaning.  While washing your unit, be sure to keep the area around burner dry at all times. If the gas control is exposed to water, do NOT try to use it.

  • Page 24: Troubleshooting

    Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE MEASURES OBSERVED Gas odor Gas leak See “If you smell gas:” on front cover of manual. Check all gas connections. Delayed ignition Low gas pressure Check gas supply pressure. Clogged or dirty burner Clean burner ports. ports Check the orifice opening.
  • Page 25 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday- Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-841-1350 HAMPTONBAY.COM Retain this manual for future use.
