Anchor Loop
 Main Cable
 End Termination
 Axle assembly
 Toggle Bar
 Hole Plug
 Springs
 Swage
 Return Wire
LOCATION
Choose the mounting location carefully. Free fall distance shall be limited to 6 feet.
Always calculate the fall distance and ensure that a clear, unobstructed distance is
provided under the beam. See Figure 2.
Also ensure swing fall distance and travel is accounted for in the mounting location. See
Figure 2.
Swage
Main Cable
Cable
Return Wire

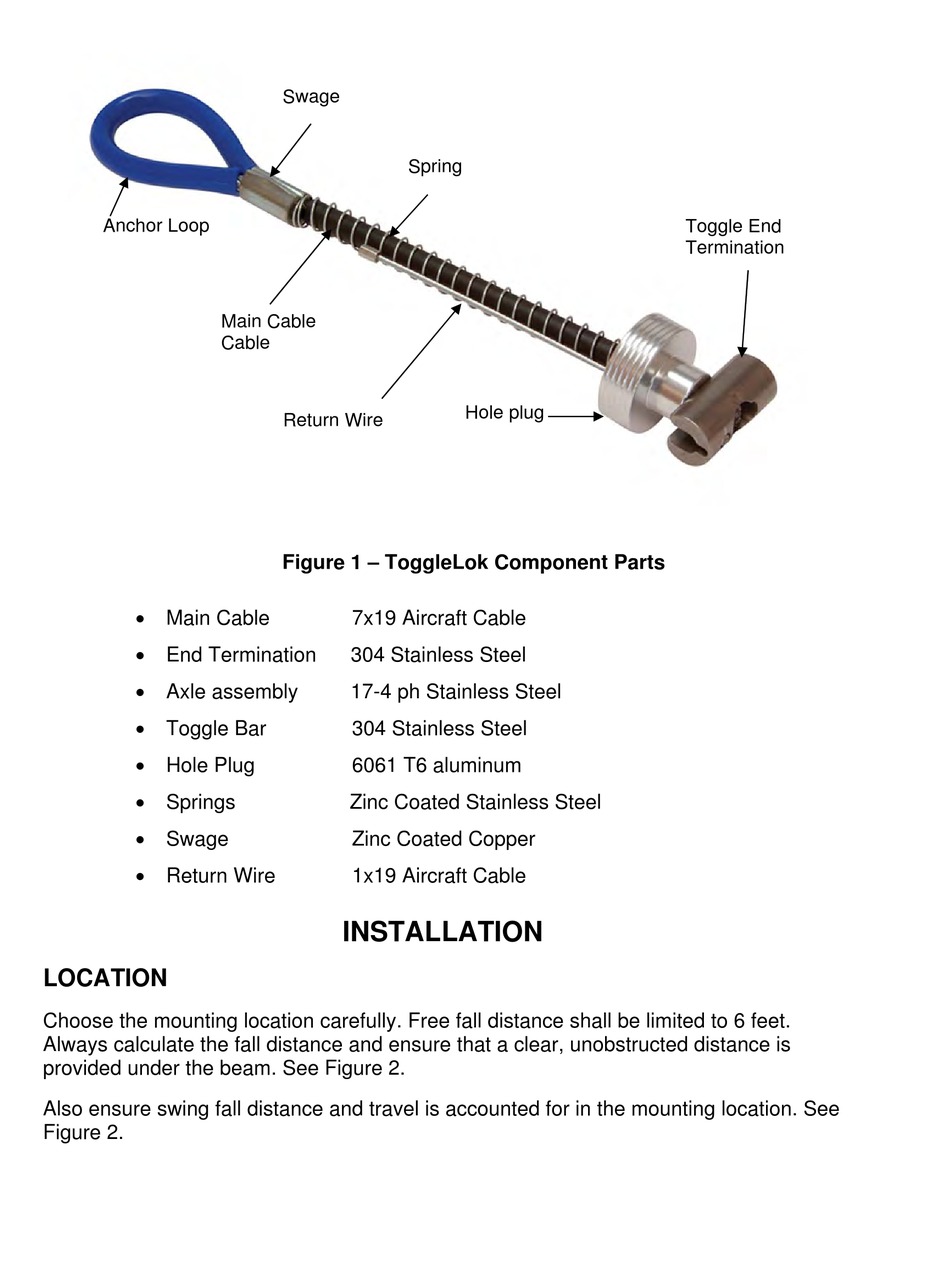

Figure 1 – ToggleLok Component Parts
7x19 Aircraft Cable
304 Stainless Steel
17-4 ph Stainless Steel
304 Stainless Steel
6061 T6 aluminum
Zinc Coated Stainless Steel
Zinc Coated Copper
1x19 Aircraft Cable

INSTALLATION

Spring
Hole plug
Toggle End
Termination
