Owner's Manual

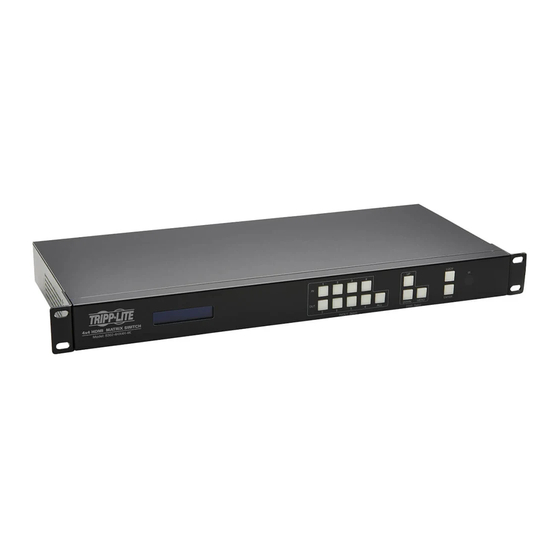

HDMI Matrix Switch/Splitters
with Audio Extractor,
IP Access and Multi-
Resolution Support
Model: B302-4HX4H-4K, B302-8HX8H-4K
Este manual esta disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства представлена на веб-сайте компании
Tripp Lite по адресу: tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tripp Lite B302-4HX4H-4K
Summary of Contents for Tripp Lite B302-4HX4H-4K
- Page 1 Model: B302-4HX4H-4K, B302-8HX8H-4K Este manual esta disponible en español en la página de Tripp Lite: tripplite.com Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com Русскоязычная версия настоящего руководства представлена на веб-сайте компании Tripp Lite по адресу: tripplite.com...
-
Page 2: Package Contents
• N202-Series Cat6 24 AWG Solid-Wire Patch Cables Product Features • Shares true 4K video from 4 different HDMI sources among 4 separate displays (B302-4HX4H-4K) or 8 different HDMI sources among 8 separate displays (B302-8HX8H-4K) • Displays any audio/video signal on any display or the same signal on all displays •... -
Page 3: Panel Descriptions
Panel Descriptions The following panels depict the 8x8 HDMI Matrix Switch/Splitter. It is identical to the 4x4 model, except with 4 more input and output ports. HDMI Inputs – Connect up to 8 HDMI source devices. HDMI Outputs – Connect up to 8 HDMI display devices. DC 12V –... -
Page 4: Installation
Connect up to 8 (B302-8HX8H-4K) or 4 (B302-4HX4H-4K) HDMI sources to the switch with user-supplied cables. Connect up to 8 (B302-8HX8H-4K) or 4 (B302-4HX4H-4K) HDMI displays to the switch with user-supplied cables. (Optional) Connect up to 8 (B302-8HX8H-4K) or 4 (B302-4HX4H-4K) speakers or amplifiers to the switch with user- supplied 3.5 mm audio cables. -
Page 5: Operation
Operation The following instructions are for the 8x8 HDMI Matrix Switch/Splitter, but apply equally to the 4x4 model. The B302-Series HDMI Matrix Switch/Splitter features three different methods of control: Front-panel pushbuttons IR remote control TCP/IP or RS-232 control via PC or laptop Front-Panel Pushbuttons The following section describes how to change the inputs and outputs manually. - Page 6 Operation IR Remote Control The following section describes how to operate the remote. “N” indicates a number value (1–8). “+” indicates continuous pressing. There is no “+” button. The format of switching channels (inputs to outputs) with the remote control is as follows: Input (N) + Switch + Output (N), Input (N) + Switch + Output (N), ….
- Page 7 Operation Switch Interface: Scene entering and configuring. Select the inputs and outputs through the IN/OUT area. The selections will be displayed in the table below. • ALL: Shortcut button to select all outputs. • Clear: Clear the contents of the table. •...
- Page 8 Operation Scene Interface: Scene selection, current scene and recall. The table on the left side of the interface displays the current scene or the scene that is recalled. • Scene1-12: User-saved scenes. • Current: Obtain the current scene of the device. •...
- Page 9 Operation EDID Interface: EDID management. Set the output resolution of each input as well as the mode. • Source: IN1-8 or IN1-4. • Resolution: See EDID Table for a full list of available options to choose from. • Mode: Set the output mode to either Default or Smart.
- Page 10 1 end bit, no check bit. Set the data format as ASCII and open the serial port. Net Setting The B302-4HX4H-4K and B302-8HX8H-4K come with a pre-assigned static IP address. They can be accessed remotely by configuring your network to match the pre-assigned IP address style. Simply connect a user-supplied RJ45 cable between the matrix switch and your target computer, and then configure your network settings (IPv4) accordingly.
- Page 11 Operation RS-232 Control Commands: In the table below, “a” represents Input and “b” represents Output. The number value range of “a” and “b” depends on the number of inputs and outputs of the controlled matrix. If out of range, it is considered a command input error, and the unit will not execute the command.
- Page 12 Operation EDID Table Preset EDID 800 x 600/60 Hz 1024 x 768/60 Hz 1152 x 864/75 Hz 1280 x 720/60 Hz 1280 x 768/60 Hz 1280 x 800/60 Hz 1280 x 1024/60 Hz 1360 x 768/60 Hz 1366 x 768/60 Hz 1600 x 900/60 Hz 1600 x 1200/60 Hz 1680 x 1050/60 Hz...
-
Page 13: Specifications
Specifications Models B302-4HX4H-4K / B302-8HX8H-4K Input (Female) (x4) HDMI / (x8) HDMI Output (Female) (x4) HDMI / (x8) HDMI Maximum Resolution 4096 x 2160 @ 60 Hz (4K x 2K) HDMI Bandwidth 18 Gbps HDCP Specification HDCP 2.2 Operating Temperature 32°... -
Page 14: Warranty And Product Registration
FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See website for details. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products. - Page 16 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support 20-10-225 • 93-3C97_RevB...
