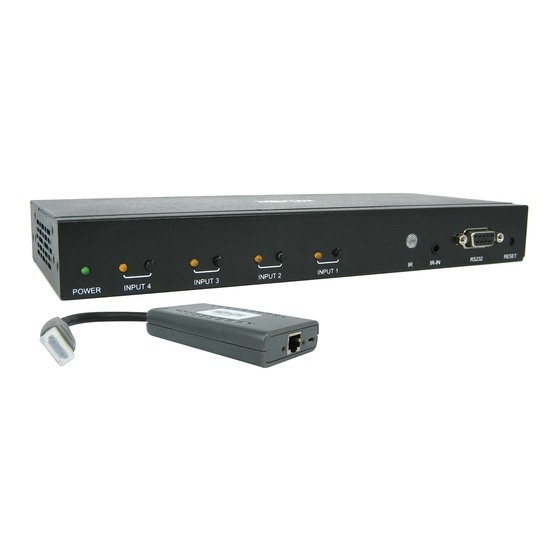

4-port presentation switch

Advertisement

Quick Links

Owner's Manual
Presentation Switch
Model: B320-4X1-HH-K1, B320-4X1-HH-K2,
B320-4X1-MH, B320-4X1-MHB-K,
Este manual esta disponible en español en la página de Tripp Lite:
Ce manuel est disponible en français sur le site Web de Tripp Lite :
Русскоязычная версия настоящего руководства представлена на веб-сайте
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
20-05-301-93-3C5E.indd 1
20-05-301-93-3C5E.indd 1
4-Port
B320-4X1-MHE-K
tripplite.com /support
tripplite.com /support
компании Tripp Lite по адресу: tripplite.com /support
Copyright © 2020 Tripp Lite. All rights reserved.
®
1
6/2/2020 11:36:44 AM
6/2/2020 11:36:44 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B320-4X1-HH-K1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tripp Lite B320-4X1-HH-K1

  • Page 1 B320-4X1-MHE-K Este manual esta disponible en español en la página de Tripp Lite: tripplite.com /support Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com /support Русскоязычная версия настоящего руководства представлена на веб-сайте компании Tripp Lite по адресу: tripplite.com /support...
  • Page 2: Package Contents

    Package Contents • B320-4X1-Series Presentation Switch • IR Remote Control • IR Receiver Cable, 5 ft. • International Power Supply (Input: 100–240V; Output: 24V 1A) • (x4) International Plug Adapters (North America, U.K., Europe, Australia) • Mounting Hardware • Owner’s Manual Optional Accessories •...
  • Page 3: Product Features

    Product Features B320-4X1-HH-K1 4-Port 4K @ 60 Hz HDMI over Cat6 PoC Presentation Switch/Extender Kit, 50 ft. • Connects up to 4 HDMI sources to a single HDMI display up to 50 ft. away via Cat6 cabling. • Switches between 4 sources using the front-panel pushbuttons, IR remote control or RS-232 commands.
  • Page 4 Product Features B320-4X1-MH 4-Port Multi-Format Presentation Switch • Connects up to 4 sources to a single HDMI display. • Switches between 4 sources using the front-panel pushbuttons, IR remote control or RS-232 commands. • Supports true 4K HDMI, DisplayPort and USB-C™ resolutions up to 4096 x 2160 @ 60 Hz with 4:4:4 chroma subsampling.
  • Page 5 Product Features B320-4X1-MHE-K 4-Port Multi-Format PoC Presentation Switch/Extender Kit, 125 ft. • Connects up to 4 sources to a single HDMI display up to 125 ft. away via Cat6 cabling. • Switches between 4 sources using the front-panel pushbuttons, IR remote control or RS-232 commands.
  • Page 6: Mounting Instructions

    Mounting Instructions These 4-port presentation switches include hardware for mounting on a wall, pole or 19-inch rack. The following images illustrate how the included hardware can be attached for different installations. Note: The models shown below are for illustrative purposes only. Your product may vary by model number, size or port orientation.
  • Page 7 (AWG) size higher than 24 AWG will result in shorter extension distance. Higher-gauge cabling, such as 26 AWG, has more limited transmission capability than lower-gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid-wire cabling. 3. External power is not required for remote receiver units, due to PoC technology incorporated in the transmitter units.
  • Page 8 4. Connect the RJ45 port on the presentation switch to the RJ45 port on the remote receiver with a user-supplied Cat6 cable. Note: Maximum transmission distance via Cat6 cabling for the B320-4X1-HH-K1 and B320-4X1-HH-K2 is 50 ft. and 125 ft., respectively.
  • Page 9 (AWG) size higher than 24 AWG will result in shorter extension distance. Higher-gauge cabling, such as 26 AWG, has more limited transmission capability than lower-gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid-wire cabling. 3. External power is not required for remote receiver units due to PoC technology incorporated in the transmitter units.
  • Page 10 Installation  Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60Hz  Up to 15 ft. (4.5 m) DisplayPort cable at 4K/60Hz B320-4X1-MHB-K  Up to 15 ft. (4.5 m) VGA cable at 1080p/60Hz & B320-4X1-MHE-K  Up to 6 ft. (4.5 m) USB Type-C cable at 4K/60Hz ...
  • Page 11 Installation 7. Connect the HDMI Output port to a display with a user-supplied HDMI cable. 8. B320-4X1-MHB-K & B320-4X1-MHE-K only: Connect the RJ45 port on the switch transmitter to the RJ45 port on the remote receiver with a user-supplied Cat6 cable. Note: Maximum transmission distance via Cat6 cabling for the B320-4X1-MHB-K and B320-4X1-MHE-K is 50 ft.
  • Page 12 Installation RS-232 Serial Control Installation 1. Please make sure your Terminal Emulator Software is running. 2. Set up your serial COM port. Open your software, click Setup and select Serial Port from the dropdown menu. 3. Select the COM port into which the DB9 is connected. If you use Keyspan ®...
  • Page 13 Installation 4. Configure your software to allow input control. Click Setup and select Terminal from the dropdown menu. 5. Select LF on Receive in New-Line. Click the box to activate Local Echo. Enter the command and click OK. 20-05-301-93-3C5E.indd 13 20-05-301-93-3C5E.indd 13 6/2/2020 11:36:45 AM 6/2/2020 11:36:45 AM...
  • Page 14 Installation RS-232 Commands Commands for Serial Control Command Meaning Sw1 x1 Routed to Output1, Output n to input [x1] Sw2 x1 Routed to Output1, Output n to input [x1] Sw3 x1 Routed to Output1, Output n to input [x1] Sw4 x1 Routed to Output1, Output n to input [x1] Stands for Power On/Off State of the output...
  • Page 15 Installation Routing Functions Command: • swN M Variations: • N: stands for Connect Output N, default 1 • M: switch to input M Response: • CMD: swN M Response Example: • sw1 a • CMD: sw1 A Output 1, Select Input A •...
  • Page 16: Specifications

    Specifications 20-05-301-93-3C5E.indd 16 20-05-301-93-3C5E.indd 16 6/2/2020 11:36:45 AM 6/2/2020 11:36:45 AM...
  • Page 17: Warranty And Product Registration

    Product Registration Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* *No purchase necessary.
  • Page 18 Warranty and Product Registration WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to: •...
  • Page 19 20-05-301-93-3C5E.indd 19 20-05-301-93-3C5E.indd 19 6/2/2020 11:36:45 AM 6/2/2020 11:36:45 AM...
  • Page 20 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support 20-05-301 93-3C5E_RevB 20-05-301-93-3C5E.indd 20 20-05-301-93-3C5E.indd 20 6/2/2020 11:36:46 AM 6/2/2020 11:36:46 AM...
