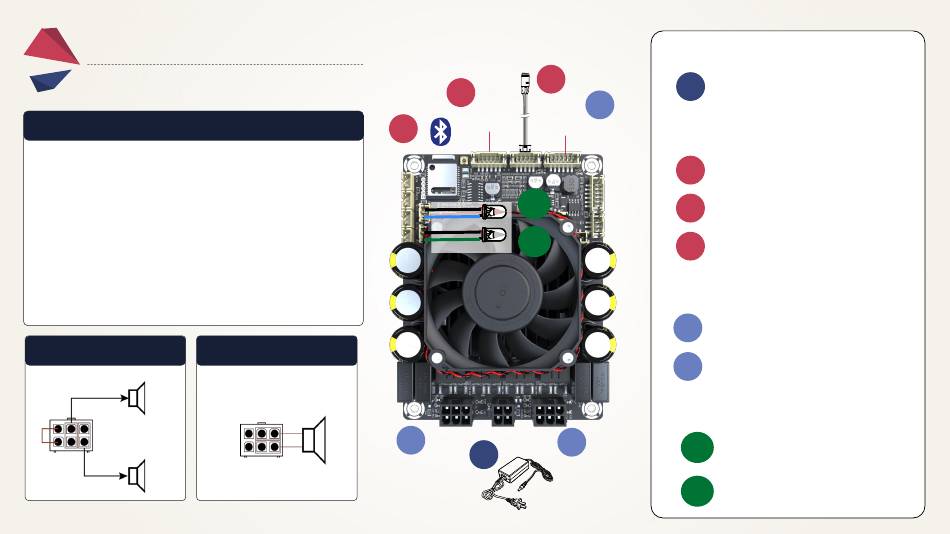

Connection Diagram

Speaker Output
JAB5 supports BTL and PBTL mode, each
2 channels can be configured as one
channel with doubled output power.
The switching of the output mode is
based on cables identification circuit
and the settings is as follows.
BTL MODE
2
PBTL MODE
5
4
3
6
I2S
I2S
Input
Output
7
8
5
1
Power Supply
DC10V-39V power supply
1
Audio Input
2 Bluetooth 5.0 module
3
I2S Input
4
Analog Line Input
Audio Output
5 Stereo speaker output
I2S Output
6
LED Indicator
Bluetooth indicator
7
8 Signal detection indicator
