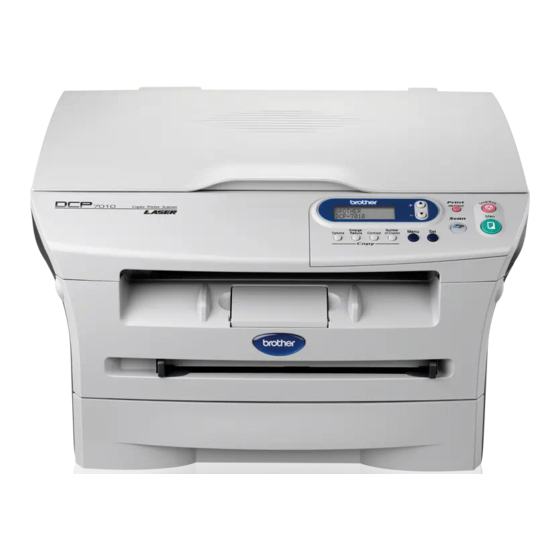

Brother DCP-7010 Quick Setup Manual
  1. Manuals
  2. Brands
  3. Brother Manuals
  4. All in One Printer
  5. DCP-7010
  6. Quick setup manual
Brother DCP-7010 Quick Setup Manual

Brother DCP-7010 Quick Setup Manual

Brother dcp-7010: quick start
Hide thumbs Also See for DCP-7010:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
Before you can use the machine, you must set up the hardware and install the software.
Please read this "Quick Setup Guide" for the correct setup procedure and installation
instructions.
Step 1
Step 2
Keep this "Quick Setup Guide" and supplied CD-ROM in a convenient place for quick and easy
reference at all times.
Setting Up the Machine
Installing the Drivers & Software
Setup is Complete!
Version A

Advertisement

Table of Contents
loading

Related Manuals for Brother DCP-7010

Summary of Contents for Brother DCP-7010

  • Page 1 Before you can use the machine, you must set up the hardware and install the software. Please read this “Quick Setup Guide” for the correct setup procedure and installation instructions. Step 1 Setting Up the Machine Step 2 Installing the Drivers & Software Setup is Complete! Keep this “Quick Setup Guide”...

  • Page 2: Safety Precautions

    Safety Precautions To Use the Machine Safely Warning Warnings tell you what to Electrical Hazard icons do to prevent possible alert you to a possible personal injury. electrical shock. Improper Setup Improper Setup icons Notes tell you how you alert you to devices and should respond to a operations that are not situation that may arise or...
  • Page 3 Do not use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner dust to ignite inside the vacuum cleaner, potentially starting a fire. Please carefully clean the toner dust with a dry, lint-free cloth and dispose of it according to local regulations.
  • Page 4 ® The purpose of the International Program is to promote the NERGY development and popularization of energy-efficient office equipments. ® As an Partner, Brother Industries, Ltd. has determined that NERGY ® this product meets the guidelines for energy efficiency. NERGY...

  • Page 5: Carton Components

    ■ Getting Started Carton Components . Automatic Document Feeder (ADF) (DCP-7025 only) . Control Panel . Face-down Output Tray Support Flap with Extension . Manual Feed Slot Carton components may differ from one country to another. Save all packing materials and the carton. The interface cable is not a standard accessory.

  • Page 6: Control Panel

    Control Panel 1. Liquid Crystal Display (LCD) 4. Stop/Exit key 7. Set key For the details of the control panel, see "Control panel overview" in Chapter 1 of the User’s Guide. Stack Copies:01 100% Auto 2. Navigation keys 5. Start key 8.

  • Page 7: Table Of Contents

    Table of Contents Setting Up the Machine Step 1 1. Install the Drum Unit Assembly ... 4 2. Load Paper in the Paper Tray ... 5 3. Install the Power Cord ... 6 4. Selecting Your Language ... 6 5. Setting the LCD Contrast ... 6 Installing the Drivers &...

  • Page 8: Step 1

    Step 1 Setting Up the Machine Install the Drum Unit Assembly Do NOT connect the interface cable. Connecting the interface cable is done during the software installation process. Open the front cover of the machine. Front Cover Unpack the drum unit assembly. Gently rock it from side to side several times to distribute the toner evenly inside the assembly.

  • Page 9: Load Paper In The Paper Tray

    Load Paper in the Paper Tray Pull the paper tray completely out of the machine. While pressing the paper guide release lever, slide the adjusters to fit the paper size. Check that the guides are firmly in the slots. Fan the stack of paper well to avoid paper jams and misfeeds.

  • Page 10: Install The Power Cord

    Step 1 Setting Up the Machine Install the Power Cord Do not connect the Parallel or USB cable yet. Make sure that the power switch is off. Connect the AC power cord to the machine. Plug the AC power cord into an AC outlet. Turn the power switch on.
  • Page 11 Continue to Step 2, Installing the Drivers & Software...

  • Page 12: Installing The Drivers & Software

    View the User’s Guide and other documentation in PDF format. Brother Solutions Center You can access the Brother Solutions Center, a Web site offering information about your Brother product including FAQs, User’s Guides, Driver updates and Tips for using your machine.
  • Page 13 Follow the instructions on this page for your operating system and interface cable. For the latest drivers and to find the best solution for your problem or question, access the Brother Solutions Center directly from the driver or go to http://solutions.brother.com USB Interface Cable Users ... Go to page 10 (For Windows Parallel Interface Cable Users ...

  • Page 14: For Usb Interface Cable Users

    The CD-ROM main menu will appear. Click Install MFL-Pro Suite. If this window does not appear, use ® Windows Explorer to run the setup.exe program from the root directory of the Brother CD-ROM. After reading and accepting the ScanSoft ® PaperPort 9.0SE License Agreement, click Yes.
  • Page 15 Select Local Connection, and then click Next. The installation will continue. (DCP-7025 only) If you want to install the PS driver (Brother’s BR-Script Driver), select Custom Install and then follow the on-screen instructions. When the Select Components screen appears, check PS Printer Driver, and then continue following the on-screen instructions.
  • Page 16 If the installation is unsuccessful, try installing again using Repair MFL-Pro Suite from the CD-ROM main menu. Select Repair MFL-Pro Suite and follow the instructions on the screen. The MFL-Pro Suite, Brother Printer Driver and Scanner driver have been installed and the installation is now complete.

  • Page 17: For Parallel Interface Cable Users

    The CD-ROM main menu will appear. Click Install MFL-Pro Suite. If this window does not appear, use ® Windows Explorer to run the setup.exe program from the root directory of the Brother CD-ROM. After reading and accepting the ScanSoft ® PaperPort 9.0SE License Agreement, click Yes.
  • Page 18 Select Local Connection, and then click Next. The installation will continue. (DCP-7025 only) If you want to install the PS driver (Brother’s BR-Script Driver), select Custom Install and then follow the on-screen instructions. When the Select Components screen appears, check PS Printer Driver, and then continue following the on-screen instructions.
  • Page 19 Professional users, click Next. ® For Windows XP users, wait for a while since the installation of the Brother drivers will automatically start. The screens appear one after another. DO NOT try to cancel any of the screens during this installation.

  • Page 20: For Windows Nt ® Workstation Version 4.0 Users

    Connect the parallel interface cable to your computer, and then connect it to the machine. Brother recommends that you connect the machine directly to your computer. Plug in the power cord and turn on the machine.
  • Page 21 Select Local Connection, and then click Next. The installation will continue. (DCP-7025 only) If you want to install the PS driver (Brother’s BR-Script Driver), select Custom Install and then follow the on-screen instructions. When the Select Components screen appears, check PS Printer Driver, and then continue following the on-screen instructions.

  • Page 22: For Optional Nc-2200W Users

    The CD-ROM main menu will appear. Click Install MFL-Pro Suite. If this window does not appear, use ® Windows Explorer to run the setup.exe program from the root directory of the Brother CD-ROM. After reading and accepting the ScanSoft ® PaperPort 9.0SE License Agreement, click Yes.
  • Page 23 Select Network Connection and then click Next. (DCP-7025 only) If you want to install the PS driver (Brother’s BR-Script Driver), select Custom Install and then follow the on-screen instructions. When the Select Components screen appears, check PS Printer Driver, and then continue following the on-screen instructions.

  • Page 24: For Usb Interface Cable Users

    Step 2 Installing the Drivers & Software For USB Interface Cable Users For Mac OS Make sure that you have completed the instructions from Step 1 “Setting Up the Machine” on pages 4 - 6. Disconnect the machine from the power socket and from the Macintosh already connected an interface cable.
  • Page 25 ® From the Apple menu, open the Chooser. Click the Brother Laser icon. On the right side of the Chooser, select the machine to which you want to print. Close the Chooser. The MFL-Pro Suite, Printer driver and Scanner driver have been installed.

  • Page 26: For Mac Os

    ® Macintosh or if you are overwriting a previously installed version of the Brother software. If you encounter this problem continue with the installation skipping step 9 and then see the Software User’s Guide for details on selecting what machine ControlCenter2.0 will connect with.
  • Page 27 DO NOT connect the machine to a USB port on a keyboard or a non- powered USB hub. Plug in the power cord and turn on the machine. Select USB and then click OK. Select Applications from the Go menu. Open the Utilities folder.
  • Page 28 To install Presto! PageManager Presto! PageManager icon and follow the on-screen instructions. ® When Presto! PageManager OCR capability is added to the Brother ControlCenter2.0. You can also easily scan, share, and organise photos and documents ® using Presto! PageManager ®...

  • Page 29: For Optional Nc-2200W Users

    ® Macintosh or if you are overwriting a previously installed version of the Brother software. If you encounter this problem continue with the installation skipping steps 7 to 9 and then see the Software User’s Guide for details on selecting what machine ControlCenter2.0 will connect with.
  • Page 30 Open the Utilities folder. Open the Printer Setup Utility icon. ® For Mac OS X 10.2.x users, open Print Center icon. Click Add. Make the selection shown below. Select Brother DCP-XXXX (XXXX is your model name) and then click the Add button.
  • Page 31 To install Presto! PageManager Presto! PageManager icon and follow the on-screen instructions. ® When Presto! PageManager OCR capability is added to the Brother ControlCenter2.0. You can also easily scan, share, and organise photos and documents ® using Presto! PageManager ®...

  • Page 32: Options And Consumables

    For more information, visit http://solutions.brother.com. Replacement Consumables When the time comes to replace consumables, an error message will be indicated on the LCD. For more information about the consumables for your printer, visit http://solutions.brother.com or contact your local Brother re-seller. Drum Unit...

  • Page 33: Compilation And Publication

    Compilation and Publication Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice.
  • Page 34 UK/IRE/SAF...

This manual is also suitable for:

Dcp-7025
