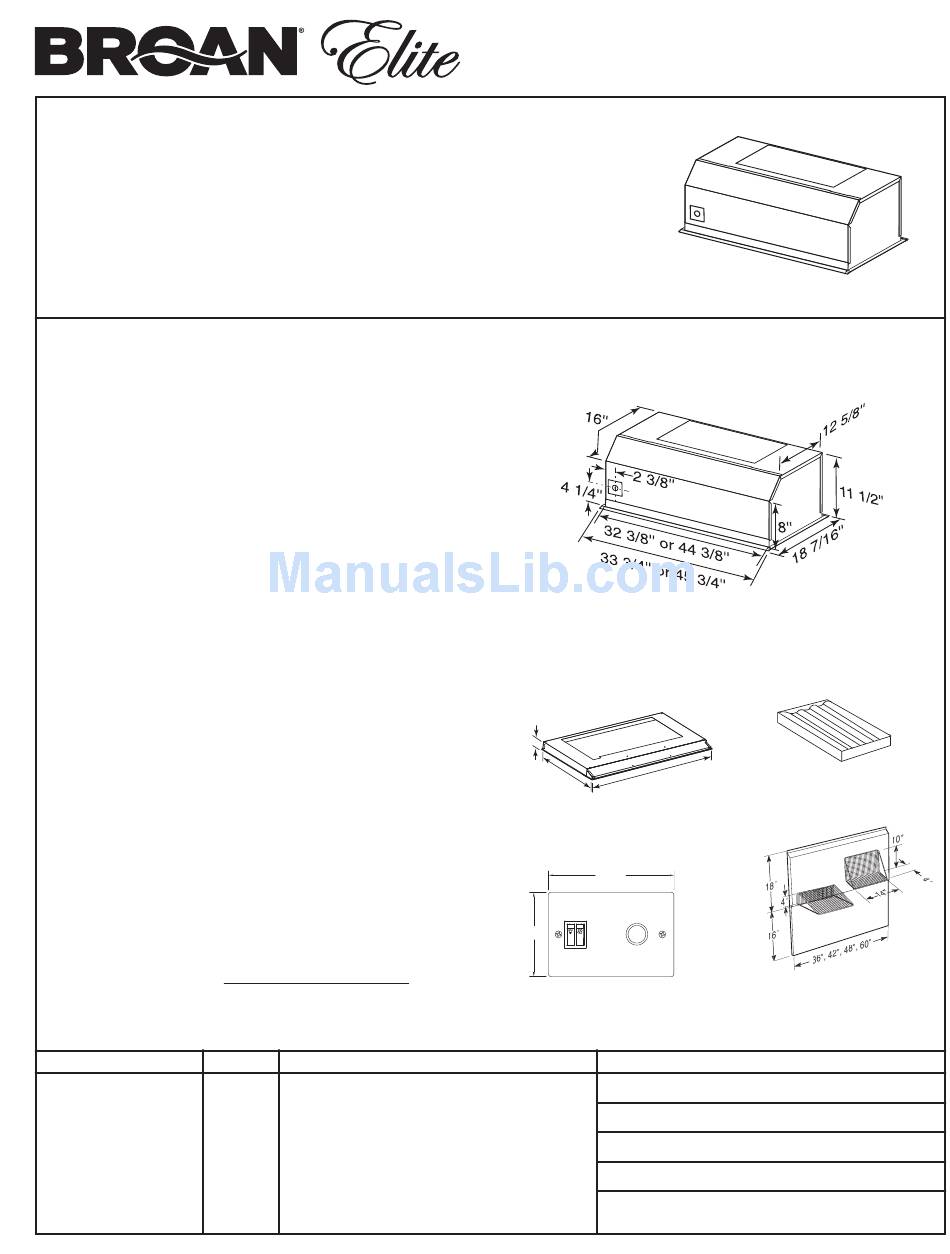

NuTone RMIP33 Specification Sheet

RMIP SERIES
INSERT
Especially designed to be installed in custom hood
for use over residential commercial-style
cooking surfaces.
A complete installation requires several optional
components. Refer to page 2 when planning your
installation.
FEATURES
• Cabinet mount _ custom application
•
Widths: 33'', 45''
• Halogen lighting (33'' _ 2 x 50 watt; 45'' _ 3 x 50 watt
PAR20)
Lamps not included
•
Controls: rocker switches for lighting and on-off,
knob for infinite speed
•
Heat Sentry™ turns blower ON to HIGH speed when
excess heat is detected
OPTIONS
•
Custom hood liners (RML33 or RML45 Series):
Widths - 36'', 42'', 48'', 54" and 60''
Adjustable depth - see liner spec. sheet for details
Stainless Steel construction - protects custom hood
base
and wipes clean easily
•
Dishwasher-safe stainless steel baffle filters RBFIP
Series
•
Backsplash (RMP Series):
Widths - 36'', 42" 48", 60"
Stainless Steel construction - protects back wall
and wipes clean easily
•
RMIPWC Remote control: With Stainless Steel
faceplate,
to fit any décor.
INSERT SPECIFICATIONS
120 Vac, 60 Hz
Amps (without blower): 0.8 (RMIP33) 1.3 (RMIP45)
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)
Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario, L5T 1H9 (1-888-882-7626)
REFERENCE QTY.
HK0076A
Mount insert so bottom of custom hood is 24'' to 30''
Custom Hood Liner
RML33 or RML45 Series
4"
A d
j u s
( S
t a
e e
b l e
s h
l i n
e e
e r
t f o
r d
RMIPWC Remote Control
4 1/2''
HC0010
REMARKS
SPECIFICATION SHEET
HB0032
above cooking surface.
i n a l
n o m
r 6 0 "
h o o d
5 4 " o
u s t o m
4 8 " ,
F i t s c
d e 4 2 " ,
3 6 " ,
p t
w i d t h
s p
h
e c
e t
a i l
s )
6 3/8''
Project
Location
Architect
Engineer
Contractor
Submitted by
70D
Baffle Filters
RBFIP Series
HA0026
Backsplash
RMP Series
HA0011
Date
99043303E
