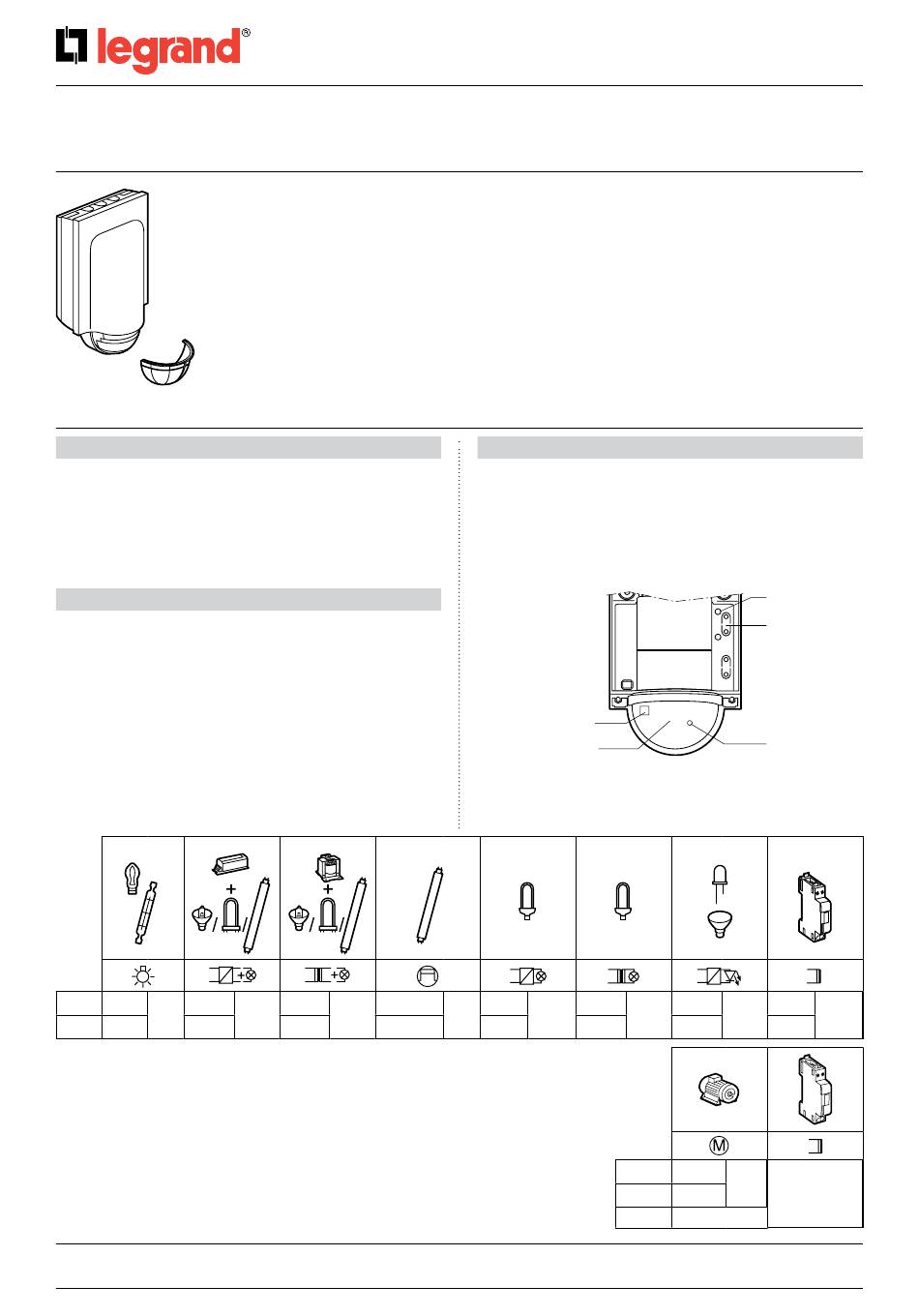

LEGRAND 0 489 14 Technical Data Sheet

Lighting management sensor - PIR

1. Use

This device allows a light source to be controlled automatically by
detecting movement in a monitored area.
It can be installed in work areas (offices, classrooms, meeting rooms,
open-plan offices).
Motion sensor with 180° detection angle.
Detection type: infrared (PIR)
Mounting type: wall

2. TeChNICaL ChaRaCTeRIsTICs

Voltage: 240 V~
Frequency: 50/60 Hz
No-load power consumption: 0.6 W
Output via normally open contact connected to the phase
Wiring: 2 x 2.5 mm
2
Number of terminals: 4
Terminal type: screw
Stripping length: 8 mm
Drilling diameter: 67 mm with flush-mounting box
Weight: 114 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP42
Usage temperature: - 5°C to + 45°C
Storage temperature: - 20°C to + 70°C
1 2
230 V~ 2000 W 1000 VA
8.5 A
110 V~ 1000 W 500 VA
1 - Halogen bulbs
2 - ELV halogen, compact fluorescent and fluorescent bulbs with
separate electronic ballast
3 - ELV halogen, compact fluorescent and fluorescent bulbs with
separate ferromagnetic ballast
4 - Fluorescent tubes
5 - Compact fluorescent bulbs with built-in electronic ballast
6 - Compact fluorescent bulbs with built-in ferromagnetic ballast
7 - LED bulbs
Technical data sheet: S000077897EN-1
3 4
1000 VA 10x(2x36 W)
4.3 A 4.3 A
500 VA 5x(2x36 W)
2. TeChNICaL ChaRaCTeRIsTICs (continued)
Products approved for 40,000 operations
Mains zero breaking: in order to limit the effect of induced currents on
cut-off relays by fluorescent loads in particular, this sensor breaks the
voltage at mains zero. Switching occurs when the voltage is at point 0
which ensures a longer life for sources and for the sensor.
Cover removed
Light level cell
Sensor/PIR sensor
5 6
250 W 250 W
4.3 A 1 A
125 W 125 W
8 - Contactor
9 - Motor
Updated:
Cat. No(s): 0 489 14
