ELCOM Uniq Monitor 215 User Manual page 32

Using the device
The virtual keyboard which is a standard component of the operating system is launched as follows:
Windows : In addition to above mentioned of launching a virtual keyboard also so called Tablet PC Input Panel
can be used, which can be accessed quickly when needed and is easier to use. To display it, proceed as follows:
1. Right-click the taskbar of Windows (hold down the touch screen in the area). Local menu is displayed.
2. In the local menu, expand "Toolbars" and check the option "Tablet PC Input Panel".
3. The taskbar button appears, which allows launching on-screen keyboard or the possibility of handwriting
recognition.
Use: When you want to enter text using the touch panel, after the placing of the text cursor to the desired
location, tap the Tablet PC Input Panel button and then you can enter text. In basic setup also the edge of
the virtual keyboard window is shown at the left edge of the screen and the keyboard can be "pulled" by
sliding your finger from the left edge of the screen towards its center. Depending on touch input settings,
virtual keyboard icon is also displayed near input fields after you place the text cursor in them.
When you are done entering text, you can close virtual keyboard's window. Settings for the text input using
the touch panel can be found in the "Tools" at the top of the window.
TIP: For greater typing comfort you can adjust the size of the virtual keyboard by dragging its edge.

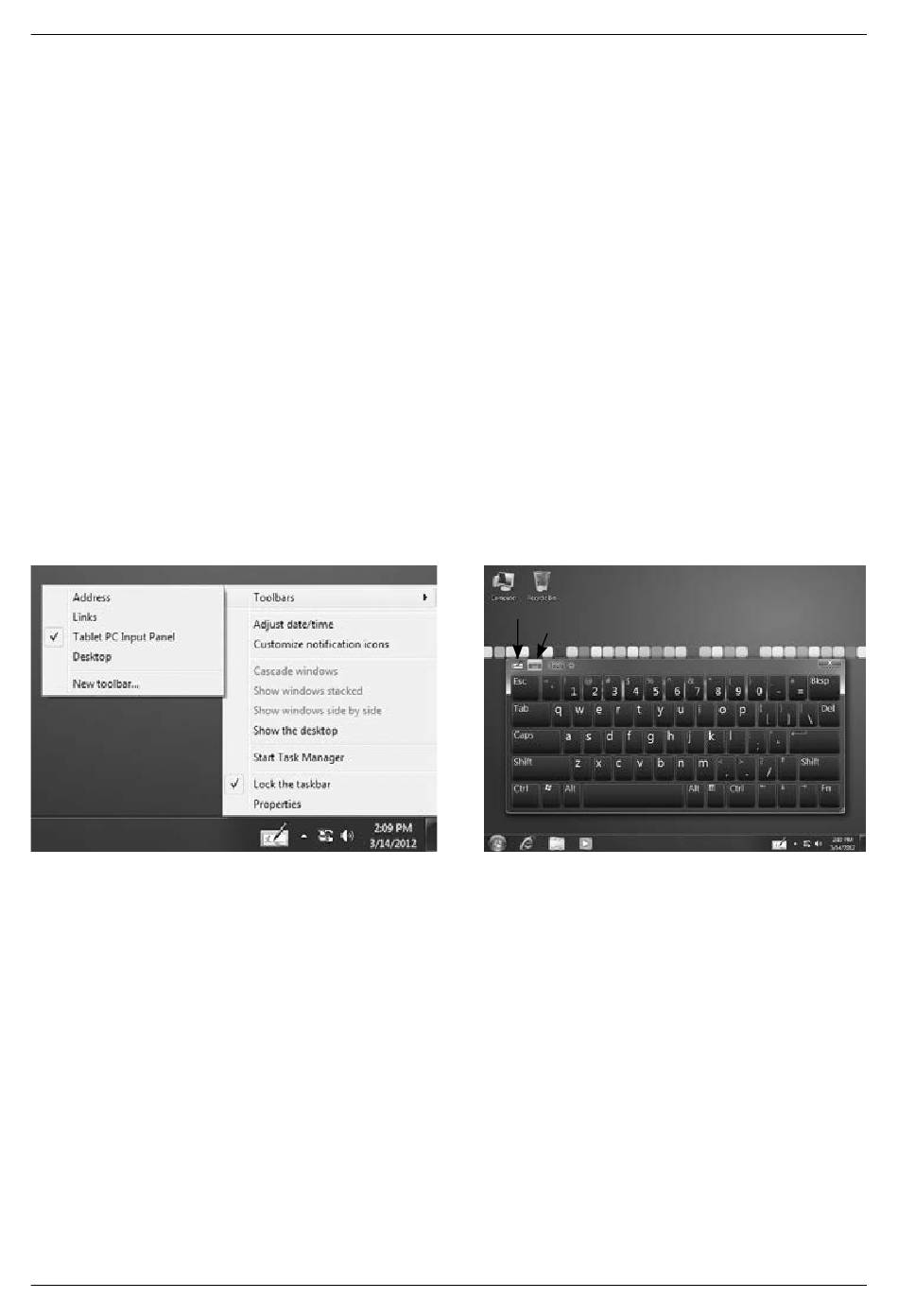

Figure 12.2. Displaying the Tablet PC Input Panel
recognition of the handwriting on the touch display
2 typing on the virtual keyboard
1
3
You can also search for and install other applications providing a virtual keyboard for the operation system
used which will better suit your needs.
32
