Centurion A10 Quick Start Manual
Industrial sliding gate operators
Hide thumbs
Also See for A10:
- Installation manual (53 pages) ,
- Programming manual (4 pages) ,
- User manual (32 pages)
Related Manuals for Centurion A10
Summary of Contents for Centurion A10

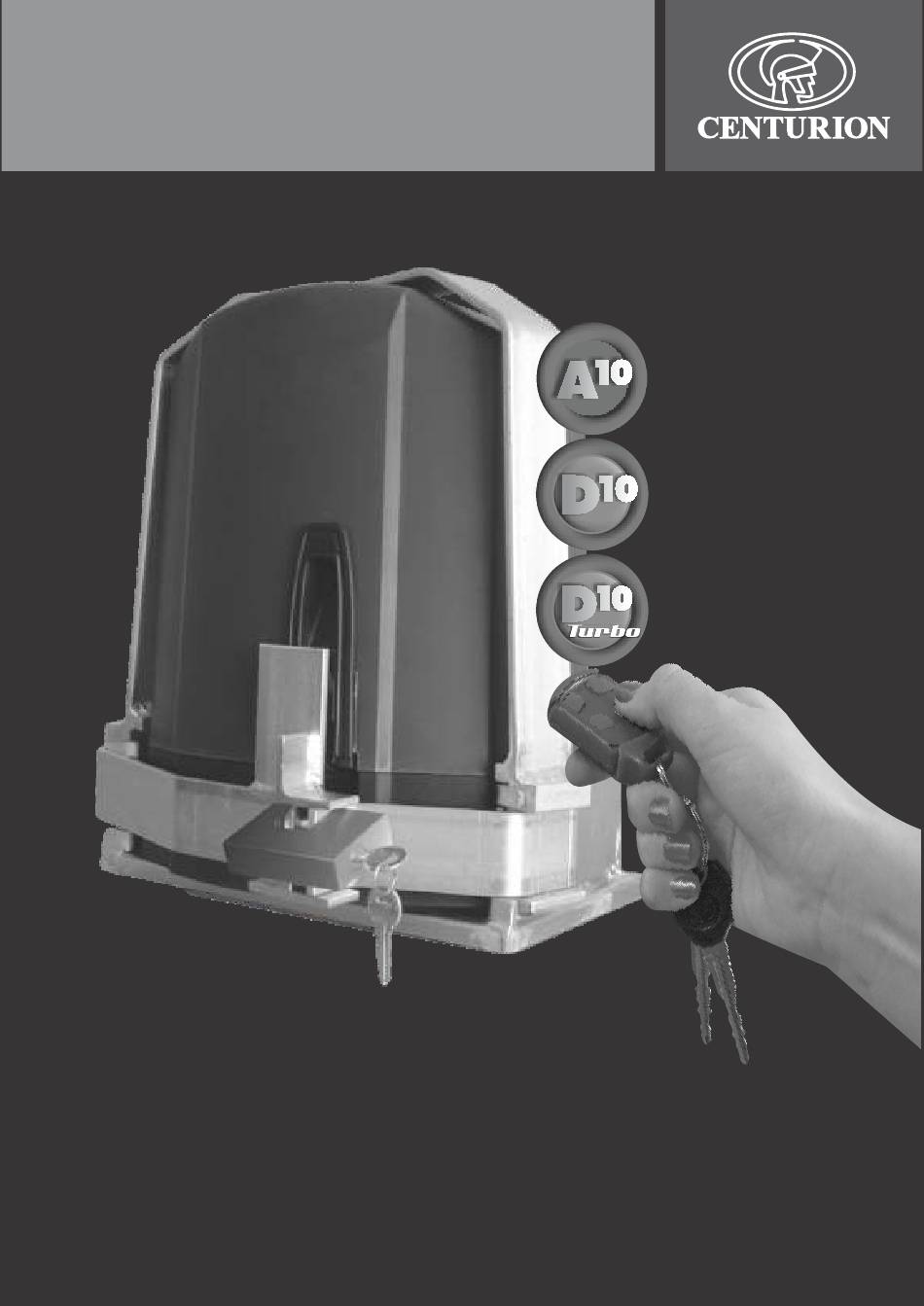

- Page 1 A10, D10 and D10 Turbo Theft-resistant cage parts identification INDUSTRIAL SLIDING GATE OPERATORS...
-
Page 2: General Description
It is important that the Theft-resistant Cage is properly fitted as per the instructions given and that a suitable lock is fitted. Please note that a lock is not supplied in this kit. CENTURION recommends using a discus-type lock. - Page 3 page 2...
- Page 4 3. Screw the four M8x40 socket head grub 4. Place the base plate over the foundation plate. screws supplied with A10/D10/D10 Turbo into the threaded holes in the base plate. page 3...
- Page 5 5. Place the gate motor over the base 6. Slide the gate motor forward or plate, making sure that the four grub backward so that the pinion will screws and two mounting bolts from correctly engage with the rack. the foundation plate fit through the gate motor as shown.
- Page 6 9. Tighten nuts progressively i.e. left hand, 10. Replace the lower gear box cover. then right hand, then left hand. Do not over tighten nuts. 12 Fit the over strap over the gate motor. 11. Replace the main gear box cover. The over strap will only fit one way.
- Page 7 13. Assemble the left hand and right hand 14. Hook the left hand side strap into the side straps to the base plate. vertical slot provided in the left side of the base plate. 15. Hook the right hand side strap into the 16.
- Page 8 Sharecall 0860-CENTURION (0860 236 887) Head Office: +27 11 699 2400 Sharecall Technical Support 0861 003 123 or +27 11 699 2481 from 07h00 to 18h00 (GMT+2) (Sharecall numbers applicable when dialed from within South Africa only) 0.07.A.0010 www.centsys.com...
