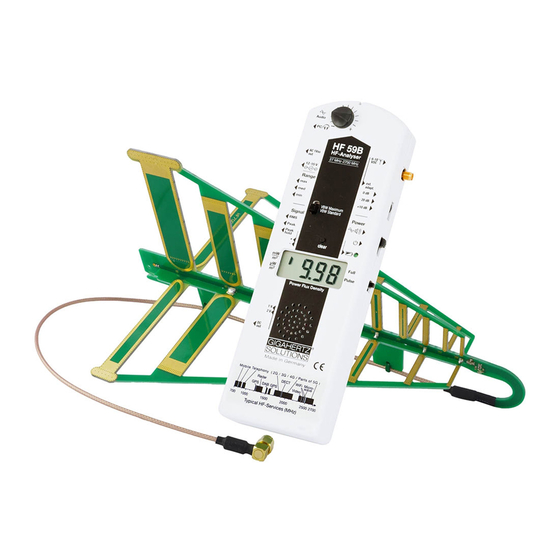

Digital High Frequency Analyser HF58B / HF58B-r / HF59B
HF58B / HF58B-r / HF59B
High Frequency Analyser
27 MHz (HF59B) / 800 MHz to 2.7 GHz
3.3 GHz with additional tolerance).
Instruction Manual
Revision 6.0 (08/14)
The devices of the professional HF5xx line are of identical
configuration. The HF58B-r comes with an additional switcha-
ble video bandwidth, and the HF59B has an extended fre-
quency range down to 27 MHz.
This manual is subject to continuous updates, amendments
and adjustments. The most current version can always be
found for download on your local distributor's homepage or
under www.gigahertz-solutions.de
Please carefully review the manual before using the device. It
contains important advice for use, safety and maintenance of
the device. In addition it provides the background information
necessary to make reliable measurements.
© by GIGAHERTZ SOLUTIONS GmbH, 90579 Langenzenn,
Germany. All rights reserved. No reproduction or distribution
in part or total without the editor's written permission.
© Gigahertz Solutions GmbH, 90579 Langenzenn, Germany
Thank you!
We appreciate the confidence you have
shown in purchasing this HF Analyser. It will
(up to
allow a professional analysis of the exposure
with high frequency (HF) radiation corre-
sponding to the baubiology recommenda-
tions.
Further to this manual you are welcome to
have a look at the training videos on our
homepage (www.gigahertz-solutions.de) for
an optimal use of our measurement technol-
ogy.
If you should encounter any problems,
please contact us immediately. We are here
to help.
For your local distributor pls check:
www.gigahertz-solutions.com
Contents
Limiting values, recommendations
and precautions
Safety Instructions:
The HF analyser should never come into contact with water or
be used outdoors during rain. Clean the case only from the
outside, using a slightly moist cloth. Do not use cleaners or
sprays.
Due to the high sensitivity level, the electronics of the HF
analyser are very sensitive to heat, impact as well as touch.
Therefore do not leave the instrument in the hot sun, on a
heating element or in any other damaging environment. Do not
let it drop or try to manipulate its electronics inside when the
case is open.
2
3
4
7
11
12
13
14
14
14
16
Page 1
