Made in Germany
HF58B / HF58B-r / HF59B
High Frequency Analyser
27 MHz (HF59B) / 800 MHz to 2.7 GHz
(up to 3.3 GHz with additional tolerance)

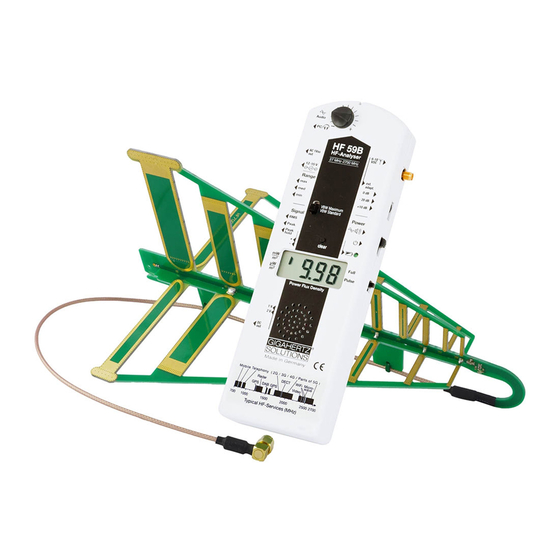

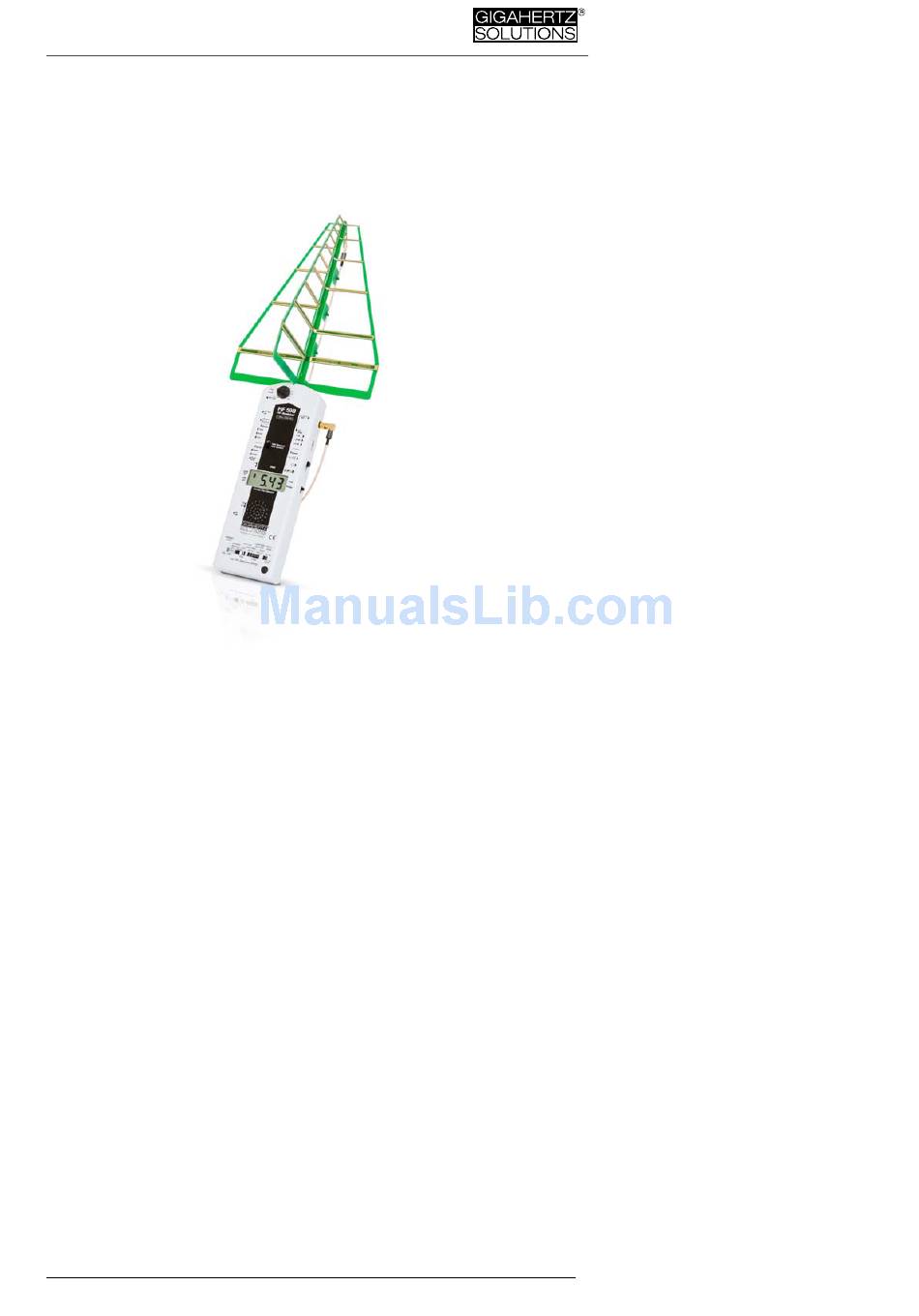

Fig. HF59B
Instruction Manual
Revision 7.0
This manual is subject to continuous updates, amendments and
adjustments. The most current version can always be found for
download on your local distributor's homepage or under www.gi-
gahertz-solutions.de
Due to the rapid increase of high frequency radiation sources,
regular measurements in your private surroundings are
strongly recommended!
© Gigahertz Solutions GmbH
Advertisement
Table of Contents
Related Manuals for Gigahertz Solutions HF58B
Summary of Contents for Gigahertz Solutions HF58B
- Page 1 Made in Germany HF58B / HF58B-r / HF59B High Frequency Analyser 27 MHz (HF59B) / 800 MHz to 2.7 GHz (up to 3.3 GHz with additional tolerance) Fig. HF59B Instruction Manual Revision 7.0 This manual is subject to continuous updates, amendments and adjustments.
- Page 2 Made in Germany © Gigahertz Solutions GmbH...
-
Page 3: Table Of Contents
The antenna input is protected against overload. This way no damage can be caused by especially mobile phones, WLAN routers or similar instruments, no mat- ter how close they get to the antenna. © Gigahertz Solutions GmbH... -
Page 4: Functions & Controls
Made in Germany Functions and Controls The HF component of the meter is shielded against interfer- ence by an internal metal box at the antenna input (shielding factor approx. 35 – 40 dB) © Gigahertz Solutions GmbH... - Page 5 (Push and hold for 2 seconds or until the reading no longer drops) For HF58B-r and HF59B only: Switch for selection of the Video Bandwidth. Standard setting: “VBW Standard” Switches for rarely used functions are recessed in the casing of the instrument.
-
Page 6: Getting Started
The instrument is now ready for use. In the next chapter you will find the basics for true, accurate HF-measurement. © Gigahertz Solutions GmbH... -
Page 7: Properties Of Hf Radiation And
“overnight”. Major changes in exposure levels can, for instance, al- ready be caused by a transponder only being tilted down by a few degrees (e.g. during installation or repair works on cellular phone transmitters). In particular, however, the worldwide extremely rapid © Gigahertz Solutions GmbH... - Page 8 The supplied logarithmic-periodic antenna (or aerial), has excep- tional directionality. Thus it becomes possible to reliably locate or “target” specific emission sources in order to determine their con- tribution to the total HF radiation level – a fundamental prerequisite for effective shielding. © Gigahertz Solutions GmbH...
- Page 9 In order to avoid measurement values to be falsified by radiation sources from frequencies below 800 MHz when measuring with the LogPer antenna, the HF58B and the HF58B-r are equipped with an internal high pass filter at 800 MHz. As the HF59B picks up frequencies below 800 MHz, it has no inte- grated high pass filter.
-
Page 10: Step-By-Step-Instruction To Hf-Measurement
Since there is no need to look at the display during an overview measurement, but only to listen to the audio signal, you can easily © Gigahertz Solutions GmbH... - Page 11 There is a factor of 100 between “med” and “max” thus allowing to display as large power flux densities as possible withouth having to apply an attenuator. For technical reasons the highest tolerances must be expected here. © Gigahertz Solutions GmbH...
- Page 12 (= ((1 x 10) + (9 x 0)) / 10). With the switch set to “Peak” or “Peak hold”, the display will show the “RMS value during the pulse”, which is a common practice in the building biology. © Gigahertz Solutions GmbH...
- Page 13 HF signal only in- stead of the mean value, which is the case for most meters on the market, even if their specifications state that it will display the mean value. © Gigahertz Solutions GmbH...
- Page 14 After having measured the emission of the 2.4-GHz tele- phone on its own, the sum of both measurement values could be used for the exposure assessment. (This is necessary only when using the LogPer aerial. The isotropic UBB27 does this in a single measurement). © Gigahertz Solutions GmbH...
- Page 15 As the standard please set the instrument to “Peak hold” and “VBW standard ” (default in the HF58B). The displays of the meters of this series show the sum of the total power density within the frequency range of the most common dig- ital radio services.
- Page 16 LogPer aerial. HF58B only: The HF58B does not have the required VBW to perform a quantita- tive measurement of radar signals. However the audio analysis identifies even those radar pulses that cannot be measured quantitatively.
- Page 17 For the HF58B it is helpful to use the “-” (“minus”) setting for Peak hold to catch the short bursts. The HF58B-r and HF59B have a patented circuitry that allows for the exact measurement of the extra fast rise times of the bursts even in the “+”-setting for Peak hold.
-
Page 18: Guidelines, Limiting And Precautionary Values
Note for users of cellular phones or Wifi: Unimpaired reception of calls or Wifi is possible with power densi- ties far below even the very strict precautionary recommendation of 0.01 µW/m² for pulsed HF frequencies by the SBM. © Gigahertz Solutions GmbH... -
Page 19: Audio Analysis Of Modulation
Marking of CW signals Un-pulsed signals by their very nature are not audible in the audio analysis and therefore easily missed. For that reason they are marked by a uniform “rattling” tone, with its volume proportional to © Gigahertz Solutions GmbH... -
Page 20: Use Of Signal Outputs
HFW59D (2.4 - 10 GHz) Meters for the low frequencies: With the NFA series, which al- lows a three-dimensional measurement of alternating electrical and magnetic fields, Gigahertz Solutions offers a broad range of professional measurement technology also for this frequency range. -
Page 21: Battery Management
3. The built-in function Auto-Power-Off is automatically de-acti- vated when plugging in a 2.5 mm DC. The function will only be (also automatically) re-activated if a further operation of the meter would cause a total discharge of the battery. © Gigahertz Solutions GmbH... - Page 22 For long-term measurements, the more reliable solution is to use a car battery with short cable to the power supply jack, or alternatively to apply ring ferrites onto the power supply cable (please see photo). © Gigahertz Solutions GmbH...
- Page 23 Our silicone holsters have proven to be rather helpful for the pro- tection of the meters. Manufacturer as well as contact & service address: Gigahertz Solutions GmbH Am Galgenberg 12 90579 Langenzenn Germany Telefon 09101 9093-0 Telefax 09101 9093-23 www.gigahertz-solutions.com / .fr / .de info@gigahertz-solutions.de © Gigahertz Solutions GmbH...
-
Page 24: Conversion Table
11,5 35,0 3500 1149 0,40 12,3 40,0 4000 1228 0,50 13,7 50,0 5000 1373 0,60 15,0 60,0 6000 1504 0,70 16,2 70,0 7000 1624 0,80 17,4 80,0 8000 1737 0,90 18,4 90,0 9000 1842 DRU0203 07/17 © Gigahertz Solutions GmbH...
