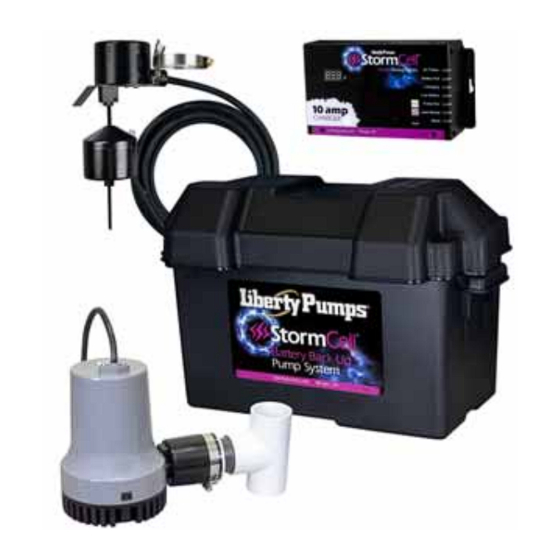

12 volt emergency sump pump battery back-up system
Hide thumbs Also See for 441:

Advertisement

Quick Links

Installation Manual
Model 441 Battery Back-up System
12 Volt Emergency Sump Pump System
Models
441
Back-up Pump with 1.5A Charger
441-10A
Back-up Pump with 10A Charger
Features
• Advanced charging system automatically
recharges battery after use
• Audible alarm and LED advises of
emergency pump operation
• Works with marine-type deep cycle
batteries
®
– StormCell
battery recommended
– Battery not included
1.5A Charger:
Battery Recommended
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: 1-585-494-1839
www.LibertyPumps.com
10A Charger:
Installer: Manual must
remain with owner/operator.
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 1-800-543-2550.
Retain dated sales receipt for warranty.
Copyright © Liberty Pumps, Inc. 2021 All rights reserved.
Model 441-10A shown
Prior to installation, record information
from pump nameplate for future reference:
Model:
Serial:
Mfg Date:
Install Date:
4414000E
