Installation Manual

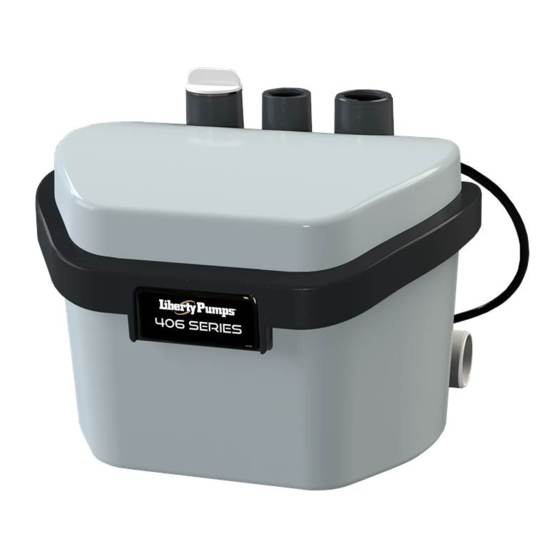

Model 406 Drain Pump
Features
• Appliance-style design
• Compact size
• Bottom inlets accommodate shower plumbing
• Maximum fluid temp 140°F/60°C
• Integral discharge check valve
• Integral side inlet check valve
• Discharge size options via single adapter
• Serviceable float switch and pump cartridge
ASME A112.3.4
CSA B45.9
Meets UPC
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: 1-585-494-1839
www.LibertyPumps.com
Installer: Manual must
remain with owner/operator.
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 1-800-543-2550.
Retain dated sales receipt for warranty.
Copyright © Liberty Pumps, Inc. 2021 All rights reserved.
Prior to installation, record information
from pump nameplate for future reference:
Model:
Serial:
Mfg Date:
Install Date:
5488000A
Advertisement
Table of Contents
Related Manuals for Liberty Pumps 406
Summary of Contents for Liberty Pumps 406
- Page 1 Keep this manual handy for future reference. Serial: Bergen, NY 14416 For replacement manual, visit LibertyPumps.com, ph: 1-800-543-2550 Mfg Date: or contact Liberty Pumps at 1-800-543-2550. fax: 1-585-494-1839 Retain dated sales receipt for warranty. Install Date: www.LibertyPumps.com Copyright © Liberty Pumps, Inc. 2021 All rights reserved.
- Page 2 Always disconnect the pump from power source before occur. Sparks could ignite flammable liquids. attempting to service the pump. Fatal electrical shock could occur. 2 | EN Copyright © Liberty Pumps, Inc. 2021 All rights reserved. 5488000A...
- Page 3 All pump/pump system installations shall be in compliance The sleek new Model 406 is an appliance grade product with a with all applicable Federal, State, and Local codes and refined look and feel.
- Page 4 For technical assistance, consult the factory at 1-800-543-2550. Liters Per Minute 15.1 22.7 30.3 37.9 45.4 53.0 60.6 68.1 75.7 US Gallons Per Minute 4 | EN Copyright © Liberty Pumps, Inc. 2021 All rights reserved. 5488000A...
- Page 5 Discharge Piping All discharge piping from the unit shall run either directly vertical Before installing the Model 406 automatic drain pump, take the or in a horizontal plane (with a minimum 1/4” per foot drop) to the following into consideration: point of discharge.
- Page 6 If used infrequently, test the unit monthly to verify proper operation. Routine maintenance is not required on the pump itself, but associated connections may require occasional attention. 6 | EN Copyright © Liberty Pumps, Inc. 2021 All rights reserved. 5488000A...
- Page 7 Check vent line for obstructions or restrictions. Vent is blocked, restricted, or quick-vent in use. Quick-vents shall not be used. Discharge is blocked or restricted. Check discharge line for obstructions or restrictions. 5488000A Copyright © Liberty Pumps, Inc. 2021 All rights reserved. 7 | EN...
