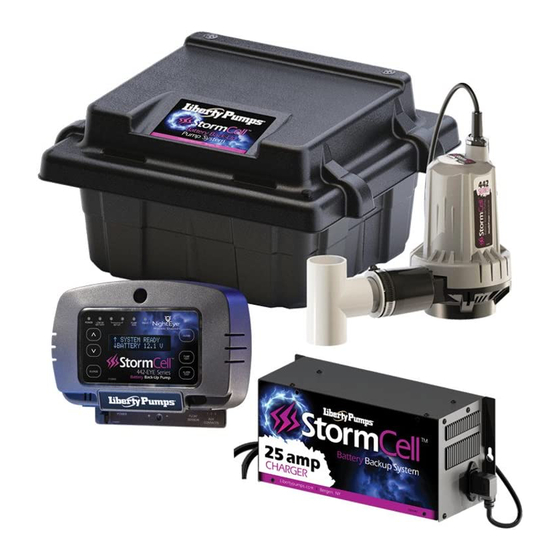

Liberty Pumps StormCell 442 Series Installation Manual

Liberty Pumps StormCell 442 Series Installation Manual

Battery backup system
Hide thumbs Also See for StormCell 442 Series:

Advertisement

Quick Links

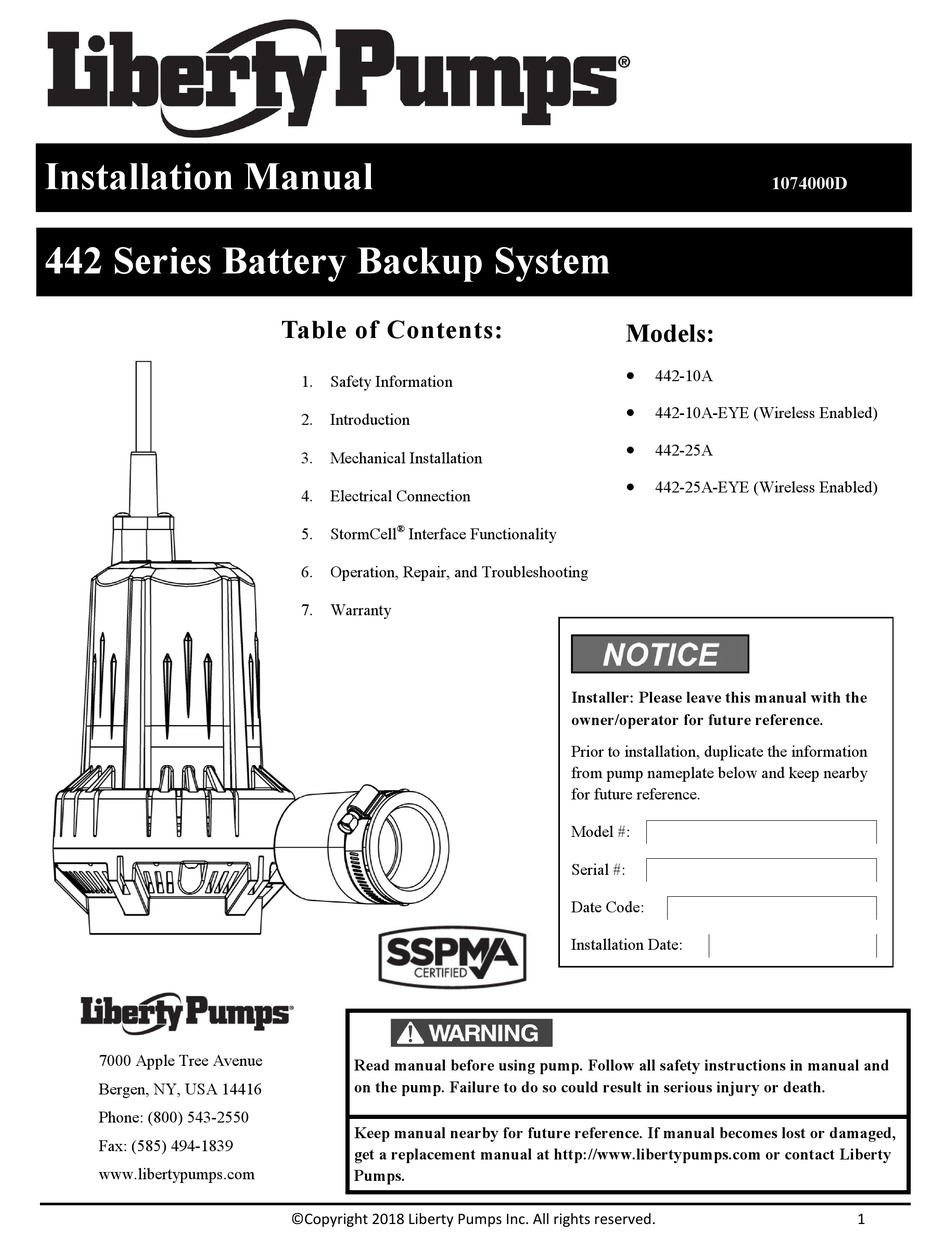

Installation Manual
442 Series Battery Backup System
7000 Apple Tree Avenue
Bergen, NY, USA 14416
Phone: (800) 543-2550
Fax: (585) 494-1839
www.libertypumps.com
Table of Contents:
1.
Safety Information
2.
Introduction
3.
Mechanical Installation
4.
Electrical Connection
®
5.
StormCell
Interface Functionality
6.
Operation, Repair, and Troubleshooting
7.
Warranty
Read manual before using pump. Follow all safety instructions in manual and
on the pump. Failure to do so could result in serious injury or death.
Keep manual nearby for future reference. If manual becomes lost or damaged,
get a replacement manual at http://www.libertypumps.com or contact Liberty
Pumps.
©Copyright 2018 Liberty Pumps Inc. All rights reserved.
Models:
442-10A
442-10A-EYE (Wireless Enabled)
442-25A
442-25A-EYE (Wireless Enabled)
Installer: Please leave this manual with the
owner/operator for future reference.
Prior to installation, duplicate the information
from pump nameplate below and keep nearby
for future reference.
Model #:
Serial #:
Date Code:
Installation Date:
1074000D
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the StormCell 442 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Liberty Pumps StormCell 442 Series

  • Page 1 Bergen, NY, USA 14416 Phone: (800) 543-2550 Keep manual nearby for future reference. If manual becomes lost or damaged, Fax: (585) 494-1839 get a replacement manual at http://www.libertypumps.com or contact Liberty www.libertypumps.com Pumps. ©Copyright 2018 Liberty Pumps Inc. All rights reserved.
  • Page 2 1.22 m (4 feet) above floor level.  NEVER use this product in applications where human contact with the pumped fluid is common (such as swimming pools, fountains, marine areas, etc.). ©Copyright 2018 Liberty Pumps Inc. All rights reserved.
  • Page 3 DO NOT touch the finned top surface of the charging unit. This surface becomes hot during normal battery charging may burn exposed skin. Unplug the charger and allow it to cool prior to servicing. ©Copyright 2018 Liberty Pumps Inc. All rights reserved.
  • Page 4 Visually check the pump, cables, and any spare parts for damage. Contact the Liberty Pumps Customer Service Department (toll free phone number located on the front cover) to report any damage or short- age of parts.
  • Page 5 For the longest battery life, a deep cycle battery must be used with this backup system. Deep cycle batteries are designed to han- ® dle multiple long deep discharges. For best results, install a Liberty Pumps StormCell Battery with your backup pump.
  • Page 6 This installation will require a tee, a 90° elbow, and two sections of piping. A 90° street elbow is supplied. Left: Side view of a typical side-by-side installation. Right: Top-down view of a typical side-by-side installa- tion. ©Copyright 2018 Liberty Pumps Inc. All rights reserved.
  • Page 7 Install the compact snap-on float to the discharge piping, ensuring that the “Pump On” level is a minimum of 3” above the turn on level of the primary pump. Use a small dab of PVC glue to secure the snap-on float to the discharge pipe. ©Copyright 2018 Liberty Pumps Inc. All rights reserved.
  • Page 8 (which is shielded by a protective cover). 442-25A’s use a different fuse, than is shown below, read label to locate the fuse and its size. Float Switch 20A Fuse Pump Battery ©Copyright 2018 Liberty Pumps Inc. All rights reserved.
  • Page 9 UI LCD Alarm Test—Alarm will Alarm Silence Button sound for approximately 5 Resets after 6 hours or if ® seconds. NightEye enabled ‘Silence’ button is pressed again. devices will send notifications as appropriate. ©Copyright 2018 Liberty Pumps Inc. All rights reserved.
  • Page 10 Check: Check all wiring connections and breaker for the circuit the battery charger is plugged in to. This notification will also display if the home has a power outage. ©Copyright 2018 Liberty Pumps Inc. All rights reserved.
  • Page 11 Ensure that check valve is installed and functioning between primary pump discharge and 442 connection tee. Check for obstruction in discharge pipe. Discharge pipe length and / or height exceeds capacity of pump. ©Copyright 2018 Liberty Pumps Inc. All rights reserved.
  • Page 12 7. 3 Year Limited Warranty Liberty Pumps, Inc. warrants that its products are free from all factory defects in material and workmanship for a period of 3 years from the date of purchase. The date of purchase shall be determined by a dated sales receipt noting the model and serial number of the pump.
