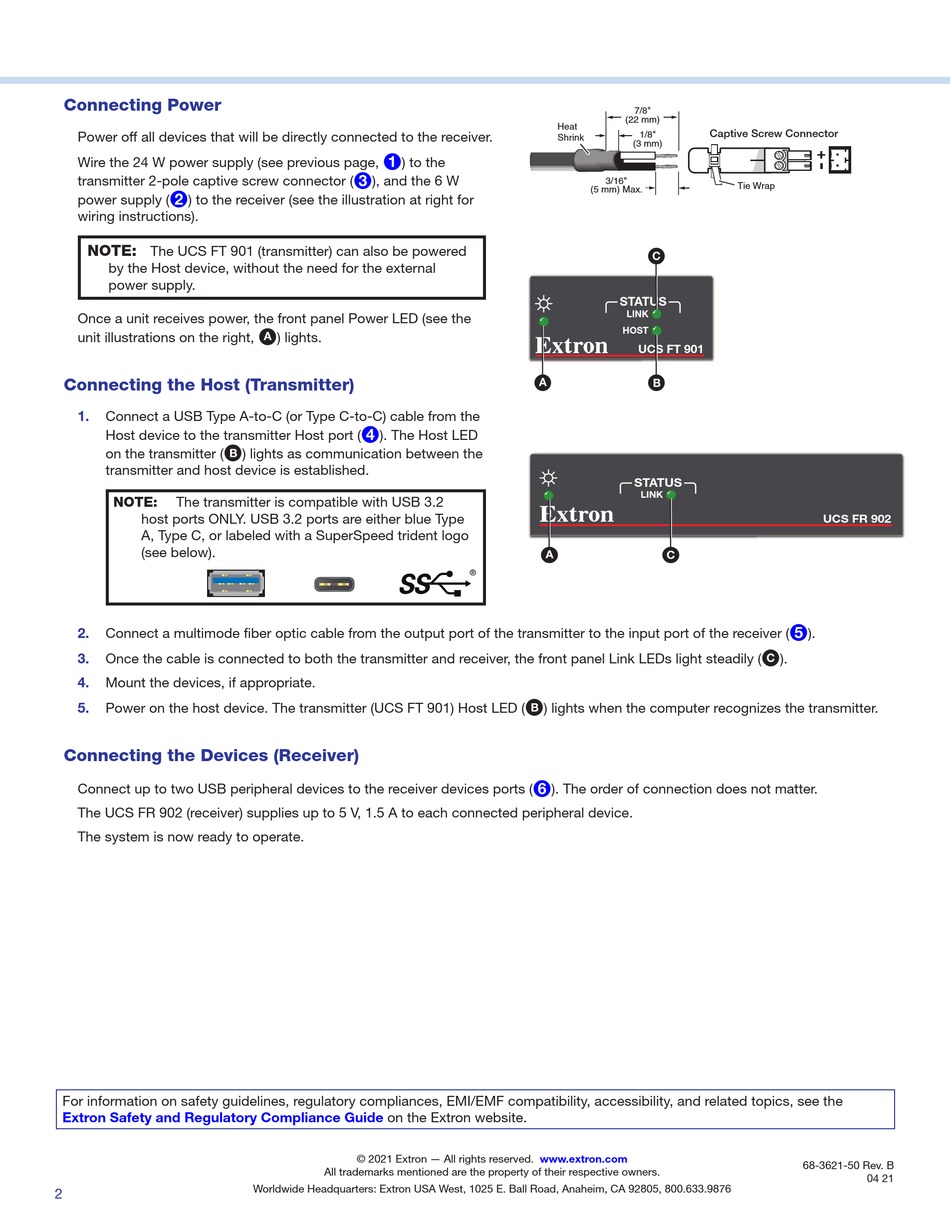

Connecting Power
Power off all devices that will be directly connected to the receiver.
Wire the 24 W power supply (see previous page,
transmitter 2-pole captive screw connector (
2
power supply (
) to the receiver (see the illustration at right for
wiring instructions).
NOTE:
The UCS FT 901 (transmitter) can also be powered
by the Host device, without the need for the external
power supply.
Once a unit receives power, the front panel Power LED (see the
unit illustrations on the right,
Connecting the Host (Transmitter)
1.
Connect a USB Type A-to-C (or Type C-to-C) cable from the
Host device to the transmitter Host port (
B
on the transmitter (
transmitter and host device is established.
NOTE:
The transmitter is compatible with USB 3.2
host ports ONLY. USB 3.2 ports are either blue Type
A, Type C, or labeled with a SuperSpeed trident logo
(see below).
2.
Connect a multimode fiber optic cable from the output port of the transmitter to the input port of the receiver (
3.
Once the cable is connected to both the transmitter and receiver, the front panel Link LEDs light steadily (
4.
Mount the devices, if appropriate.
5.
Power on the host device. The transmitter (UCS FT 901) Host LED (
Connecting the Devices (Receiver)
Connect up to two USB peripheral devices to the receiver devices ports (
The UCS FR 902 (receiver) supplies up to 5 V, 1.5 A to each connected peripheral device.
The system is now ready to operate.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
2
1
) to the
3
), and the 6 W
A
) lights.
4
). The Host LED
) lights as communication between the
on the Extron website.
© 2021 Extron — All rights reserved.
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
7/8"
(22 mm)
Heat
1/8"
Shrink
(3 mm)
3/16"
(5 mm) Max.
C
STATUS
LINK
HOST
e
UCS FT 901
A
B
SS 5G
Tx
POWER
STATUS
12V
LINK
0.1A MAX
e
USB-C
HOST
OUTPUT
A
A
B
®
1.5 A
POWER
12V
1
--A MAX
B
) lights when the computer recognizes the transmitter.
DEVICES
A
B
6
). The order of connection does not matter.
www.extron.com
Captive Screw Connector
Tie Wrap
Rx
UCS FR 902
C
C
5
).
C
).
2
68-3621-50 Rev. B
Tx
Rx
INPUT
C
04 21
