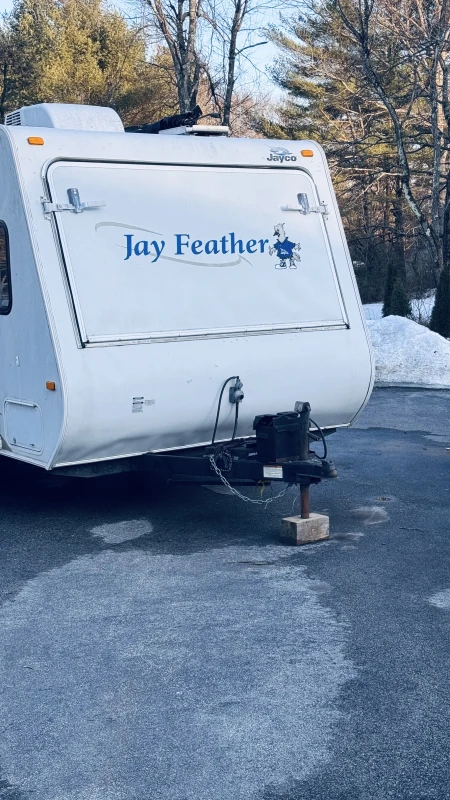

User image 67d8f156c8732
-2

Subscribe to Our Youtube Channel

Related Manuals for Jayco Jay Feather 2005

Summary of Contents for Jayco Jay Feather 2005

  • Page 1 Model Year 2005 Conventional Travel Trailer Owner’s Manual...
  • Page 2 WARNING: Read all instructions in this manual and component part manufacturer supplied information before using your RV. This manual has been provided by Jayco, Inc. for the sole purpose of providing instructions concerning the operation and maintenance of this vehicle and its component parts. Nothing in this manual creates any warranty, either expressed or implied.
  • Page 3 YOUR NEW JAYCO IS YOUR PASSPORT TO A WHOLE WORLD OF NEW FRIENDS, CAMPING FUN AND TRAVEL ADVENTURE WHEN YOU JOIN THE THOUSANDS OF JAYCO FAMILIES WHO MAKE UP THE . . . JAYCO JAFARI INTERNATIONAL TRAVEL CLUB You will find us enjoying the friendship and fellowship of JAFARI CAMPING as we join our local area FLIGHTS at hundreds of weekend camp-outs all over North America each month .
  • Page 4 . . FIFTH-WHEEL TRAVEL TRAILER. . .SPORT UTILITY TRAILER . . . CONVENTIONAL TRAVEL TRAILER . . . TYPE C MOTORHOME . . . FOLDING CAMPING TRAILER . . . it doesn’t matter. If you are a JAYCO RV FAMILY, then you are eligible to become a Jayco Jafari Member.

  • Page 5: Table Of Contents

    Table of Contents Welcome..........1 Warranty/Service.
  • Page 6 Table of Contents Towing Behind Your Trailer ......29 Tires ..........30 Wheel Lugs .
  • Page 7 Table of Contents Outside Shower (Option) ....... . . 49 Operation .
  • Page 8 Table of Contents Bulbs ........66 Fuses .
  • Page 9 Table of Contents Cushions/Bed Mats........83 SoftShades™...
  • Page 10 Table of Contents NOTES Jay Feather Conventional Travel Trailer...

  • Page 11: Welcome

    Thank you for purchasing your Jayco Recreation Vehicle (RV) and welcome to the world of recreation vehicle travel. Your purchase of a Jayco RV allows you to enter this unique world of camping and leisure in a grand style. Your Jayco RV has been designed and engineered to offer many comforts of home to make your camping experience as enjoyable as possible.
  • Page 12 NOTES Jay Feather Conventional Travel Trailer...

  • Page 13: Warranty/Service

    WARRANTY/SERVICE The following pages contain warranty information. It is our recommendation that you read through Jayco’s warranty and all other warranties. If there is any part which you do not understand, consult with your independent, authorized dealer, appropriate component part manufacturer or Jayco for further explanation.

  • Page 14: Towable Limited Warranty

    RV is delivered to the first retail purchaser by an independent, authorized dealer of Jayco, or, if the dealer places the vehicle in service prior to retail sale, on the date the RV is first placed in such service. In the event that a substantial defect in material or workmanship, attributable to Jayco, is found to exist during the warranty periods, it will be repaired or replaced, at Jayco’s option, without charge to the RV owner, in accordance with the terms,...
  • Page 15 By way of example only, this Limited Warranty does not cover any of the following: defects in materials, components or parts of the RV not attributable to Jayco, items that are added or changed after the RV leaves the possession of Jayco; addi- tional equipment or accessories installed at any dealership, or other place of business, or by any other party, other than Jayco;...
  • Page 16 Jayco product warranty registration form. That form must be returned to Jayco within ten (10) days of your taking delivery of the RV. Your Jayco warranty will not be registered un- less this warranty registration is completed and received by Jayco.

  • Page 17: Warranty Registration And Customer Delivery Form

    P.O. Box 460 903 South Main Street FORM Middlebury, IN 46540 (574) 825-0608 Dealer is to assure that this form is properly completed and returned to Jayco within ten (10) working days after delivery. OWNER’S NAME DEALER’S NAME ADDRESS ADDRESS...

  • Page 18: Limited Warranty Transfer

    I HAVE READ AND AGREE TO THE TERMS AND CONDITIONS ON THE BACK OF THIS FORM. OWNER SIGNATURES New Owner’s Signature New Owner’s Signature Selling Dealer’s Signature New Owner’s Signature THE BASIC 2 + 3 JAYCO, INC. LIMITED WARRANTIES MAY BE TRANSFERRED ONE (1) TIME DURING THE WARRANTY PERIOD. Jay Feather Conventional Travel Trailer...
  • Page 19 Warranty/Service TERMS AND REPRESENTATIONS By my signature(s) on the face side of this form, and in order to induce Jayco, Inc. to transfer its Limited Warranty, I represent the following: 1. That I have received and read a copy of the Jayco Limited Warranty and Owner’s Manual.

  • Page 20: Service Procedures

    In most cases, the independent, authorized dealer can provide the service you require. If you are traveling and are unable to locate an independent, authorized Jayco dealer, or an authorized dealer for the component part needing service, contact your selling independent, authorized dealer for assistance.

  • Page 21: Independent, Authorized Dealer

    When you purchased your Jayco RV, we trust you had a pleasant experience. We consider the network of independent, authorized Jayco dealers to be some of the best in the RV business. This group of independent contractors is an integral part of Jayco’s continued success.

  • Page 22: Manufacturer's Customer Support Directory

    Warranty/Service Manufacturer’s Customer Support Directory The following chart provides information to contact individual manufacturers of appliances that may be part of your trailer. If you have questions or concerns on component parts not listed here, contact your independent, authorized dealer for further assistance. Appliance Manufacturer Website...

  • Page 23: Safety

    If you believe that your vehicle has a defect, which could cause a crash, injury or death, immediately inform the appropriate agency, in addition to notifying Jayco, Inc. If similar complaints are received, the agency may open an investigation. If they find a safety defect exists in a group of vehicles, a recall and remedy campaign may be ordered.

  • Page 24: Safety In Using Lp Gas

    Vibration from travel can cause connections to loosen. This requires that the LP gas system be checked periodically for leaks. The system has been tested by the manufacturer and Jayco recommends that the independent, authorized dealer test the system as well. However, continued maintenance is recommended for safe operation.

  • Page 25: If A Leak Is Detected

    Safety WARNING: DO NOT USE A FLAME OR LIGHTED MATCH TO TEST FOR LEAKS. IF A LEAK IS DETECTED: • Turn off all appliances which utilize LP gas. • Make sure that everyone is out of the RV, including pets. •...

  • Page 26: Inspection And Maintenance

    Safety The fire extinguisher is a dry chemical, nonrefillable extinguisher. Do not test this extinguisher by partially discharging. Doing so will cause loss of pressure making the extinguisher unusable. The extinguisher must be discarded and replaced by a new one if any use has occurred.

  • Page 27: Safety When Emergency Stopping

    Safety Also, you need to heed the warning label that has been affixed in your trailer adjacent to the smoke detector. The label reads as follows: WARNING TEST SMOKE ALARM OPERATION AFTER VEHICLE HAS BEEN IN STORAGE, BEFORE EACH TRIP, AND AT LEAST ONCE PER WEEK DURING USE.

  • Page 28: Changes, Modifications And Additions

    Safety • Observe the maintenance chart in this manual and all applicable information supplied by component part manufacturers related to your respective unit. CHANGES, MODIFICATIONS AND ADDITIONS Your RV has been built/designed with a specific floor plan and equipment. It is recommended that you do not make changes, modifications, alterations or additions to your unit.

  • Page 29: Condensation

    Safety CONDENSATION Condensation is a natural phenomenon. The amount of condensation will vary with the climate conditions, particularly the relative humidity. Condensation occurs because there is water vapor present in the air, which is added by breathing, bathing and cooking. The water vapor collects where there is available air space, and when the temperature reaches the ‘dew point’...
  • Page 30 Safety NOTES Jay Feather Conventional Travel Trailer...

  • Page 31: Before You Travel

    Read, understand and follow all information related to the weight of your trailer. We provide the following labels on your trailer (copies are printed here): • The “Federal Certification” MANUFACTURED BY: JAYCO, INC. label (Fig. 1) is affixed to the DATE FABRIQUÉ PAR: INC. VEHICLE MFG. BY: roadside front corner of your VÉHICULE FABRIQUÉ...

  • Page 32: Loading Cargo

    Jayco, Inc. DOES NOT provide warranty coverage for equipment installed by the independent, authorized dealer or owner. WARNING: Do not exceed your GVWR. Your recreation vehicle’s load capacity is designed by weight, not by volume.

  • Page 33: Rear Bumper

    Your trailer’s rear bumper is not designed to accommodate items attached to or carried on it. Damage from improper modifications to the trailer is not covered by the Jayco Limited Warranty. HOLDING TANK(S) AND TRAILER WEIGHT (IF APPLICABLE) WARNING: We recommend that you DO NOT travel with waste in your holding tanks.

  • Page 34: Weighing Instructions

    Before you travel... WEIGHING INSTRUCTIONS As your packing and loading routine becomes more familiar from experience, physically weighing your trailer may not be necessary before each trip. While you are developing a process, it is imperative that you verify compliance within the weight ratings. The following process will aid with weighing your trailer.

  • Page 35: Equipment

    Before you travel... EQUIPMENT The compatibility of your tow vehicle to the load you are towing is of utmost priority for safety during your travel. There are many resources available to become educated about tow vehicles and what you will need. Make sure that you understand what it will take to tow your trailer, and that your tow vehicle matches those needs.

  • Page 36: Hitches

    V Using an oversized or undersized hitch can cause damage to the frame of your trailer. V Jayco, Inc. cannot be responsible for the suspension system of the tow vehicle. V The final ball height after the trailer is completely hooked up is a factor to be considered when towing a trailer.

  • Page 37: Suggestions For Sway Situations

    If you have additional questions, consult with your independent, authorized dealer. Jayco, Inc. cannot be responsible for the suspension system of any tow vehicle. There are a variety of suspension systems available on tow vehicles today which will affect the ball height, stability and levelness of the RV when hooked to the vehicle.

  • Page 38: The Safety Chain

    Before you travel... Refer to the complete list of suggested items in this manual for pre-trip planning and departing from camp for additional items to complete before traveling. The Safety Chain There are different safety chain requirements determined by the various state laws. Your vehicle is equipped with chains to meet SAE standard requirements for maximum gross trailer weight.

  • Page 39: Towing

    DO NOT tow anything behind your RV. The RV frame and bumper are NOT designed for towing. WARNING: Towing items behind your Jayco trailer, or overloading the rear, will void the warranty and result in: V Damage to the trailer or add-on items.

  • Page 40: Tires

    Before you travel... TIRES The tires on your RV are specially constructed for the unique requirements of recreation vehicle travel. They are tested under Department of Transportation (D.O.T.) standards at the allowed highway speed limits. Proper care and maintenance of your tires is essential to ensure your safety, as well as the safety of others, as you travel.

  • Page 41: Wheel Lugs

    Before you travel... WHEEL LUGS WARNING: Wheel lug nuts must be applied and maintained at the proper torque levels to prevent loose wheels, broken studs, and possible separation of the wheel(s) from your trailer. The lug nuts on the wheels of your trailer must be maintained according to the torque values listed in the chart contained in this section.

  • Page 42: Brakes

    Before you travel... BRAKES Your trailer’s electric brakes are designed to work with your tow vehicle’s hydraulic brakes. To maintain proper braking performance, both trailer and tow vehicle brakes must be used together. Separate use of the systems will cause accelerated wear and damage. WHEN YOUR TRAILER IS NEW, IT IS IMPOSSIBLE TO ADJUST YOUR BRAKE SHOES PRECISELY.

  • Page 43: When The Trailer Is New - Jay Feather Exp Only

    Before you travel... Refer to the manufacturer’s supplied information for the breakaway switch. Consult with your independent, authorized dealer or the switch manufacturer if you have questions. Caution: NEVER use the breakaway switch and trailer brake system as a parking brake.

  • Page 44: Pre-Travel Checklist

    Before you travel... PRE-TRAVEL CHECKLIST In order to enjoy your travel, having all the right tools and supplies will help. A checklist may be beneficial to avoid forgetting something essential. This list is meant to be a starting point, while realizing that personal preference will also play a large roll in your packing. There are items here which may not apply for you and items which could trigger other ideas.
  • Page 45 Before you travel... Tools jack torque wrench tire pressure gauge jumper cables duct tape fuses and light bulbs (compatible with your RV) shovel (small folding) saw (bow or folding) work gloves AC voltage tester tool kit (screws, hammer, pliers, etc.) rope, cord, bungee cord(s) or wire Electrical cord Water hose...
  • Page 46 Before you travel... Kitchen Pots & pans Cooking utensils Trash bags and/or paper sacks Aluminum foil, plastic wrap, etc. Paper plates, towels, napkins, coffee filters, etc. Dish towels and rags Dish soap Food supplies Charcoal and lighter fluid Personal Supplies Clothing Toiletries Towels - beach and bath...

  • Page 47: Setting Up Camp

    SETTING UP CAMP... SELECTING YOUR CAMPSITE In some cases, searching for the right campground prior to traveling might be the first step in selecting your site. Some campgrounds will allow reservations made in advance. Depending on the area you are headed to and the time of year (i.e. around a holiday), reservations may limit your frustration upon arrival.

  • Page 48: Setting Up Your Trailer

    Setting Up Camp... SETTING UP YOUR TRAILER Un-Hitching 1. Position the trailer as desired. 2. Level the trailer (side to side). Refer the leveling paragraph below. 3. Block the wheels to prevent the trailer from rolling. 4. Unhook the trailer/tow vehicle electrical connection, safety chains and breakaway switch cable (if applicable).

  • Page 49: Bed Set Up (Jay Feather Exp Only)

    Setting Up Camp... BED SET UP (JAY FEATHER EXP ONLY) To Set Up Front and Rear Beds NOTE: For storing purposes, the Jay Feather EXP trailer front bed is equipped with canvas straps to hold the bed mats. Prior to setting up the bed(s), the canvas straps should be unhooked by using the clips at the top edge.

  • Page 50: Heated Bed Mat (Option)

    Setting Up Camp... HEATED BED MAT (OPTION) Your heated RV Bedding has been carefully designed and manufactured to provide years of relaxing, comfortable sleep. The bedding is manufactured to reach gentle, soothing heat warmth, NOT the pain relieving heat of a heating pad. At first touch it may seem only slightly warm because it’s conserving energy inside for you, but as your body weight presses onto the bedding, and a blanket covers you, it will feel considerably warmer and comfortable.

  • Page 51: Extending Room

    Setting Up Camp... • A 12-volt DC motor and drive shaft will operate the room using energy from an on-board auxiliary battery. • A specially designed auto reset fuse with load sensing capability stops the motor when the room reaches its fully extended or retracted position. WARNING: V Ensure that the trailer is level before operating the slideout room.

  • Page 52: J-Steel Sofa To Bed Conversion

    Setting Up Camp... 3. Release the button. 4. Install “travel bars” (Fig. 10) in proper locations as indicated on the wall. CAUTION: IMPORTANT! Never store slideout without the travel bars installed. This helps seal the slideout in the closed position. J-STEEL SOFA TO BED CONVERSION 1.

  • Page 53: Utility Hookups

    Caution: Power surges experienced while plugged in at a campground could potentially damage electronic component parts in your recreation vehicle. Damage from power surges are not covered by your Jayco warranty. Consult the component part manufacturer’s owner’s manual and/or your independent, authorized dealer for recommendations on power surge protection.

  • Page 54: 12 Volt Dc Demand Pump

    Setting Up Camp... 3. Fill the tank as desired. The size of the tank will vary based on your unit’s floor plan. It is also equipped with an overflow outlet. Make sure that you do not leave the tank unattended while filling it. Do not overfill the tank. Caution: Be careful not to overfill the tank.

  • Page 55: Waste Disposal

    Setting Up Camp... 3. Listen carefully as the gas begins to flow. If “hissing” is heard for more than one or two seconds, this may indicate a leak. Immediately close the valve and search for the leak. 4. Light the appliances as needed and directed in the appliance manufacturer’s instructions.
  • Page 56 Setting Up Camp... NOTES Jay Feather Conventional Travel Trailer...

  • Page 57: At Camp

    AT CAMP... APPLIANCES All appliances in your trailer are name brand quality built equipment, guided by current codes and standards. For gas operation, the appliances in your travel trailer will operate on LP gas only, not on natural gas. All safety precautions for LP gas, found in this manual and additional information supplied by appliance manufacturers with your unit, must be followed during operation of the appliances.

  • Page 58: Water Heater

    At Camp... Water Heater Your water heater is manufactured by Atwood Mobile Products. Complete safety, operating and maintenance instructions are supplied by Atwood with your trailer. Make sure you read, understand and follow all instructions before operating the water heater. If you have further questions, consult with your independent, authorized dealer and/or visit Atwood’s website at www.atwoodmobile.com.

  • Page 59: Outside Shower (Option)

    At Camp... OUTSIDE SHOWER (OPTION) A convenient exterior faucet assembly (Fig. 14) with hot and cold water may be installed on your trailer. This will allow for washing and rinsing on the outside of the trailer. OPERATION 1. Activate the pump. 2.

  • Page 60: Entertainment

    At Camp... complete instructions supplied by the water purification system manufacturer. ENTERTAINMENT Your trailer may be equipped with a variety of component parts for your entertainment. Each individual system is supplied with an operation and maintenance manual which is with your unit’s information packet. Make sure that you are familiar with each system and how it operates.

  • Page 61: Bbq Grill Prep

    At Camp... When the water pump switch is in the “ON” position, the pump runs until 45 pounds of pressure has been achieved. The red light will stay on. Turn the switch off when the pump is not in use. The heater switch is for the direct spark ignition (D.S.I.) water heater operation.
  • Page 62 At Camp... gas connection are installed on your trailer as standard equipment. The following list will supply basic operations for the grill. Make sure to read, understand an follow all instructions included with the BBQ grill. 1. Install the grill bracket on the support bracket installed on the side of your trailer.

  • Page 63: Utilities & Systems

    UTILITIES & SYSTEMS NOTE: Make sure you read, understand and follow all safety information found in this manual and manufacturer supplied information. PLUMBING SYSTEM For set up instructions of your plumbing system, refer to the “Setting Up Camp...” chapter. If you have further questions on setting up the system, consult with your independent, authorized dealer.

  • Page 64: Drainage

    Utilities/Systems Drainage The permanent fresh water tank can be drained by opening the drain valve located inside the trailer under the dinette. The supply lines are drained by opening the low point drain(s). They will be the lowest points of the water lines. Pull the “T” handle up to drain. TO DRAIN SYSTEM: 1.

  • Page 65: Holding Tanks

    Utilities/Systems vent cap is attached to the roof and must be clear of obstructions to perform as intended. On some models, the vent pipe may be part of the drainage system referred to as a “wet vent.” This means water flows downward as air flows upward in the same pipe. Holding Tanks The final part of your system are the holding tanks.

  • Page 66: Lp Gas Container

    Utilities/Systems A warning label has been placed in your RV to warn against asphyxiation (inability to breathe). The label has been located in the cooking area to remind you to provide an adequate amount of fresh air for combustion. Please read, understand and follow the information in this label.

  • Page 67: Servicing And Filling Lp Containers

    Utilities/Systems container (filled or empty) to move or roll around while transporting to and from the filling location. DANGER: All pilot lights, appliances and their igniters (see operating instructions) must be turned off before refueling of motor fuel tanks and/or LP gas containers. FAILURE TO COMPLY COULD RESULT IN DEATH OR SERIOUS INJURY.
  • Page 68 Utilities/Systems WARNING: DO NOT FILL CONTAINER(S) TO MORE THAN 80 PERCENT OF CAPACITY. V Overfilling the LP gas container can result in uncontrolled gas flow, which can cause fire or explosion. V A properly filled container will contain approximately 80 percent of its volume as liquid LP gas.

  • Page 69: Opd Overfill Protection

    Utilities/Systems OPD OVERFILL PROTECTION Your LP gas container(s) are equipped with Type 1 ACME LP Gas Connections. No tools are required to tighten or loosen the connections. They are designed so gas will not flow from the container unless the correct connection is made. Make sure you read, understand and follow the information supplied with your unit that is relevant to the LP gas container connections for your safety and convenience of use of the OPD overfill protection.

  • Page 70: Main Supply Hose - Low Pressure

    Utilities/Systems 3. Using the threaded center rod, position the regulator bracket. This centers the regulator between the two cylinders as they are secured to the base tray. 4. Attach the1/4” inverted flare x 11” Type-1 pigtail hose to the regulator inlet and the right hand swivel nut to the cylinder valve.

  • Page 71: Lp Gas Consumption

    Utilities/Systems compartment have been equipped with a protective cover. Make sure that the regulator vent faces downward and that the cover is kept in place to minimize vent blockage which could result in excessive gas pressure causing fire, explosion, death or serious injury. LP GAS CONSUMPTION Most gas appliances are operated intermittently.

  • Page 72: Electrical System

    Caution: Power surges experienced while plugged in at a campground could potentially damage electronic component parts in your recreation vehicle. Damage from power surges are not covered by your Jayco warranty. Consult the component part manufacturer’s owner’s manual and/or your independent, authorized dealer for recommendations on power surge protection.

  • Page 73: Ground Fault Current Interrupter (Gfci)

    Utilities/Systems GROUND FAULT CURRENT INTERRUPTER (GFCI) WARNING: Make sure you read, understand and follow all instructions supplied by the GFCI receptacle manufacturer with your RV. Failure to follow these instructions could lead to death or serious injury from shock or electrocution. Each trailer has a GFCI receptacle installed.

  • Page 74: Consumption Of 120-Volt Ac Power

    Utilities/Systems The following table provides generic circuit breaker alignment information. Your trailer may not be exactly the same as shown depending on model, floor plan, and options. Main 30-amp main, incoming power to unit 20-amp air conditioning 15-amp microwave oven 15-amp GFCI, kitchen/bath 15-amp...

  • Page 75: Auxiliary Battery (Independent, Authorized Dealer Installed Option)

    Utilities/Systems information on the auxiliary battery.) The converter will supply power through the fuse panel located near by, possibly in the same compartment. Refer to the manufacturer’s information supplied with your trailer and/or consult with your independent, authorized dealer to answer questions you may have. Information can also be found at the manufacturer’s website at www.iotaengineering.com.

  • Page 76: Lights

    Utilities/Systems LIGHTS Exterior All exterior running lights, such as tail lights, clearance lights, turn signals, brake lights, etc., are energized by the tow vehicle power. When attaching wires to your tow vehicle, carefully and tightly tape all connections for moisture protection. Refer to diagram (Fig.

  • Page 77: Dc Fuse Panel Layout

    Utilities/Systems DC FUSE PANEL LAYOUT NOTE: Below is a typical wiring layout. Your individual trailer may be different. Open Bathroom Lights & Vent Pump/Monitor Panel/Range Hood/Sink Light Refrigerator/Furnace Bedroom TV/Radio/LP Detector Ceiling Lights Bunk Lights Slideout Lights Open Open Slideout Motor 20 auto Brakes The electric brakes operate on 12 volt DC power from tow vehicle through blue and white...
  • Page 78 Utilities/Systems NOTES Jay Feather Conventional Travel Trailer...

  • Page 79: Preparing To Travel Home

    PREPARING TO TRAVEL HOME... When the time arrives to return home, it is again critical that you complete the necessary procedures to ensure a safe trip. As you develop a routine, it is possible that a checklist will be helpful. This is a general list, which you may want to customize as you determine your own needs.
  • Page 80 Preparing to Travel Home... Check belts Check wheel lugs Check tire pressure (include inner wheel and spare, if applicable) Check tire wear (uneven wear pattern) Check lights headlights brake lights clearance lights turn signals Safety pin or locking lever must be seated Trailer safety chains connected Breakaway switch and lanyard connected Coupler locking pin connected...

  • Page 81: Closing The Beds (Jay Feather Exp Only)

    Preparing to Travel Home... CLOSING THE BEDS (JAY FEATHER EXP ONLY) Caution: Let the tent dry thoroughly before storing to prevent mildew and odors. If it is necessary to put the tent away wet or damp, at the earliest possible time, open the tent and allow it to dry thoroughly.

  • Page 82: Draining The Holding Tank(S)

    Preparing to Travel Home... NOTE: Make sure you review the information in the “Before You Travel...” chapter for specific information related to the weight of holding tank contents. DRAINING THE HOLDING TANK(S) On the outside of the trailer are labels (Fig. 29 & Fig. 30) that indicate the location of the gray and black holding tank drain.
  • Page 83 Preparing to Travel Home... and will keep the drain lines and tanks clean and free flowing. Chemicals are available at an RV supply store. Most states and parks have strict laws and regulations to prohibit dumping of wastes of any kind into anything other than proper disposal facilities or sewer systems.
  • Page 84 Preparing to Travel Home... NOTES Jay Feather Conventional Travel Trailer...

  • Page 85: Maintaining Your Investment

    NOTE: Some areas in this chapter may not be applicable to your trailer. NOTE: Failure to properly maintain your trailer can cause numerous problems and it voids Jayco’s warranty as well as the warranties of many of the component par t manufacturers.

  • Page 86: E-Z Lube Axle

    Maintaining Your Investment... E-Z LUBE AXLE The E-Z Lube feature on your axles provides the ability for the bearings to be periodically lubricated without removing the hubs from the axle. This feature consists of axle spindles that have been specially drilled and fitted with grease zerks in their ends. When grease is pumped into the zerk, it is channeled to the inner bearing and then flows back to the outer bearing and eventually back out the grease cap hole.

  • Page 87: Tires

    Maintaining Your Investment... TIRES Your trailer tires are specifically manufactured for recreation vehicle use. Make sure you understand the specific needs of RV tires. Consult with your tire supplier, independent, authorized dealer or the manufacturer for complete information and maintenance instructions.

  • Page 88: Changing Tire

    Maintaining Your Investment... Changing Tire 1. Keep the trailer attached to the tow vehicle. Block the tire on the opposite side of the unit from the tire you are changing. 2. Loosen the wheel lug on the tire you are changing before jacking up the trailer. DO NOT remove the lug nuts, only loosen them for ease of removal when the tire is off the ground.

  • Page 89: Sealing

    Consult with your independent, authorized dealer for the best type of sealant to use. FAILURE TO CAULK MAY RESULT IN SERIOUS WATER DAMAGE TO THE ROOF AND OTHER PARTS OF YOUR VEHICLE AND IT VOIDS THE WARRANTY. Jayco Fig. 34 Fig. 33 Roof CAUTION: All roofs require routine maintenance.

  • Page 90: Doors, Extrusions, Windows & Vents

    Maintaining Your Investment... The roof material on your trailer is Royal Tuff Ply TPO roofing material by Alpha Systems, Inc. Refer to information supplied with your trailer for the proper care and maintenance of the roof material. If you have questions, consult with your independent, authorized dealer and/or visit the manufacturer’s website at www.alphasystemsinc.com.

  • Page 91: Clearance Lights

    Maintaining Your Investment... • Hinges - The hinges on your door should be lubricated annually or as needed with any high quality spray lubricant. • Fiberglass Skin - To maintain good appearance and long service life, Philips door skin panels should be washed and cleaned periodically. Cleaning removes the accumulation of dust and dirt that can combine with sunlight and wind to attack exposed surfaces both chemically and abrasively.

  • Page 92: Bathroom Tub, Lavatory Sink

    Maintaining Your Investment... BATHROOM TUB, LAVATORY SINK The bath tub in your trailer is made of ABS plastic material. DO NOT use abrasive type cleaners, as they may scratch surfaces. Use a mild detergent soap and warm water to clean the tub surface.

  • Page 93: Definitions

    Maintaining Your Investment... the interior of the trailer tent, the material is a 100% polyester backing. The following definitions will assist you in providing the proper care for your trailer tent components. Definitions INTERIOR 1. Bed Mat - Upholstery covered foam mattress which provides softness to the bed extensions.

  • Page 94: Softshades

    Maintaining Your Investment... SoftShades™ For best results, have SoftShades™ dry cleaned by a professional. However, they may be washed in cool water on the delicate cycle. Line dry only. CAUTION: Care must be taken to follow above instructions or results may not be satisfactory.

  • Page 95: Interior

    Maintaining Your Investment... Interior The material used on the interior of the tents is a 100% polyester backing. This material contains inhibitors that help prevent the growth of mildew on the fabric. It is not mildew-proof. Mildew or fungus may attach to the material, however, the material will aid in preventing the growth.

  • Page 96: Tv Antenna

    Maintaining Your Investment... TV ANTENNA Maintenance information for your TV antenna is supplied with your trailer from the antenna manufacturer. Refer to this information for complete instructions, and/or consult with your independent, authorized dealer. Information can also be found at the manufacturer’s website at www.wingard.com.

  • Page 97: Lp Gas Bottles

    Maintaining Your Investment... LP Gas Bottles 1. The LP gas bottle or tank must be painted with a light color, such as white or silver plate, to reflect heat and light. 2. Rust, scratches, and/or dents can affect the safety of the bottle or tank. The D.O.T. requires that a visual inspection be made prior to each filling.

  • Page 98: Maintenance Checklist

    Maintaining Your Investment... MAINTENANCE CHECKLIST This list is a quick reference sheet for suggested areas of regular maintenance. Make sure that you review all literature supplied with your trailer by the various component manufacturers. To perform maintenance items as suggested here, refer to specific information found in literature supplied with your unit from component part manufacturers and in this manual.
  • Page 99 Maintaining Your Investment... Check fire extinguisher pressure. Refer to the fire extinguisher label for specific instructions. Test the ground fault circuit interrupter (GFCI) Every Three Months or 3,000 Miles Compare water heater pilot flame with ideal flame. Refer to the water heater owner’s manual for ideal flame.
  • Page 100 Maintaining Your Investment... Every Year or 12,000 Miles Lubricate moving parts on the awning hardware. (Awning option only.) Manually operate the pressure-temperature control lever on the water heater. Clean city water entry strainer. Check demand tank vent for obstructions. Check water pump connections and mountings for tightness. Rotate Fluorescent tubes in the light fixtures.

  • Page 101: Storing Your Unit

    Preparing your recreation vehicle for winter is very important for most states and Canada. Failure to prepare the coach will cause the supply lines and the water heater to freeze causing breakage. Repairs due to freezing are not be covered under the terms of your Jayco Limited Warranty.

  • Page 102: Water Heater Bypass With Antifreeze

    Storing Your Unit... Water Heater Bypass with Antifreeze This method utilizes a water heater bypass kit, available in most units, to avoid filling the entire water heater with antifreeze. 1. Make sure all holding tanks are empty. 2. Turn off the pump. 3.

  • Page 103: Storage Checklist

    Storing Your Unit... STORAGE CHECKLIST Prior to Storage NOTE: If storing for the winter, be sure all winterizing steps are followed. Refer to winterizing section. Drain and flush all holding tanks; fresh water, gray water, black water and hot water tanks.
  • Page 104 Storing Your Unit... NOTES Jay Feather Conventional Travel Trailer...

  • Page 105: Index

    ....12 Brake Jayco Customer Relations ..13 controller ....32 Brakes .
  • Page 106 Index Demand Pump ....44 Extension Cords ... . . 62 Department Of Transportation Exterior LP gas bottle maintenance ..87 table set up .
  • Page 107 Index to empty ....45 start up....44 weight of full tank ... 23 system components .
  • Page 108 Index defects ....13 Television electric ....15 antenna .
  • Page 109 Index heater ....48 hook up ....43 Unhitching ....38 pressure regulator .
  • Page 110 Index NOTES Jay Feather Conventional Travel Trailer...

Table of Contents

Save PDF
