Have you got everything?
D
Unpack the box (be gentle) and make sure all of these items are there:

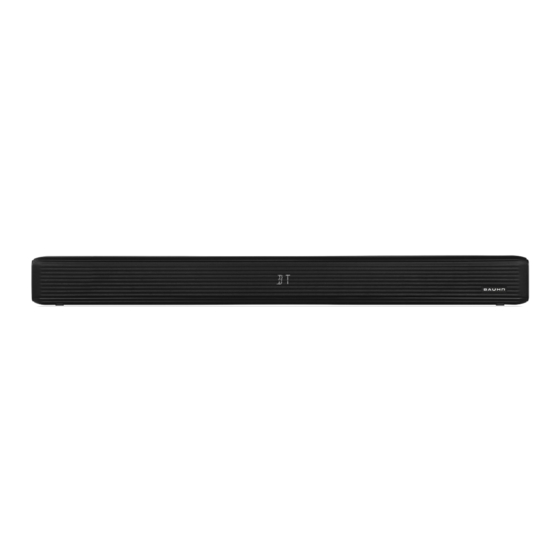

A. 2.1 Channel Soundbar
B. Remote Control
C. AAA Activ Energy Batteries
D. 3.5mm Audio Cable
Which plug goes where?
Want to hook up your new soundbar to your TV? Use the basic guide below to see
what the plug and port should look like for different connections. You can find more
details on pages 12-13 of the User Manual.
(Not all cables come with the soundbar, however we have included a 3.5mm audio and optical cable for you.)
TO TV
HDMI CABLE
(ARC)
TOSLINK OPTICAL AUDIO CABLE
OPTICAL
Digital audio
COAXIAL CABLE
out (optical)
COAX
3.5mm AUDIO CABLE
3.5 mm AUX
AUX IN
Nearly done! Just a bit more on the other side of this page...

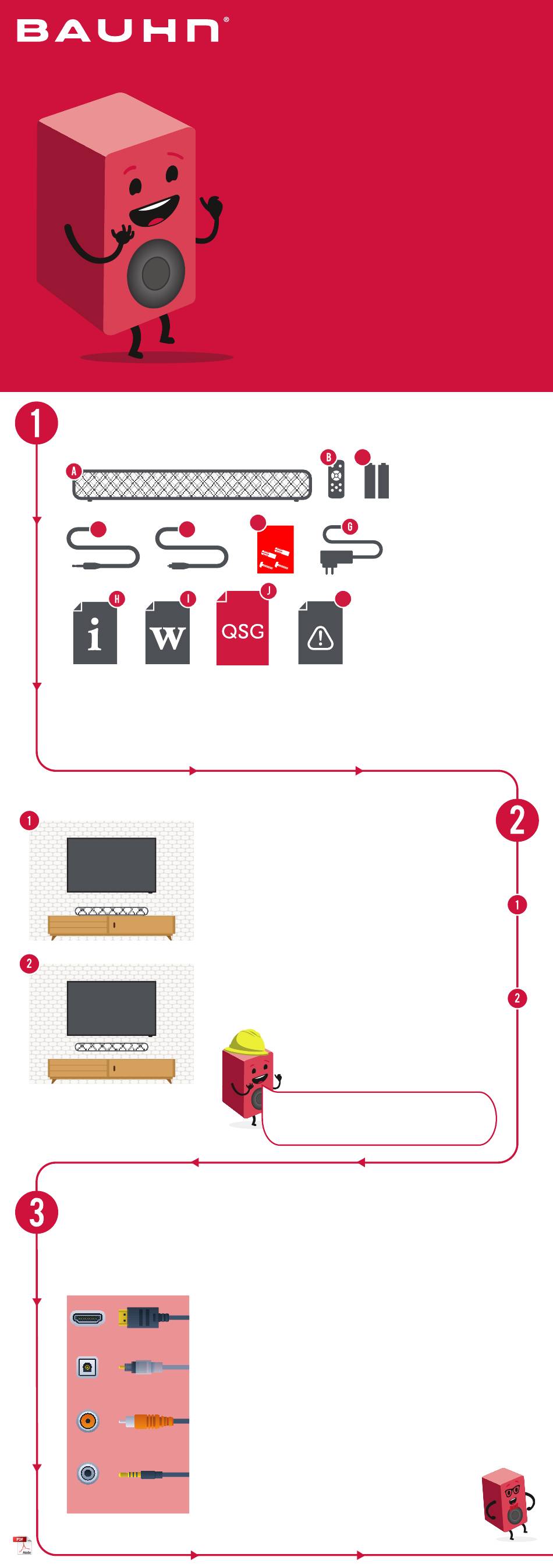

Quick Start Guide
Hey!
Let's get your new soundbar
ready to use, fast!
F
E
E. Optical Cable
F. Wall Mount Installation Kit
G. Power Adaptor
H. User Manual
Display and use your soundbar in a way that suits
your space, with these different installation options:
For detailed instructions on wall mounting,
We recommend wall mounting to be done by a
qualified professional. Incorrect installation could
result in personal injury or property damage.
Use HDMI to decrease clutter and for high quality audio.
Make sure you enable ARC on your TV in order to use this.
Use an optical cable for an easy connection with high quality
audio capability.
Use a coaxial cable for an easy connection with high quality
audio capability.
Use an AUX cable for an easy connection with standard
quality audio capability for TV and other audio devices.
C
K
I. Warranty Certificate
J. Quick Start Guide
K. General Safety Warnings
How to install
Place on a secure, flat surface.
please consult pages 8-9 of the user
manual for detailed instructions on this
Model: ASBBS-1020
Horizontal bar
Wall mounted
process.
Advertisement
Table of Contents
Related Manuals for Bauhn ASBBS-1020
Summary of Contents for Bauhn ASBBS-1020
- Page 1 Quick Start Guide Model: ASBBS-1020 Hey! Let’s get your new soundbar ready to use, fast! Have you got everything? Unpack the box (be gentle) and make sure all of these items are there: I. Warranty Certificate A. 2.1 Channel Soundbar E.
- Page 2 To pair your Bluetooth device with the soundbar, make sure the soundbar is in Bluetooth mode. When ‘BT’ is flashing on the display, it means the soundbar is in pairing mode. On your device, select ‘BAUHN ASBBS-1020’ to pair with the soundbar and start streaming your music to it.
