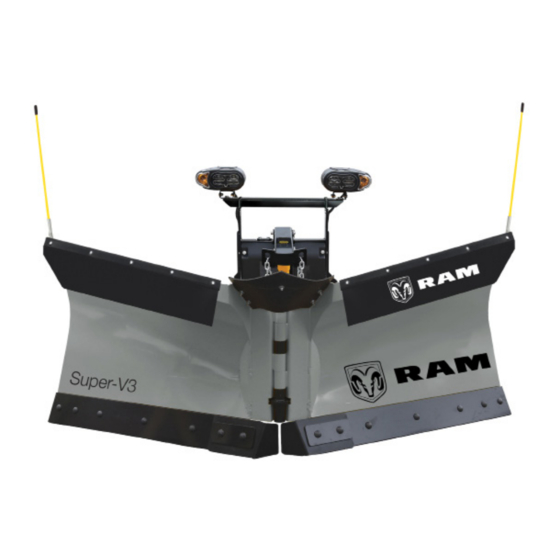

Meyer Super-V3 Assembly Instructions Manual

Meyer Super-V3 Assembly Instructions Manual

Standard operating system v73 12v hydraulic unit

Advertisement

Form No. 1-1219R
July 2021
Assembly Instructions
Standard Operating System
V73 12V Hydraulic Unit
Includes
Light Duty: 73200
Steel: 73600, 73700, 73500
Stainless: 73675, 73775, 73575
18513 Euclid Ave. • Cleveland, Ohio 44112-1084
www.meyerproducts.com
Phone 216-486-1313
© 2020 Printed in the U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Super-V3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Meyer Super-V3

  • Page 1 Form No. 1-1219R July 2021 Assembly Instructions Standard Operating System V73 12V Hydraulic Unit Includes Light Duty: 73200 Steel: 73600, 73700, 73500 Stainless: 73675, 73775, 73575 18513 Euclid Ave. • Cleveland, Ohio 44112-1084 www.meyerproducts.com Phone 216-486-1313 © 2020 Printed in the U.S.A.
  • Page 2: Table Of Contents

    NOTICE: Meyer Products LLC reserves thje right, under its continuing product imporvement program, to change construction, design, details, specifications, and prices without notice or without incurring any obligation. Meyer Products LLC assumes no responsibility for installations not made in accordance with these instructions.
  • Page 3 Black Iron Parts List...
  • Page 4 Black Iron Parts List Super-V3 Light Duty: 73200 Item Part # QTY Description Item Part # Description 05818 Lift Ram 1.75 x 8” 14557 A-frame SV3 7.5LD 07910 RH Ram Assy 1-1/4 x 12 DA SV3LD 20800 • Quick Link 5/16”...
  • Page 5 Black Iron Parts List...
  • Page 6: Black Iron Parts Lists

    Black Iron Parts List Super-V3: 73600, 73700, 73500 Super-V3 Stainless: 73675, 73775, 73575 Item Part # Description Item Part # Description 05818 Lift Ram 1.75 x 8” 14472 A-frame SV3 (8.5/9.5) 07922 RH Ram Assembly 1-1/2 x 12 DA 14459 A-frame SV3 (10.5)
  • Page 7: Moldboard Parts List

    Moldboard Parts List Item SV3LD SV3 8’ 6” SV3 9’ 6” SV3 10’ 6” Description 73200 73600 73700 73500 Moldboard Assembly 09523R 09536R 09521R 09522R R.H. & L.H. Wing 09530R 09518R 09520R 09508R • R.H. Wing 09531R 09517R 09519R 09509R •...
  • Page 8 Moldboard Parts List Item Stainless 8’ 6” Stainless 9’ 6” Stainless 10’ 6” Description 73675 73775 73575 Moldboard Assembly 09533R 09534R 09535R R.H. & L.H. Wing pkg 09524R 09526R 09528R • SS R.H. Wing 09525R 09527R 09529R • SS L.H. Wing 14494 14496 14498...
  • Page 9 Build Assembly The SV3 plow comes fully assembled. The instructions below are provided Attach lift arm to lift frame using 5/8-11 x 5-1/2” bolt and 5/8-11 for additional troubleshooting or component replacement. locknut. Position wing assemblies face down on cardboard as not to damage 15.
  • Page 10: Plow Assembly & Adjustments

    (i.e. driver side blinking instead of passenger side), reverse the harness connections. Note: All electrical connections should have both ends coated with a dielec- tric grease (Meyer Part # 15632) prior to final installation. This will ensure a good connection and help in preventing corrosion. Trip Spring Adjustment...
  • Page 11 Attach the Lift Chain to the Lift Arm through the two hooks on the lift Top off the unit to the fill line on the reservoir with Meyer M-1 Hydraulic arm. Adjust the lift chain at the lift arm so that there are 2-3 links of slack.
  • Page 12 The following step is for 2015 & later GM vehicles with an alternator relay... 5) The WHITE wire will connect to 2015 & Later GM vehicles with alternator relay. See Meyer Products Service Bulletin SB252. The following two steps are optional and may be enforced by local law which requires your vehicle lights to be off while your plow The following two steps are optional and may be enforced by local law which requires your vehicle lights to be off while your plow lights are on and vice versa...
  • Page 13 E73 Hydraulics (12)
  • Page 14: Mounting Plow

    7. Remove the weather covers on the two plugs and plug the plow harnesses into the truck harnesses. 5. Ensure that the support kickstand is in the down position. Failure to do so will prevent the plow from lifting. Meyer Products assumes no responsibility for installations not made in accordance with these instructions. (13)
  • Page 15: Dismounting Plow

    7. Disconnect one piece electrical plug and install weather cover on male end. 4. Remove crankstand from lift frame. 8. Back vehicle away from plow assembly. Meyer Products assumes no responsibility for installations not made in accordance with these instructions. (14)
  • Page 16: Pre-Delivery Inspection

    PRE-DELIVERY INSPECTION Vehicle Make: Vehicle Model: Vehicle Year: Vehicle VIN#: Vehicle FGAWR: Installing Company: Hydraulic Serial Number: Moldboard Serial Number: All bolts torqued to specification Plow Operation Up Clevis height Suspension interference Plow Operation Left Clevis height in inches Plow Operation Right Trip springs adjusted Plow Operation Down Lift Chain Adjusted...
