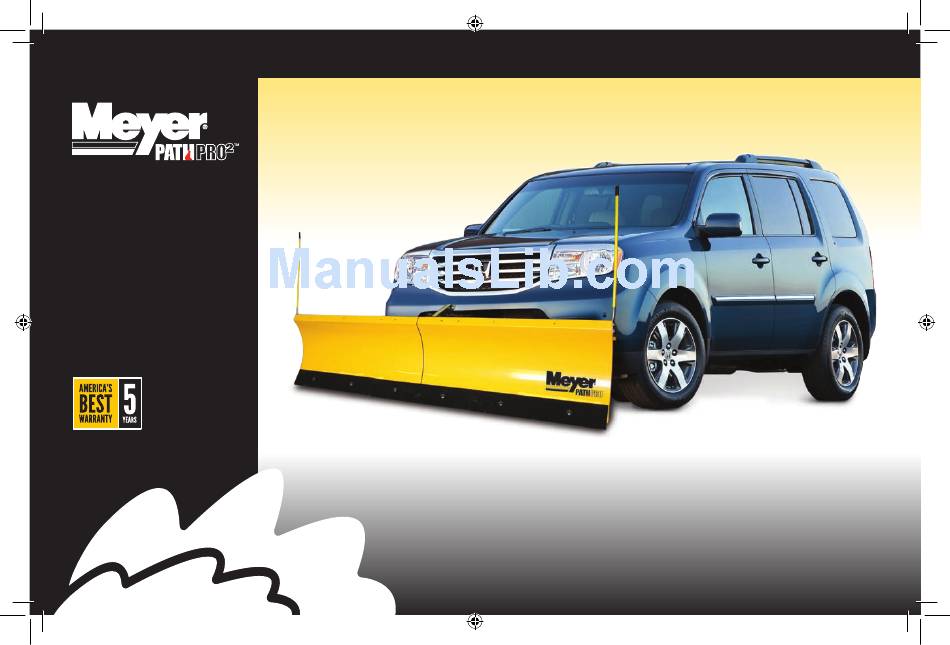

O W N E R 'S MA N UA L
A N D
U S E R 'S G U I D E
Read the Path Pro
Owner' s Manual before operating or servicing a snow plow.
2
FOLLOW THESE INSTRUCTIONS EXPLICITLY.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Path Pro2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meyer Path Pro2

Summary of Contents for Meyer Path Pro2

  • Page 1 O W N E R ’S MA N UA L A N D U S E R ’S G U I D E Read the Path Pro Owner’ s Manual before operating or servicing a snow plow. FOLLOW THESE INSTRUCTIONS EXPLICITLY.

  • Page 2: Table Of Contents

    Thank You Thank you for buying the Path Pro By Meyer. As a new owner of hard-working, mechanical equipment, we strongly urge you to spend quality time with this owner’s manual. It’s easy to use and full of time-saving tips that will enhance your ownership experience.

  • Page 3: Safety

    DANGER Indicates an imminently The Path Pro by Meyer should be used by drivers with a valid operator’ s license. Keep all body parts inside the vehicle. Failure to comply could result in death or serious injury. hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 4 SAFETY DEFINITIONS Remove Plow Assembly before placing vehicle on hoist/lift. Failure to comply could result in death or serious injury. Do not exceed 10 mph transporting plow. Do not exceed 5 mph plowing snow. Know your road conditions at all times. Keep feet clear of moldboard at all times. Failure to comply could result in death or serious injury.

  • Page 5: Registration Data Sheet

    Introduction Registration Data Sheet The Path Pro has published this manual to help you get maximum Register your snow plow at www.meyerproducts.com performance from your snow plow and familiarize you with the features designed for efficiency and safety; be sure you recognize and understand them.
  • Page 6 Tools Needed for Assembly PLOW ASSEMBLY You will need the tools listed to assemble your Path Pro It should take less than one hour and will require two people for assembly. 3/4 box 3/4 ratchet 7/16 box 7/16 ratchet 9/16 box 9/16 ratchet 15/16 box 15/16 ratchet...
  • Page 7 Hardware Kits PLOW ASSEMBLY Manual Plow Hardware Kit – Models 23120/23115/23110/23175 Manual Hardware Electric Hardware A - Pin 1" x 3" - Pin 1" x 3" B - 1/2-13 x 1-3/4" - 1/2-13 x 1-3/4" C - Hinge Pin - Hinge Pin D - Eyebolt 3/8-16 x 4"...
  • Page 8 Manual Lift Plow Parts – Models 23120/23115/23110/23175 PLOW ASSEMBLY A – Left Moldboard L – Lift Frame B – Right Moldboard M – Plow Markers C, D, E – Cutting Edges N – A-Frame F – Trip Springs O – Manual Handle G –...
  • Page 9 Manual Lift Plow – Models 23120/23115/23110/23175...
  • Page 10 Electric Lift Plow Parts – Models 23220/23215/23210/23275 PLOW ASSEMBLY A – Left Moldboard L – Lift Frame B – Right Moldboard M – Plow Markers C, D, E – Cutting Edges N – A-Frame F – Trip Springs R – Pivot Bar G –...
  • Page 11 Electric Lift Plow – Models 23220/23215/23210/23275...
  • Page 12 Moldboard and Pivot Bar Assembly PLOW ASSEMBLY Parts Needed: A, B, C, D, E, H, R. S (Fig. 1) (Fig. 2) Sandwich spacer plate (H) between Align pivot bar (R) to left and right moldboard assembly using two ½ x left and right moldboard assembly 1-1-1/4"...
  • Page 13 A-Frame Assembly PLOW ASSEMBLY Parts needed: I, G, N, R, S Assemble both sets of Spring arms and Drop the two compression pivot arms (I) using 1/4-20 x 3/4" springs (G) into the A-frame and 1/4-20 Locknut. Snug fasteners (N) so they end up on top using a 7/16"...
  • Page 14 A-Frame Assembly (cont.) PLOW ASSEMBLY Drop the two Pivot/Spring arm Snap the two spring arm covers (J) over A-frame (N) as shown. assemblies created in step (4) into the A-frame on top of the compression springs as shown. NOTE: Long spring arm should face out.
  • Page 15 A-Frame to Pivot Bar Assembly PLOW ASSEMBLY Parts Needed: R, S Insert one hinge pin thru A-frame (N) and Pivot Bar Attach the long Spring Arms (I) (R) to lock the plow straight. This can be removed to Pivot Bar (R) using two for auto angling or installed for fixing the plow 3/8-16 x 1"...
  • Page 16 Pivot Bar/Trip Spring/Moldboard Assembly/Plow Markers PLOW ASSEMBLY Parts Needed: F, K, M, S Align manual latch (K) under Attach four trip springs to pivot bar as shown. top plate of A-frame as shown. Attach latch by inserting two 3/8-16 x 1" and 3/8" Locknuts. Tighten fasteners using a 9/16"...
  • Page 17 Pivot Bar/Trip Spring/Moldboard Assembly/Plow Markers (cont.) PLOW ASSEMBLY Thread one 3/8-16 finish nut to Attach plow markers (M) to each eyebolt all the way to the moldboard using four 5/16-18 x bottom. Attach eyebolts to each 1", 5/16' flatwashers and 5/16-18 trip spring and slide eyebolt into locknut.
  • Page 18 Manual Lift Assembly (Models 23120/23115/23110/23175) PLOW ASSEMBLY Parts needed: L, O, P, Q, S, T Align lift frame (L) to A-Frame (N) Snug fasteners using a 7/16" box wrench and a 7/16" ratchet wrench. by inserting two 1 x 3" pins. Lock NOTE: The manual latch rung lock and manual latch weldment pins using ¼...
  • Page 19 Manual Lift Assembly (Models 23120/23115/23110/23175) (cont.) PLOW ASSEMBLY Attach manual leaf spring (T) Insert 3/8 x 3" clevis pin into lift frame at rear to manual latch weldment (Q) holes and insert one 1/8" cotter pin. Bend using two 1/4-20 x 3/4", 1/4" one end of cotter pin to lock into place.
  • Page 20 Manual Lift Assembly (Models 23100/23150) Manual Lift Assembly (Models 23120/23115/23110/23175) (cont.) PLOW ASSEMBLY Bend back manual leaf spring (T) Attach manual handle (O) to moldboard using two and insert manual latch weld- 1/4-20 x 3/4", 1/4" flatwashers and 1/4-20 locknut. ment (Q) to lift frame (L).
  • Page 21 Electric Lift Assembly (Models 23220/23215/23210/23275) PLOW ASSEMBLY If you have an electric lift plow (Models 23220/23215/23210/23275) continue here from step 11. Parts Needed:L, Q, S, T, U Align lift frame (L) and Attach lift arm (Q) to lift frame (L) using ½ x 3' insert two 1 x 3"...
  • Page 22 Electric Lift Assembly (Models 23220/23215/23210/23275) (cont.) PLOW ASSEMBLY Locknut. Tighten using 3/4" box wrench and 3/4" ratchet. Attach lift arm (Q) to linear actuator Note: Chain adjustment can be obtained by sliding (U) using ½ x 3" pin, ½" flatwasher more chain links into the Lift Arm.

  • Page 23: Wiring Installation

    WIRING INSTALLATION – Electric Lift (Fig. 14) Models 23220/23215/23210/23275 only STEP 1 Carefully route the vehicle harness to the vehicle battery (fig. 12). You may need to route thru the grille or behind/under the bumper. Be sure to (Fig. 12) stay away from hot, sharp or moving parts of the vehicle and use the zip (Fig.
  • Page 24 WIRING INSTALLATION – Electric Lift (cont.) STEP 3: INSTALL PLOW ONTO VEHICLE (Fig. 22) (Fig. 21) (Fig. 23) Lift Frame Remove Pin Lift here and push toward vehicle. STEP 3a Align vehicle so that the male tube on the lift frame is lined up directly in front of the receiver hitch (fig.
  • Page 25 STEP 4 (ELECTRIC LIFT) Remove both weather cover from the end of the vehicle harness, add dielectric grease to the connecting prongs and connect. Reconnect weather cover to the vehicle harness once plow is removed. STEP 5 (ELECTRIC LIFT) If the plow utilizes the electric lift press “U” to Raise Plow and press “D”...
  • Page 26 MANUAL LIFT Models 23120/23115/23110/23175 only Raise & Lower Plow (manual lift) Safety pin To raise the plow, lift plow by handle to the manual latch rung lock and then lower. This will lock the plow in the raised position. Then add safety pin. Safety pin location Safety pin location for operating plow...

  • Page 27: Attach Plow

    ATTACH PLOW (Fig. 30) TO VEHICLE (Fig. 32) (Fig. 31) Remove Hitch Pin. Align the vehicle ➋ receiver hitch so that the male tube on the lift frame is lined up directly in front of the receiver hitch (fig. 30). Lift slightly on the Lift Frame decal (fig.

  • Page 28: Remove Plow

    REMOVE PLOW FROM VEHICLE (Fig. 38) (Fig. 37) Lower plow all the way down. Disconnect electrical plug (Models 23220/23215/23210/23275 only) (fig. 41) and install weather covers to both ➋ (Fig. 40) end of the harness. Remove Hitch pin (fig. 40). Gently lift at lift frame decal ➊...

  • Page 29: How To Plow

    HOW TO PLOW Chain Adjustment (electric lift) (Models 23220/23215/23210/23275 only) The chain is adjustable at the lift arm. The chain must be adjusted with the controller in the down (Float) position and the actuator must be all the way down as far as it will go. The chain should be adjusted to have 2-3 links of slack (see step 29, page 22).

  • Page 30: Pre-Season & Post-Season Maintenance

    PRE-SEASON & POST-SEASON MAINTENANCE The Path Pro recommends this maintenance information for regular service. Sustained heavy operation may call for more frequent service. Snow plowing subjects a vehicle to exceptionally rugged use. As a result, it is very important to inspect and maintain the snow plow and vehicle up to maximum operating conditions. Inspection should be made of both the vehicle and snow plow prior to the plowing season and after each use.
  • Page 31 Dielectric Grease Grease Grease Available at www.meyerproducts.com Protects your electrical system Yellow and black paint is formulated with Meyer winter formula to withstand harsh temperatures and dielectric grease. the winter environment. SAFETY PRECAUTIONS - See pages 2-3 for definitions 24, 30...

  • Page 32: Manual Lift Parts Lists

    PARTS LIST ITEM PART NO. QTY. DESCRIPTION 23175 (6.8) Path Pro 2 Manual Lift 14001 • Lift Frame Assembly 13998 • A-Frame 13988 • Pivot Bar PATH PRO 09460 • Moldboard Assembly Right 09465 • Moldboard Assembly Left Manual Lift 09449 • Cutting Edge Middle 09450 • Cutting Edge Outer 08388 • Manual Lift Carton 13286 •• Trip Spring 14016 •• Manual Handle Assembly 14009 •• Manual Latch Handle 14011 •• Manual leaf Spring 14003...
  • Page 33 PARTS LIST PATH PRO Manual Lift...

  • Page 34: Electric Lift Parts List

    PARTS LIST ITEM PART NO. QTY. DESCRIPTION 23275 (6.8) Path Pro 2 PowerLift 13994 • Lift Frame Assembly 13997 • Lift Arm 13998 • A-Frame PATH PRO 13988 • Pivot Bar 09460 • Moldboard Assembly Right 09465 • Moldboard Assembly Left Electric Lift 09449 • Cutting Edge Middle 09450 • Cutting Edge Outer 08386 • Power Lift Carton 13286 •• Trip Spring 22887 •• Linear Actuator 22888 •• Linear Actuator Harness 22893 •• Remote Control Kit...
  • Page 35 PARTS LIST PATH PRO Electric Lift...

  • Page 36: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Troubleshooting Guide for The Path Pro Electric Lift (Linear Actuator) CONDITION POSSIBLE CAUSE CORRECTION Plow operates 1. Bad wire connections. 1. Clean/Tighten wire connections. slowly 2. Discharged battery. 2. Recharge battery. 3. Bad Linear Actuator. 3. Replace Linear Actuator. 4.

  • Page 37: Path Pro 2 Accessories

    Path Pro Poly Snow Deflector Path Pro Snow Shoes Replacement Plow Markers Made of pliable poly, the Path Pro deflector keeps Allows you to set the scrapping height of the cutting Allow the operator to see the edge of their plow ACC E S S O R I E S snow flume down and away from the windshield edge.

  • Page 38: Warranty

    Limited Warranty What is Covered: Meyer Products, LLC, warrants to the original purchaser of Meyer® brand products that they will be free from defects in materials or workmanship, with the exceptions stated below. No person is authorized to change this warranty or to create any additional warranty on Meyer products.
  • Page 39 Meyer Products’ liability will be no more than the amount you paid for the product that is the subject of a claim; this is the maximum amount for which we are responsible.
  • Page 40 What Meyer Products Will Do: Meyer Products will repair any product that proves to be defective in materials or workmanship. In the event repair is not possible or practical (as determined by Meyer Products in its sole discretion), Meyer Products will either replace the product with a new product of similar model and price, or refund the full purchase price, as determined by Meyer Products.
  • Page 42 Notes...
  • Page 43 Notes...
  • Page 44 PATH PRO 18513 Euclid Avenue Cleveland, Ohio 44112 877- 412-PLOW (7569) www.meyerproducts.com Form #4-552 Part No. 90847 08/14...
