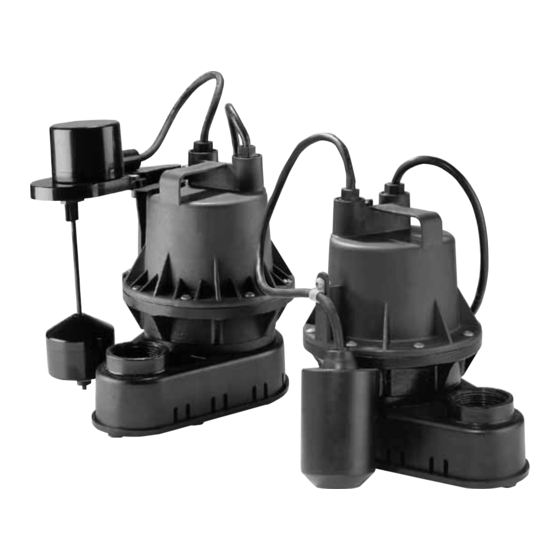

Submersible sump pump

Advertisement

Quick Links

SP25V1
SP25A1

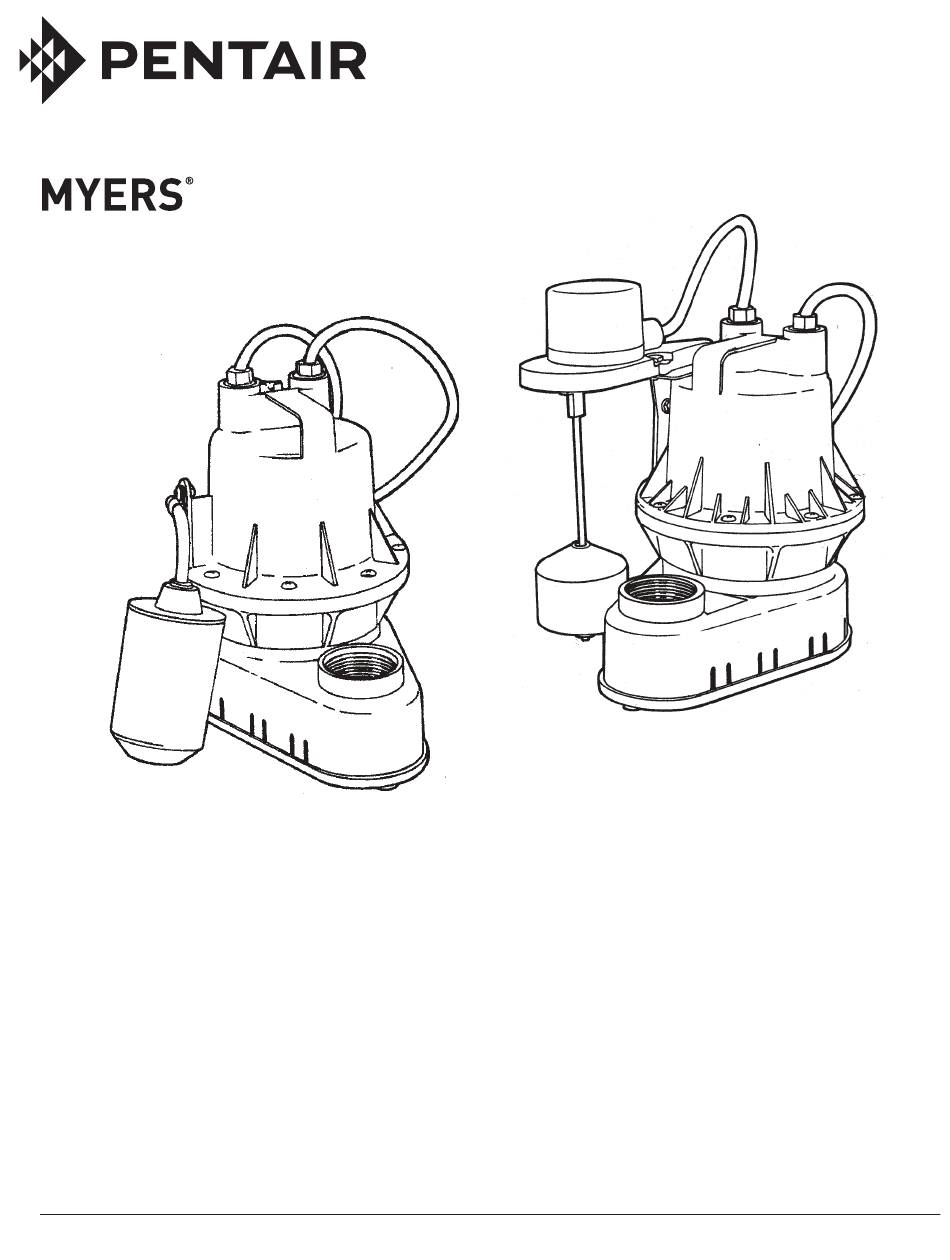

SP25 SERIES
SUBMERSIBLE SUMP PUMP
INSTRUCTIONS, SERVICE MANUAL AND PARTS LIST
NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible
party who maintains the system.
Part # 23833A138 | © 2012 Pentair Ltd. | 11/26/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MYERS SP25 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Pentair MYERS SP25 Series

  • Page 1 INSTRUCTIONS, SERVICE MANUAL AND PARTS LIST NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # 23833A138 | © 2012 Pentair Ltd. | 11/26/12...
  • Page 2 WARNING: RISK OF ELECTRIC SHOCK 3. After installation is complete plug cord into a 115 This pump is supplied with a grounding volt GROUNDED RECEPTACLE. conductor and grounding type attachment plug. 4. Run water into sump basin. Pump should turn To reduce the risk of electric shock, be certain on at 9”...
  • Page 3 TYPICAL INSTALLATION DRAWING PERFORMANCE TABLE (GALLONS PER HOUR) Total Head in Feet SP25A1 SP25A1 1800 1650 1520 1380 1230 1080 1800 1650 1520 1380 1230 1080 SP25V1 SP25V1 Grounded Type 115V Receptacle. Min. Height Above Floor - 4’ Shut-Off Gate Valve (optional) 1½”...
  • Page 4 PARTS LIST Ref. Part Ref. Part No. Description Qty. No. Description Qty. Cord, Power 21628B017 Plate, Bottom 24432C003 Screw, Self Tapping, #10-24 05910A012 Control, Level SP25A1 25798A500 (not shown) Control, Level SP25V1 26292B100 Clamp, Cable 22071A001 (not shown) (not shown) 2A* Bracket, Vertical Switch 26291B015 Washer, Lock...
  • Page 5 SUMP PUMP TROUBLESHOOTING CHECKLIST PROBLEM CHECKING PROCEDUE Pump hums or does not run Line circuit breaker may be off, or fuse may be blown or loose. Water level in sump may be too low. Add more water. Turn-on level is as indicated in Installation Drawing.
  • Page 6 Warranty is effective only if Pentair Myers authorized control panels are used. All seal fail and heat sensing devices must be hooked up, functional and monitored or this warranty will be void. Pentair Myers will cover only the lower seal and labor thereof for all dual seal pumps. Under no circumstance will Pentair Myers be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the factory or an authorized Pentair Myers service facility.

This manual is also suitable for:

Myers sp25a1Myers sp25v1
