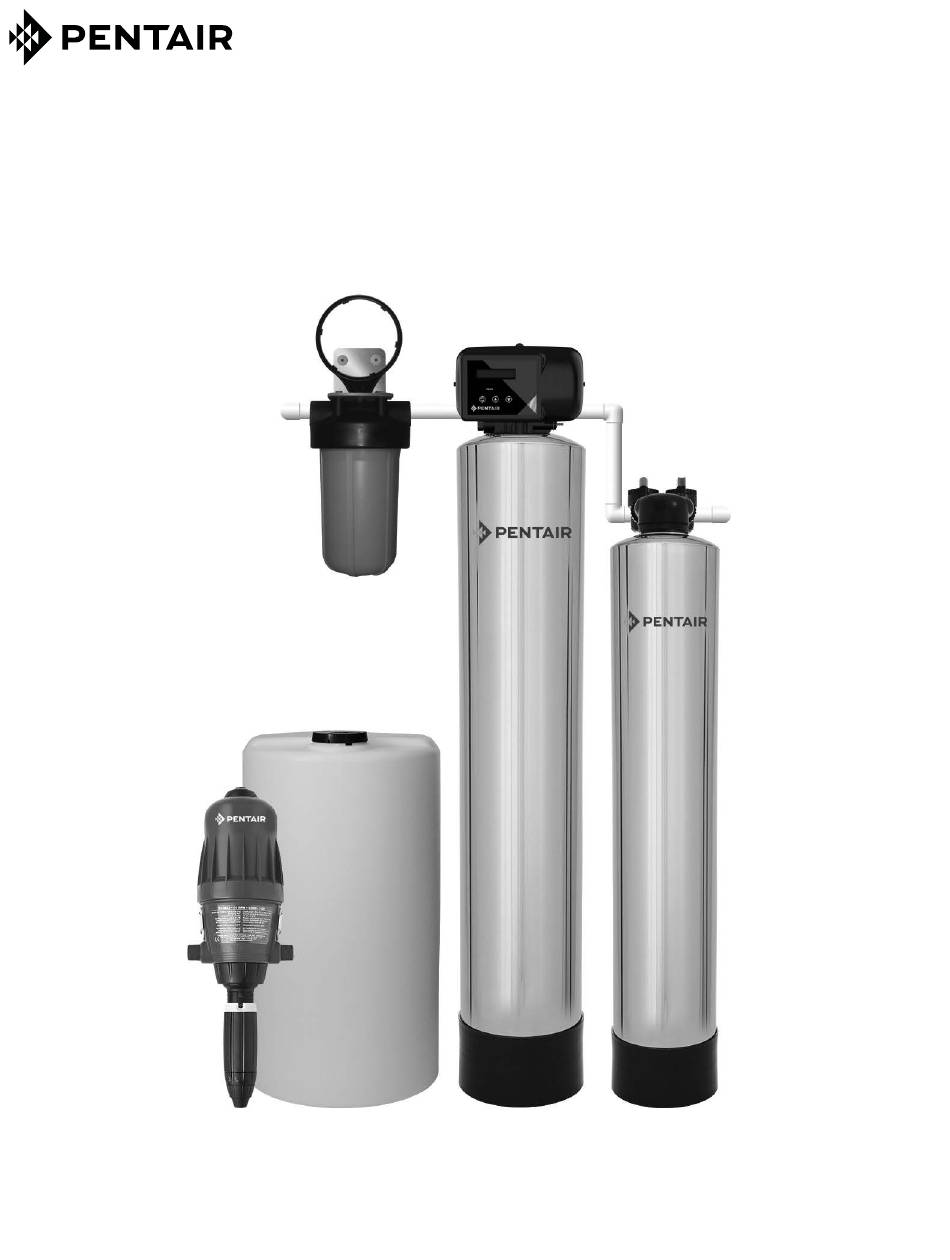

- Page 1 IRON & MANGANESE FILTER SYSTEM COMBO WF6-P | WF10-P pentair.com/homewater...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION ..............................2 CUSTOMER SERVICE CONTACT INFORMATION ........................2 PRODUCT OPERATION AND SPECIFICATIONS ........................3 POWER REQUIREMENTS ................................ 3 COMPLETE PARTS LIST ................................. 3-4 INSTALLATION OVERVIEW ..............................5 PRE-INSTALLATION ................................6 MEDIA SOAK..................................7 SEDIMENT FILTER INSTALLATION............................8 CHEMICAL INJECTOR PUMP OVERVIEW .......................... -
Page 3: Product Operation And Specifications
COMPLETE PARTS LIST Note The parts supplied are intended to accommodate a variety of water supply lines. Additional fittings may be needed to fit to your plumbing. Visit pentair.com to view our full line of installation kits. Part Description Qty. - Page 4 Chlorine Test Strips Tubing Chemical Injector Pump Non-Abrasive Auto Wax (2) 1" Bushings Included 4 oz. Bottle Pentair Whole House Carbon Filter Pentair Whole House Iron & Manganese Filter Note Drawings not to scale. 4 • IRON & MANGANESE FILTER SYSTEM COMBO...
-
Page 5: Installation Overview
INSTALLATION OVERVIEW Wall Wall Wall Wall Outgoing Incoming Water to Water House Supply Outgoing Incoming Sediment Filter Water to Water House Supply Sediment Filter Top View Water Whole House Iron Softener Filter Manganese Alternative Filter Top View Water Whole House Iron Softener Filter... -
Page 6: Pre-Installation
PRE-INSTALLATION Note Head may come loose in transit. Please check head by tightening clock wise, hand tighten only, no more than turn. Head may not move at all or less than turn. Bypass Valve Installation for the Whole House Carbon Filter Red Arrow Quick Connect Nut Top View... -
Page 7: Media Soak
MEDIA SOAK Wall Wall Incoming Water Supply Sediment Filter Bypass Mode Top View Bypass Valve Water Garden Hose Hose Bib Assembly INLET Top View Whole House Water Filter Carbon Soak/Rinse: Note Steps 1-3 should be done prior to installation 1. Locate the carbon filter tank and the hose bib attachment. 2. -
Page 8: Sediment Filter Installation
SEDIMENT FILTER INSTALLATION Note Sediment filter position is at the discretion of your professional installer. As a general guideline, the sediment pre filter is typically installed in the "pre" position (as shown above) for well-water applications. For city water applications, the sediment filter is typically installed in the "post"... -
Page 9: Chemical Injector Pump And Solution Tank Installation
CHEMICAL INJECTOR PUMP AND SOLUTION TANK INSTALLATION Chemical Injector Pump Outgoing Water Incoming Chemical Injector to House Water Pump Tubing Supply Sediment Filter Front View 35 Gallon Pump Foot Valve Solution Tank Chemical Injector Pump Installation IMPORTANT Install the Chemical Injector Pump onto the water supply after the Sediment Filter and before any other filtration or softening system. -
Page 10: Iron And Manganese Tank Installation
Incoming Drain Line Water Outgoing Barb Supply Water to Chemical House Injector IRON AND MANGANESE TANK INSTALLATION Sediment Filter Pump Tubing Solution Tank Wall Wall Electronic Head Whole House Water Filter Top View Whole House Iron & Manganese Filter Outgoing Incoming Water to Water... -
Page 11: Whole House Water Filter Installation
Note Injection Pump Bypass Visit Pentair.com to view our full line of installation kits. CAUTION Do not over-tighten any of the fittings during installation. Note: The fitting below is designed with a ¼" give to allow for proper pipe alignment. It will not leak and is intended to have some flexibility. -
Page 12: Bypass Valve Operations
4. Peel off the protective plastic wrap from the stainless steel tank jacket(s) 5. Add the Pentair logo sticker(s) in the desired location on the tank 6. Wax stainless steel tank jacket(s) with wax provided (or any other non-abrasive auto wax) a minimum of 1-2 times per year or as needed based on the installed environment 12 •... -
Page 13: Programming The Electronic Head
PROGRAMMING THE ELECTRONIC HEAD How to Program the End User's Level To begin, verify that the control is in the Service Mode. Time of Day GL Remaining Press the SCROLL BUTTON to advance to the next setting. The following settings are available in the End User’ s Level: 1. -
Page 14: Testing Chlorine Levels In Water - Dialing In
TESTING CHLORINE LEVELS IN WATER - DIALING IN 1. Put the Whole House Water Filter into bypass. (See page12 for bypass position) 2. Turn on the nearest cold water faucet to the system. 3. Listen and watch the pump to make sure it is pumping. The pump should pulse and not run continuously. If the water is off, the pump will stop. -
Page 15: Maintenance
MAINTENANCE Sediment Filter It is recommended that the sediment filter be replaced every 6-9 months depending on the amount of sediment present in the water supply. If the system has been working properly and the pressure is slowing, it may be time to change the sediment filter. Check the sediment filter and replace if necessary. -
Page 16: Electronic Valve Maintenance Requirements
ELECTRONIC VALVE MAINTENANCE REQUIREMENTS • Clean the backwash flow control. • Verify that the flow meter is functioning correctly. Clean the impeller, if necessary. • Verify the programming of the control. Reprogram, if necessary. • Verify the minimum and maximum water pressure. Install a pressure reducer, if necessary. •... -
Page 17: Troubleshooting
TROUBLESHOOTING Problem Solution Water leaking at the top of the tank around the head. You may need to turn the head to tighten it. The tank head is pre-installed hand-tight, do not overtighten the head (just turn it snug). The tank leans to one side or is not level. If the tank is not level, lift the tank straight up 6 inches and tap it on the ground until the tank stands vertical. -
Page 18: Product Warranty And Registration Form
PRODUCT WARRANTY AND REGISTRATION FORM For details on your Pentair product warranty, please visit Warranty Registration Form Send in this Warranty Registration Form to validate your warranty or visit pentair.com/register-warranty to complete the warranty registration form online. Date Item(s) were Received:... -
Page 19: Product Certification
PRODUCT CERTIFICATION Certified By IAPMO R&T to NSF/ANSI Standard 42 for the reduction of Chlorine Taste & Odor, structural integrity & NSF/ANSI 61 for material safety. The NaturSoft® system is DVGW DW-9191 certified for 99.6% hard water scale prevention. IRON & MANGANESE FILTER SYSTEM COMBO •... - Page 20 2361 Mason Ave | Suite 100 | Daytona Beach, FL 32117 | United States P: 877.842.1635 | Technical Services: 877.842.1635 | pentair.com/homewater © 2021 Pentair. All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
