Indications

Power LED — This LED lights to indicate that power is applied to
the unit.
Video LED — This LED lights when the receiver detects a signal on
its video input.
HDCP LED — This LED lights when the video signal is HDCP encrypted.
Audio LED — This LED lights when the receiver detects a low level audio signal for a short period of time.

Setup

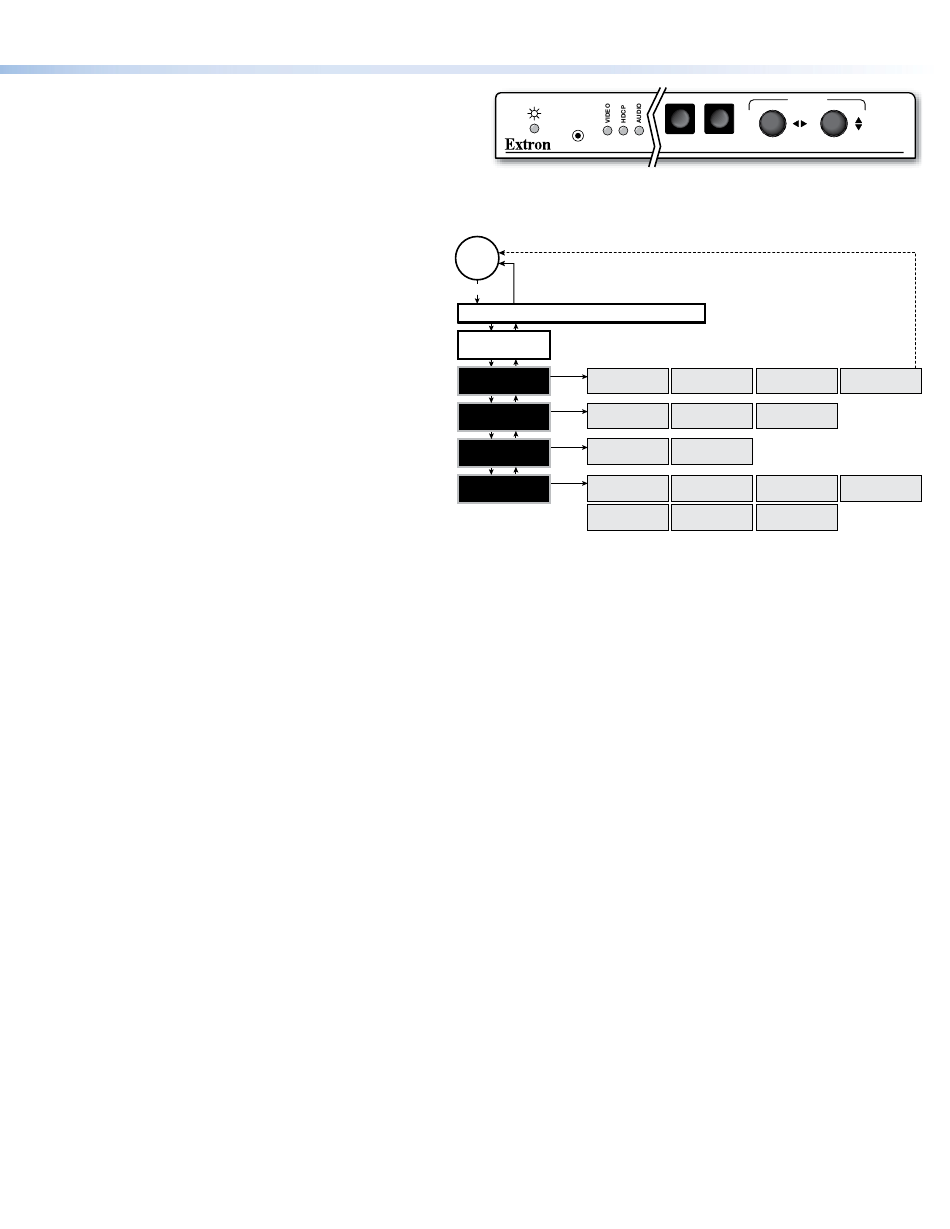

Use the front panel menu controls and the on-screen display,
shown at right, on the connected display to set up the
receiver.
CONFIG
No
menu
display
Menu
Menu
EXTRON ELECTRONICS FOXBOX SR HDMI
AUTO
Enter
H POSITION V
CONTROLS +0
Enter
RECALL
USER
2
PRESETS
Enter
RESOLUTION
OUTPUT
1024X768 @60
CONFIGURATION
Enter
ADVANCED TEST PATTERN
CONFIGURATION CROP
AUTO MEMORY
ON
ADJUST
MENU ENTER
H SIZE V BRIGHT CONT
+0 1024 768 64 64
SAVE CLEAR
<2> <2>
HDMI FORMAT
AUTO
BLANK FREEZE
OFF OFF
FACTORY RESET MENU TIMEOUT
HOLD ENTER 10
FOXBOX SR HDMI
Timeout
DETAIL
0
ASPECT
RATIO
