Installation and Configuration
English
Audio and video recorder
DLS 4
DLS 8 / 8 PLUS
DLS 16 / 16 PLUS
3.0.2 / 090504

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLS 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dallmeier DLS 4

Summary of Contents for dallmeier DLS 4

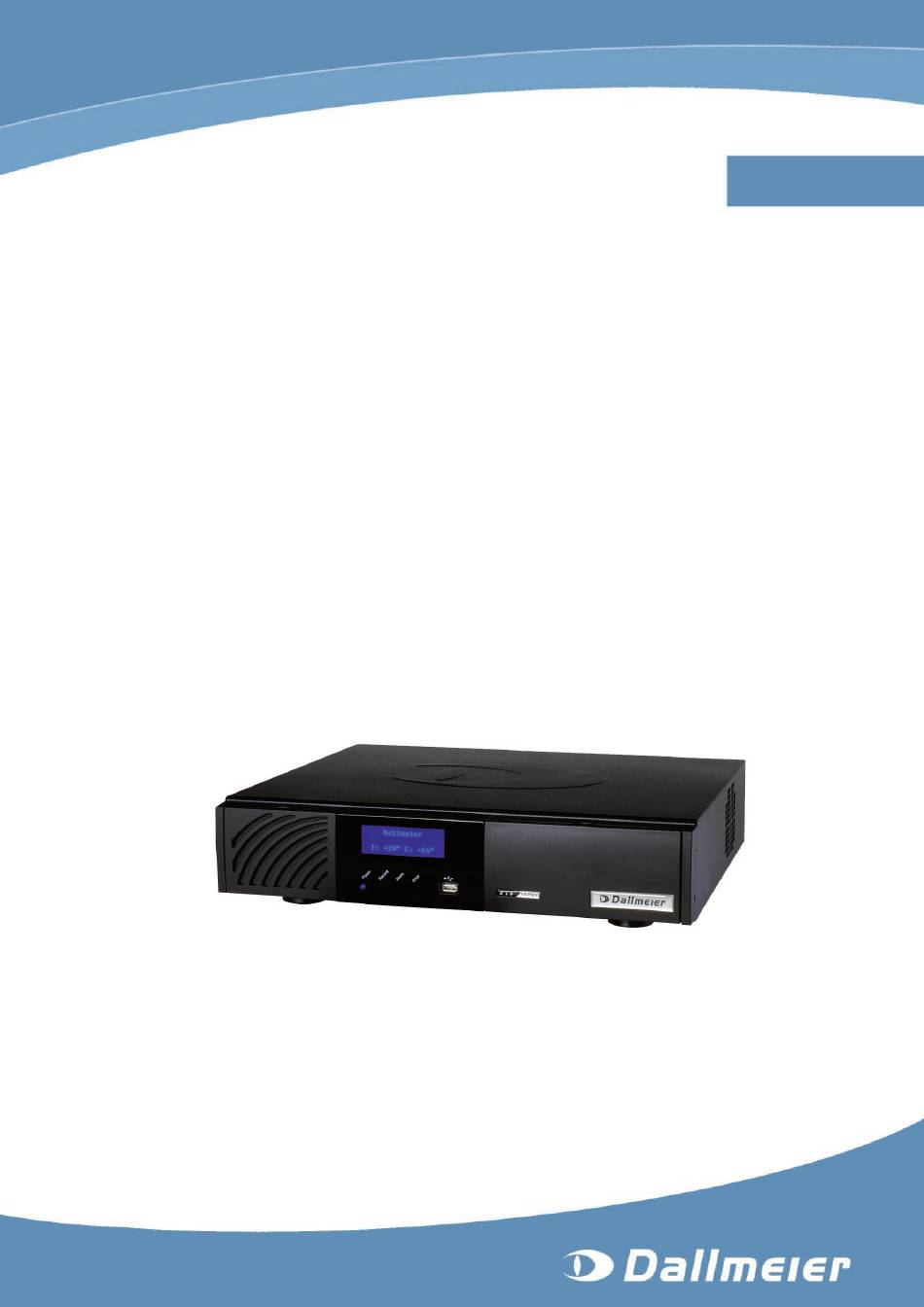

  • Page 1 Installation and Configuration English Audio and video recorder DLS 4 DLS 8 / 8 PLUS DLS 16 / 16 PLUS 3.0.2 / 090504...
  • Page 2 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Information about copyright, trademarks, design patents © 2009 Dallmeier electronic All rights reserved. This document may not be copied, photocopied, reproduced, translated, transferred to an electronic medium or converted to a machine-readable form either whole or in part without first receiving written permission from Dallmeier electronic GmbH &...

  • Page 3: Table Of Contents

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Table of contents This document Validity Documentation Convention For your safety General instructions Scope of delivery Transportation and packaging Warranty Installation and mounting General Requirements Stand-alone installation 4.2.1...
  • Page 4 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 7.4.2.2 Performance 7.4.2.3 Tracking 7.4.3 Keyboard mode 7.4.4 Single split replay 7.4.5 Playback monitor 7.4.6 System messages 7.4.7 Assistant mode 7.4.8 Recording timeout 7.4.9 OSD texts 7.4.10...
  • Page 5 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 8.7.1.1 Longplay tracks 8.7.1.2 Secure tracks 8.7.2 Manual 8.7.3 Automatic Other functions 8.8.1 Audio 8.8.2 Dual Streaming 8.8.3 SmartFinder 8.8.4 Camera control Display settings Recorder and camera description Splitter 9.2.1...
  • Page 6 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 14.3 Storage System 14.4 Weather server 14.5 Dallmeier network interface 14.5.1 DNI - external system 14.5.2 DNI - camera control 14.6 14.6.1 Serial UPS 14.6.2 UPS configuration 14.7...
  • Page 7 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Technical data Pin assignment Technical drawing Dallmeier electronic...

  • Page 8: This Document

    This document Validity This document applies to the audio and video recorder DLS 4 / DLS 8 / DLS 8 PLUS / DLS 16 / DLS 16 PLUS. It has been produced on the basis of version 6.3.0 (software). The descriptions in this document apply to all above-mentioned models. For simplification reasons, the term "DLS"...
  • Page 9 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS IMPORTANT The word IMPORTANT denotes information for preventing damage, incorrect configurations or incorrect actions. NOTE A NOTE offers information on principles, special features and efficient procedure as well as general recommendations.

  • Page 10: For Your Safety

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS For your safety Only use this unit if it is technically in proper working order, to the intended purpose and while keeping safety and potential dangers in mind. Have malfunctions or damages elimi-...
  • Page 11 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Expansion components/peripheral devices Use only expansion components conforming with the technical data of the unit. Inappropriate peripheral devices may result in the violation of local laws and regulations and damages to the unit.

  • Page 12: General Instructions

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS General instructions Scope of delivery Included in the standard scope of delivery is: 1 x Recorder including HDDs (as ordered) 1 x Dallmeier mouse (optical, small version)

  • Page 13: Installation And Mounting

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Installation and mounting The DLS is designed for stand-alone operation. As an option it may also be installed in a 19“ standard rack. General Requirements Unfavorable local conditions may shorten the life of the product or lead to malfunctions.

  • Page 14: Rack Mounting

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 4-1 Ø Establish the required connections as described in the following. Ø Start-up and login for configuration as described in the following. Rack mounting The DLS can be installed in a 19“ standard rack using two 19’’ mountings (option).

  • Page 15: Mounting

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Reliable earthing Ensure a reliable earthing of the DLS. Use power strips when other supply connections than direct connections to the branch circuit are being used.

  • Page 16: Connection

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Connection The following describes special features for connecting the basic peripherals. See also the technical data in the annex. Information about the connection and configuration of optional peripherals is provided in separate sections.

  • Page 17: Power Supply

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 12 Audio OUT 1 Live and playback (3,5 mm phone jack) 13 Audio OUT 2 Live and playback (3,5 mm phone jack) (inaktiv) 14 Video IN C1 – C16 (BNC) 15 Serial interface RS485 (2-pin Weidmüller pin strip)

  • Page 18: Monitors

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Please note that in the basic configuration, all analog video inputs on the recorder are ter- minated. If a camera signal is forwarded to an optional device (signal loop), the termination must be cancelled (see section entitled Configuration of optional periphery).

  • Page 19: Mouse And Keyboard

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Mouse and keyboard The mouse and keyboard can be connected either to a USB port or to the PS/2 port. Ø Connect the mouse and / or keyboard to any USB port (8).

  • Page 20: Contacts For Individual Cameras

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Contact inputs G1 to G6 are known as global contacts. The outer pins on the plug connector strip are connected to ground. The pins on contacts G1 to G6 are arranged from left to right.

  • Page 21: Relay Out

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Relay OUT The Relay OUT interface relay (17) allows external devices to be controlled by events and states detected by the recorder. The relay contacts are floating contacts. The following specifications apply to the relay outputs: DC 24 V;...

  • Page 22: Optional Peripheral Devices

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Relay No Triggering event Type Recorder in alarmstatus Normally open None Normally open System error Normally closed None Normally open More than 80% of secure tracks full...

  • Page 23: Start-Up And Login

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Start-up and login Start-up Proceed as follows to start the recorder. Ø Connect the recorder and the relevant peripherals to the power supply. Ø Switch on the monitor.

  • Page 24: Login At Group Level

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS The Recorder login will be displayed. Fig. 6-2: Login in the initial state Ø Click on OK to change the group passwords straight away in the User Management dialog.

  • Page 25: Login At User Level

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 6.2.3 Login at user level It is possible to log in at user level if Login as user has been activated in User Management. In addition the user and a password must have been defined.

  • Page 26: Basic Settings

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Basic settings Language Ø Open the Language dialog using Setup > System > Language. Fig. 7-1: Language dialog Ø Select a language. Ø Confirm with OK.

  • Page 27: Time Server

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 7-2: Set the time manually Ø Enter the current time. Ø Enter the current date. Adjust the date format and the time zone if necessary.

  • Page 28: Usb Radio Clock

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Enter the IP address of the DLS set as the Master with the virtual keyboard. Ø A click on the button Ping starts a test of the connection.

  • Page 29: System Security

    For system security reasons, the number of open ports should be kept to a minimum. This is already carried out at the factory by blocking the ports definitely not required for Dallmeier systems. The few ports which are still relevant are enabled in the default setting to ensure full com- patibility to the other Dallmeier units.

  • Page 30: Alarm Duration

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 7-7: Options dialog 7.4.1 Alarm duration The recorder can be configured in such a way that it is set to so-called alarm status by a Contact IN function (if there is a serious threat) (see Contact IN).

  • Page 31: Compare

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 7-9:Example output of test results (compare) 7.4.2.1 Compare The Compare test mode shows the results of the picture comparison (motion detection) function in four different views.

  • Page 32: Performance

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS If a motion is detected, the area of the motion is shown in four additional views and marked (C). In addition the number of detection motions will also be displayed (B).

  • Page 33: Keyboard Mode

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 7.4.3 Keyboard mode If an external keyboard (TA-24 MS) is used for track saving and camera switching, the TAC-18 / TA-24 / TA-24 MS entry in the Keyboard Mode field must be selected.

  • Page 34: Playback Monitor

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 7-16: Single split reply with scaling to 4CIF Please note that the Options dialog can be opened even during playback using the context menu on the blank area of the control panel.

  • Page 35: Assistant Mode

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 7-18: Warning dialog The display of these system messages in the form of a warning dialog or tone can be deac- tivated or activated. Ø Open the System Messages dialog via Setup > System > Options > System Messa- ges.

  • Page 36: Recording Timeout

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS The Dialog Selection for Setup Assistant Mode dialog will be displayed. Fig. 7-20: Dialog Selection for Setup Assistent Mode Ø Activate Assistant Mode for the group(s) (A) by checking the appropriate checkbox.

  • Page 37: Osd Texts

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Set the Timeout for the relevant cameras. Ø Finally confirm with OK. NOTE Displaying of the System Message and / or sending of the Alarm Host message have to be activated separately.
  • Page 38 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 7-23: Tool tip with the available variables Adjust position Ø To adjust the position of text boxes 1 - 8, click in section B (Fig. 7-22).

  • Page 39: Logging

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 7-25: Context menu to adjust the display 7.4.10 Logging In addition to system messages the recorder also allows user actions to be logged. The analysis of the log data is done in the System messages dialog (see user guide).

  • Page 40: Recording Monitoring

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 7-27: Checkbox Simple Export Ø Activate the Simple Export option. Ø Finally confirm with OK. NOTE This option is a switchover. Detailed and simplified export can not be used simultaneously.

  • Page 41: Recording Setting

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Recording setting The complete configuration for the recording and the setting of the track mode is made in the Recoding Settings dialog. Ø Open the dialog via Setup > Recording > Cameras.

  • Page 42: Standard

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 8.1.1 Standard In the Standard track mode every camera / track is assigned a particular part of the entire video memory manually (track size). Thereby static tracks will be defined. When the size of one track is modified the recordings in all tracks have to be deleted.

  • Page 43: Recording Modes

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Saved tracks Secure tracks that have been protected before being overwritten are known as saved tracks. Several saved tracks may exist for each camera. Reference track Only individual camera images are saved in the reference track.

  • Page 44: Modifications

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 8.1.2.2 Modifications The size of the tracks can be increased by adding memory units anytime. The recordings do not have to be deleted. The size of the tracks can be decreased by removing memory units anytime.

  • Page 45: Recording

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 8.1.3.1 Recording The recordings will be saved into a memory unit of the corresponding track continuously. When the memory unit is filled the track will be assigned the next empty memory unit. It will then be used for the current recording.

  • Page 46: Connection

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Open the Recording Settings dialog via Setup > Recording > Camera/Tracks. Ø Observe the explanations above. Ø Set the required Track Mode. Fig. 8-5: Setting Track Mode The Auto Configuration Options dialog will be displayed.

  • Page 47: Camera And Track Name

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 8.3.1 Camera and track name In the Camera Name column all cameras are displayed as buttons. Connected analogue cameras are labeled with a yellow symbol. Fig. 8-7: Camera names The recording of every camera is done in a dedicated track.
  • Page 48 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Open the Camera Timer dialog via Setup > Recording > Camera Timer. Fig. 8-8: Camera Timer dialog Ø Select the relevant camera in the Cameras section.

  • Page 49: Tracks Timer

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Mark one period (15 minutes) with a left-click. Ø Mark several periods by drawing a rectangle (B). Exceptions The Standard settings are valid for all 52 weeks of a year. Exceptions can be defined for single days.

  • Page 50: Areas

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 8-11: Tracks Timer dialog Ø Select all S-tracks (s) or the relevant LP-track in the Tracks section. Ø Set Active and Inactive periods as described above.

  • Page 51: Private Zones

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Select the relevant camera in the Cameras section. Ø Ensure that the Active Areas option is selected. Ø Select the setting of Inactive areas. Ø Mark one or more inactive areas by drawing a rectangle.

  • Page 52: Recording Mode

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 8-15: Private Zones Ø Adopt the zones if necessary. Position Left click + Drag&Drop ð Size Left click on the border + Drag&Drop ð Delete Right click ð...

  • Page 53: Manual And Automatic Mode

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 8.4.1 Manual and automatic mode The following recording modes can be used with the various camera types in the manual and automatic track modes: Permanent Motion Contact 8.4.1.1...

  • Page 54: Motion

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 8.4.1.2 Motion The Motion recording mode analyzes every image send by the camera. If a change of a certain proportion of the picture content is detected between two consecutive images, an image comparison event (event) has taken place.

  • Page 55: Contact

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Motion Estimate This value specifies the estimated percentage of images with motion. It affects only the estimated recording duration (Estimate) in the track. 8.4.1.3 Contact In the Contact recording mode the recording is triggered by the recorder’s contact IN func- tions.

  • Page 56: Standard Mode

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Timer The recording is started by the contact switching. Recording is stopped After the Contact Recording Duration expired. Toggle The recording is triggered by the contact switching. It is stopped again by the same contact switching again.

  • Page 57: Motion

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Database In the default configuration it is possible to save certain information with the pictures in the track (for example indices set using the Mark option). When the Use Database option is activated this information additionally will be saved in a database.

  • Page 58: Contact

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Configure the Active Areas if required (see chapter Basic configuration). Ø Set the Sensitivity of the motion detection. Ø Set the Motion Estimation for the memory calculation.

  • Page 59: Video Quality

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Set the Pre-Event time (see above). Ø Configure Private Zones if required (see chapter Basic configuration). Ø Activate / configure the Timer if required (see chapter Basic configuration).
  • Page 60 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 8-23: Quality Analogue cameras Ø Ensure that the Expert Mode option is activated. Ø Observe the explanations given below. Fig. 8-24: Analogue cameras Ø Set the Resolution.

  • Page 61: Standard Mode

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Deinterlace This function can be activated to increase the picture quality. It reduces the interlace effect in images with fast movements. Whether and to what extent the image quality can be improved depends on a large number of variables.

  • Page 62: Auto Configuration

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 8-26: Direct configuration Ø Select the required setting. Ø Proceed analogous for all relevant settings / cameras. Ø Finally confirm with OK. NOTE In the Standard track mode these settings are valid for recording in the LP track and in the S track.

  • Page 63: Activation

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS The default settings will be adopted for all connected cameras. The memory will be assigned in equal parts to every camera. Recording (permanent) will be activated for all connected cameras.

  • Page 64: Secure Tracks

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS HDD% Share of the track from the entire video memory in percent Estimate = Recording duration / storage duration of the images until overwriting (ring memory) Ø...

  • Page 65: Manual

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Number The Number of s tracks should be a multiple of the number of cameras that record to an S-Track. This is necessary because S tracks are disabled (saved) in certain situations. In this case the recording can only be continued if a new S track is available.

  • Page 66: Other Functions

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 8-32: Total recording time Note that ..the total recording time depends on the Video Quality settings..the total recording time does not depend on the number of tracks.
  • Page 67 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Note that ..the function is not suitable for dome/PTZ cameras..the camera has to be mounted vibration-free.

  • Page 68: Camera Control

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Decay time The Decay time determines how long a motion event is valid. If an additional motion event is detected in the same image section before this period expired, it will not be rated as a new event.

  • Page 69: Display Settings

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Display settings Recorder and camera description The recorder or camera description allows more exact information to be entered on the recorder used and on the respective camera. During playback this information can be used for more exact identification of the recording.

  • Page 70: Splitter

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Wile the previously described camera name is displayed in the live picture, the camera or recorder description is used to clearly identify the pictures during playback.

  • Page 71: Automatic Assignment

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Define whether you wish to configure a Live Split (sequencer/live mode) or a Playback Split (playback/live mode and playback mode) (B). Ø Select a Split Type (C).

  • Page 72: Sequencer

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Sequencer The Sequencer function allows the pictures from various cameras to be displayed in a de- fined order. Various display sequences can be defined for each video output (VGA, CVBS 1 and CVBS 2).

  • Page 73: Cvbs Display Sequence

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS The camera will be removed from the display sequence of all the monitors. In addition the camera can no longer be selected in sequencer/live mode and in playback/live mode to display the live picture.

  • Page 74: Display Frame Rate

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 9.3.3 Display frame rate Fig. 9-11 The frame rate can be adjusted for every monitor in the lower area of the Sequenzer dialog. This frame rate reduction of the playback output will help to decrease the system load.

  • Page 75: 10 Network And Pas

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 10 Network and PAS IMPORTANT Any change to the network settings should only be made with the agreement of the network administrator. 10.1 Ethernet The network interface allows the integration of the recorder in a LAN/WAN. It can be used in many ways, e.

  • Page 76: Pstn/Terminal Adapter

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS The Data Rate can be set in both cases but the standard setting Auto normally is sufficient. The available network bit rate is displayed in the Setup > System > Info > Network dialog.

  • Page 77: Connection

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 10-3 The name of the alarm host can be changed if necessary. Ø Select an alarm host with a left click in the alarm host list.

  • Page 78: Alternative Alarm Host

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS The connection attempt will be canceled when Ping Timeout is expired. After a break the connection attempt will be started again and repeatedly (Interval). The interval and the number of new connections attempts can be adjusted in the Interval settings dialogs.

  • Page 79: Connection Check

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Select an alarm host with a left click in the alarm host list. Ø Set the alternative alarm host with the Alternative drop down box.

  • Page 80: Messages

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 10.3.5 Messages Which messages will be sent can be defines separately for every alarm host. Thereby take into account that the single messages are combined to message categories. The message displayed by the alarm host and the additional displayed information depend on the alarm host’s configuration.
  • Page 81 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Housekeeping - Error This message will be send if the system monitoring (housekeeping) detects an event of the category „error“. Events of the category „error“ are: - The I/O board could not be put into operation.
  • Page 82 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Housekeeping- This message will be send if the system monitoring Sys- System motoring tem monitoring (housekeeping) detects an event of the category „info“. Events of the category „info“ are: - The internal temperature is in the upper/lower/normal range.

  • Page 83: Timer

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS System This message will be send in case of certain errors in the complete system or if status messages of a system component arrive at the recorder.

  • Page 84: Activation

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 10.3.7 Activation After its configuration the alarm host must be activated. Ø Select an alarm host with a left click in the alarm host list. Ø Activate the corresponding checkbox in the Active column.

  • Page 85: Parameter Backup

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS The Settings for EBueS connection dialog will be displayed: Fig. 10-13 Ø Enter the EBueS server IP Adress. Ø Enter the FTP user name. Ø Enter the FTP password.

  • Page 86: Export

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Enter a term without special characters as System Name. Ø Confirm with OK finally. 10.4.2 Export The files saved during the export of the network parameter contain...

  • Page 87: 11 Serial Interface

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 11 Serial Interface 11.1 Setting Ø Open the Serial Interfaces dialog via Setup > Interfaces > Serial to configure the serial interface (COM1). Fig. 11-1: Serial Interfaces dialog Ø...
  • Page 88 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Functions Explanation None The interface is deactivated. Commanding This function allows the recorder to be controlled by an external application / device via the serial interface (DaVid protocol).

  • Page 89: 12 Contact In

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 12 Contact IN Ø Open the Contact In dialog via Setup > Interfaces > Contact IN to configure the contact inputs. Fig. 12-1: Contact In dialog 12.1...

  • Page 90: Setting

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS NOTE The function of a camera contact (break or make contact) can be set in Setup > Interfaces > Camera Contacts. The configuration of the functions for the so-called Function n.c. is displayed when the show Function n.c.

  • Page 91: Functions

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 12.4 Functions Functions Explanantion None No function selected. Shut down recorder The recorder will be shut down without taking further conditions into account. Start alarm This function activates the alarm state of the recorder.
  • Page 92 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Pause all active alarm-hosts This contact function allows to activate all configured alarm hosts. This contact function is no counterpart to the Pause all active alarm-hosts contact function. It does not matter if the alarm host was deactivated by Pause all active alarm-hosts or before.

  • Page 93: Configuration Of Camera-Related Contacts

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Dome/UTC camera– This contact function causes a dome camera connected move toward saved position via DNI to move towards a defined position (at the ca- mera). Camera and position number are entered in the Contact parameter dialog.
  • Page 94 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Make the required settings. Ø Confirm with OK. The camera-related contact input for each enabled camera can be configured. It is of no consequence whether it is connected or configured for recording.

  • Page 95: 13 Relay Out

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 13 Relay OUT Ø Open the Relay dialog via Setup > Interfaces > Relay OUT to configure the relay out- puts. Fig. 13-1: Relay dialog A trigger function can be assigned to each of the 5 available relays.
  • Page 96 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Function Explanation None No function selected. Recorder in alarm state This function switches and holds the relay when the re- corder is in alarm state. The alarm state is triggered by the Start alarm contact IN function.
  • Page 97 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS More than 80% of the secure This function switches the relay if more the 80% of the tracks occupied defined/reserved secure tracks have been protected against overwriting.
  • Page 98 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Housekeeping info-event The relay is switched if the system monitoring (house- keeping) detects an event of the category "info". Events of the category "info" are: - The internal temperature is in the upper/lower/normal range.
  • Page 99 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Housekeeping error-event - The housing screw has been loosened. - The housing screw has been screwed in. - The housing cover has been opened. - The housing cover has been closed.

  • Page 100: 14 Configuration Of Optional Periphery

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 14 Configuration of optional periphery 14.1 Printers The recorder allows up to 4 printers to be configured. They can be connected via the LPT interface or a USB port. A network printer may also be used.

  • Page 101: Set Printer

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS No pure GDI printer Paper format 210 x 297 mm (DIN A4/Letter) Postscrip prnter preferred NOTE It is possible to print the image with any printer when a PC/ PView is used to evaluate the recordings.

  • Page 102: Dis Control

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 14-4: Printer Properties dialog Ø First of all define the connection Type. If you use a Network printer you must enter the IP-Address and the name of the Queue („raw“).

  • Page 103: Weather Server

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 14.4 Weather server The recorder can receive climatic data from a sensor or the MessPC Ethernet Box weather service through a network connection. Ø Open the Weather Sensor configuration dialog via Setup > Interfaces > Weather Server to configure the connection and request the data.
  • Page 104 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Interface After connecting the DNI the serial interface must be configured accordingly. Open the Serial Interfaces dialog via Setup > Interfaces > Serial. Fig. 14-7: Serial Interfaces dialog Ø...

  • Page 105: Dni - Camera Control

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 14.5.2 DNI - camera control A controllable camera (dome, PTZ camera) can be connected to the recorder via a DNI. This allows the dome or tilt and turn head of a camera to be controlled using the recorder’s control interface.

  • Page 106: Ups

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Identification In the third step the appropriate camera must be identified as controllable. Open the Recor- ding Settings dialog via Setup > Recording > Cameras/Tracks. Fig. 14-11: Recording Settings dialog Ø...

  • Page 107: Ups Configuration

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 14-12: Serial Interfaces dialog Ø Select the Interface. Ø Select UPS as the Function. Ø Finally confirm with OK. The dialog described below for configuring the UPS will then be displayed automatically.

  • Page 108: Vsc

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 14.8 A Dallmeier VSC-1 (Video System controller) control station for dome / PTZ cameras can be connected to the recorder. Selection and control of the camera is done on the control station, displaying of the images on a recorder’s monitor.

  • Page 109: 15 Configuration Of Optional Functions

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 15 Configuration of optional functions 15.1 Signal loop through The video inputs on the recorder can be terminated by software with a resistance of 75 ohm. This is necessary to prevent falsifications of the video signal (signal level, color, brightness, etc.).

  • Page 110: Required Settings

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 15.2.1 Required settings Ø Open the Recording Settings dialog via Setup > Recording > Cameras/Tracks to set the UTC camera configuration. Fig. 15-2: Recording settings dialog Ø...

  • Page 111: Zoom Function

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 15-5 Functions 1 Zoom In 5 Position query 2 Zoom Out 6 Preset 1 to 3 3 Zoom control 7 Menu on/off 4 Preview window 8 Reset settings 15.2.3...

  • Page 112: Enter Name For Position

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 15-7 15.2.3.2 Enter name for position Ø Right-click again on the button under which you have saved the position. Ø Select Change Name. You can fix up to eight picture sections for each camera.

  • Page 113: Functions

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 15-10 NOTE Please see the precise description of the camera configuration in the manual for the appropriate camera. 15.2.4.1 Functions Select menu points Select settings...

  • Page 114: 15.2.4.3 Save Camera Configuration For Direct Selection

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø If you select No, the settings will be saved but will no longer apply after the camera has been restarted. Ø If you select Yes the settings will be saved and will still be valid even after the camera has been restarted.

  • Page 115: Reset Camera Settings

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 15-16 If you move the mouse pointer the relevant button, the tool tip will be displayed with the new designation. 15.2.5 Reset camera settings All the individual settings can be reset and the camera can be returned to its factory con- figuration.

  • Page 116: Serial Camera Control

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Define the source of the Audio signal if necessary. Ø Enter the maximum available bandwidth. Ø Confirm with OK. 15.4 Serial camera control Suitable Dallmeier dome cameras can be connected directly (without DNI) to the recorder’s serial interface.
  • Page 117 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS The Direct camera control dialog will be displayed. Fig. 15-20: Direct camera control dialog Ø Set the Camera ID. Ø Finally confirm with OK. The camera will be labeled as controllable in the Recording Setting dialog.

  • Page 118: 16 Hdd Management

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 16 HDD management The Hard disk management shows all the hard disks and drives fitted in the recorder or connected externally. Individual HDDs can be enabled and disabled for the recording process.
  • Page 119 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS IMPORTANT If any changes are made to the RAID settings, all recordings must be deleted. NOTE The Standard button can reset all RAID settings. All HDD’s that are currently connected will again be available for confi- guration.

  • Page 120: 17 User Management

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 17 User management Login as group is activated as default on the DLS. With this version the rights are defined for a group and the login takes place using the group name and group password.

  • Page 121: Change Group Name Or Login

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 17-2 Ø Select a group. The authorizations in this group are displayed on the right in the form of a structure tree. They can now be activated or deactivated by clicking on the appropriate checkbox.

  • Page 122: Define Or Change Passwords

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 17.1.3 Define or change passwords Fig. 17-4 Ø Select a group. Ø Click on Edit group. Ø Enter a New password. Ø Enter the password a second time for confirmation.

  • Page 123: Login As User

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS If you wish to deactivate the Dual-control login: Ø Click on the checked Dual-control login checkbox. Ø Enter and Confirm the 1st password. Ø Confirm with OK.

  • Page 124: User Rights

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Enter a name for the new user in the Add User dialog. Ø Enter a New password. Ø Confirm password. Ø Click OK. 17.2.2 User rights Users always have the same rights as the group to which they belong.

  • Page 125: Delete Users

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 17.2.4 Delete users If you wish to remove a user from a group, mark the appropriate user in the user manage- ment and then click on Delete User.
  • Page 126 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø One user login Ø Two user login Ø Single admin - user login Ø Request strict password Set One user login: Ø Mark the One user radio button.

  • Page 127: 18 Service

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 18 Service The Service menu point offers a facility to Update the recorder software and to Activate properties and functions of the recorder. 18.1 Activation Certain properties and functions of the recorder are optional (must be activated). They are only available if they were expressly order when you purchased the system.
  • Page 128 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Fig. 18-2: Load update file Ø Select the data Source where the update is located. Ø Click Load to load the files. Ø Mark the Update File.

  • Page 129: 19 System Parameters

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 19 System parameters The settings and the basic parameters for the system can be rest to the factory settings as well as being exported and imported.

  • Page 130: Parameter Import

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS If you export the system parameters to a USB stick, a ZIP file will be saved in addition to the parameter files. This contains various log and protocol files, which permit the Dallmeier Support team to analyze the recorder if necessary.

  • Page 131: 20 Hdd Replacement

    Service case means the replacement of a defective or failed HDD. Please note that a drive may only be replaced by trained personnel who have been authorized to do so by Dallmeier electronic. Contact the Dallmeier Support Team if necessary.

  • Page 132: Localization Of The Hdd

    DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 20.2 Localization of the HDD In the event of a hard disk drive defect, you can find the hard disk drive that must be replaced using the recorder’s GUI.
  • Page 133 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Pull the HDD drawer unit out carefully. Fig. 20-3: Remove the HDD drawer unit Ø Undo the 4 screws on the underside of the HDD drawer unit.
  • Page 134 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Ø Insert the HDD drawer unit into the guide rail. Fig. 20-6: Guide rail Ø Slide the HDD drawer unit carefully into the housing. Ø Ensure that you slide it straight.
  • Page 135 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 21 Technical data Technical specifications Standard/max. Video inputs DLS 4: 4x/8x analogue cameras DLS 8 / DLS 8 PLUS: 8x analogue cameras DLS 16 / DLS 16 PLUS:...
  • Page 136 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS Further specifications Archinving medium DVD-RW (optional) Hard disks Up to 2x 3,5“ Max. storage capacity Up to 2 TB Video norm PAL/NTSC Mains voltage 12V DC +/- 5 % Power consumption Max.
  • Page 137 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 22 Pin assignment RS485 2-pin ODU jack 12V Dallmeier electronic...
  • Page 138 DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS 23 Technical drawing Unit: mm Dallmeier electronic...
  • Page 139 Audio and video recorder Typen: DLS 4 / DLS 8 / DLS 8 PLUS / DLS 16 / DLS 16 PLUS Hereby the equipment is confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagne- tic Compatibility (2004/108/EG) and the Council Directive relating to Low Voltage (2006/95/ EC).

This manual is also suitable for:

Dls 8Dls 8 plusDls 16Dls 16 plus

Table of Contents
