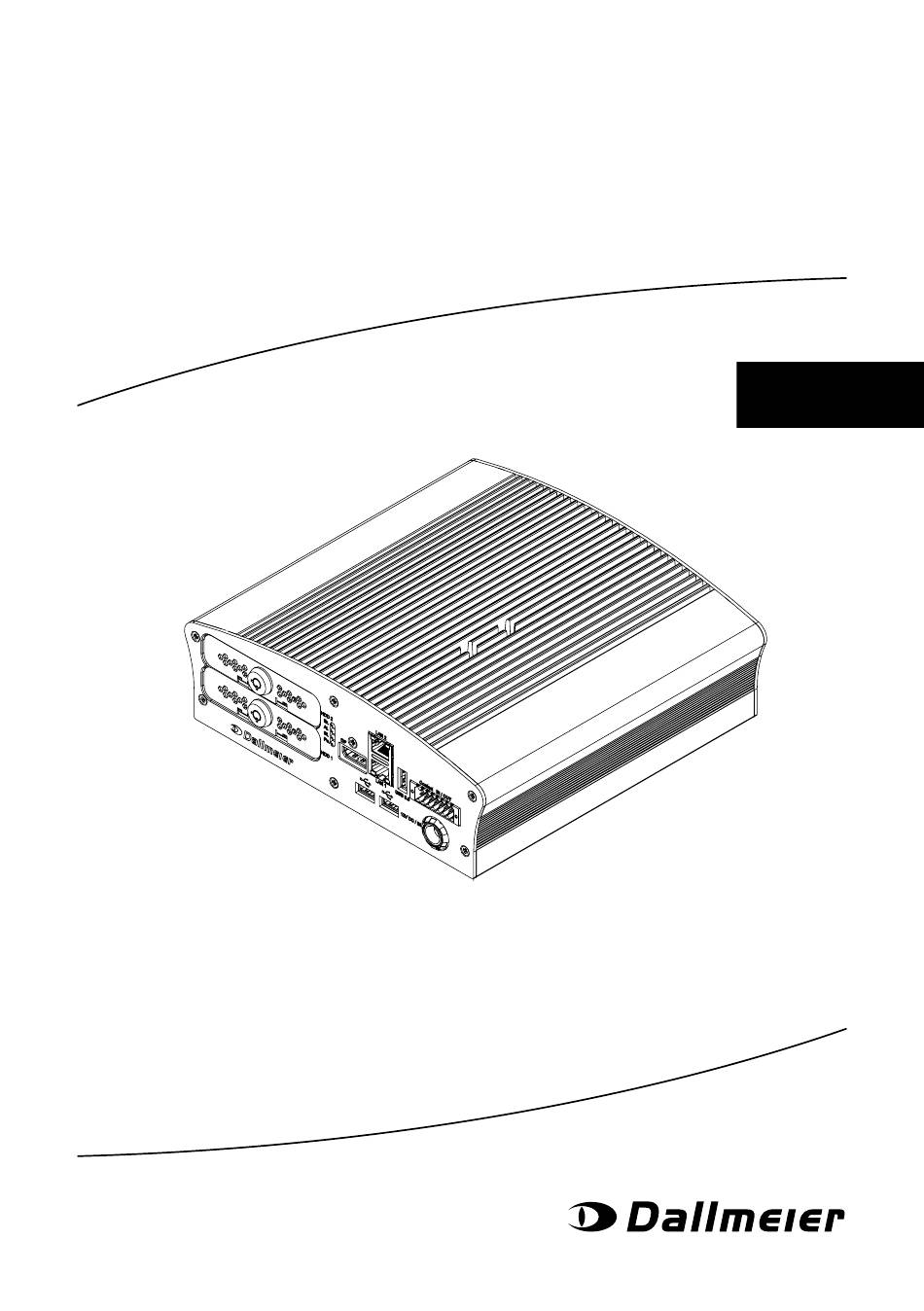

- Page 1 VideoNetBox III Commissioning English 006898 / 1.0.2 / 2018-12-19...
- Page 2 All trademarks identified by ® are registered trademarks of Dallmeier electronic. Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.
- Page 3 1× 1× 4×...
-
Page 5: Table Of Contents
VideoNetBox III Table of Contents 1 Validity 2 Documents This Document Other Applicable Documents 3 Typographical Conventions 4 Safety Instructions 5 General Notes Scope of Delivery Transportation and Packaging Warranty Appropriate Use Approvals/Certifications Note (USA) 6 Requirements Ambient conditions Stand-alone operation 7 Dimensions... -
Page 6: Validity
Always follow the contained instructions, notes and warnings and ob- serve the technical specifications. Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest updates on product documentation. -
Page 7: This Document
VideoNetBox III This Document Commissioning The document “Commissioning” (this document) contains detailed de- scriptions on installation, connection and commissioning of the device as well as safety instructions and general notes. The target audience of this document is trained system integrators. -
Page 8: Typographical Conventions
VideoNetBox III Typographical Conventions This document may contain various warning words and symbols that indicate potential sources of danger: DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. - Page 9 VideoNetBox III For reasons of clarity and readability, various text formatting elements and types of emphasis are used in this documentation: Instructions are indicated by arrows (➡). Bold and italic expressions generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu items).
-
Page 10: Safety Instructions
Modifications Do not make any modifications to the hardware or software that have not been tested and approved by Dallmeier. Inappropriate modifications may cause malfunctions, damages and data loss and may result in the loss of warranty. - Page 11 “Specification” document. Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest updates of the product documentation. Condensation Water If the device is brought from a cold to a warm environment, resulting con- densation water may cause malfunctions and damages.
- Page 12 VideoNetBox III Operating Conditions Unfavorable operating conditions may shorten the life of the device and may cause malfunctions, damages and data loss and may result in the loss of warranty. Observe the specifications given in the technical data, the operating con- dition requirements and the maintenance instructions.
-
Page 13: General Notes
General Notes Scope of Delivery Included in the standard scope of delivery is: • 1× VideoNetBox III Appliance • 2× Mounting brackets (for mounting on suitable surface ) • 4× Mounting screw (combi cross recess Form Z, M4 × 8 mm) •... -
Page 14: Transportation And Packaging
VideoNetBox III Transportation and Packaging Store the original packaging for later transportation. Dallmeier is not responsible for any damage resulting from unprofession- al/improper transportation. The device should only be shipped in the original packaging. If the original packaging is no longer available, ensure that the used pack- aging sufficiently protects the device against damage, moisture, heat and cold. -
Page 15: Approvals/Certifications
• RCM • LGC Forensics • tested according to DIN EN 50130-4, DIN EN 50121-3-1, DIN EN 50498 Visit www.dallmeier.com for possible updates. Note (USA) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence when the equipment is operated in a commercial environment. -
Page 16: Requirements
VideoNetBox III Requirements Ambient conditions Unfavourable ambient conditions may shorten the lifetime of the product and may cause malfunctions or damages. Do not operate the appliance in places with: • a large amount of dust and dirt • steam or oil vapours (e.g. kitchen) •... - Page 17 VideoNetBox III Secure Earthing ➡ Ensure a proper grounding at all times, preferably by grounding the rack directly. Power Supply ➡ Operate the device with 100/240 V AC, 50/60 Hz. ➡ Use an uninterruptible power supply (UPS) to protect the device from voltage spikes and to keep it in operation in case of power failure.
-
Page 18: Dimensions
VideoNetBox III Dimensions 201 mm 250 mm 283,5 mm 201 mm 224 mm www.dallmeier.com... -
Page 19: Installation
VideoNetBox III 8 Installation The installation of the device on a suitable surface may only be carried out by qualified personnel. NOTICE Risk of damages ➡ Ensure that sufficient air circulation is provided at the place of installation for proper cooling of the appliance. - Page 20 VideoNetBox III ➡ Fix the power supply unit to the appropriate mounting bracket using the velcro straps, if necessary. www.dallmeier.com...
-
Page 21: Hdd Installation
The device can be equipped with up to two identical hard disks. Note that all installed hard disk drives • have to be tested and released for installation by Dallmeier (see HDD whitelist at www.dallmeier.com). • must not be formatted or partitioned. - Page 22 VideoNetBox III ➡ Unlock the HDD tray with the key. ➡ Carefully pull the HDD tray out of the bay. ➡ Remove the two holdings from the HDD tray. www.dallmeier.com...
- Page 23 VideoNetBox III ➡ Slide the holdings over the HDD in such a way that that the connec- tions of the HDD are positioned at the rear side of the HDD tray. ➡ Insert the hard disk into the tray. www.dallmeier.com...
- Page 24 VideoNetBox III ➡ Slide the HDD tray back into the housing. ➡ Ensure that the HDD tray and housing are flush. ➡ Lock the HDD tray with the key. The HDD will be initialized and set into operation during the first start of the device.
-
Page 25: Connections
VideoNetBox III 10 Connections On the front side of the appliance there are various connections and slots for the hard disks. Details may vary according to the ordered features or variant. Hard Disk 1 USB Interface SATA, 2.5'' 2× USB 2.0, type A... - Page 26 VideoNetBox III Relais IN/OUT (D) Weidmüller, 16 pins 14 12 10 8 6 13 11 9 7 5 Control inputs (Contact IN) Function +5VDC isolated (SELV) Contact 1 Contact 2 Contact 3 Contact 4 14/16 GND isolated Relay (Contact OUT) Function Relay 1...
-
Page 27: Commissioning And Local Login
VideoNetBox III 11 Commissioning and Local Login Commissioning ➡ Connect the device to the voltage supply. ➡ Ensure that a monitor and mouse are connected. ➡ Switch on the monitor and the device. The user interface is displayed in its initial state as soon as the startup is complete. - Page 28 VideoNetBox III ➡ Click the Login button. The Recorder Login dialog is displayed. ➡ Click Later to login without changing a password. The configuration interface is displayed. ➡ Refer to the corresponding “Configuration” documentation. www.dallmeier.com...
-
Page 29: Commissioning And Remote Login
VideoNetBox III 12 Commissioning and Remote Login Commissioning ➡ Connect the device to the network. ➡ Connect the device to the power supply. ➡ Switch on the device. The device is ready for remote configuration via Ethernet as soon as the startup is complete (up to approx. - Page 30 VideoNetBox III ➡ Enter the serial number (e.g. DAV8-12345678) as the Password. ➡ Confirm with Login. The configuration interface is displayed. The configuration interface is compressed for narrowband connections before transmission if the Slow Network check-box is activated. ➡ Refer to the corresponding “Configuration” documentation.
-
Page 31: Specifications
VideoNetBox III 13 Specifications Components Quad-Core 4 GB Flash module 32 GB (for operating system and application) Hard disks Up to 2× 2.5" HDD (optional) Max. storage capacity Currently up to 4 TB Power supply unit External PSU, 115/230 V AC -> 12 V DC... - Page 32 Atmospheric load Dust-free Approvals and Certifications Type CE, FCC, RCM, LGC Forensics, tested according to DIN EN 50130-4, DIN EN 50121-3-1, DIN EN 50498 Detailed technical data and possible updates can be found in the current “Specification” document at www.dallmeier.com. www.dallmeier.com...
-
Page 33: Maintenance
VideoNetBox III 14 Maintenance The device may only be opened by qualified personnel for commission- ing, inspection, maintenance and repair. WARNING Danger of electric stroke The device is equipped with an external power supply unit. ➡ Ensure that the supply line is disconnected from the supply circuit. - Page 34 VideoNetBox III Notes www.dallmeier.com...
- Page 35 VideoNetBox III Notes www.dallmeier.com...
- Page 36 Dallmeier electronic GmbH & Co.KG Bahnhofstr. 16 · 93047 Regensburg · Germany Phone +49 941 87 00-0 · Fax +49 941 87 00-180 www.dallmeier.com · info@dallmeier.com...
