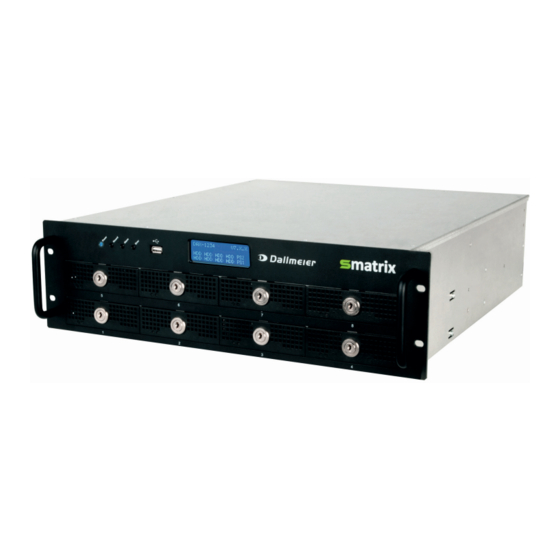

- Page 1 Commissioning English Dallmeier DMX 2400 003037 / 1.1.1 / 2014-03-13...
-
Page 2: Table Of Contents
Validity ............................................2 Safety Instructions ........................................3 HDD Mounting...........................................4 Mounting .............................................5 Connections ..........................................6 Login ............................................8 Dimensions ..........................................10 Validity This documentation applies to the audio and video recorder DMX 2400. It has been produced on basis of software version 7.3.5 SP P. www.dallmeier.com... -
Page 3: Safety Instructions
(UPS). A sudden voltage drop can damage the RAID system. Modifications Do not make any modifications to the hardware or software that has not been tested and approved by Dallmeier. Inappropri- ate modifications can cause malfunctions, damages and data loss and can result in loss of warranty. -
Page 4: Hdd Mounting
Recorders that have been ordered without hard disk drive must be equipped with four 3.5" hard disk drives (Raid 6) at least. Note that all mounted hard disk drives must be tested and released for mounting by Dallmeier (HDD whitelist in the Partner Forum)! may not be formatted or partitioned! ... -
Page 5: Mounting
19’’ racks with a depth of 60 up to 120 cm. ► Ensure proper ambient conditions. ► Exclusively use the 19’’ installation rails provided by Dallmeier. ► Shorten the installation guidances (predetermined breaking point) according to the depth of the 19’’ rack if necessary. -
Page 6: Connections
Weidmüller, 2 pins Serial Interface COM 1 Contact IN Cameras (1 – 16) 2x Weidmüller 2 Pins, RS485 (for Dallmeier PTZ dome cameras only) Weidmüller, 18 pins, only for switch / push button (dry contact) Video IN (1 – 16) Relay OUT (1 –... - Page 7 Connections Contact IN Cameras (M) 17 (GND) Assignment Standard Function Contact 1 Camera 1 - Start recording Contact 3 Camera 3 - Start recording Contact 2 Camera 2 - Start recording Contact 5 Camera 5 - Start recording Contact 4 Camera 4 - Start recording 2 (GND) Contact 7...
-
Page 8: Login
Note that the definition of the passwords and the network parameters is necessary for remote access (e. g. PView 7). ► Left-click the background. The Recorder login dialogue is displayed. ► Click Later to login without changing a password. The graphical configuration interface of the recorder is displayed. ► Observe the appropriate Configuration documentation. www.dallmeier.com... - Page 9 Remote Login Commissioning ► Connect the device to the network. ► Connect the device and relevant peripherals to the voltage supply. ► Switch on the peripherals and the recorder. The recorder is available for remote configuration via Ethernet after the start (up to approx. 5 minutes). The IP address of the device (default 192.168.2.230) can be changed without login using the software PService.
-
Page 10: Dimensions
533 mm (21") 133 mm (5.3") 483 mm (19.0") 19 " Rail 40 mm (1.6") 645 mm (25.4") 22 mm 445 mm (0.9") (17.5") 35 mm 19 " Holder (1.4") 43 mm (1.7") 32 mm (1.2") 50 mm (2.0") www.dallmeier.com... - Page 11 Notes...
- Page 12 The manufacturer accepts no liability for damage to property or pecuniary damages arising due to minor de- fects of the product or documentation, e.g. print or spelling errors, and for those not caused by intention or gross negligence of the manufacturer. Dallmeier electronic GmbH & Co.KG Cranachweg 1 93051 Regensburg, Germany www.dallmeier.com...
