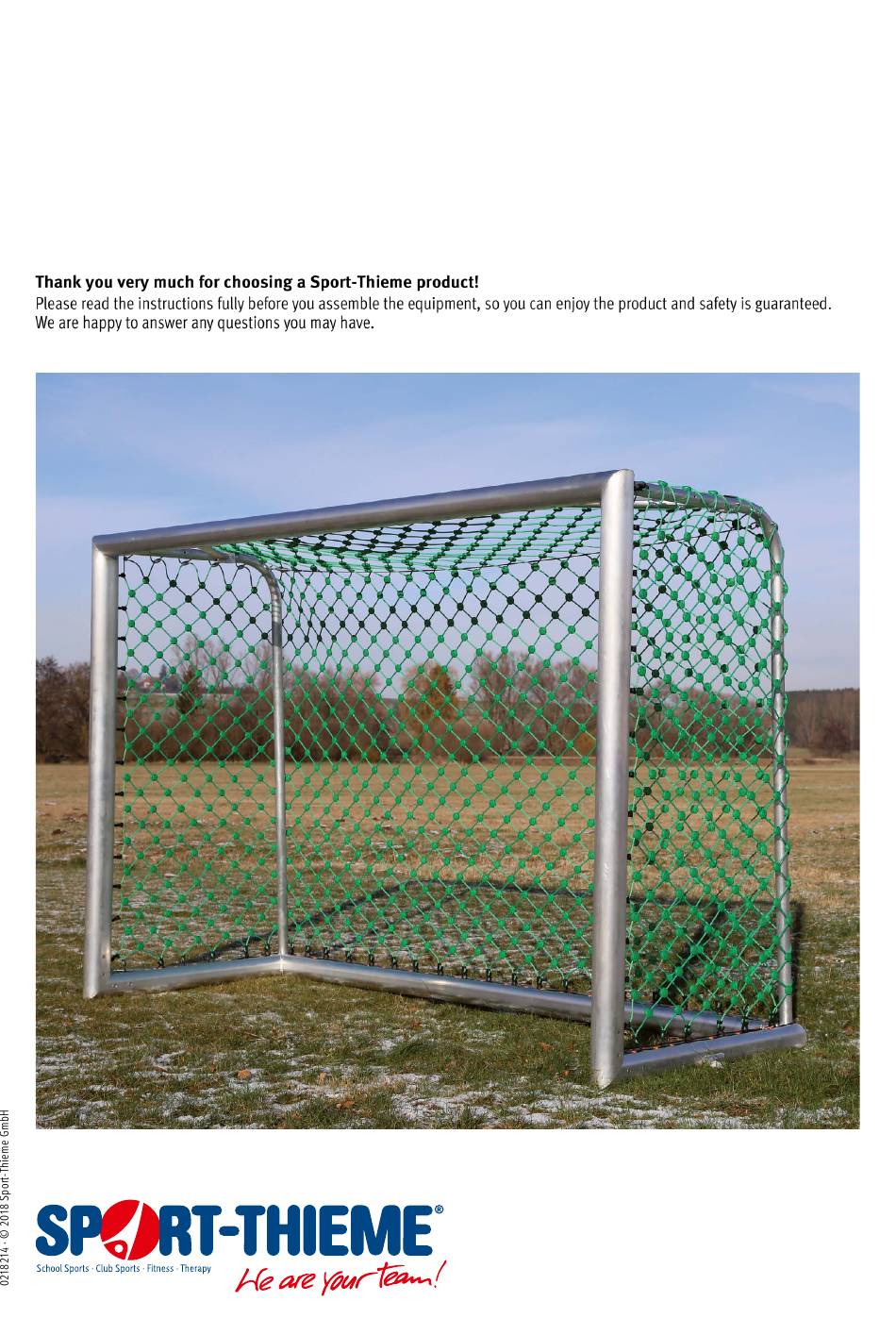

- Page 1 Assembly instructions Art.-Nr.: 206 9539 „Kompakt“ Vandalism-Proof Playground Goal D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921...
- Page 2 Assembly instructions for Art.-Nr. 206 9539 1. Assembly of goal 1.1 Scope of delivery: 1 x construction crossbar/uprights, welded 1 x construction ground tube/bar, welded 2 x goal net hoop (1 left/1 right) 2 x net hoop brace 2 x aluminium connecting element for goal frame to ground frame 16 x safety hexagon countersunk flat head screw DIN 7991 M8 x 20 8 x safety hexagon socket screw DIN 933 M8 x 20 2 x safety hexagon socket screw DIN 933 M8 x 16...
- Page 3 Assembly instructions for Art.-Nr. 206 9539 1.3 Installation:: Step 1: Lay ground frame (with welded fixing attachments) on the floor with upturned chamber. Push on each side 1 nut M8 x 40 into the channel of the bar. It will later be used to fix the net hoops.
- Page 4 Assembly instructions for Art.-Nr. 206 9539 Step 5: Place boring of the u profile welded at the net hoop braces above the front boring in the net hoops. Stick 1 hexagon socket screw DIN 933 M8 x 60 each on both sides.
- Page 5 Assembly instructions for Art.-Nr. 206 9539 2. Assembly of net 2.1 Scope of delivery 1x steel rope 3/4mm Ø PA coated 8 m long with one tension lock each 1x steel rope 3/4 mm Ø PA coated 6 m long with one tension lock each 1x handball goal net (Herkules Ø...
