Summary of Contents for Raleigh VOLT

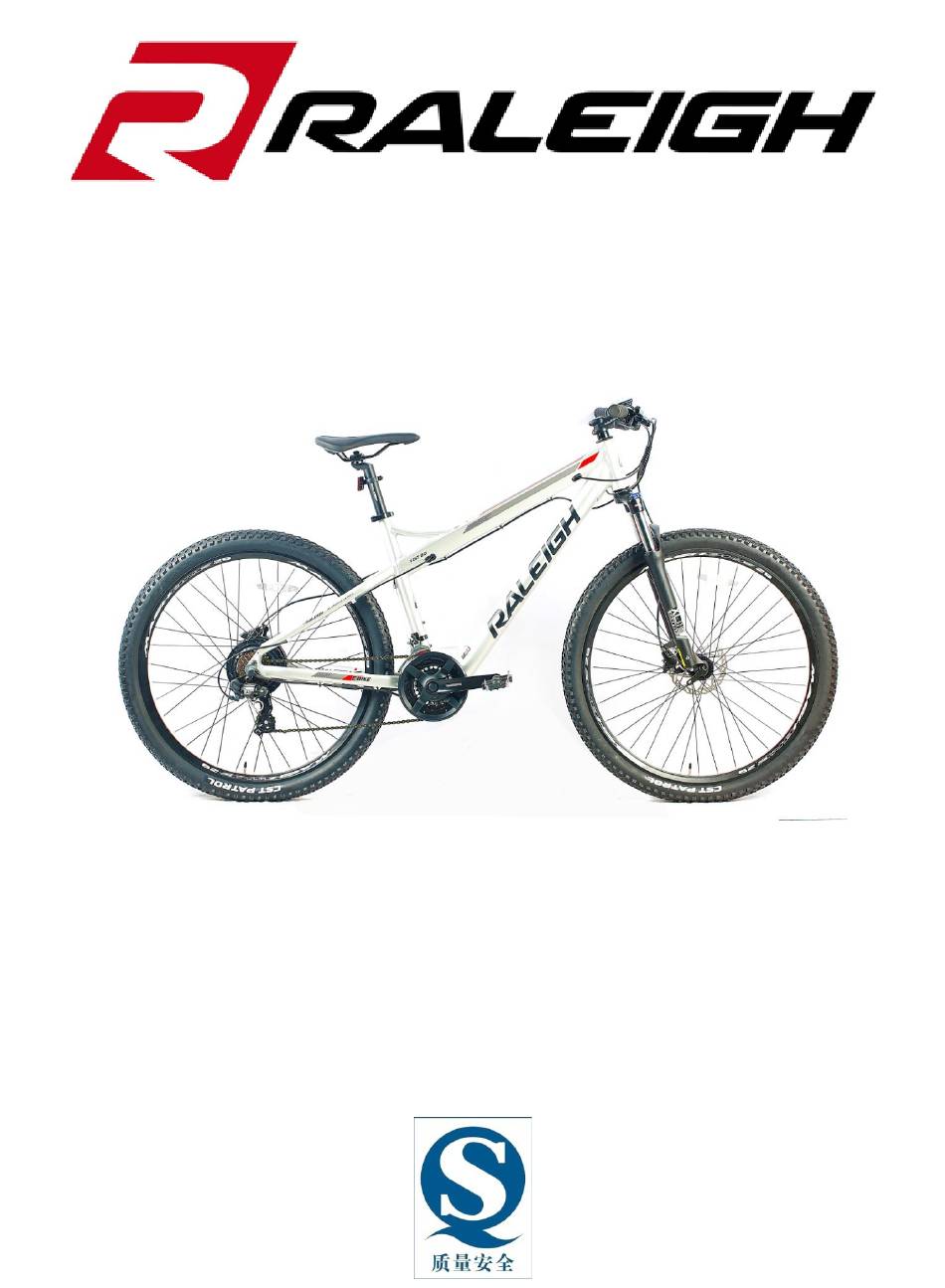

- Page 1 RALEIGH VOLT E-BIKE USER MANUAL FOLLOW STANDARD GB177761-1999 ENERGY SOURCE :LITHIUM BATTERY...
-
Page 2: Table Of Contents
Contents 1. Safety information 3. Riding the E-Bike 4. Products characteristics 4. Product specifications 5. Display 9. Battery 10. Battery charger 10. Charging the battery 11. Battery LED indicators 11. Removing the Battery 11. Assist levels and speed 12. Range 13. -
Page 3: Safety Information
There is a risk of serious injury-even fatal-if you do not follow instructions. Managing the battery How safe maintenance is ensured · Use only batteries and chargers from Raleigh · Remove the battery pack from the E-BIKE before with your bike. Use of other battery packs can you start working on it (e.g. - Page 4 WARNING Managing the battery There is a danger of personal injury or property · Do not subject the battery or the charger to physical shocks. E.g. by dropping. damage How safe riding is ensured · Fluid that leaks from the battery pack may cause skin imitation or burns.
-
Page 5: Riding The E-Bike
Riding the E-bike 1.Fit the battery Note If the battery is not used for 24 hours or longer, it will automatically go in to sleep mode. Press the power button for three seconds. 2. Switch on the bike Push ON/OFF bottom to operate e- bike system. -
Page 6: Products Characteristics
Product characteristics Battery Display Motor Products specification Operating temperature range during discharge -20℃ to 60℃ Operating temperature range during charge 0℃ to 45℃ Storage temperature (battery) -20℃ to 45℃ Humidity (storage) Up to 80% Charging voltage 100V to 240V Charging time Approx 6 hours Battery type Lithium on battery... - Page 7 Display SPEED OMETER POWER ASSITANT(5-LEVEL) POWER ON/OFF POWER ASSISTANT UP & DOWN DISTANT OMETER BATTERY OMETER...
- Page 8 Function Model: TC480 Battery indicator Auto dormancy 3 Speed PAS Manual cruiser throttle propel Pedal/throttle 5 Speed PAS Instantaneous power display Speed ODO/TRIP Average speed display Intelligent error codes display Kilometer/mile Unit switch...
- Page 9 DISPLAY DESCRIPTION...
- Page 10 OPERATING INSTRUCTIONS...
- Page 11 Battery Charging port Note： · If the E-Bike is not in use, keep it at a temperature between 0 ℃ and 40 ℃ in a dry environment, · Do not store the battery with low capacity for a longer period. ·...
-
Page 12: Battery Charger
Battery charger WARNING · Use only batteries and chargers from Raleigh with your bike. Use of other battery packs can cause injury and involve risk of fire. If you use other battery packs, we will assume no liability or honour warranties ·... -
Page 13: Removing The Battery
WARNING · Do not subject the battery or the charger to physical shocks. E.g. by dropping. Rinse in the event of accident contact with water. If fluid gets in your eyes, seek medical advice. Fluid that leaks from the battery pack may cause skin irritation or burns. ·... -
Page 14: Range
Range LEVEL-1 LEVEL-2 80KM LEVEL-3 68KM LEVEL-4 LEVEL-5 50KM 43KM 30KM Factors which affect the range The above figures are based on a speed of 20km/h on a level road at 15 ℃ -20 ℃. The range is influenced by many factors: Type, condition and air pressure ●... -
Page 15: Removing The Rear Wheel (To Repair A Puncture)
Removing the rear wheel(to repair puncture) Remove the cap and release the nut. Remove the another cap and release the nut. Unplug the wiring harness. Please note that the plug has a specific pin insert pattern and the arrow points should be aligned before inserting the plugs. -
Page 16: Ec Declaration Of Conformity
Distributor: Raleigh SA Pty Ltd,. Unit 4 Allhart park, 143 Western service Road, Woodmead, Sandton Gauteng Description of Equipment Raleigh Volt E-Bike 250 W Rear Dive System. 8Ah Li-Ion Battery & Battery Charger The following harmonized standards have been used: EN 15194: 2009+A1: 2011 Cycles- Electrically power assisted cycle-EPAC Bicycle. -
Page 17: E-Bike Specific Warranty Conditions
E-Bike specific warranty conditions Your Raleigh Volt e-bike is guaranteed against manufacturing defects arising from faulty workmanship or materials for 1 years from the original date of sale. Providing that the cycle: You are the original owner of the cycle and have the proof of payment. - Page 18 Please recycle your spent batteries. Batteries should not be disposed of in unsorted municipal waste, but separately collected to facilitate the correct treatment and recycling of the substances they contain. The recycling of batteries ensures the recovery of these valuable materials and prevents any potentially harmful effects upon both the environment and human health.
